Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
MC-PDOX02 51304487-150 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
MC-PDOX02 51304487-150 |
|
Product Type: |
Digital Output Processor |
|
Dimensions: |
2.9 × 31.9 × 27.8 cm |
|
Weight: |
0.66 kg |
|
Output Channels: |
16 |
|
Conformal Coating: |
Yes |
|
Redundancy Support: |
Not supported |
|
Maximum Load Current (24 VDC): |
500 mA per channel |
|
Output Types: |
24 VDC non-isolated; 24 VDC isolated; 3–30 VDC solid-state; 31–200 VDC solid-state; 120/240 VAC solid-state; 120 VAC / 125 VDC relay; 240 VAC / 125 VDC relay |
|
CE Compliance: |
Yes |
Description

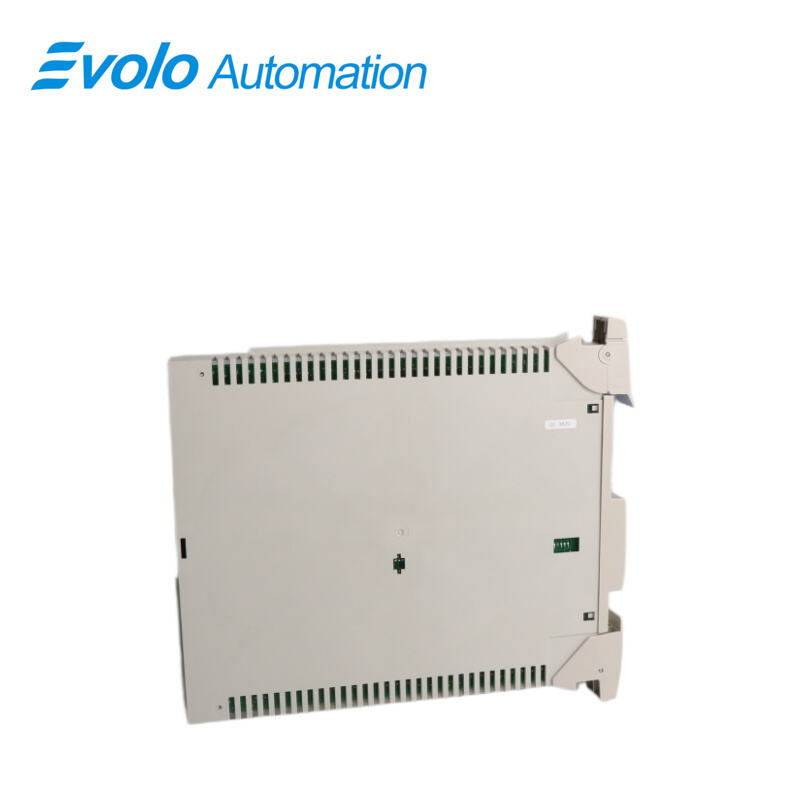

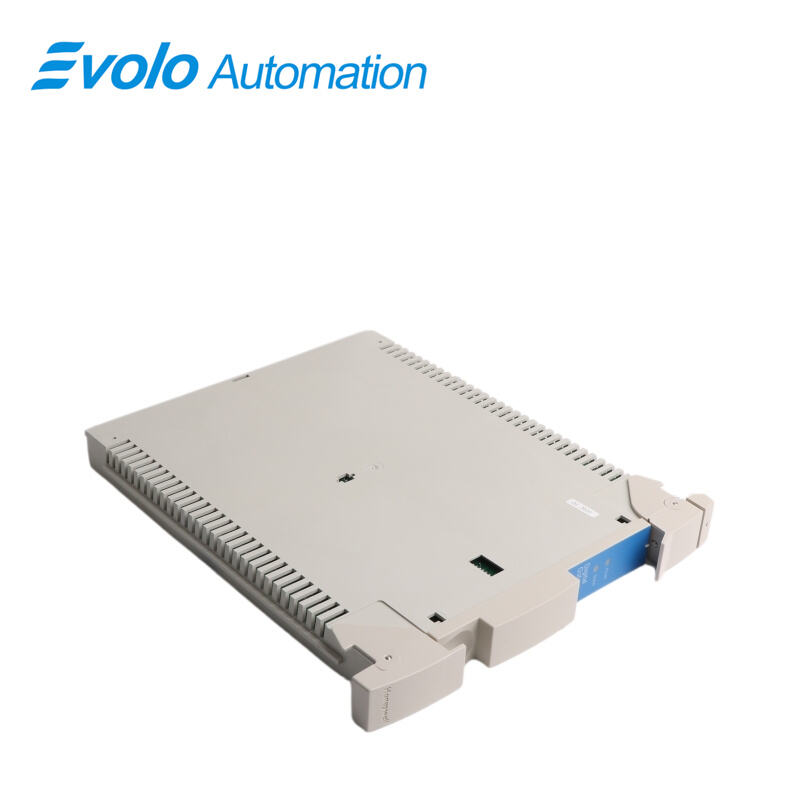

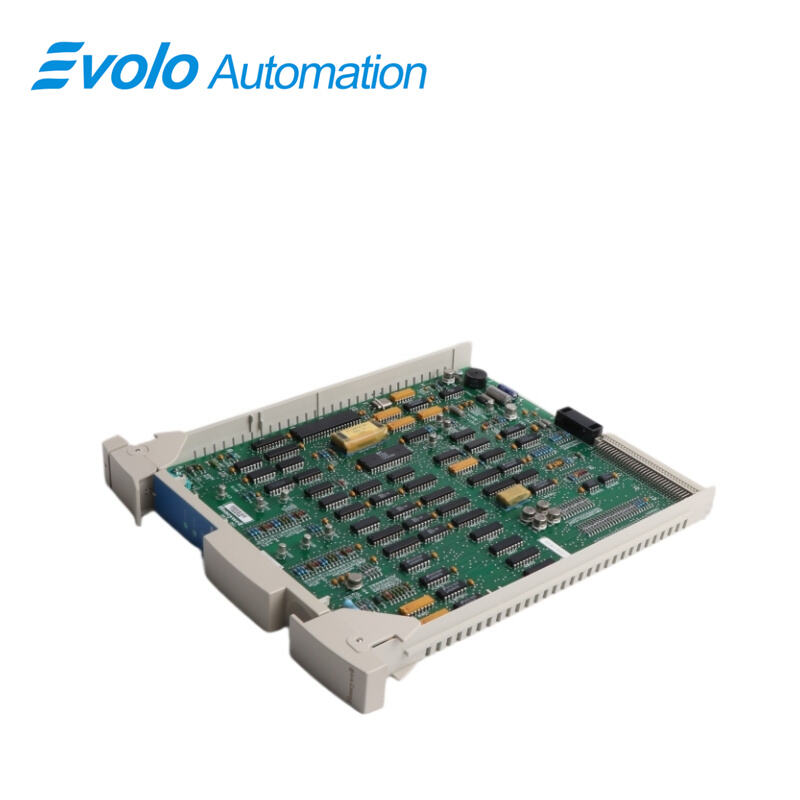

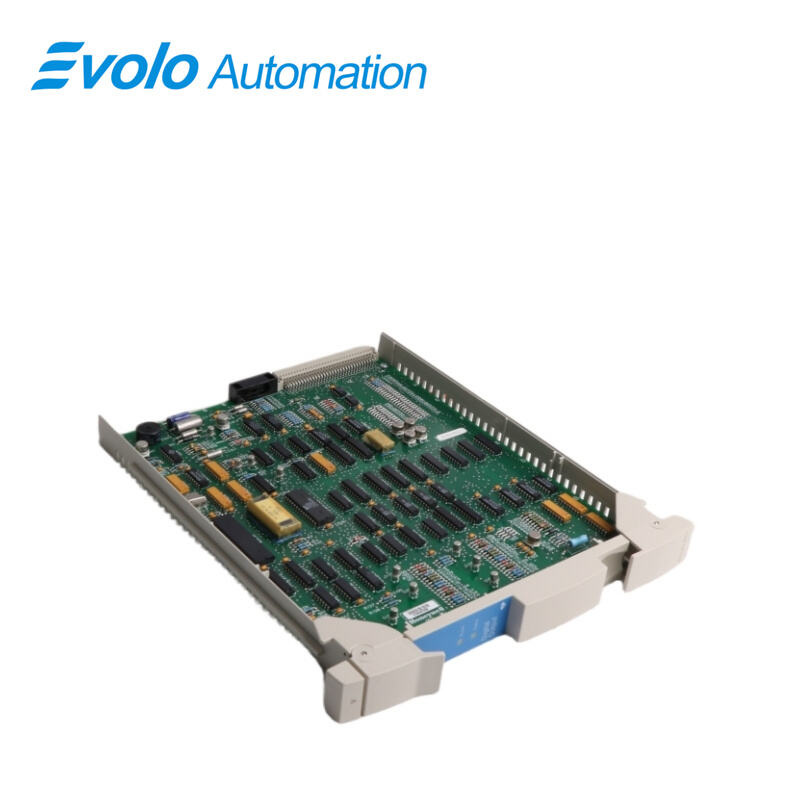

Honeywell 51304487-150, also known as the MC-PDOX02, is a Digital Output Processor (DO IOP) used for industrial automation applications. It provides 16 isolated digital output channels, facilitating precise control in various systems. This module is CE compliant and features a conformal coating for enhanced protection against environmental factors.
Applications
Fine Chemical Plants: Drives multiple solenoid valves with corrosion-resistant protection for acidic and alkaline environments.
Combined Cycle Power Plants: Controls alarm lights and indicators with high channel density for simplified cabinet wiring.
Pharmaceutical Packaging Plants: Uses solid-state outputs for fast, spark-free cylinder control in high-frequency operations.
Automotive Assembly Plants: Uses relay outputs for direct integration with existing AC power control circuits.
Water Pump Stations: Centrally controls valve operations for distributed pump systems, reducing the need for intermediate relays.
Features
High Reliability: Ensures consistent performance in critical automation tasks
Robust Design: Built to withstand industrial operating conditions
Easy Integration: Compatible with Honeywell control platforms
Flexible Outputs: Supports multiple digital output configurations
Enhanced safety: Provides isolation and protection for connected devices
FAQ
Q: What are the channel count and maximum load current per channel of MC-PDOX02 51304487-150?
A: 16 channels, maximum 500 mA per channel (24 VDC).
Q: What output types are supported by MC-PDOX02 51304487-150?
A: 24 VDC (isolated/non-isolated), solid-state relays (3–30 VDC / 31–200 VDC / 120/240 VAC), and mechanical relays (120/240 VAC / 125 VDC).
Q: Does MC-PDOX02 51304487-150 include conformal coating and CE compliance?
A: Yes, both included and compliant.
Q: Does MC-PDOX02 51304487-150 support redundancy?
A: No, not supported.
Q: What are the maximum DC control voltages for solid-state and mechanical relays in MC-PDOX02 51304487-150?
A: Solid-state relay 200 VDC, mechanical relay 125 VDC.
