IS2020JPDCG1ACB Power Distribution Module

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	IS2020JPDCG1ACB
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The IS2020JPDCG1ACB is a GE Mark VI component. The Mark VI system is part of the Speedtronic series for steam or gas turbine management that has been used since the 1960s in its various iterations. The Mark VI Turbine Control System Series that contains this IS2020JPDCG1ACB printed circuit board product offering offers a specific functional application range that expands upon the previous Mark V Series, as it added the alternative energy-focused wind turbine application to the gas and steam setting established through this IS2020JPDCG1ACB product's previous Mark V Turbine Control System Series. This IS2020JPDCG1ACB device's greater Mark V Series is also valued as a function of its status as one of the trusted automated industrial retailer's final-developed GE Mark product series to exhibit the patented Speedtronic control system technology across a wide variety of PCB product offerings. This IS2020JPDCG1ACB device is guaranteed warrantied protection upon any purchase here.

Applications

Power Generation:

Gas Turbine Control: Provides a stable DC power supply (e.g., 28V DC or 125V DC) for control and protection modules, ensuring electrical safety for turbines operating at high speeds.

Power Plant Subsystems: Manages power distribution to generators, motors, and critical protection circuits.

Oil & Gas: Power drive and process control systems for refineries, gas processing plants, and offshore platforms, providing redundant power support in harsh industrial environments.

Industrial Automation:

Aluminum Smelting and Steel Manufacturing: Powers complex, large-scale machinery control systems in aluminum electrolysis cell control, hot/cold rolling production lines, and ironmaking processes.

Material Handling and Packaging: Central control panels for large-scale logistics systems and packaging lines.

Renewable Energy: Management and control systems for distributing electricity to energy conversion and storage in large-scale wind or solar power plants.

Hardware Tips

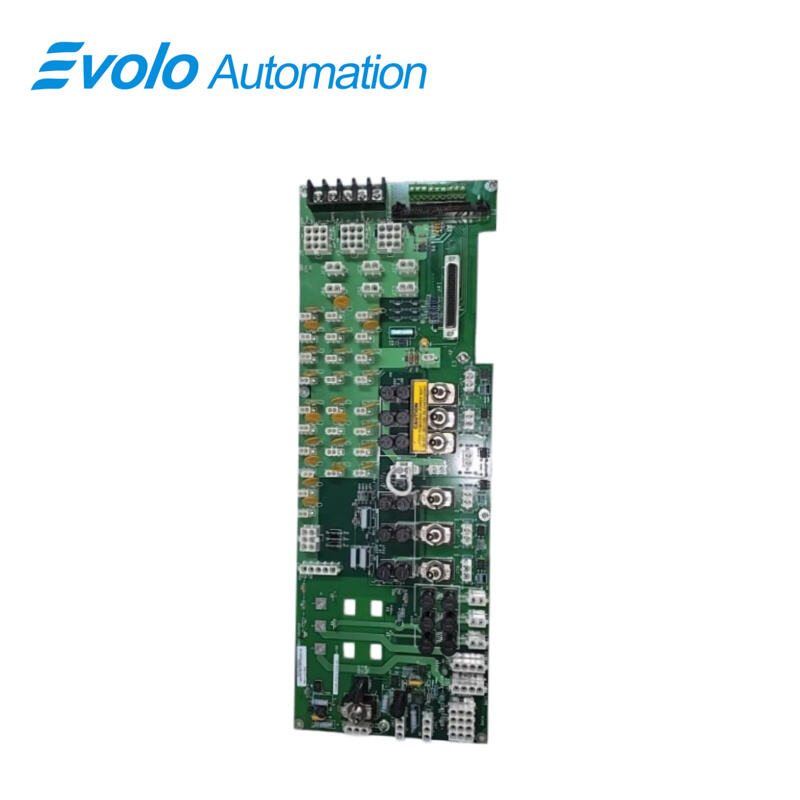

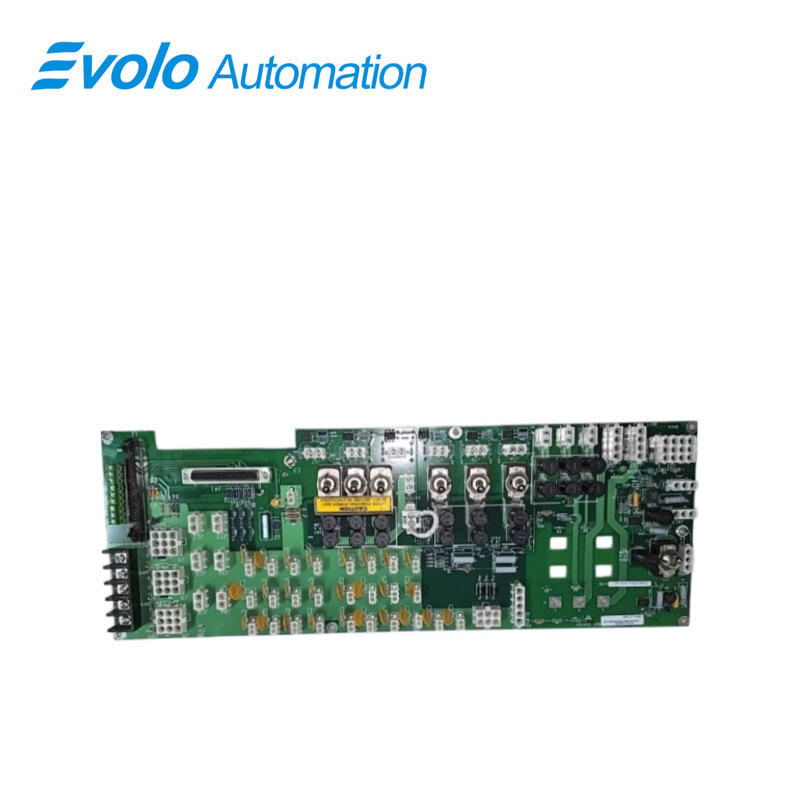

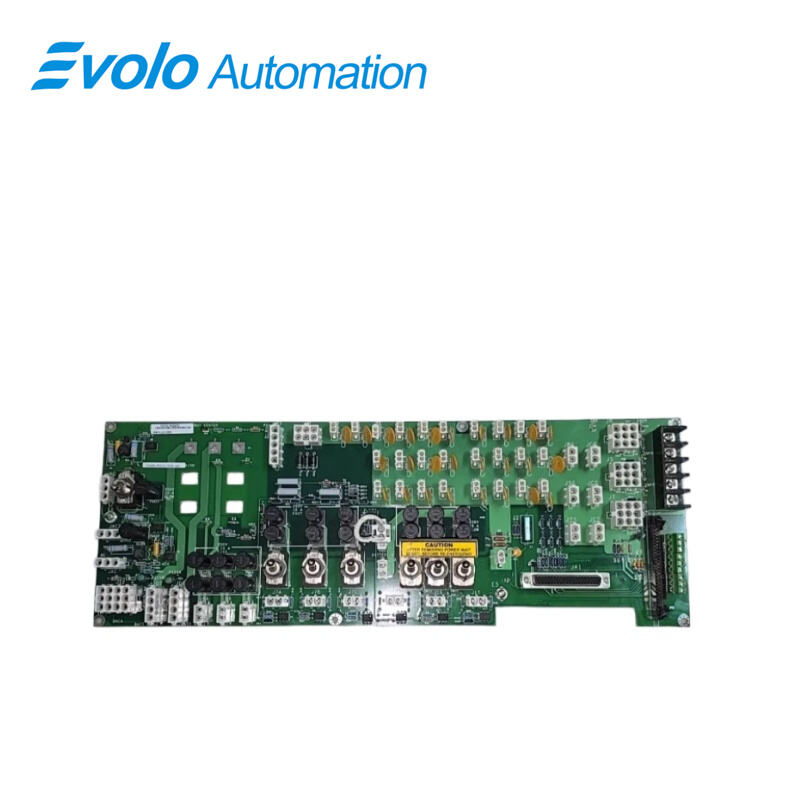

The IS2020JPDCG1ACB is a component-dense printed circuit board. This board is designed to mount to a metal sub-panel via standoffs and screw mounts. This sub-panel adds several connectors through board cutouts, including screw connects and stab-on connectors, which use surface wiring. The subpanel also allows for the mounting of a large vertical component to the bottom right corner of the board where there is a small rectangular cut-out in the board edge. This vertical component attaches to the PCB via a female multi-pin connector and wires in via surface wiring connected to a two-pin plug. The IS2020JPDCG1ACB has a five-position terminal strip located next to three small three-position terminal strips. There are seven toggle switches placed on the board as a single switch, a line of three, and a line of three with a warning label that states “After removing power, wait 30 seconds before re-energizing.” Surprisingly enough, this IS2020JPDCG1ACB printed circuit board product offering from General Electric's Mark VI Turbine Control System Series is not considered to exist as the originally-developed product of its specific Mark VI Series functional product role, as that would have to be deemed the IS2020JPDCG1ACB parent Power Distribution Module notably not adopting this IS2020JPDCG1ACB device's singular A-rated functional product revision.

The IS2020JPDCG1ACB is populated by two LEDs, twenty fuses, a male ribbon connector, and 52 plug connectors of various sizes, from 2- to 12-position plugs. Other components on the board include a jumper switch, a transformer, transistors, varistors, capacitors, resistors, and integrated circuits. These components are marked with reference designators. The board is marked with codes, the board ID number, and the round GE logo. This IS2020JPDCG1ACB device is not surrounded by many originally-printed instructional manual materials online. With this being the case, the IS2020JPDCG1ACB functional product number itself can be rolled out as a decent to strong primary supplementary source of IS2020JPDCG1ACB Board hardware component and component specification information, as it codes for a set of specially-relevant IS2020JPDCG1ACB Board details through its standard series of consecutive functional naming chunks. For example, this IS2020JPDCG1ACB product number begins with an inclusion of the dual-functional IS200 series tag responsible for delegating both this IS200JPDCG1A device's normal Mark VI Series assembly as well as its domestic original location of GE manufacture. Some of the other relevant IS2020JPDCG1ACB Board details indicated in this fashion include this IS2020JPDCG1ACB device's:

JPDC functional product acronym

Normal PCB Coating style

Group one Mark VI Series grouping

A-rated functional product revision

Frequently Asked Questions

Where specifically was this IS2020JPDCG1ACB device manufactured?

This IS2020JPDCG1ACB Board was made in General Electric's Salem, Virginia factory plant area specifically.

Is this IS2020JPDCG1ACB product definable as a Power Distribution Board?

Yes. This IS2020JPDCG1ACB product may actually be more accurately definable as a Power Distribution Board, given its IS2020JPDCG1ACB functional product number's assertion of a normal mark VI Series PCB asssembly type.

Is IS2020JPDCG1ACB brand new or refurbished?

It is brand new and comes with a one-year warranty.

How long will it take for the IS2020JPDCG1ACB to arrive after I place an order?

Once payment is confirmed, we ship immediately. Delivery typically takes 3–5 days from China to your location.

Do you offer any discounts?

Yes! For discounts on IS2020JPDCG1ACB, please contact John for the best offer.
