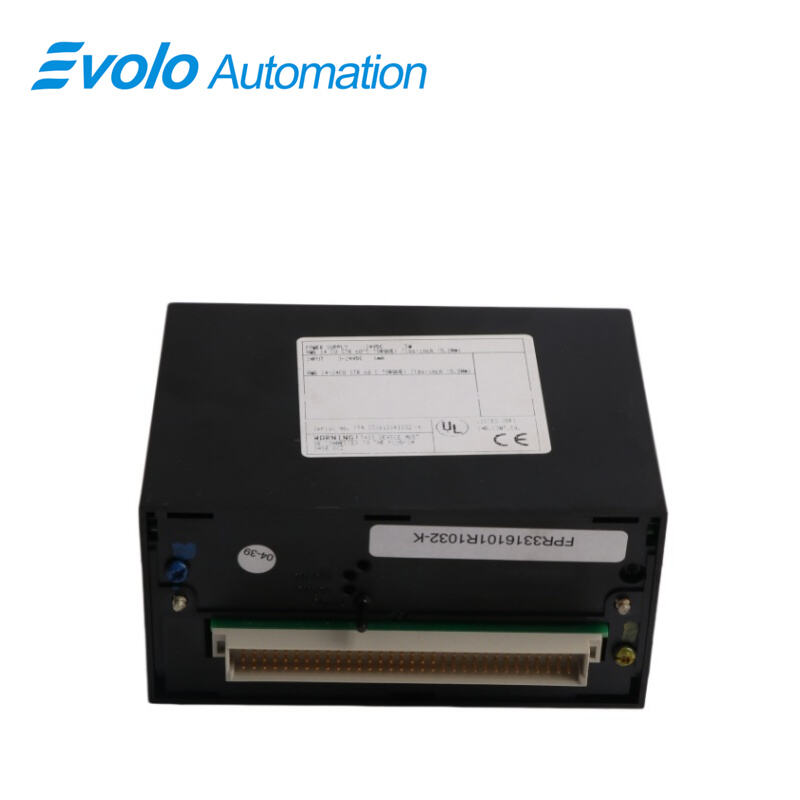

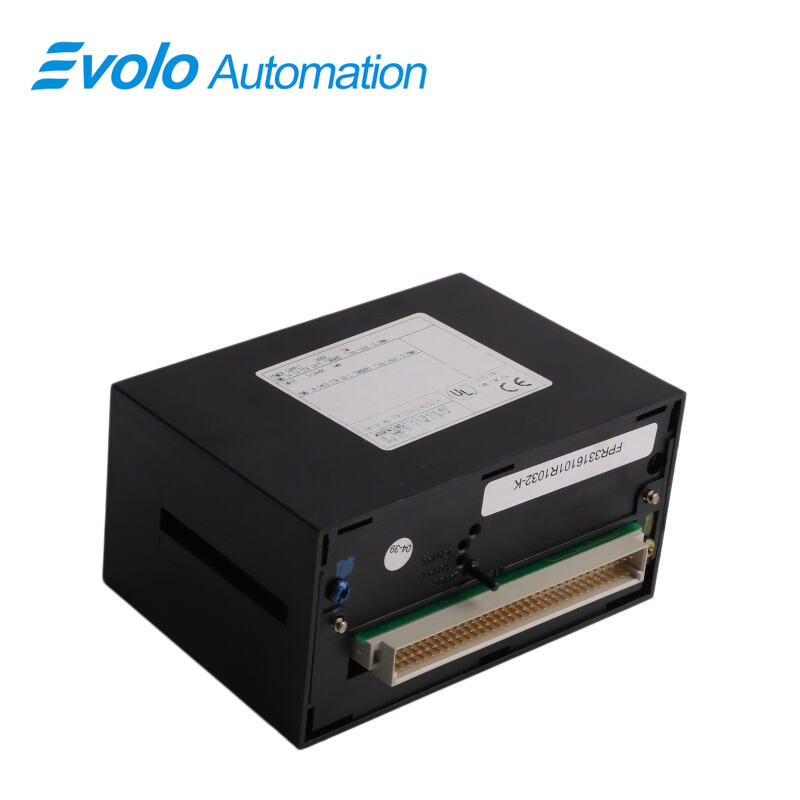

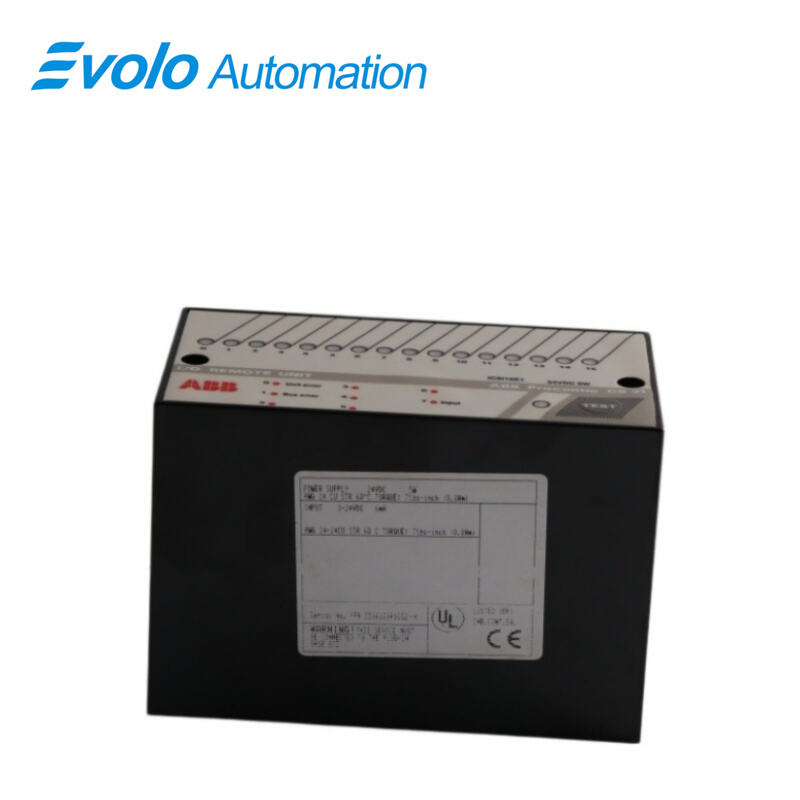

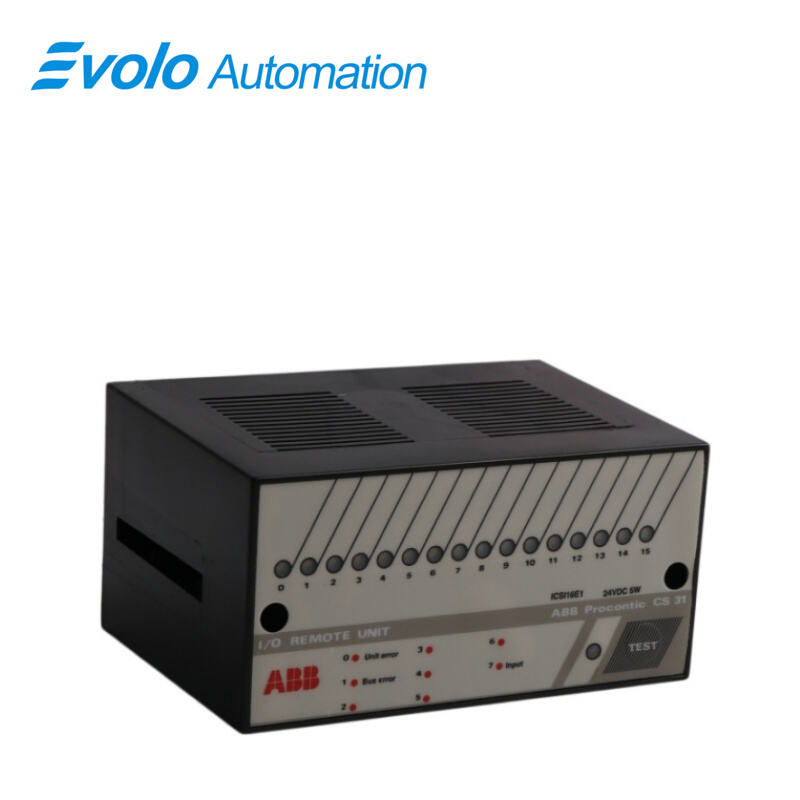

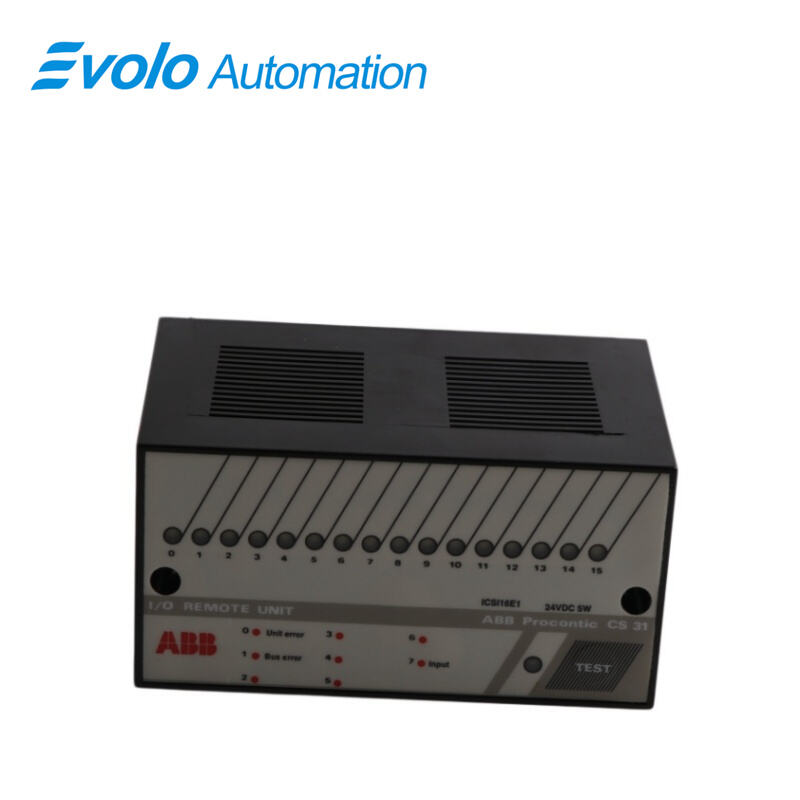

ICSI16E1 FPR3316101R1032 Procontic CS31 Input unit, China ICSI16E1 FPR3316101R1032 Procontic CS31 Input unit Manufacturers, Suppliers, Factory

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	ICSI16E1 FPR3316101R1032
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Part Number	ICSI16E1 FPR3316101R1032
Product Type	Procontic CS31 Input Unit
Dimensions	12.2×9.2×6.3 cm
Weight	0.26 kg
Power Supply	24 VAC
Input Type	24 VDC isolated inputs
Input Channels	16 channels
Input Delay	Configurable 2–32 ms
Series	Procontic CS31

Description

The ABB ICSI16E1 FPR3316101R1032 is a high-density Procontic CS31 input unit specifically engineered for the Procontic CS31 fieldbus system. Designed to interface high-voltage AC signals directly from the field, this module serves as a critical bridge between AC-powered control circuits and the central automation network. Its sophisticated architecture allows for the simultaneous monitoring of numerous digital states, converting high-level AC inputs into reliable logic data for real-time processing.

Applications

Machine Tool Plants: Used to collect numerous sensor signals from multi-axis machining centers, enabling high-density limit and status monitoring.

Food and Beverage Plants: Remotely monitor DC digital signals from conveyor belts and sorting mechanisms on AC-powered filling lines.

Textile Printing and Dyeing Plants: Suitable for distributed switching signal feedback in high-vibration, dusty environments such as large looms.

Packaging Machinery Plants: Integrated into high-speed packaging equipment, utilizing its adjustable delay function to accurately capture color mark and positioning sensor signals.

Smart Warehousing Plants: Serves as a remote I/O station in stacker cranes and conveyor systems, providing real-time feedback on goods arrival and robot position status.

Troubleshooting and Maintenance

Troubleshooting:
Signal delay: Strong interference may cause false triggering; increase input delay (e.g., 16ms) to improve anti-noise performance.

Power supply check: Ensure stable 24VAC input; voltage fluctuation may cause logic errors or communication loss.

Maintenance:
Terminal tightening: Regularly check wiring terminals to prevent poor contact and signal loss due to vibration.

Insulation test: Periodically verify isolation impedance between inputs and system bus to maintain protection in harsh environments.

FAQ

Q: Does the ICSI16E1 FPR3316101R1032 acquire DC or AC signals?
A: It acquires 24 VDC digital inputs, but operates on a 24 VAC supply.

Q: How to change input delay of ICSI16E1 FPR3316101R1032 16 channels?
A: Delay can be set via software or hardware from 2–32ms depending on site needs.

Q: Will a channel short circuit of ICSI16E1 FPR3316101R1032 damage the PLC?
A: No. All 16 channels are isolated, preventing damage to the master station.

Q: What if ICSI16E1 FPR3316101R1032 24 VAC power is insufficient?
A: Indicators may turn off, CS31 bus may go offline, and inputs may not update.

Q: Can ICSI16E1 FPR3316101R1032 be DIN rail mounted?
A: Yes. With its CS31 base, it supports DIN rail or panel mounting.
