Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
HITE303166R1 HITE515100 IDB761A |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Part Number |
HITE303166R1 HITE515100 IDB761A |
|
Product Type |
Control Board |
|
Dimensions |
1.8×20.3×30.3 cm |
|
Weight |
0.46 kg |
|
Operating Voltage |
24 VDC |
|
Input Current |
5 A |
|
Output Current |
3 A |
|
Power Consumption |
250 W |
|
Communication Interfaces |
10/100/1000 Ethernet, RS-485, 6× USB 3.0 |
|
Operating Temperature Range |
-20°C to +50°C |
|
Storage Temperature Range |
-40°C to +85°C |
|
Protection Rating |
IP54 |
|
Certifications |
CE, UL, CSA |
Description

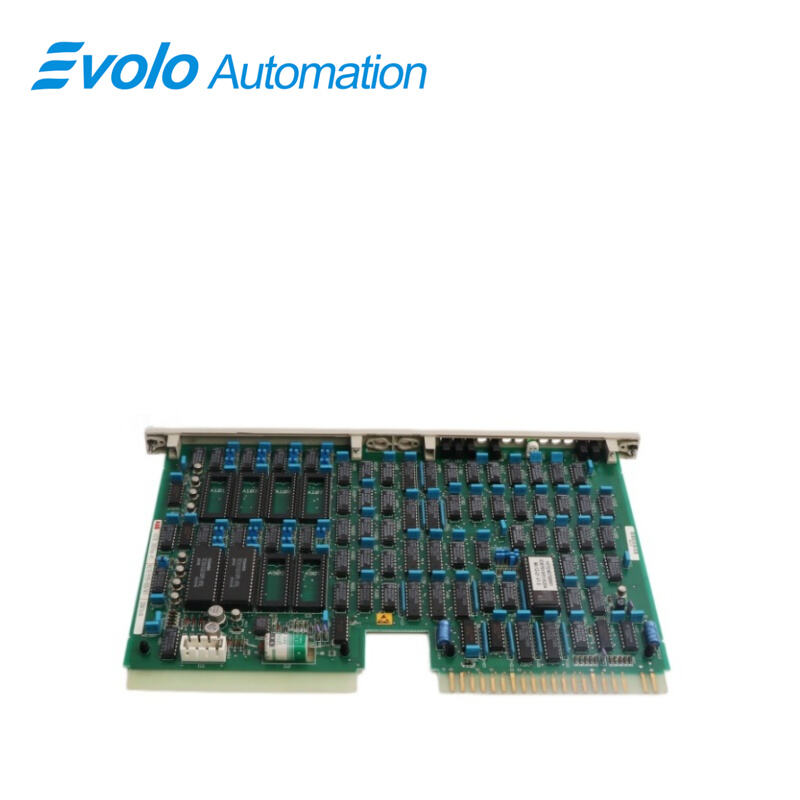

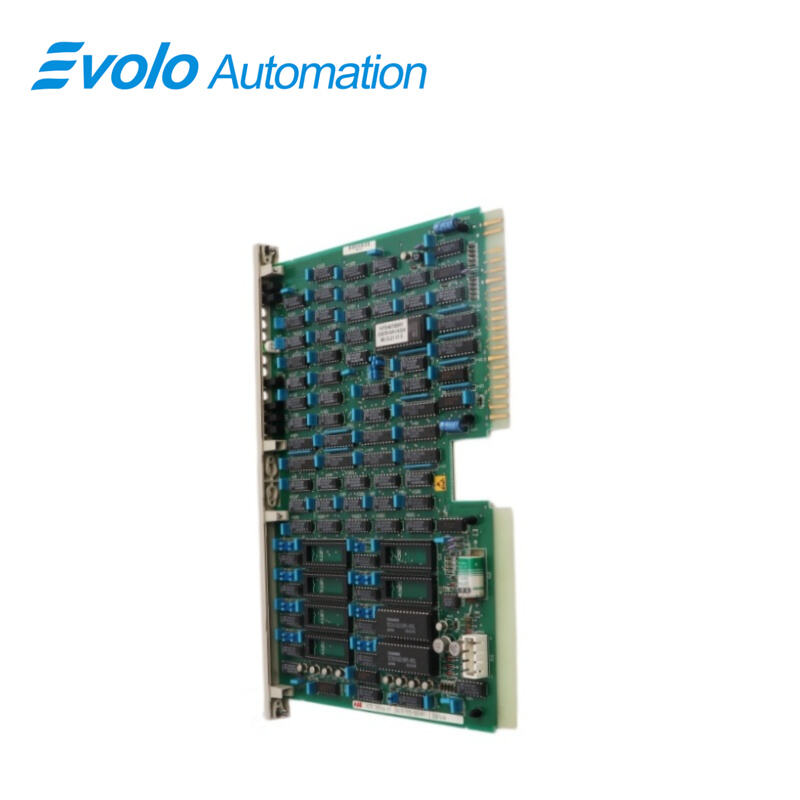

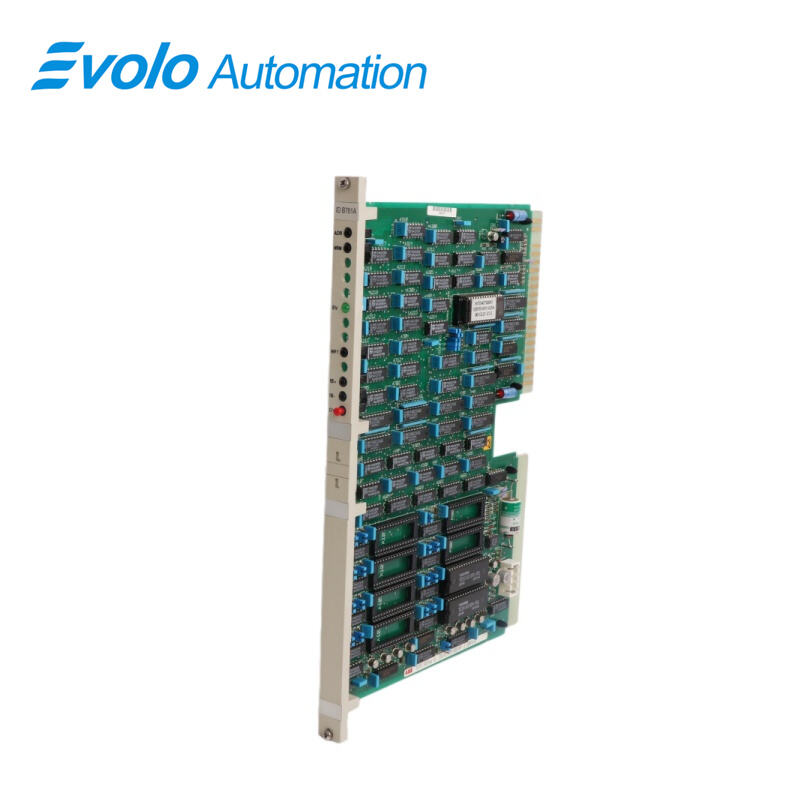

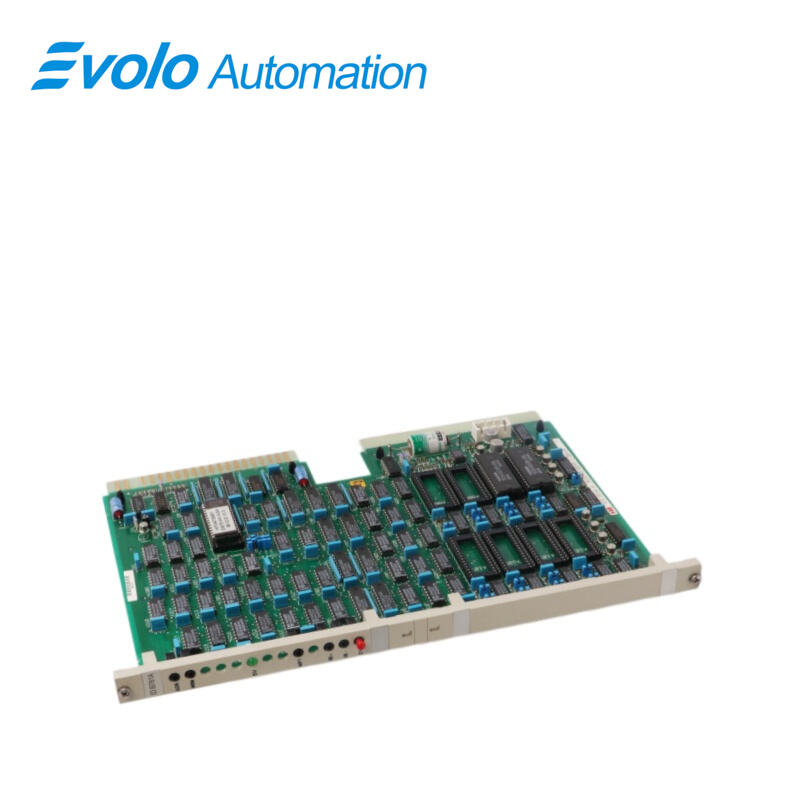

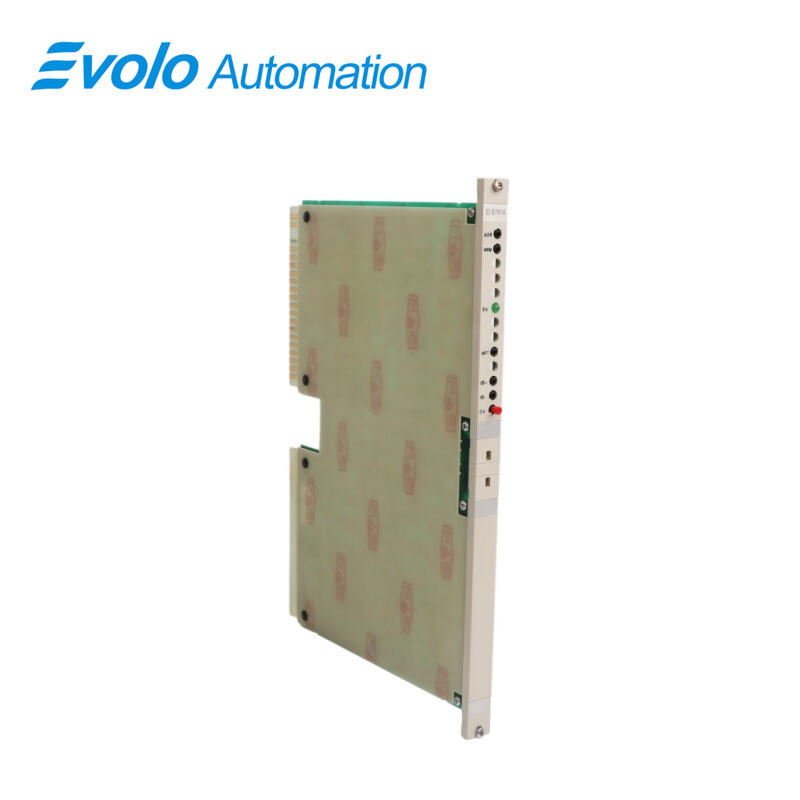

The ABB HITE303166R1 HITE515100 IDB761A Control Board is a critical component designed for advanced industrial automation systems. It facilitates precise control and monitoring, enhancing efficiency and reliability in manufacturing processes.
Applications
Intelligent Robot Factory: Uses multiple USB ports for vision sensors and cameras, enabling coordinated robot swarm control via Gigabit Ethernet.
Automated Pharmaceutical Factory: Operates in clean control cabinets, ensuring stable process control in hygienic and regularly disinfected environments.
Discrete Manufacturing Factory: Acts as line controller, integrating drives and actuators via RS-485 for high-power process control.
Smart Logistics Factory: Serves as sorting system hub, synchronizing tracking data over Gigabit network for fast response.
Electronics and Semiconductor Factory: Provides stable control protection for sensitive wafer processing equipment in precision production environments.
Features
High Compatibility: Supports Ethernet and RS-485 protocols, enabling seamless connectivity with other industrial components for easy data exchange and remote monitoring.
Harsh Environment Adaptability: IP54 protection rating effectively protects against dust and splashes, ensuring stable operation in harsh industrial environments.
High-Performance Processing: Equipped with an advanced Ethernet communication interface, it enables efficient data exchange and control between multiple devices. Its integrated input/output channels provide various connectivity options suitable for a wide range of applications.
Compact Design: Small size and lightweight, facilitating installation and maintenance, and easy integration into existing systems.
FAQ
Q: Why does HITE303166R1 IDB761A HITE515100 require up to 250W power consumption?
A: It powers high-performance processors and multiple USB 3.0 devices, ensuring stability under heavy load.
Q: Does the IP54 rating of HITE303166R1 IDB761A allow outdoor installation?
A: No. IP54 is dust and splash resistant; outdoor use requires an additional protective enclosure.
Q: Can the six USB 3.0 ports of HITE303166R1 IDB761A power high-load devices?
A: Yes, but total current must stay within 5A; external power is recommended for heavy devices.
Q: Does HITE303166R1 IDB761A HITE515100 support RS-485 multi-point communication?
A: Yes. It supports multi-device long-distance industrial networking via RS-485.
Q: Does replacing HITE303166R1 IDB761A HITE515100 require UL/CSA re-certification?
A: No. It is individually certified, so replacement does not affect system compliance.
