Overview

Place of Origin:	USA
Brand Name:	HONEYWELL
Model Number:	FS-TPSU-2430
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Model:	FS-TPSU-2430
Product Type:	Converter
Dimensions:	15 × 7 × 6 cm
Weight:	0.46 kg
Approvals:	CE; TUV; UL; CSA; FM
Safety Class:	SIL3 (up to)
MTBF:	~400,000 hours
Input Voltage (Nominal):	24 VDC
Input Voltage Range:	18–36 VDC
Inrush Current:	≤4 A
Output Voltage:	30 VDC ±0.25 V
Output Current:	1 A (short-circuit proof)
Short-Circuit Current:	<3.3 A
Ripple:	<0.1 Vrms (0–30 MHz)
Load + Line Regulation:	<1%
Transient Response:	Class C (NFC42801C)
Power-On Overshoot:	<33 V
Overvoltage Protection:	33 V
Long-Term Stability:	<0.3% (after 30 min)
Efficiency:	>75%
Switching Frequency:	>25 kHz
Fuse Rating:	3.15 A (Schurter 0001.2509)
Fuse Dimensions:	5 × 20 mm
DIN Rail Type:	TS32 / TS35 × 7.5
Used Rail Length:	151 mm
Termination:	Screw terminals (max 2.5 mm² / AWG 14; strip length 7 mm; torque 0.5 Nm)
Wiring Classification:	80°C minimum
Supply Requirement:	SELV compliant; over-voltage class II up to 300 VAC input
Isolation:	2000 VAC (input/output, input/relay, output/relay, 1 min)
Operating Temperature:	-5°C to +70°C
Storage Temperature:	-40°C to +85°C
Cooling:	Natural convection
Altitude:	≤2000 m
Alarm Functions:	Dual redundant overvoltage protection; undervoltage detection with LED and relay
Undervoltage Level:	~27.5 VDC
Readback Relay Rating:	36 VDC / 40 mA; 30 VAC / 40 mA
Mounting:	DIN rail (horizontal or vertical)

Description

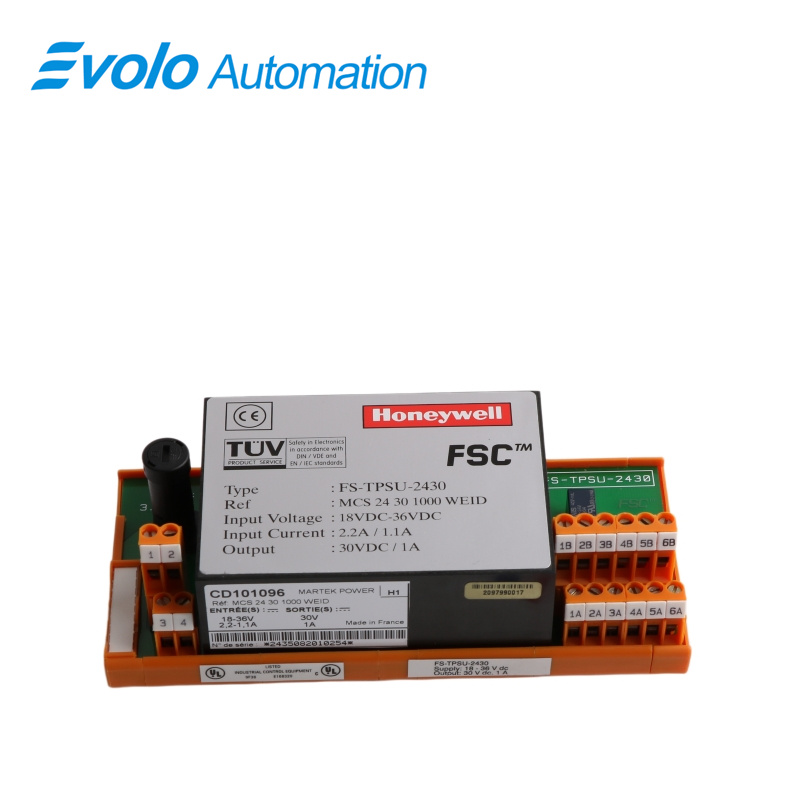

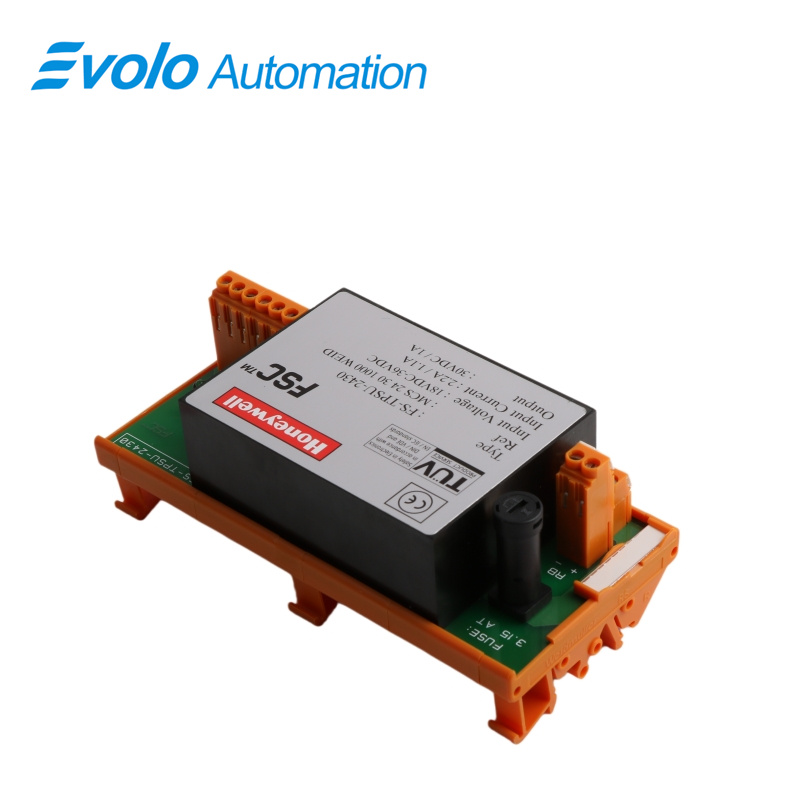

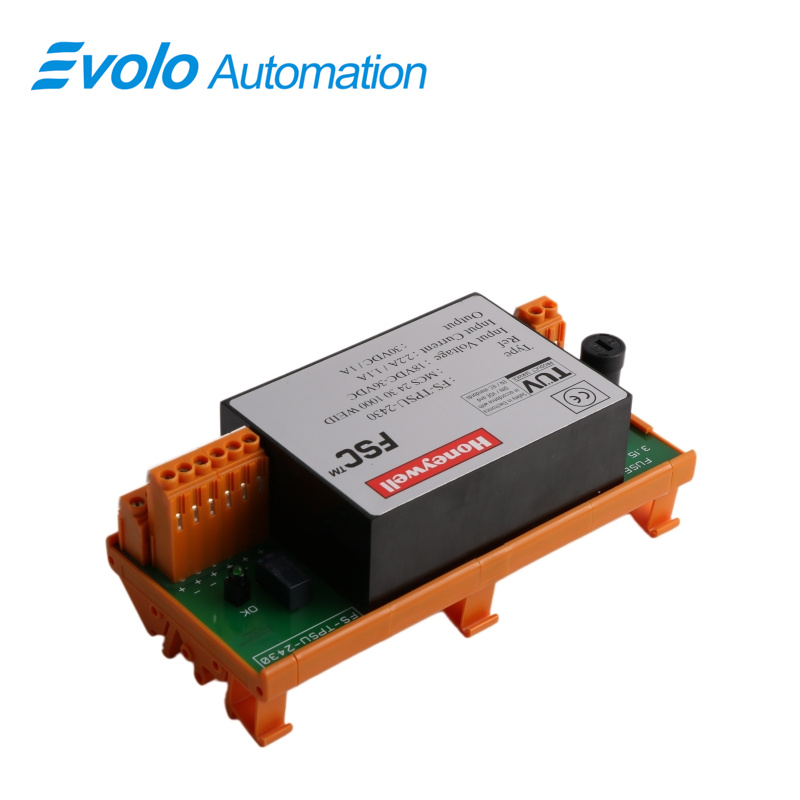

The FS-TPSU-2430 module is a DC/DC converter, which is used to provide an isolated 30 Vdc / 1 A to other field termination assemblies (FTAs), e.g. the analog input FTA modules FTA-T-14, FS-TSAI1620m, FS-TSHART-1620m or the active analog input FTA module FTA-T-16. It has voltage monitoring capabilities with local LED indication and also provides alarm functions (read back relay contact). The LED is on and the relay contact is closed if the local DC/DC output voltage is OK.

Applications

Fine chemical plant: Provides isolated DC power for explosion-proof gas transmitters and level sensors, supporting SIL3 safety systems.

Offshore oil platform: Installed in marine control cabinets, delivering stable power conversion in high humidity and salt spray environments.

Polysilicon semiconductor plant: Supplies ultra-sensitive CVD flow instruments with low-noise regulated isolated DC power.

Thermal power plant: Used in control rooms to power boiler monitoring systems and emergency trip valve actuators.

Long-distance oil pipeline station: Provides highly stable, isolated power for unmanned pumping stations along high-pressure transmission lines.

Troubleshooting

Total Output Cessation / Lockout: Check input rail if output drops to zero; if overvoltage exceeds 33 V, the OVP latch triggers and requires full 24 Vdc power removal to reset.

Undervoltage Relay Open Fault: If relay opens and LED turns off, measure output; if it falls below 27.5 Vdc, this indicates supply sag or overload.

Blown Power Channel Fuse: If input current stops, test the 3.15 A Schurter 0001.2509 fuse; verify downstream insulation before replacement to avoid surge damage.
