Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
FC-SDO-0824 V1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
FC-SDO-0824 V1 |
|
Part name |
Safe digital output module |
|
Dimensions |
2x19x12.8cm |
|
Weight |
0.12kg |
|
Approvals |
CE, TÜV, UL, CSA, FM |
|
Space requirements |
4 TE, 3 HE (4 HP, 3U) |
|
Power requirements (5 V DC) |
25 mA |
|
Power requirements (24 V DC internal) |
25 mA |
|
Power requirements (24 V DC external) |
70 mA (without output load) |
|
Number of output channels |
8 |
|
Output specification |
24 V DC solid-state source, short-circuit proof |
|
Maximum current |
550 mA |
|
Maximum lamp load |
120 mA (2.9 W) |
|
Maximum load capacitance |
1 µF |
|
Voltage drop |
<2.0 V DC at 500 mA |
|
Off current |
<0.1 mA |
|
WDG input current |
8 mA |
|
Module code (key coding) |
Holes A9, C9 |
|
Chassis code (key coding) |
Large pins A9, C9 |
Description

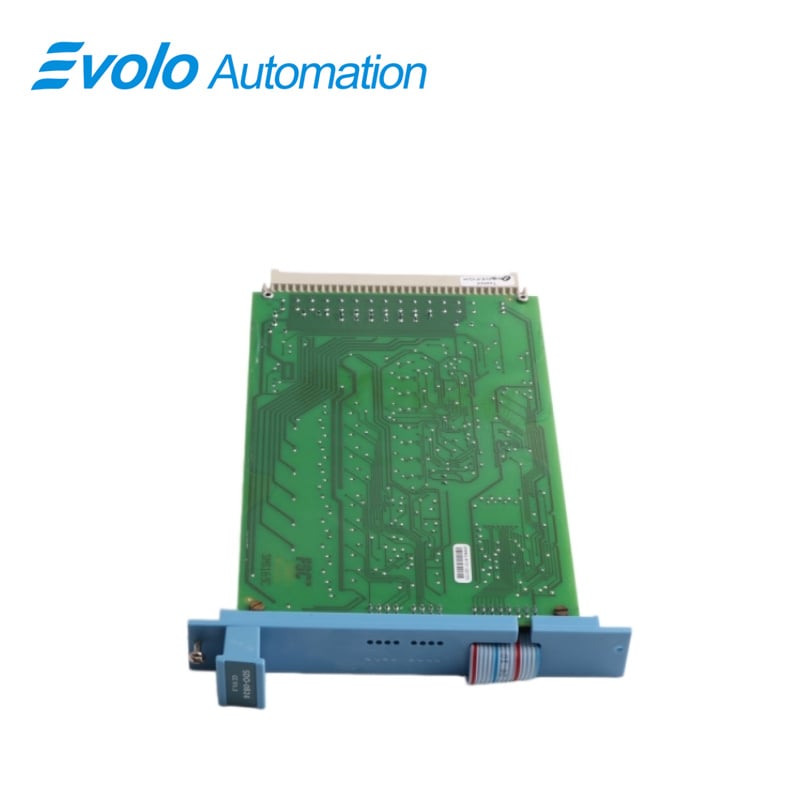

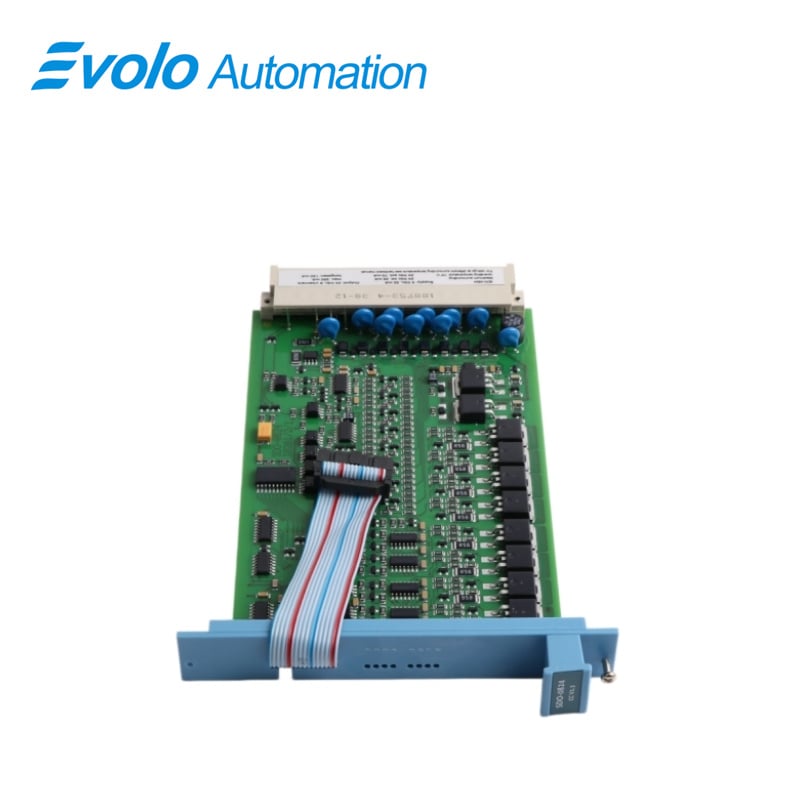

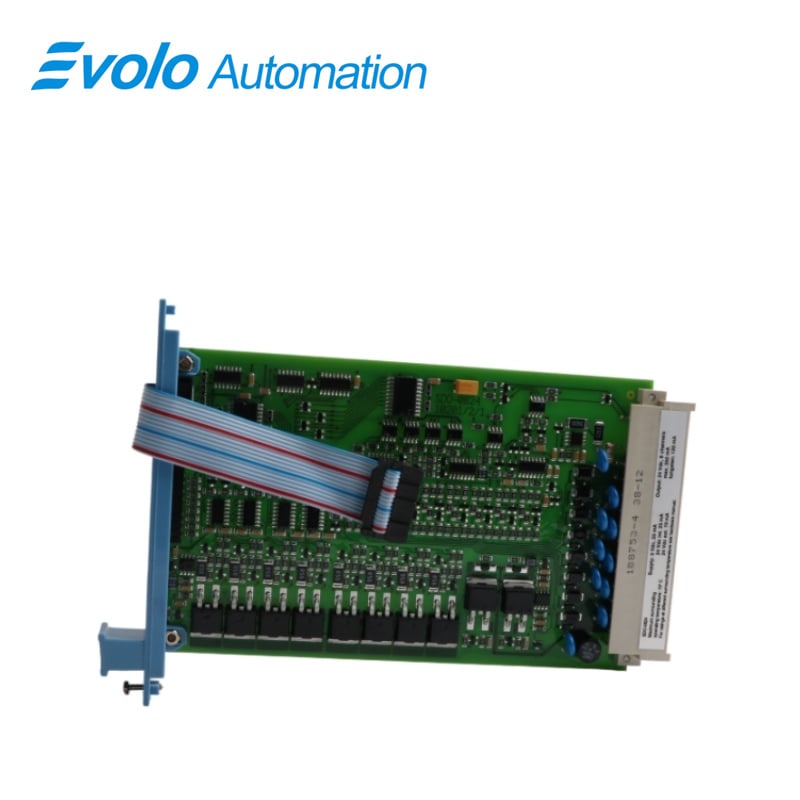

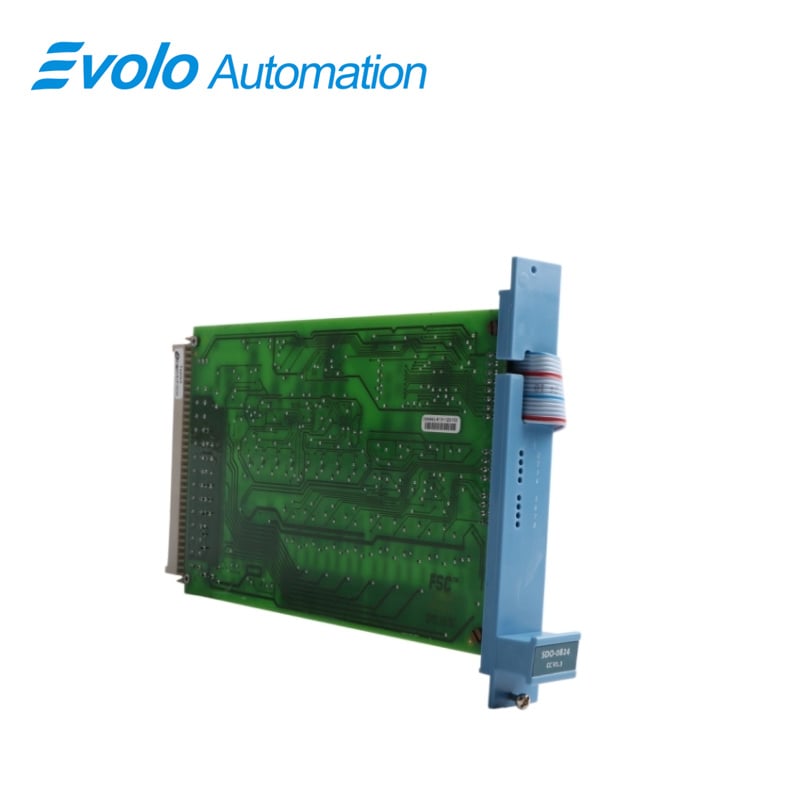

The FC-SDO-0824 V1 is a fail-safe digital output module with a surface coating, belonging to the actuator drive unit of a safety control system. It converts low-voltage control signals into switching electrical signals for controlling field equipment, and outputs them to various electric, pneumatic, or hydraulic actuators in the field to perform cut-off, shutdown, or start-stop operations.
Applications
Refinery: Connect electric isolation valves on crude pipelines, closing them during fire or leakage events.
Chemical plant: Connect pneumatic vent valves on reactors, opening for pressure relief when limits are exceeded.
Power plant: Connect main fuel shut-off valves on gas boilers, cutting fuel supply during flameout detection.
Pharmaceutical plant: Connect safety interlock valves on dosing lines, blocking pipelines when formulation deviates.
Test
During the configured Diagnostic Test Interval, the outputs are tested for:
Ability to de-energize
Ability to de-energize the group (via secondary means)
Crosstalk between outputs
Functioning of the suppression diodes
The outputs are split into two groups of four outputs each. Each group has its own secondary means of
de-energizing.
The secondary means of de-energizing (SMOD) enables the watchdog and the processor to de-energize
the outputs, irrespective of the result of the application function.
FAQ
Q: For module FC-SDO-0824 V1, how many output channels does it have and what is the output specification?
A: 8 channels, 24 V DC solid-state source output with short-circuit protection.
Q: What is the maximum output current and maximum lamp load of module FC-SDO-0824 V1?
A: Maximum current is 550 mA, and maximum lamp load is 120 mA (2.9 W).
Q: What is the voltage drop of module FC-SDO-0824 V1 at 500 mA current?
A: Voltage drop is less than 2.0 V DC (off-state leakage current < 0.1 mA).
Q: What are the internal and external 24 V DC current requirements of module FC-SDO-0824 V1 with no load?
A: Internal current is 25 mA, external current is 70 mA.
Q: What is the anti-misplug coding and mounting size of module FC-SDO-0824 V1?
A: Coding is A9 and C9, occupying 4 HP, 3U space.
