Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
F31X134EPRBEG1 FR00/0 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
F31X134EPRBEG1 FR00/0 |
|
Part name |
Encoder Processing Board |
|
Encoder type |
Incremental encoder |
|
Interface type |
Three-screw terminal |
|
Buttons |
7 |
|
Capacitor count |
Not specified |
|
Diodes |
22 |
|
Resistor network arrays |
4 |
|
Potentiometers |
7 |
|
Applicable drive system |
DC-300 drive system and similar systems |
Description

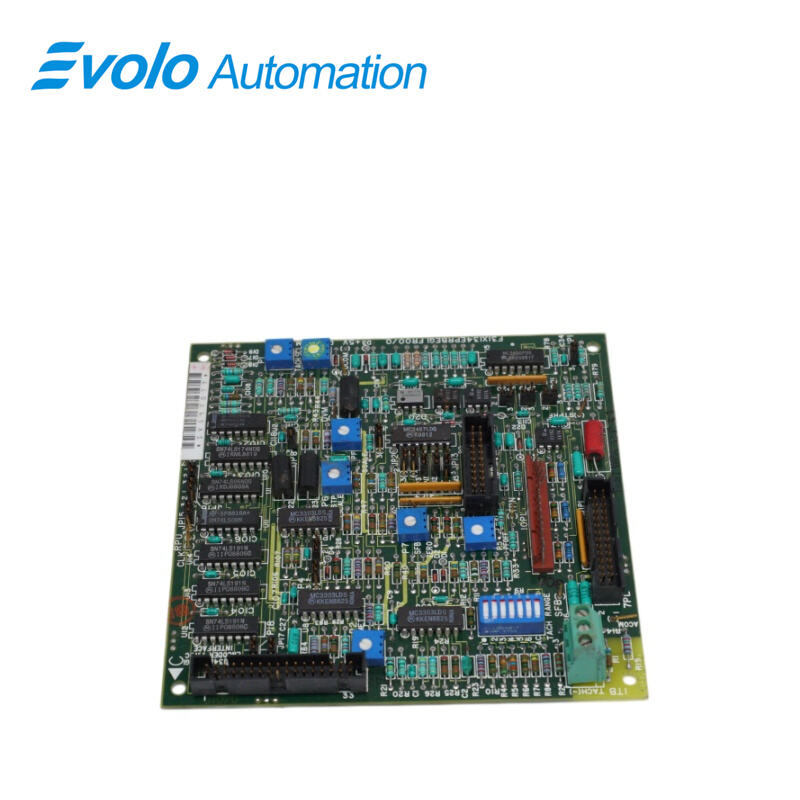

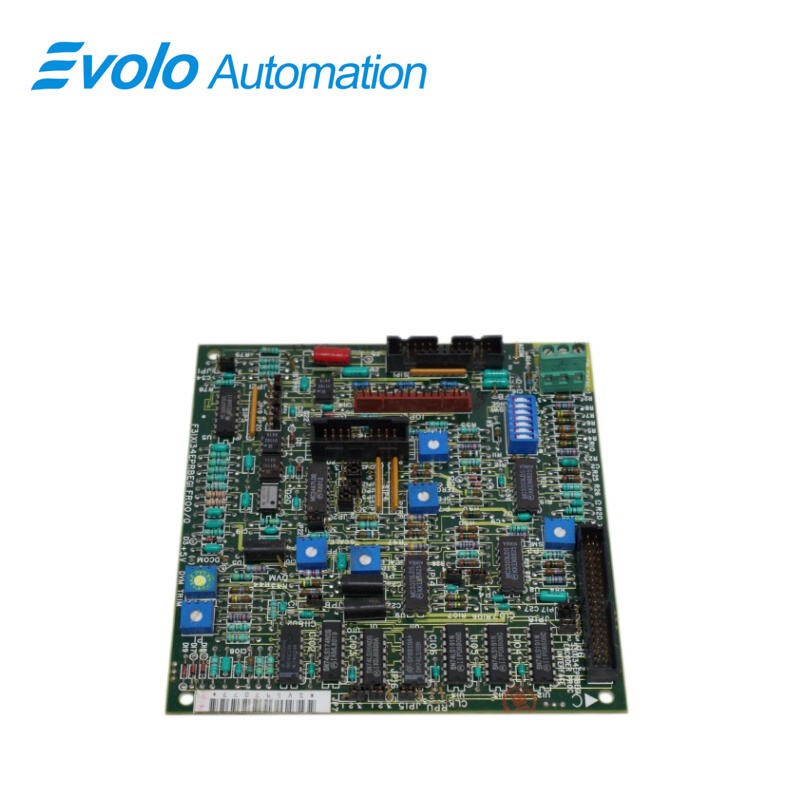

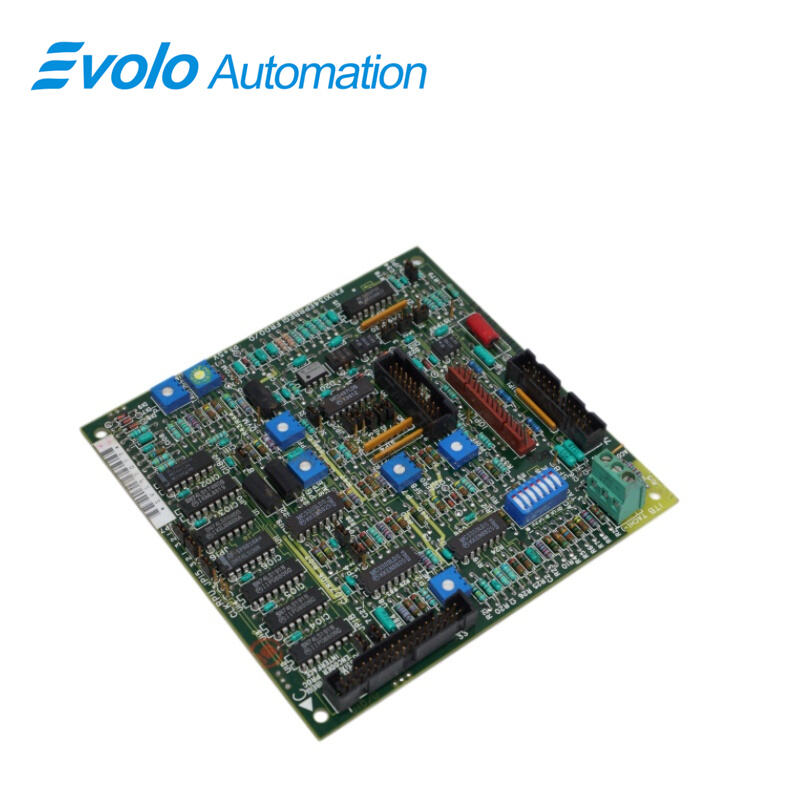

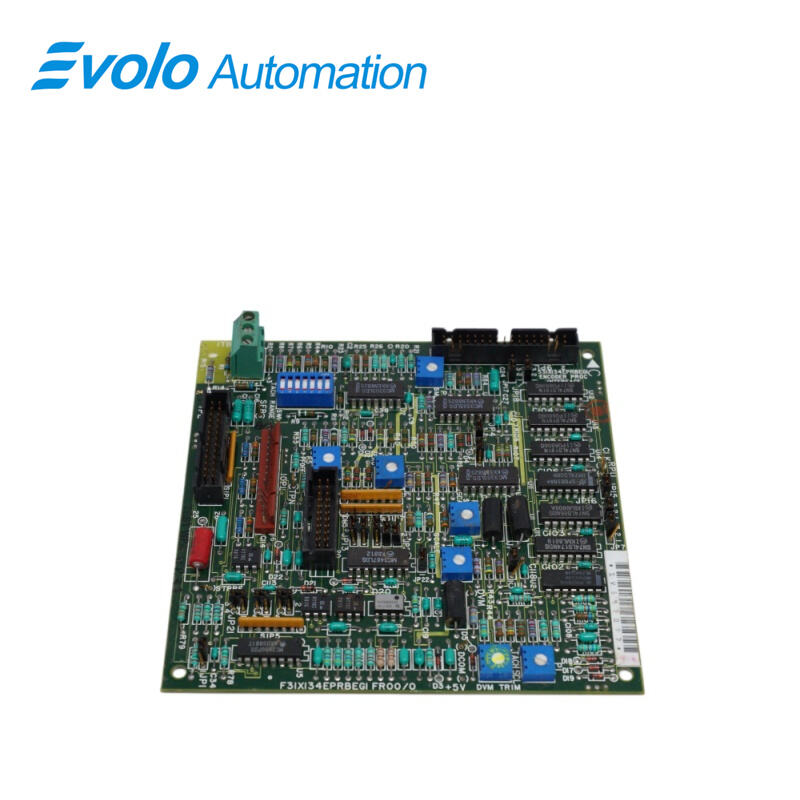

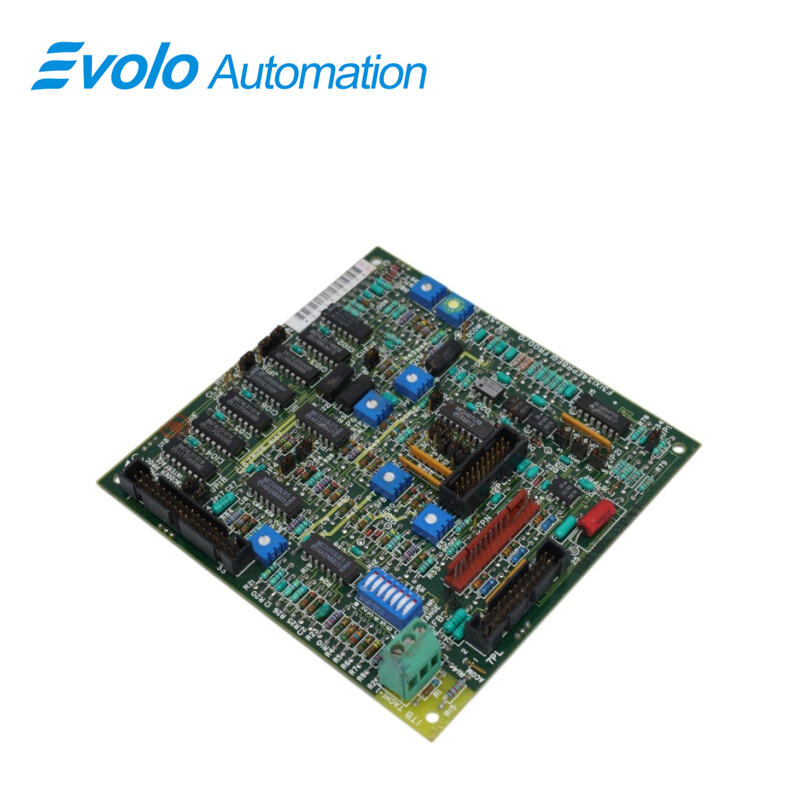

The GE F31X134EPRBEG1 FR00/0 is an encoder processing board manufactured by General Electric for industrial control systems. It offers powerful motor speed monitoring and adjustment capabilities, making it ideal for a wide range of industrial tasks. It is also compatible with DC-300 drive systems and other similar systems, ensuring broad compatibility and reliability. Its rugged design allows for stable operation in harsh industrial environments.
Applications
Steel Rolling Mills: Ensure precise coil tension control in rolling drive systems.
Pulp & Paper Mills: Maintain synchronized speed across multi-stand production lines.
Material Handling Centers: Provide encoder feedback for conveyor motor load and speed monitoring.
Textile & Dyeing Plants: Enable multi-axis synchronization for improved pattern accuracy.
Maintenance and Troubleshooting
Troubleshooting: If the system displays an "Encoder Feedback Loss" alarm, first check if the three-screw terminal has become loose due to vibration. If the signal exhibits periodic fluctuations, the waveform can be fine-tuned using the onboard potentiometer, and the diode array should be inspected for signs of breakdown.
Maintenance Recommendations: It is recommended to check the potentiometer settings annually to prevent mechanical drift caused by long-term operation. When cleaning the board, pay special attention to the integrity of the resistor network array to avoid minor leakage caused by dust accumulation affecting sampling accuracy.
FAQ
Q: How does F31X134EPRBEG1 FR00/0 ensure long-distance encoder signal quality?
A: It uses resistor networks to match impedance and reduce signal reflection.
Q: What is the role of diodes in F31X134EPRBEG1 FR00/0?
A: They clamp and absorb surge energy to protect the control board.
Q: How do potentiometers improve accuracy in F31X134EPRBEG1 FR00/0?
A: They compensate signal deviation and mechanical backlash.
Q: What is the function of buttons in F31X134EPRBEG1 FR00/0?
A: They enable self-test and encoder reset during commissioning.
Q: Why use three-screw termination in F31X134EPRBEG1 FR00/0?
A: It improves mechanical stability in high-vibration environments.
