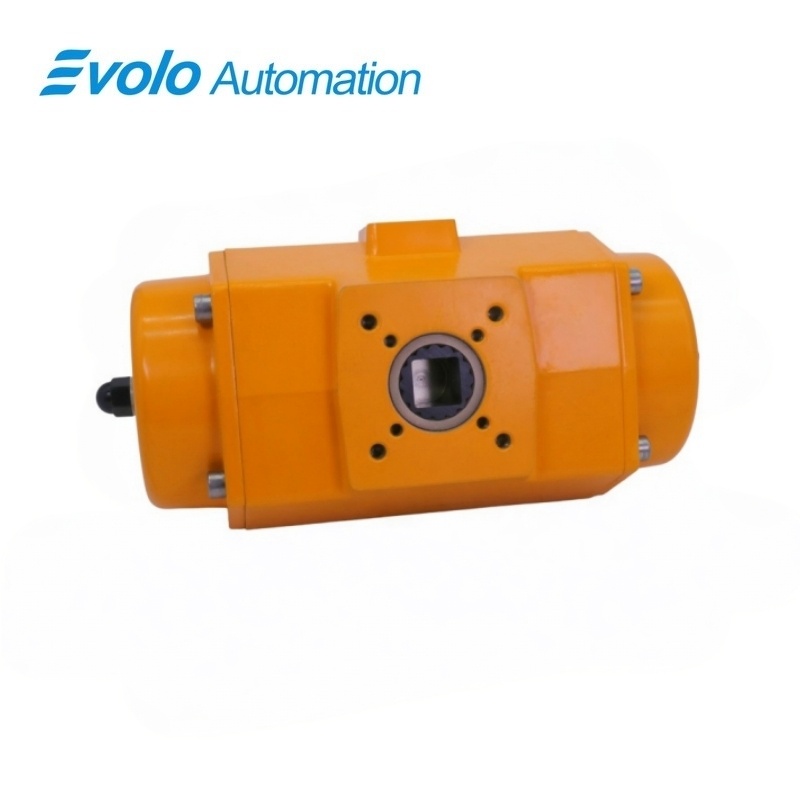

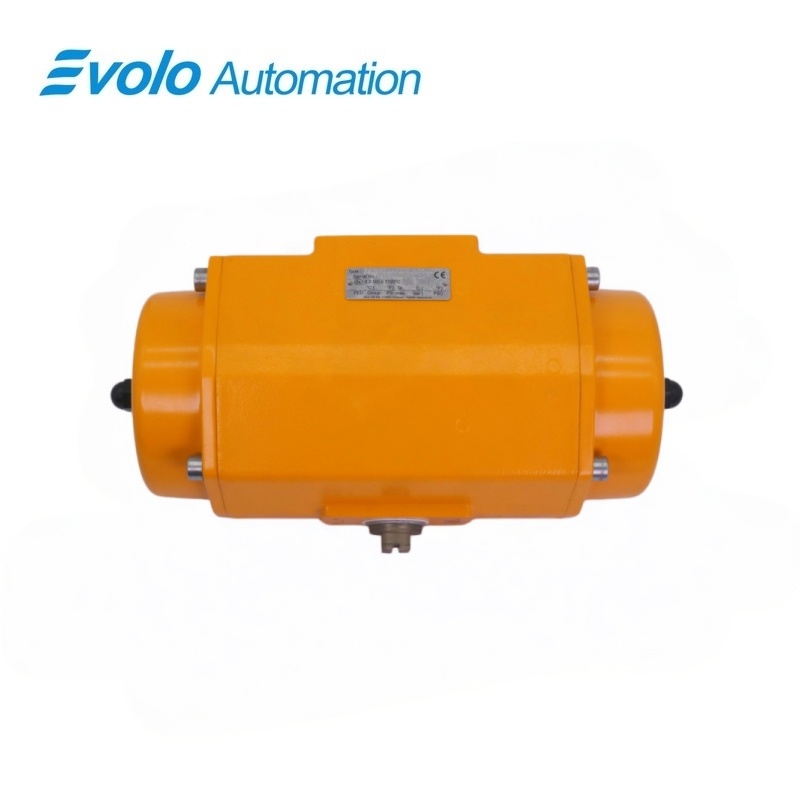

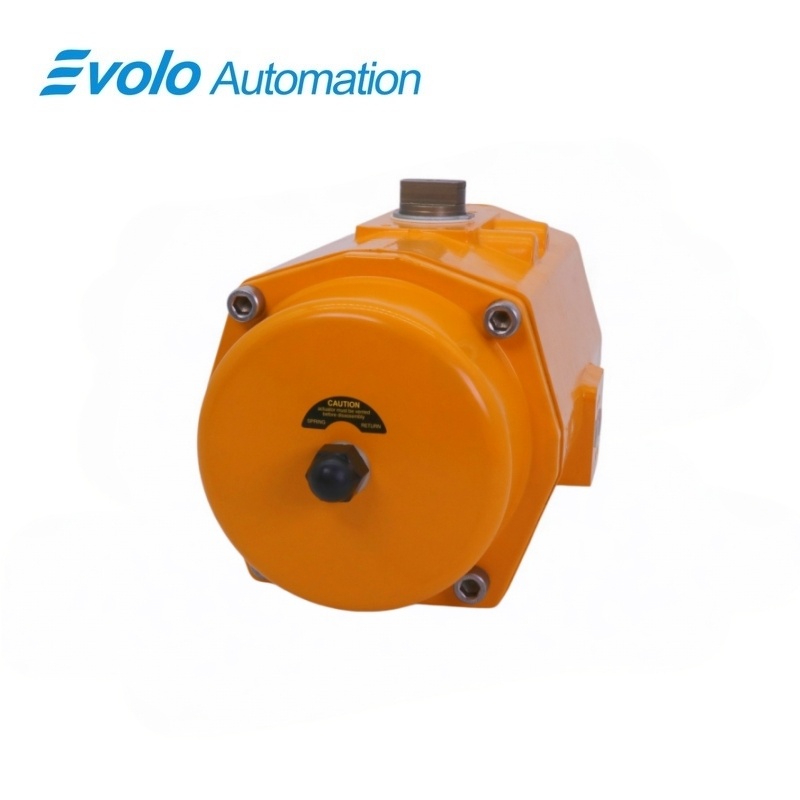

Emerson EL-O-Matic ES0350.M1A05L.27N0 E350 Spring-Return Pneumatic Actuator
Manufacturer: Emerson EL-O-Matic
Condition: Brand New
Lead Time: In Stock
Origin: Netherlands
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
EL-O-MATIC E-SERIES ACTUATOR
ES0350.M1A05L.27N0 E350 Spring-Return Pneumatic Actuator
Official-source product identification, application guidance and ordering checks for ES0350.M1A05L.27N0.
At a Glance
| Brand | Emerson EL-O-Matic |
|---|---|
| Model | ES0350.M1A05L.27N0 |
| Product Type | E350 Spring-Return Pneumatic Actuator |
| Core Function | Spring-return quarter-turn valve actuation. |
| Application / Compatible Series | EL-O-Matic E-Series actuator |
Verified identification
ES0350.M1A05L.27N0 is identified by the complete manufacturer model and the photographed unit.
Application focus
ES0350.M1A05L.27N0 is intended for spring-return quarter-turn valve actuation.
Ordering control
ES0350.M1A05L.27N0 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
Emerson EL-O-Matic ES0350.M1A05L.27N0 E350 is an E-series spring-return pneumatic quarter-turn actuator for automated valve or damper operation.
Official EL-O-Matic documentation identifies the E350 actuator size, single-acting spring-return design and a standard −20 to +80 °C temperature class. The complete configuration code determines spring set, mounting, rotation and accessory details.
Key Functions
Spring-Return Action
Uses stored spring energy to drive the actuator toward its defined fail position when pneumatic supply is removed.
Quarter-Turn Operation
Provides rack-and-pinion rotary motion for compatible quarter-turn valves and dampers.
Modular Accessory Interface
Supports the applicable EL-O-Matic control and indication accessories when mounting and configuration codes agree.
Official Specifications
| Actuator size | E350 |
|---|---|
| Action | Spring return / single acting |
| Operating motion | Pneumatic quarter-turn |
| Standard temperature class | −20 to +80 °C |
| Spring-Return Action | Uses stored spring energy to drive the actuator toward its defined fail position when pneumatic supply is removed. |
| Quarter-Turn Operation | Provides rack-and-pinion rotary motion for compatible quarter-turn valves and dampers. |
| Modular Accessory Interface | Supports the applicable EL-O-Matic control and indication accessories when mounting and configuration codes agree. |
| Operating Temperature Range | 20 to +80 °C |
| Return Mechanism | Spring return |
| Acting Type | Single acting |
| Actuation Medium | Pneumatic |
| Rotary Motion | Quarter turn |
| Mechanical Principle | Rack and pinion |
| Fail-Safe Energy Source | Stored spring energy |
| Minimum Operating Temperature | −20 °C |
| Maximum Operating Temperature | +80 °C |
Official source: Emerson EL-O-Matic E and P Series Actuator Product Data Sheet. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
What compatibility checks apply when integrating ES0350.M1A05L.27N0 with EL-O-Matic E-Series actuator?
It is intended for EL-O-Matic E-Series actuator.
What engineering application is ES0350.M1A05L.27N0 intended to support as an E350 Spring-Return Pneumatic Actuator?
Spring-return quarter-turn valve actuation.
What should a commissioning engineer inspect before installing ES0350.M1A05L.27N0?
Check required fail-open or fail-close action. Verify valve torque, shaft interface and mounting pattern.
How should spring-return action be checked during maintenance of ES0350.M1A05L.27N0?
Uses stored spring energy to drive the actuator toward its defined fail position when pneumatic supply is removed.
What design information about quarter-turn operation is required for ES0350.M1A05L.27N0?
Provides rack-and-pinion rotary motion for compatible quarter-turn valves and dampers.
Which modular accessory interface details should engineers confirm for ES0350.M1A05L.27N0?
Supports the applicable EL-O-Matic control and indication accessories when mounting and configuration codes agree.
Which documented ordering details prevent a mismatch for ES0350.M1A05L.27N0?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for ES0350.M1A05L.27N0 E350
- Confirm ES0350.M1A05L.27N0 on the actuator nameplate.
- Check required fail-open or fail-close action.
- Verify valve torque, shaft interface and mounting pattern.
- Match air supply, temperature class and installed accessories.
