DS200DMCBG1AJE DOS DUP Processor Board

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	DS200DMCBG1AJE
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The GE DS200DMCBG1AJE is designed to meet the needs of industrial automation systems, particularly within GE’s Mark V turbine control platforms. As an I/O DUP Processor Board, this component efficiently processes and manages data for a variety of industrial control operations. It offers a high degree of reliability, ensuring stable operations even under demanding conditions.

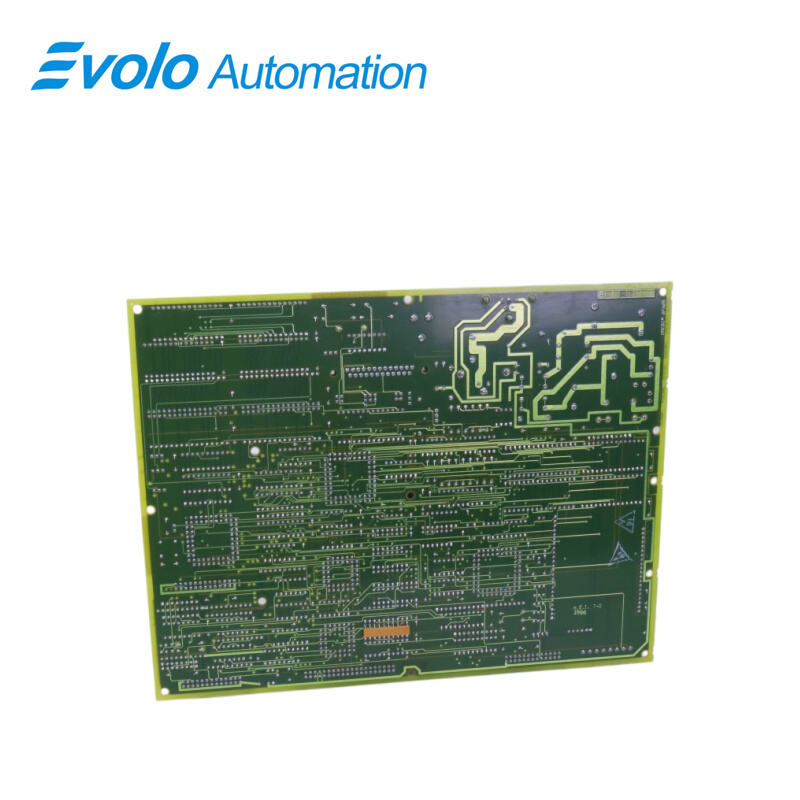

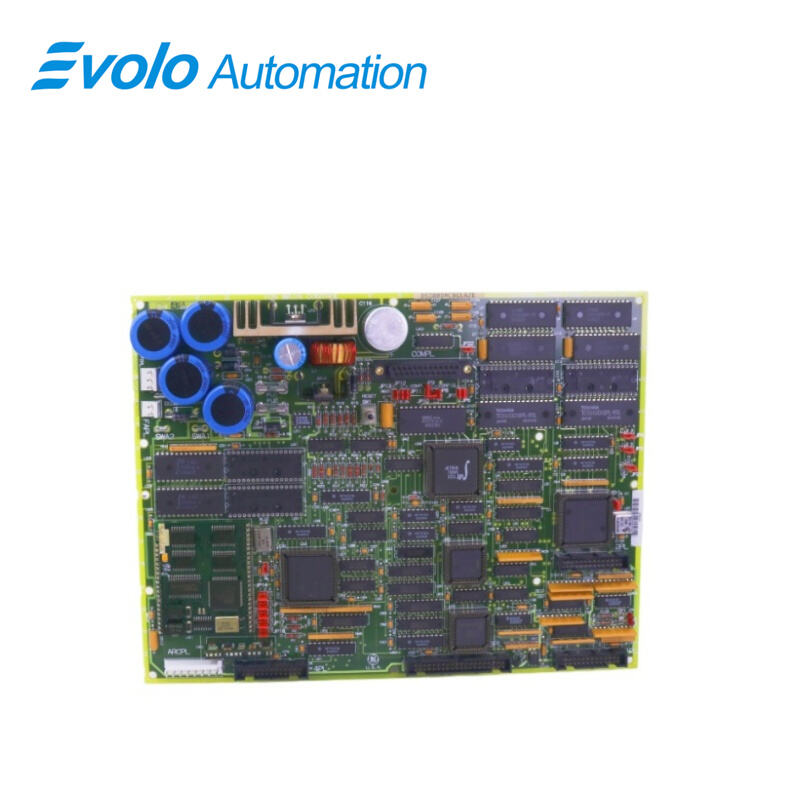

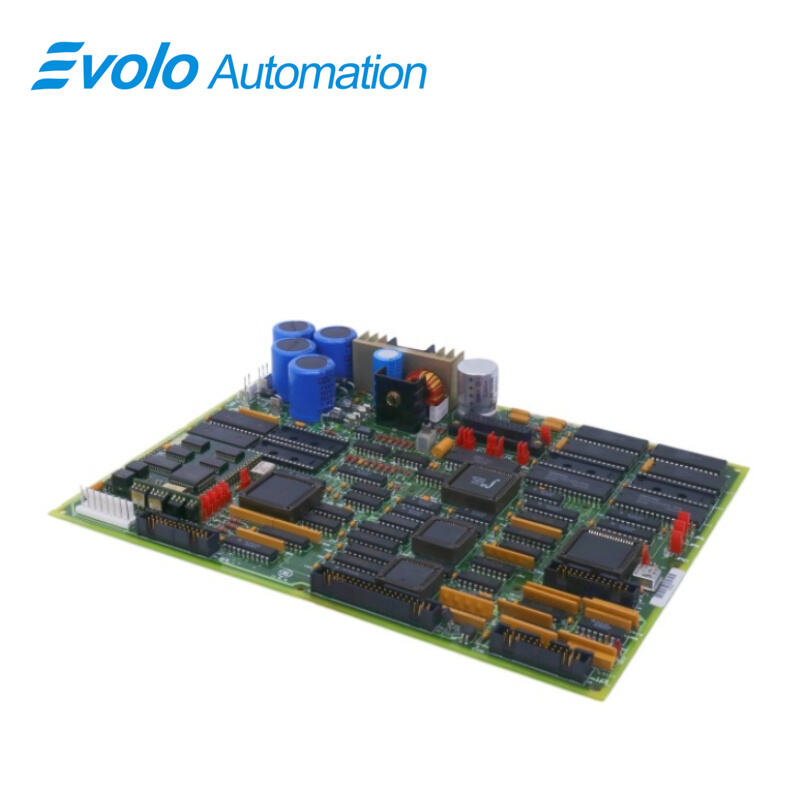

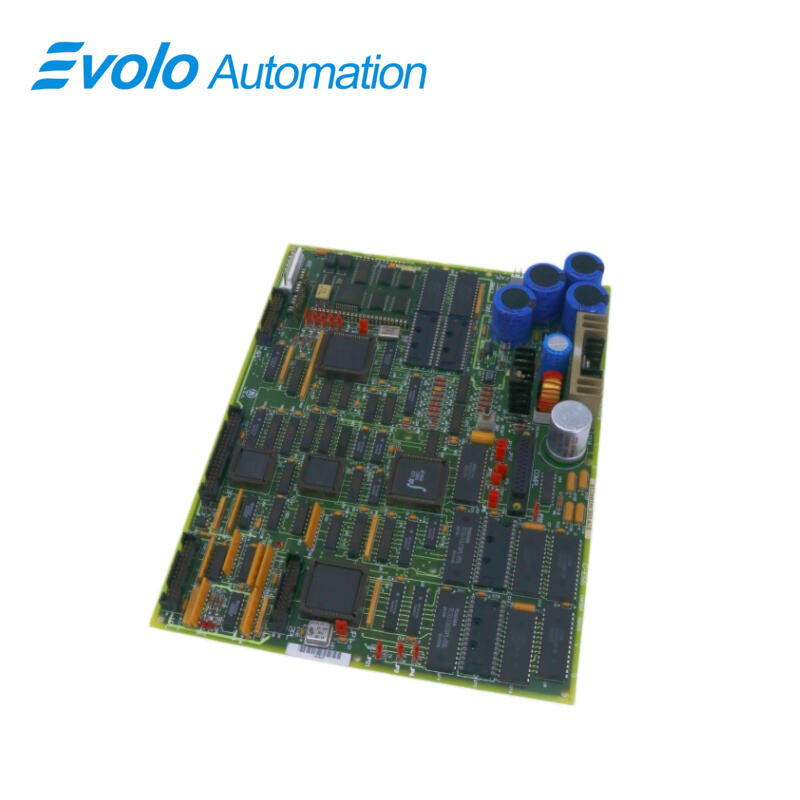

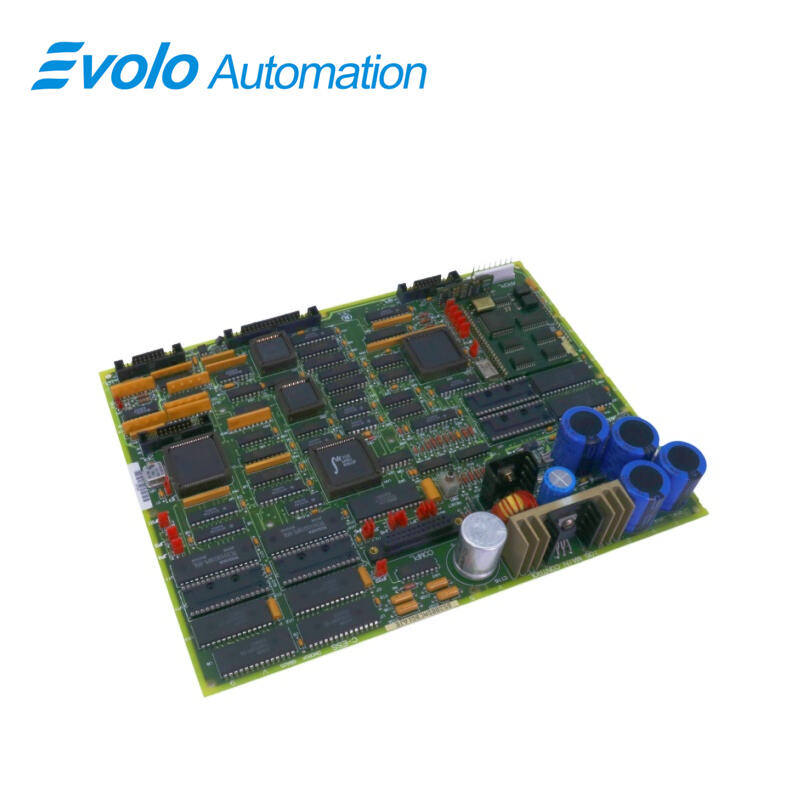

This processor board features a compact design with three 26-pin connectors and one 40-pin connector for seamless integration into the system. The board’s 19 jumpers allow for flexible configuration, providing the necessary adaptability for different setups. Additionally, the two diagnostic LEDs (CR2 and CR12) provide valuable real-time feedback on processing activity, enabling operators to monitor system performance easily.

For system protection, the GE DS200DMCBG1AJE incorporates voltage suppression components, including diodes, rectifiers, capacitors, and resistors. These components safeguard the system from power surges and other electrical issues, ensuring that the processor board operates reliably over time. Furthermore, two fuses protect the circuit from damage, offering an extra layer of security to prevent failures.

Applications

Heavy-duty gas turbine power plants: Serving as the central control unit for GE Frame series units (6B/7E/9E/9FA, etc.), responsible for the precise logic coordination of the auxiliary drive system.

Oil and gas transmission stations: Used for the core control of large variable frequency drive (VFD) systems, managing the power output of long-distance pipeline pump units.

Metallurgical and steel plants: Deployed in large continuous rolling mill or blower drive systems, handling multi-unit synchronization and torque distribution.

Large-scale paper and chemical plants: Responsible for bus management in distributed drive architectures, ensuring smooth start-up and emergency shutdown of large rotating equipment.

Features

Revision Compatibility: Backward compatible with the first two revisions

Diagnostic Indicators: Equipped with two LEDs (CR2 and CR12) to show processing activity

Voltage Protection: Includes diodes, rectifiers, capacitors, and resistors for voltage suppression

Fuse Protection: Contains two fuses to safeguard the circuitry

Benefits

Seamless Integration: Designed to integrate easily with GE Mark V turbine control systems.

Backward Compatibility: Fully compatible with earlier revisions of the processor board, allowing easy system upgrades.

Efficient I/O Processing: Offers reliable processing and management of I/O operations for turbine systems.

Real-Time Monitoring: Two diagnostic LEDs provide immediate feedback on system performance.

Voltage and Fuse Protection: Built-in components safeguard the system from electrical issues, ensuring long-term reliability.

Hardware Taits

DMCB functional product abbreviation

Group one Mark V Series product grouping

Normal PCB coating style

A-rated primary functional revision

J-rated secondary functional revision

E-rated artwork configuration revision

FAQ

Q: What is the DS200DMCBG1AJE?

A: It is a DOS DUP Processor Board.

Q: Is this product brand new?

A: Yes, DS200DMCBG1AJE is brand new, original, unused, and factory sealed

Q: How does the DS200DMCBG1AJE module address the risk of runaway in large motor or turbine drives?

A: This board features a built-in high-speed watchdog for redundant monitoring. It synchronizes pulse commands from the processing core in real time. Upon detecting a drive link anomaly or operational dead loop, the module immediately locks the output state and sends a trip signal to the protection circuit, preventing shaft runaway or overload loss of control from the underlying hardware level, ensuring industrial system safety.

Q: How can maintenance engineers quickly locate "Bus Faults" caused by this board?

A: The board integrates multiple LED status indicators and dedicated diagnostic test points. By observing the flashing frequency of the indicators, engineers can determine the fault location within seconds: is it an abnormal 24V/5V control power supply, lost EEPROM parameters, or a loss of connection with other boards (such as drive adapter boards)? Online diagnostics are supported, greatly reducing the difficulty of troubleshooting complex systems.

Q: How does the DS200DMCBG1AJE improve the continuous operation efficiency of a factory through hardware optimization?

A: This model uses enhanced electromagnetic interference (EMI) suppression circuitry. In high-noise environments with frequent operation of frequency converters and high-power switches, it ensures that the control pulses are not distorted, solves the problem of false alarms and shutdowns caused by signal interference, and ensures 24/7 uninterrupted operation of the production line.
