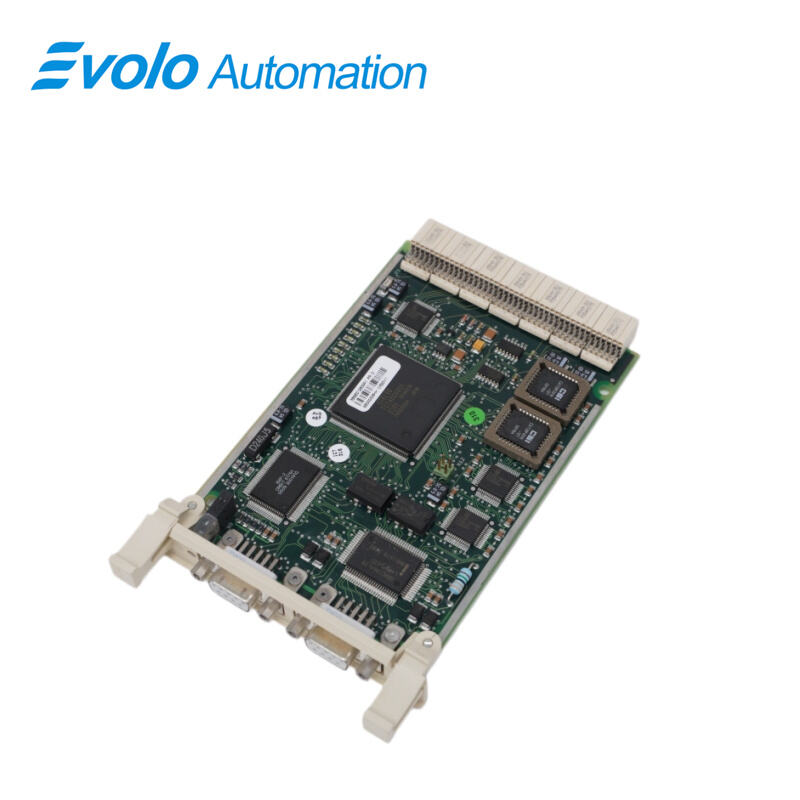

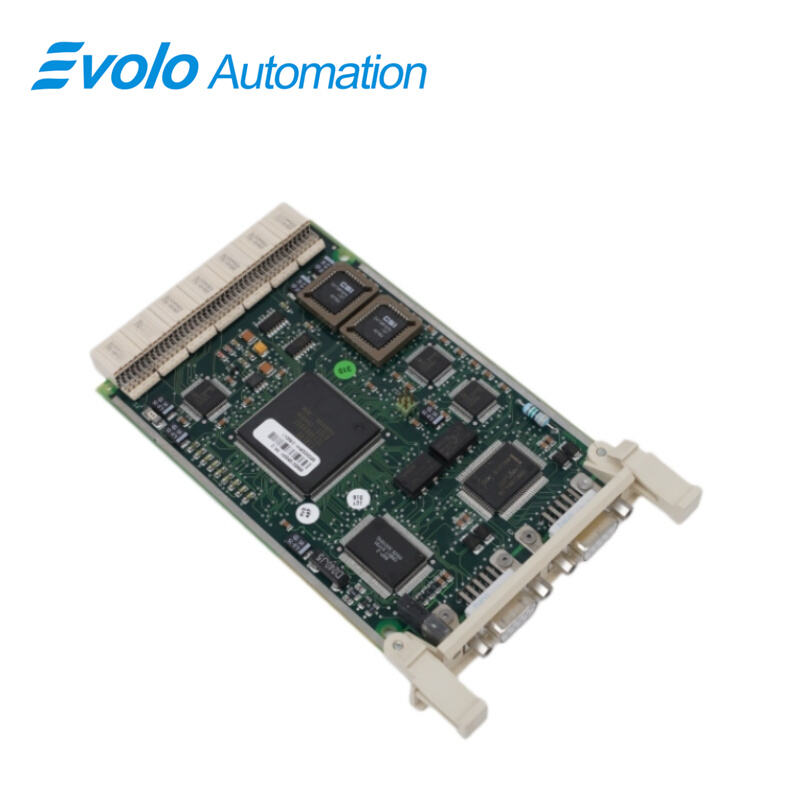

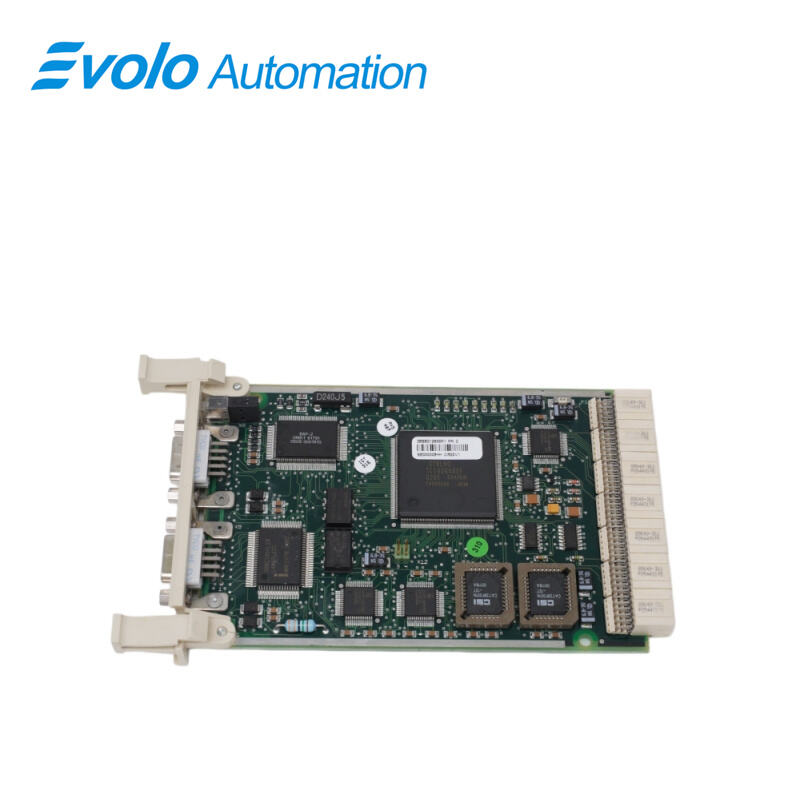

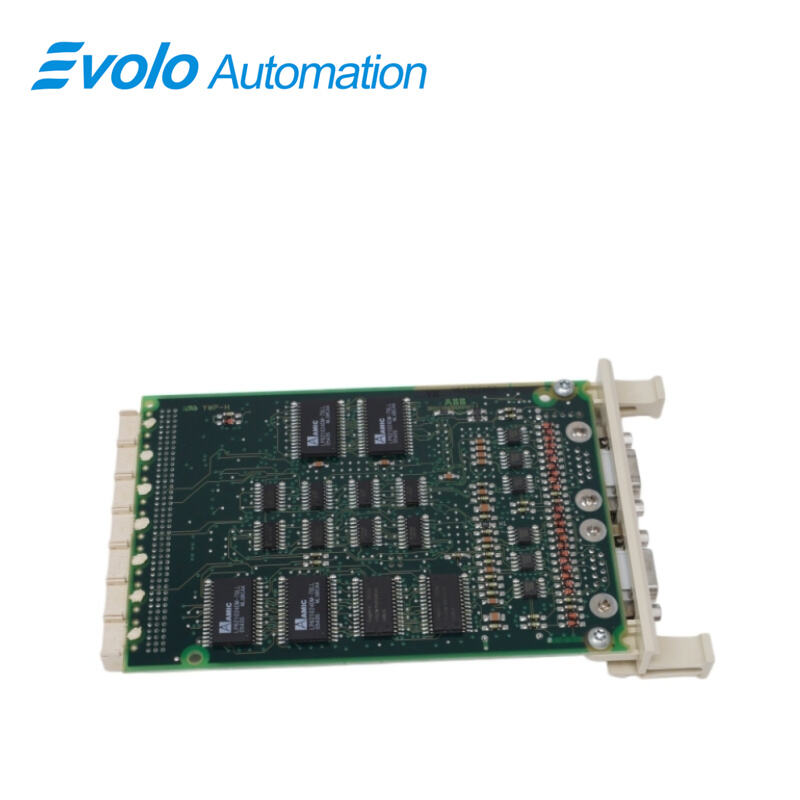

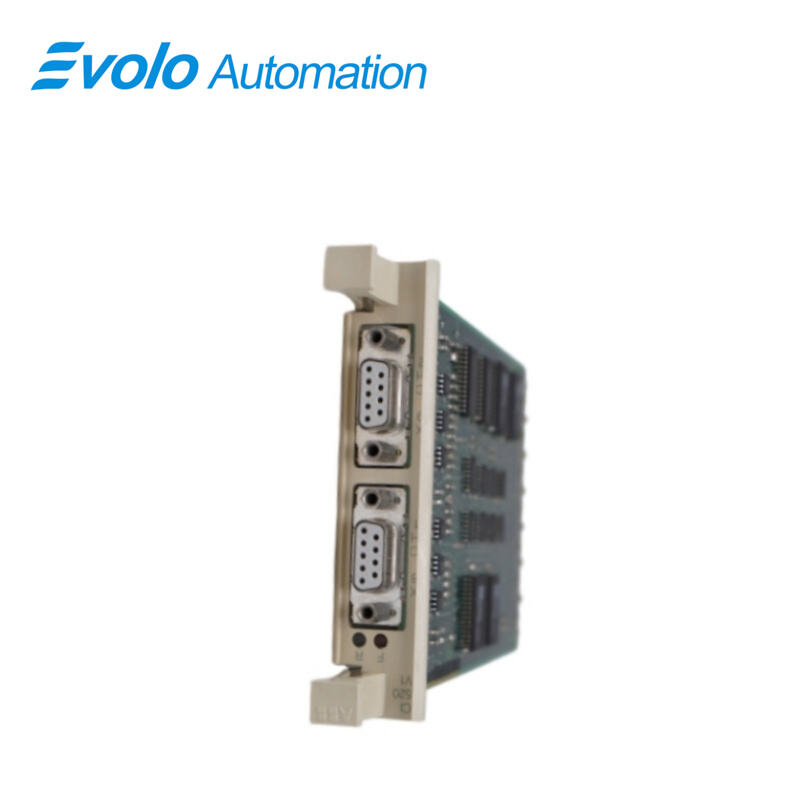

CI520V1 3BSE012869R1 AF100 Communication Interface Module, China CI520V1 3BSE012869R1 AF100 Communication Interface Module Manufacturers, Suppliers, Factory

Overview

Place of Origin:	Sweden
Brand Name:	ABB
Model Number:	CI520V1 3BSE012869R1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Parameter	Value
Module	AF100 Communication Interface Module
Product Net Weight	0.145 kg
Number of Inputs	4 channels
Input Signal Types	Voltage (0-10 V), Current (0-20 mA / 4-20 mA)
Resolution	15-bit (including sign)
Conversion Time	20 ms per channel (all channels)
Accuracy	±0.1% of full scale (at 25 °C)
Common-Mode Rejection	>120 dB at 50/60 Hz
Normal-Mode Rejection	>60 dB at 50/60 Hz
Isolation	Channel-to-channel and channel-to-bus isolation
Power Supply	24 V DC (19.2 - 30 V DC)
Power Consumption	Typically 1.5 W
Operating Temperature	-25 °C to +60 °C
Relative Humidity	5% to 95% (non-condensing)
Communication Interface	Profibus DP-V1
Connection Type	Removable screw terminal block
Mounting	DIN rail

Description

The ABB CI520V1 3BSE012869R1 is a compact and versatile analog input module designed for industrial automation systems. It is primarily used to acquire and process analog signals from various sensors and transmitters, making it essential in applications such as process control, monitoring, and data acquisition across industries like manufacturing, energy, and water treatment.

Applications

Steel plant (continuous casting and rolling control systems)

Paper mill (paper machine drive and process control)

Chemical plant (reactors and plant-wide DCS networking)

Power plant (auxiliary equipment control and data acquisition)

Cement plant (rotary kiln and raw material grinding system)

Competitive Advantage

When comparing the CI520V1 3BSE012869R1 to other models, its primary advantage lies in its Profibus DP-V1 connectivity and high channel density. For instance, compared to a generic 4-channel analog input module, the CI520V1 3BSE012869R1 offers superior accuracy and built-in isolation, which many standard modules lack. However, it is not a direct plug-in replacement for modules using a different fieldbus, such as DeviceNet or PROFINET. Within the ABB range, a potential alternative could be the CI530 series, which offers similar analog input functionality but often with a different communication protocol or a varying number of channels. The specific choice depends on the existing network architecture; the CI520V1 3BSE012869R1 is optimal for Profibus-based systems where its balance of performance and cost is unmatched.

FAQ

Q: What is the main function of the CI520V1 3BSE012869R1?
A: It is the communication gateway for the AF100 network, responsible for data synchronization between the controller and remote I/O or other controllers.

Q: Does the CI520V1 3BSE012869R1 support redundancy?
A: Yes. It is typically used with a dual-cable AF100 topology to ensure that a single-line failure does not affect production.

Q: What is the purpose of the DIP switches on the CI520V1 3BSE012869R1?
A: They are used to set the unique address (Station ID) of the station in the AF100 network.

Q: Can the CI520V1 3BSE012869R1 be hot-swapped while powered on?
A: It is recommended to operate with the system shut down or following ABB's specific hot-swap guidelines. Blindly operating may cause bus failure.

Q: Why is the communication distance of the CI520V1 3BSE012869R1 limited?
A: Please confirm that a standard RG6/U coaxial cable is being used and check for excessive physical connectors or electromagnetic interference in the middle.
