CC-TAIX11 51308365-175 Analog Input IOTA Redundant Module
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Specifications
- Description
- Applications
- Notable Features
- FAQ
- Recommended Products
Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
CC-TAIX11 51308365-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model: |
CC-TAIX11 51308365-175 |
|
Product Type: |
Analog Input IOTA Redundant Module |
|
Dimensions: |
29.4 × 12 × 7 cm |
|
Weight: |
0.38 kg |
|
Redundancy: |
Supported |
|
Input Type: |
Voltage, current (2-wire or self-powered transmitters) |
|
Input Channels: |
16 Channels (12 Single-Ended / 4 Differential) |
|
Common Mode Rejection Ratio: |
70 dB (dc to 60 Hz, 500 Ω source imbalance) |
|
Common Mode Voltage: |
-6 to +5 V peak (dc to 60 Hz) |
|
A/D Converter Resolution: |
16 bits |
|
Input Range: |
0 to 5 V, 1 to 5 V, 0.4 to 2 V, 4–20 mA (through 250 Ω) |
|
Normal Mode Rejection Ratio: |
19 dB at 60 Hz |
|
Normal Mode Filter Response: |
Single-pole RC, -3 dB @ 6.5 Hz |
|
Maximum Normal Mode Input: |
±30 V (differential inputs, no damage) |
|
Crosstalk: |
-60 dB (channel-to-channel, dc to 60 Hz) |
|
Input Impedance: |
>10 MΩ powered (voltage inputs) |
|
Input Scan Rate: |
50 ms |
|
Hardware Accuracy: |
±0.075% FS (23.5°C ±2°C); ±0.15% FS (0 to 60°C) |
|
Field Power Conditioning: |
Individually protected current limiting circuits for Class 1, Div 2 non-incendive interfacing; no fusing required |
Description

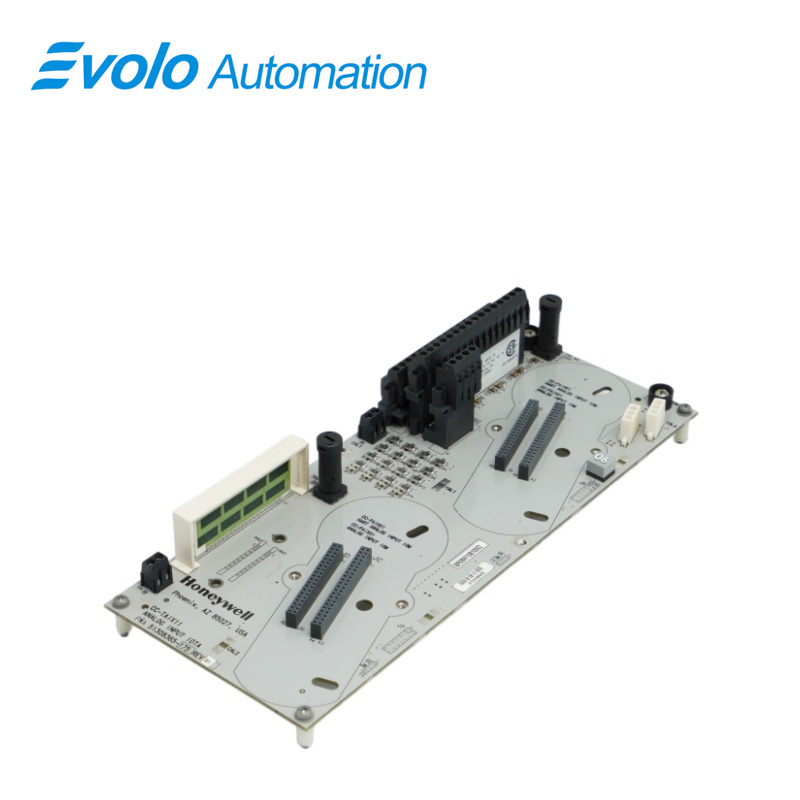

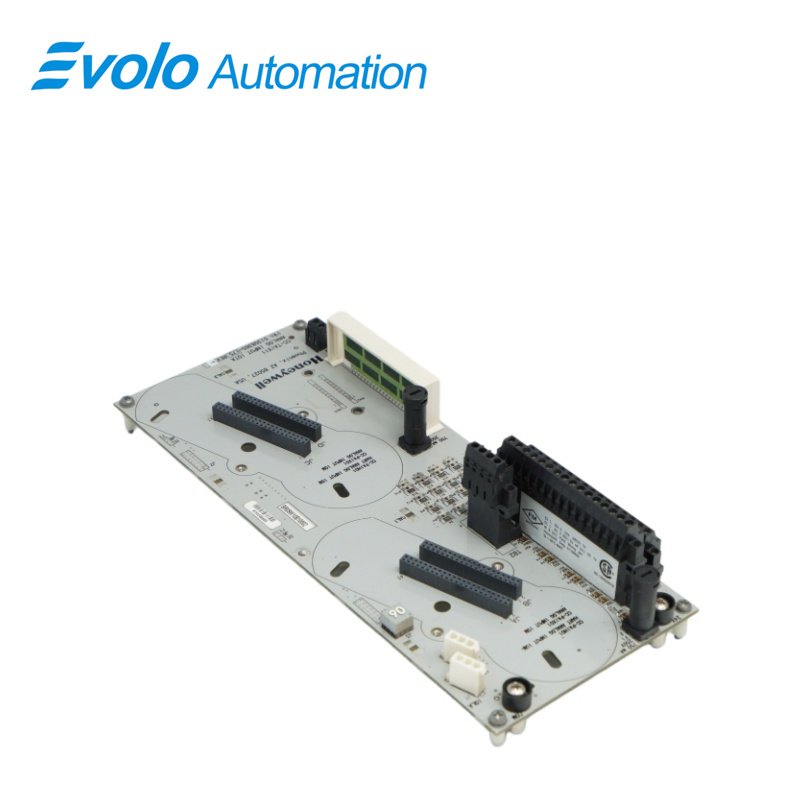

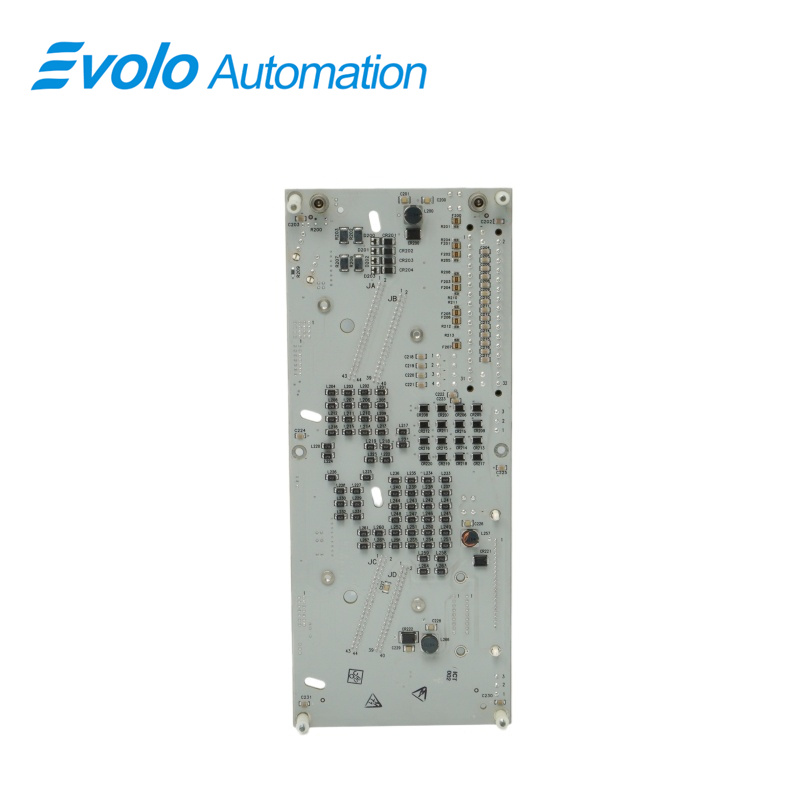

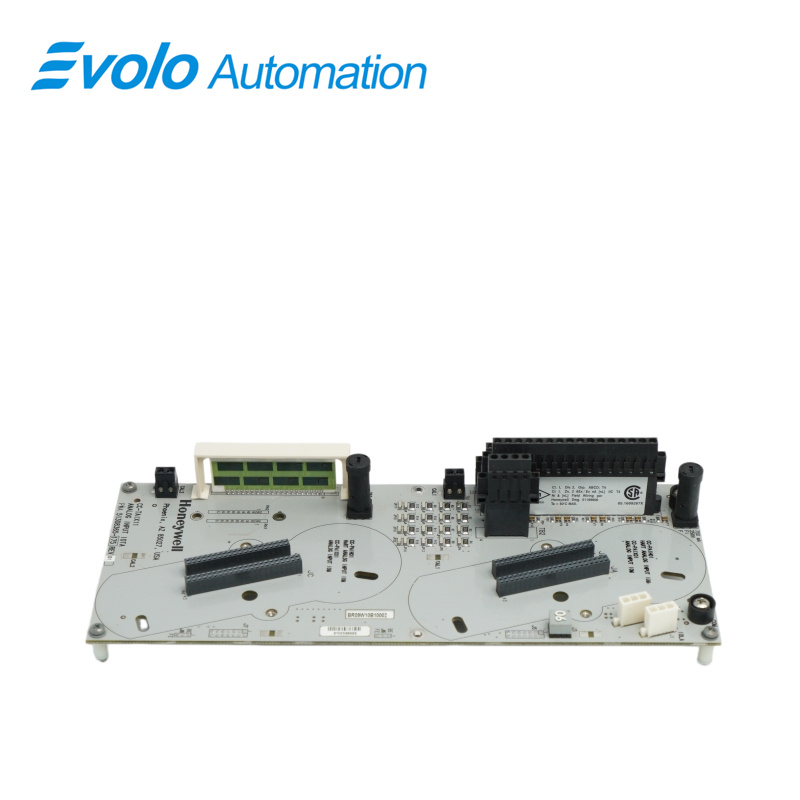

The Honeywell CC-TAIX11 51308365-175 is an Analog Input IOTA Redundant Module. It is primarily used to mount upper-level electronic components and provide physical connection points for field cables. It is responsible for introducing electrical signals representing actual pressure, flow rate, or liquid level status into the system and transmitting them to the upper-level control hardware.
Applications
Oil refineries: Temperature and pressure transmitter signal acquisition for key catalytic cracking units with redundant hardware ensuring continuous operation.
Large chemical plants: Liquid level and flow signal collection from reactors and distillation columns with strong noise immunity against electromagnetic interference.
Thermal power plants: Fast acquisition of control feedback signals for turbines and boilers enabling rapid and stable system response.
Coal chemical gasification plants: Safe integration of monitoring instruments in hazardous environments using intrinsic safety isolation design.
Notable Features
Extensive self-diagnostics
Optional redundancy
Supplies non-incendive field power
Non-Incendive Power
Fast loop scan
FAQ
Q: What is the redundancy and channel structure of the CC-TAIX11 51308365-175?
A: Supports redundancy configuration with 16 channels (12 single-ended / 4 differential).
Q: What are the input signal types and ranges of the CC-TAIX11 51308365-175?
A: Supports voltage and current inputs, including 0–5 V and 4–20 mA ranges.
Q: What are the resolution and scan cycle of the CC-TAIX11 51308365-175?
A: Uses 16-bit resolution with a channel scan sampling cycle of 50 ms.
Q: What is the hardware accuracy of the CC-TAIX11 51308365-175 under different temperatures?
A: ±0.075% FS at room temperature and ±0.15% FS from 0 to 60°C.
Q: What are the noise immunity and impedance characteristics of the CC-TAIX11 51308365-175?
A: Common-mode rejection ratio is 70 dB, and powered voltage input impedance is greater than 10 MΩ.
