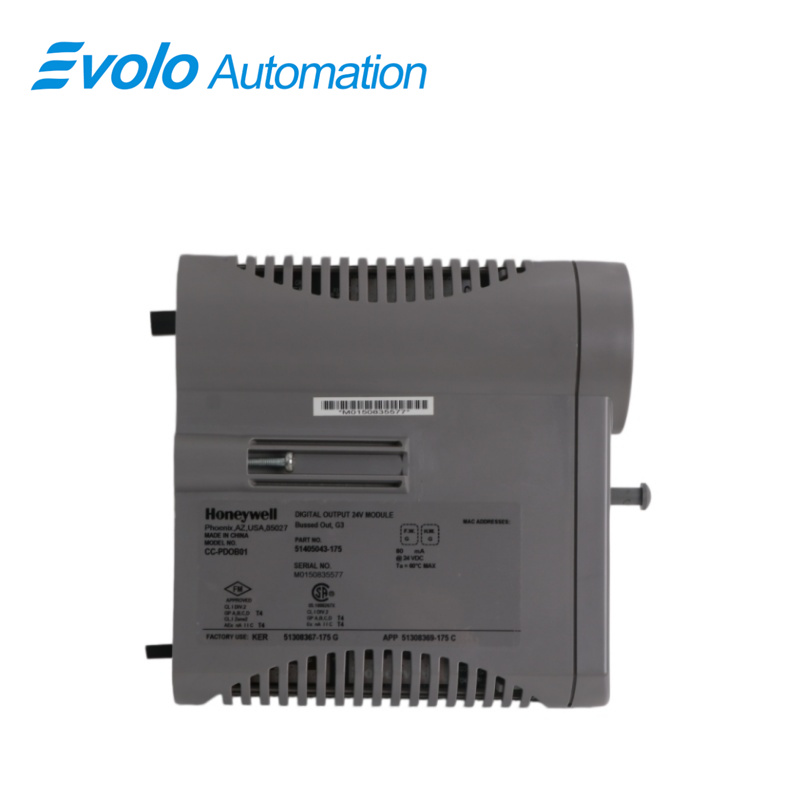

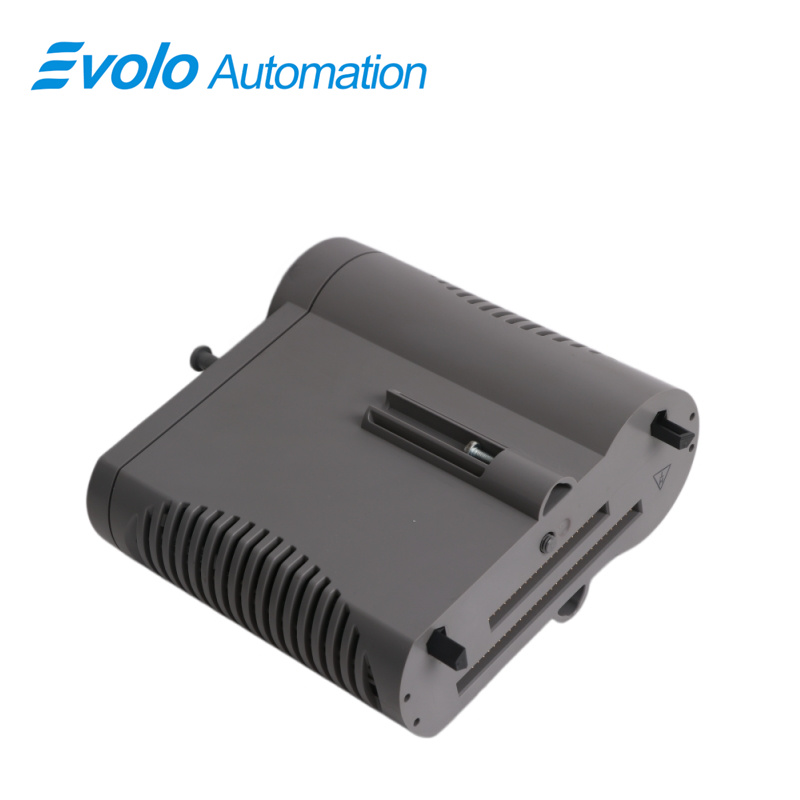

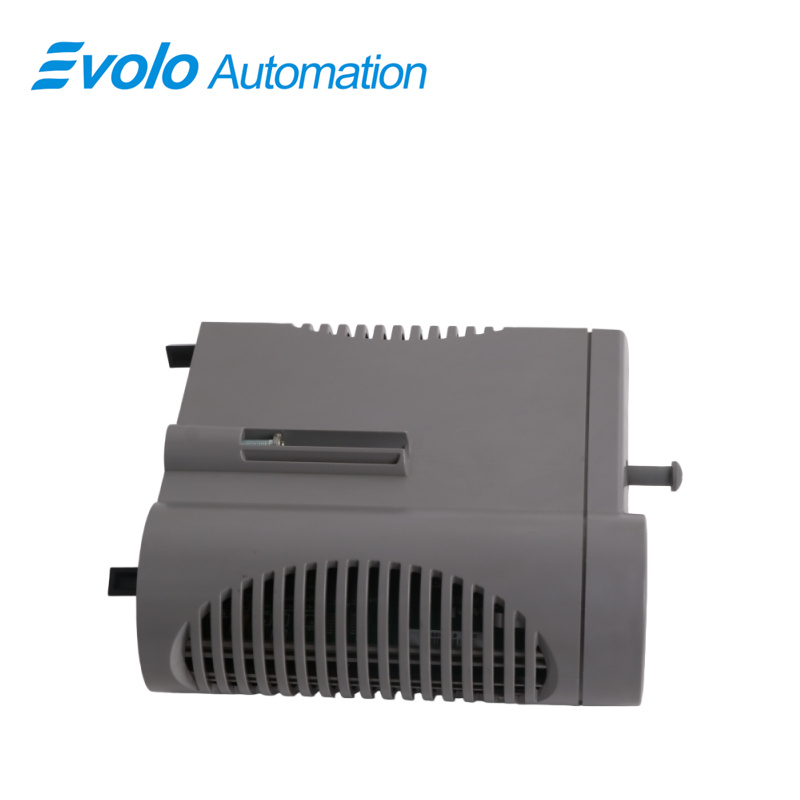

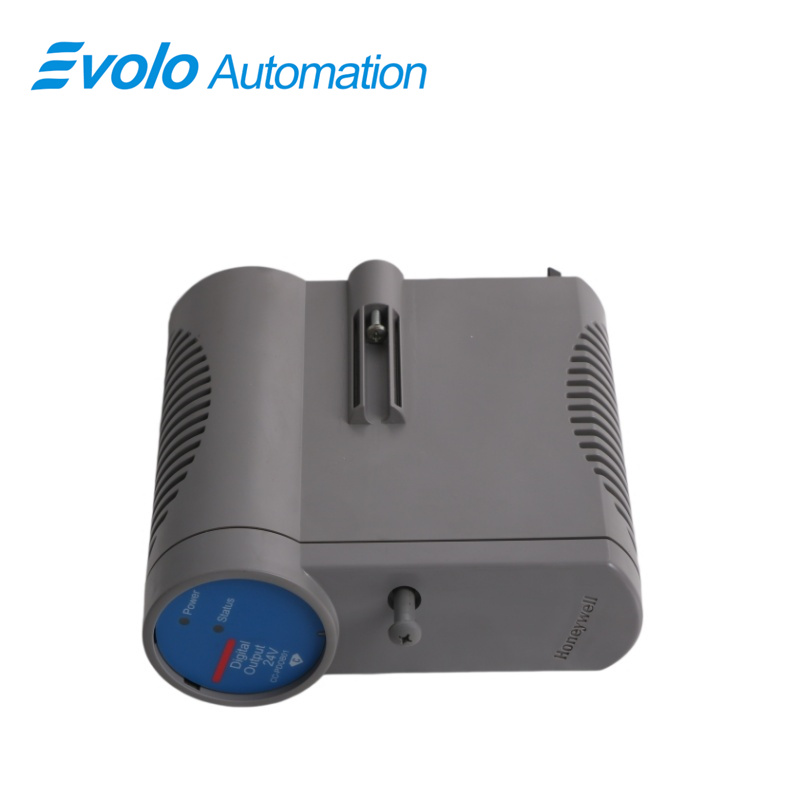

Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
CC-PDOB01 51405043-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
CC-PDOB01 51405043-175 |
|
Part Type |
Digital Output Module |
|
Dimensions |
5.5 x 16 x 14.5 cm |
|
Weight |
0.4 kg |
|
Output Channels |
32 |
|
Output Type |
Source |
|
Load Voltage |
15–30 VDC (maximum) |
|
Galvanic Isolation |
1500 VAC RMS or ±1500 VDC |
|
On-State Voltage |
24 V (typical, at load current 0.5 A) |
|
Off-State Voltage |
0 VDC (max) / 3.3 VDC (max no-load condition) |
|
Off-State Leakage Current |
5 µA (max) |
|
Turn-On/Turn-Off Time |
10 ms (max) |
|
Switchover Gap |
0 ms (no gap, redundancy mode) |
|
Output Voltage Drop |
Source voltage − 150 mV (max) |
|
Load Current (per channel) |
0.5 A |
|
Load Current (per 8-channel group) |
Up to 4 A (no short condition) |
|
Load Current (per module) |
Up to 6 A |
|
Short Condition (one channel short) |
0.5 A/channel, 3 A per 8 channels, 6 A per module |
|
Short Condition (two channels short) |
0.5 A/channel, 1.5 A per 8 channels, 6 A per module |
|
Channel Grouping |
1–8, 9–16, 17–24, 25–32 |
Description
The CC-PDOB01 51405043-175 is a digital output module for industrial automation control systems. It provides multiple output channels for driving field devices such as relays, solenoid valves, and indicator lights. This module isolates the field wiring from the control logic, helping to reduce interference from industrial noise.
Applications
Automated assembly plant: Used to control hundreds of pneumatic solenoid valves on the production line; 32 high-density channels significantly save cabinet space.
Natural gas processing plant: Utilizes 1500 VAC electrical isolation to protect core control logic from field surge interference in remote control areas.
Food processing plant: In rapid packaging lines, its 10 ms fast response time enables precise synchronization of high-speed levers and sorting actions.
Semiconductor manufacturing plant: Utilizes its extremely low open-circuit leakage current (5.0 µA) to ensure that signal interlocking of highly sensitive detection equipment does not cause malfunctions.
Notable Features
Extensive internal diagnostics for data integrity
Optional redundancy
Direct/reverse output support
Configurable safe-state (FAILOPT) behavior
Fuse-less short-circuit protection
Latched, pulsed, or PWM output per channel
Galvanic isolation
Protection
Fuse-less Short Circuit Protection:
This unique feature allows a short circuit to exist without blowing any fuses. When a particular channel is shorted, internal circuits detect this and remove power to the field connection. The channel remains de-energized until the short circuit is repaired.
FAILOPT
Series C DO module will support FAILOPT parameter on a per channel basis. The output can be directed by configuration to either HOLD THE LAST VALUE, or SHED to a SAFE VALUE. The safe value can be configured by the user.
FAQ
Q: What are the channel and output types of the CC-PDOB01 51405043-175?
A: 32-channel sourcing digital output.
Q: What are the load voltage and current of the CC-PDOB01 51405043-175?
A: Voltage 15–30 VDC, 0.5 A per channel, 6 A per module maximum.
Q: What are the isolation withstand voltage and switching time of the CC-PDOB01 51405043-175?
A: Electrical isolation 1500 VAC, redundant mode switching gap 0 ms.
Q: How are the channel groups of the CC-PDOB01 51405043-175 arranged?
A: Each 8 channels form one group (1–8, 9–16, 17–24, 25–32).
Q: What are the response time and off-state leakage current of the CC-PDOB01 51405043-175?
A: Maximum switching time 10 ms, off-state leakage current up to 5 µA.
