Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
CC-PDIL01 51405040-176 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Description |
Specification |
|
Model |
CC-PDIL01 51405040-176 |
|
Part name |
Digital Input Module |
|
Dimensions |
5.5x16x14.5cm |
|
Weight |
0.36kg |
|
Operating voltage |
24 V |
|
Input channels |
32 |
|
Galvanic isolation |
1500 VAC RMS or ±1500 VDC |
|
Isolation technique |
Optical (in IOM) |
|
DI power voltage range |
18 to 30 VDC |
|
ON sense voltage/current |
13 VDC (min) or 3 mA (min) |
|
OFF sense voltage/current |
5 VDC (max) or 1.2 mA (max) |
|
Input impedance |
4.2 kΩ |
|
Absolute delay across input filter and isolation |
5 ms ±20% |
|
Field resistance for guaranteed ON condition |
300 Ω max @ 15 VDC |
|
Field resistance for guaranteed OFF condition |
30 kΩ min @ 30 VDC |
Description

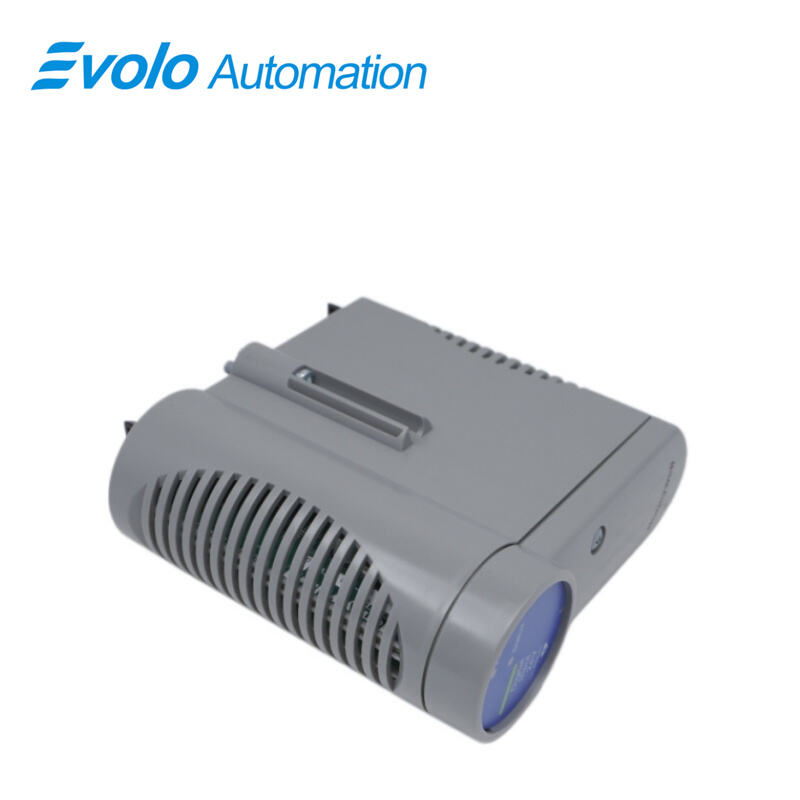

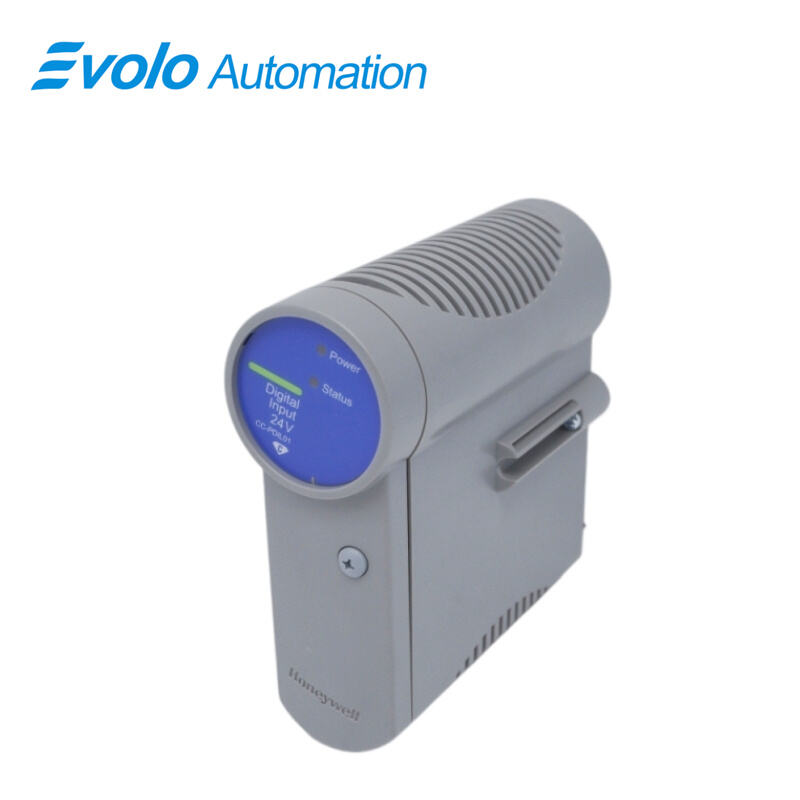

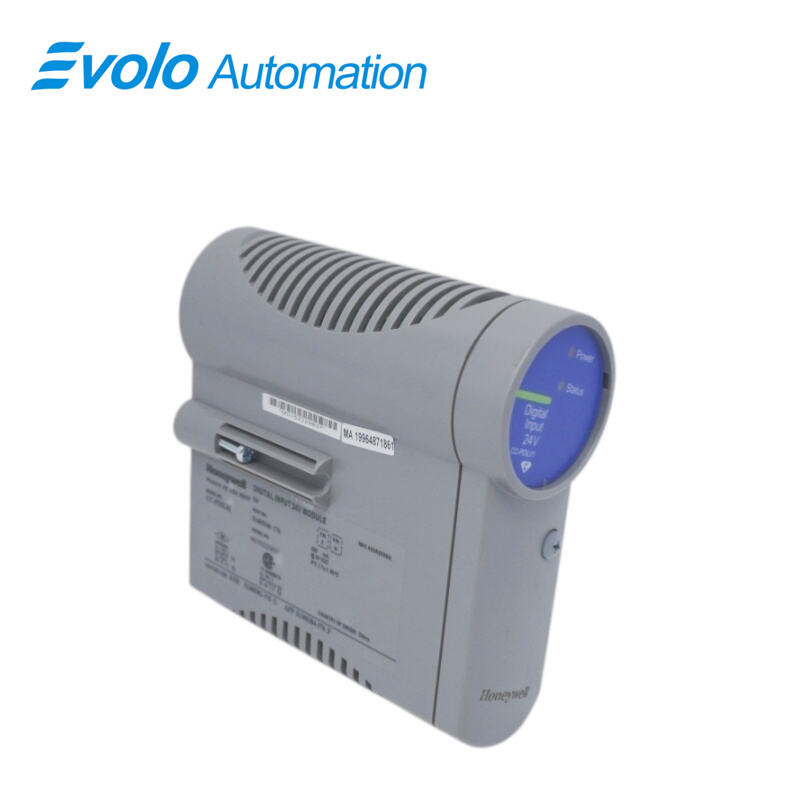

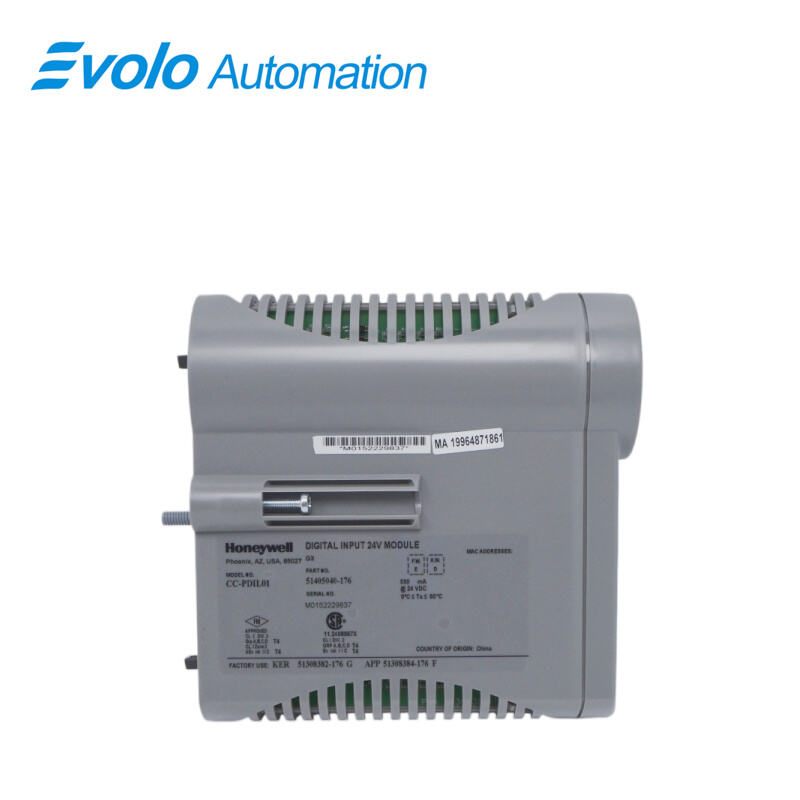

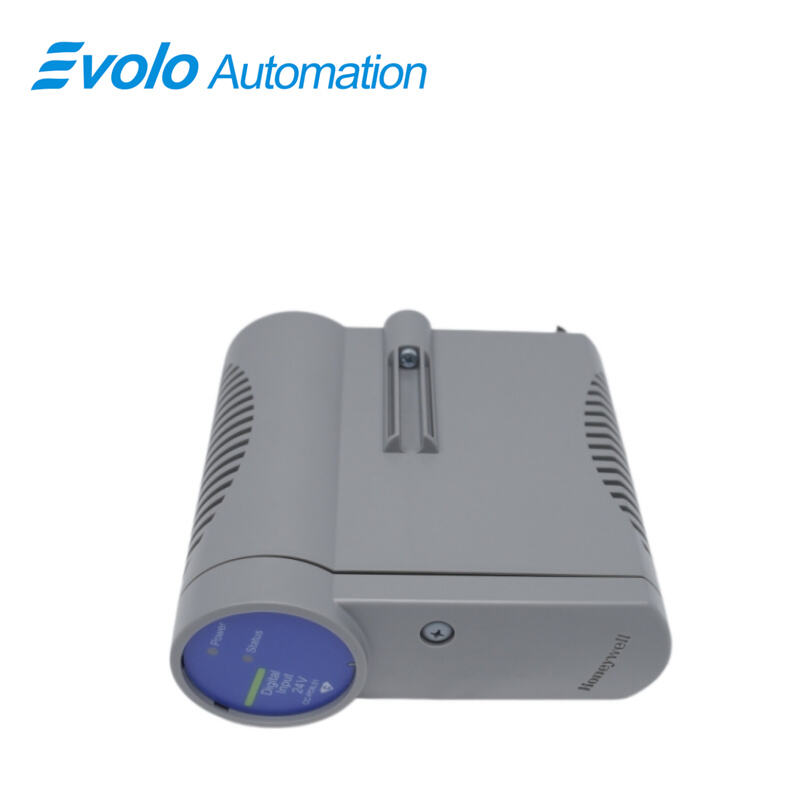

The Honeywell CC-PDIL01 51405040-176 is a digital input module for the Experion PKS Series C system, designed to provide efficient field status monitoring, real-time signal capture, and high availability redundancy support for industrial environments. This module integrates fault diagnosis capabilities and features a compact Series C architecture, significantly improving rack space utilization and reducing maintenance downtime.
Applications
Petroleum Refineries: Monitors valve positions and pump status with high isolation protection.
Fine Chemical Plants: Captures safety interlock and emergency stop signals in reactor systems.
Gas Processing Plants: Collects alarm signals from pipeline station instruments.
Power Plants: Monitors turbine auxiliaries and switchgear in high-noise environments.
Pharmaceutical Plants: Provides logic monitoring for batch filling and fermentation systems.
Key Features
Extensive internal diagnostics for data integrity
Open wire detection
Optional redundancy feature
Internal or external field power selection
On-board excitation power (eliminates need for marshalling power)
Supplies non-incendive field power
Direct/Reverse Input Indication
Galvanic isolation
FAQ
Q: What is the channel density and operating voltage range of the CC-PDIL01 51405040-176?
A: It provides 32 input channels and supports an operating voltage range of 18–30 VDC.
Q: How does the CC-PDIL01 51405040-176 handle high-voltage surge interference?
A: Optical isolation allows it to withstand up to ±1500 VDC or 1500 VAC RMS for strong surge protection.
Q: What is the minimum ON-state threshold for the CC-PDIL01 51405040-176?
A: The logic ON threshold is 13 VDC or 3 mA; lower values may not be detected.
Q: Will leakage current cause false alarms in the CC-PDIL01 51405040-176?
A: No. OFF-state detection below 5 VDC or 1.2 mA provides good false-signal immunity.
Q: What is the signal processing delay of the CC-PDIL01 51405040-176?
A: Absolute delay is approximately 5 ms (±20%) after filtering and isolation.
