Emerson A6210 Dual-Channel Thrust, Differential Expansion and Rod Drop Monitor
Manufacturer: Emerson (AMS/EPRO)
Condition: Brand New
Lead Time: In Stock
Origin: Germany
Warranty: 12 Months
Email: [email protected]
whatsApp: +86-18150117685
- Overview
- Product Overview
- Key Functions
- Official Specifications
- Frequently Asked Questions
- Compatibility & Ordering Notes
- Hot Selling Models
- Recommended Products
Overview
AMS 6500 MACHINERY PROTECTION
A6210 Dual-Channel Thrust, Differential Expansion and Rod Drop Monitor
Official-source product identification, application guidance and ordering checks for A6210.
At a Glance
| Brand | Emerson (AMS/EPRO) |
|---|---|
| Model | A6210 |
| Product Type | Dual-Channel Thrust, Differential Expansion and Rod Drop Monitor |
| Core Function | Axial thrust, turbine differential-expansion or reciprocating-compressor rod-drop monitoring. |
| Application / Compatible Series | AMS 6500 machinery protection |
Verified identification

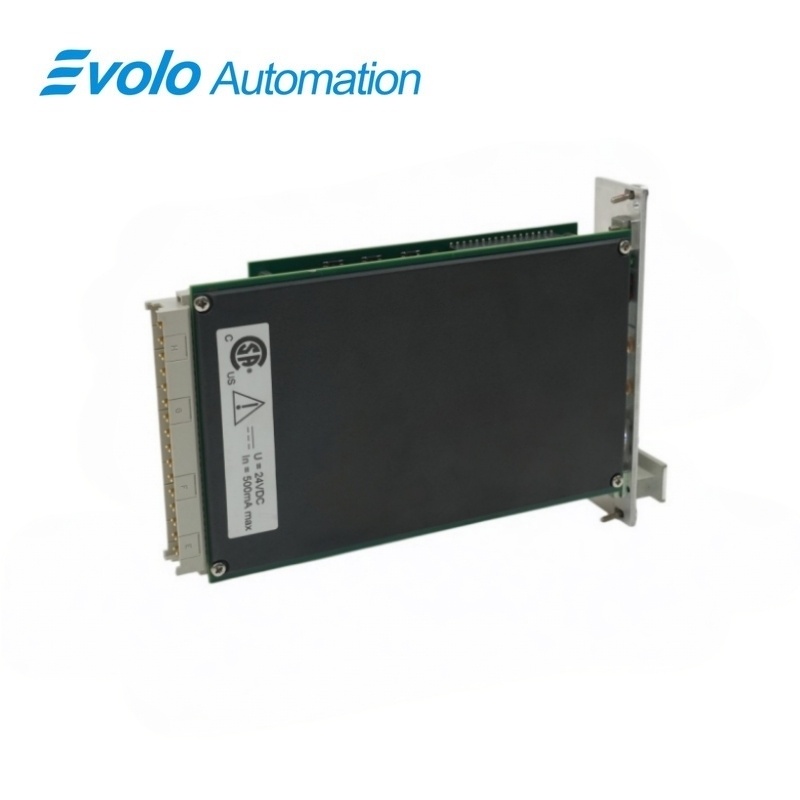

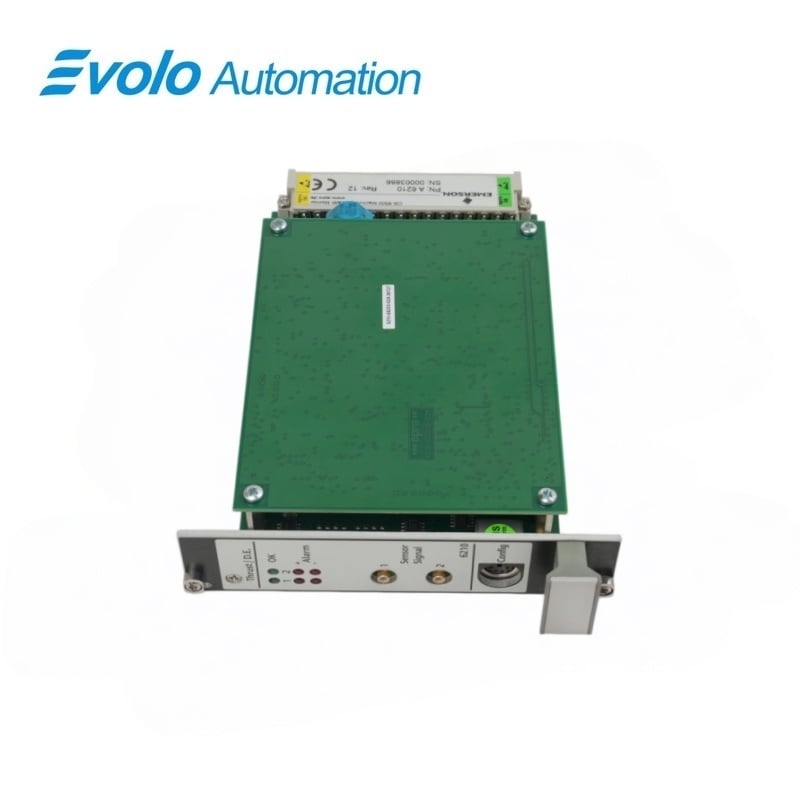

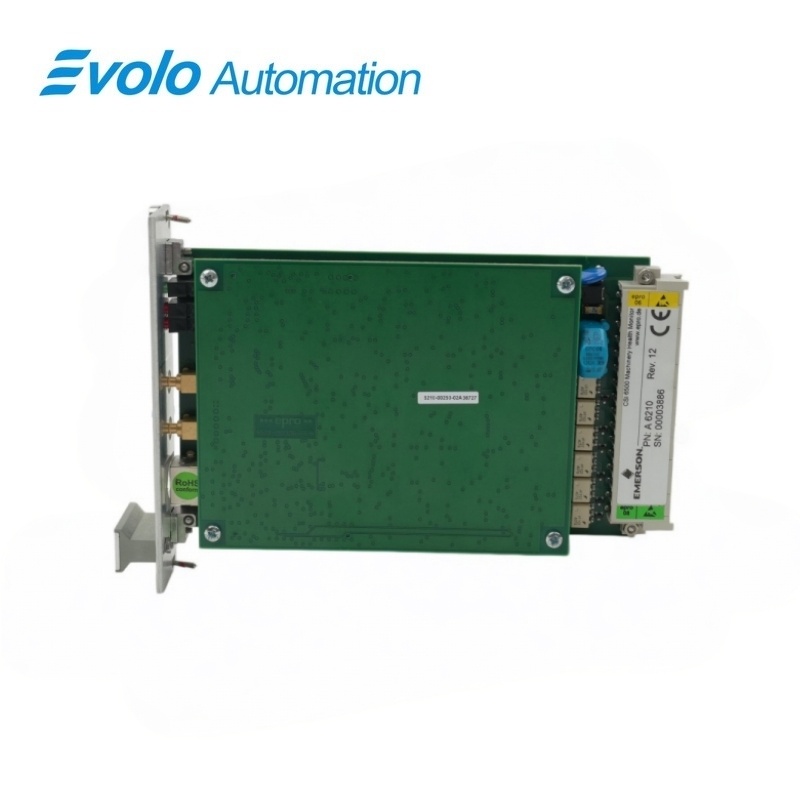

A6210 is identified by the complete manufacturer model and the photographed unit.
Application focus
A6210 is intended for axial thrust, turbine differential-expansion or reciprocating-compressor rod-drop monitoring.
Ordering control
A6210 should be matched by the full nameplate, hardware revision and installed configuration.
Product Overview
Emerson A6210 is a dual-channel AMS 6500 monitor configurable for thrust position, differential expansion or rod-position/rod-drop measurement.
Official documentation describes two independent eddy-current inputs and measurement modes for axial shaft position, tandem or cone/ramp differential expansion and average piston-rod position. The selected mode determines probe geometry, scaling and protection logic.
Key Functions
Thrust Position Protection
Measures axial shaft position and compares it with alert and danger limits for critical turbomachinery protection.
Differential Expansion Modes
Supports tandem/complementary and cone/ramp arrangements to evaluate relative rotor and case thermal growth.
Rod Position Monitoring
Measures average piston-rod position so rider-band wear in reciprocating compressors can be detected and alarmed.
Official Specifications
| Inputs | 2 independent eddy-current differential inputs |
|---|---|
| Supported probes | 6422, 6423, 6424 and 6425 |
| Input voltage range | 0 to −22 VDC |
| Measuring frequency | 0–8 Hz (10 Hz, −3 dB) |
| Rack format | 3U, 6TE, one slot |
| Thrust Position Protection | Measures axial shaft position and compares it with alert and danger limits for critical turbomachinery protection. |
| Differential Expansion Modes | Supports tandem/complementary and cone/ramp arrangements to evaluate relative rotor and case thermal growth. |
| Rod Position Monitoring | Measures average piston-rod position so rider-band wear in reciprocating compressors can be detected and alarmed. |
| Input Frequency Range | 0–8 Hz |
| Measurement Principle | Eddy current |
| Alert Threshold | Configurable |
| Input Channel Count | 2 |
| Input Sensor Type | Eddy-current differential |
Official source: Emerson Protection Cards for AMS 6500 Classic Systems — A6210. Commercial stock, warranty and shipping statements are seller terms.
Frequently Asked Questions
How should engineers verify A6210 compatibility with AMS 6500 machinery protection?
It is intended for AMS 6500 machinery protection.
How is A6210 normally applied when a Dual-Channel Thrust, Differential Expansion and Rod Drop Monitor is required?
Axial thrust, turbine differential-expansion or reciprocating-compressor rod-drop monitoring.
How should engineers prepare the existing system for installation of A6210?
Document probe locations, CON converters and channel polarity. Record range, sensitivity, compensation and engineering units.
How does A6210 handle thrust position protection?
Measures axial shaft position and compares it with alert and danger limits for critical turbomachinery protection.
What should technicians verify about differential expansion modes when commissioning A6210?
Supports tandem/complementary and cone/ramp arrangements to evaluate relative rotor and case thermal growth.
Why is rod position monitoring important when integrating A6210?
Measures average piston-rod position so rider-band wear in reciprocating compressors can be detected and alarmed.
How should an engineer match A6210 before replacing an installed unit?
The unit should be matched by the full nameplate, hardware revision and installed configuration.
Compatibility & Ordering Notes
Compatibility checklist for A6210
- Confirm the A6210 model and selected measurement mode.
- Document probe locations, CON converters and channel polarity.
- Record range, sensitivity, compensation and engineering units.
- Verify alert/danger delays, relays and proportional outputs.
