Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
991-06-70-01-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Full-scale Option : |
0.6-0-0.6 mm |
|
System Length Option : |
7.0 meters (23.0 feet) |
|
Mounting Option: |
35 mm DIN-rail clips |
|
Agency Approval Option : |
Not required |
|
Dimension: |
7.3x5.9x9.9cm |
|
Weight: |
0.46kg |

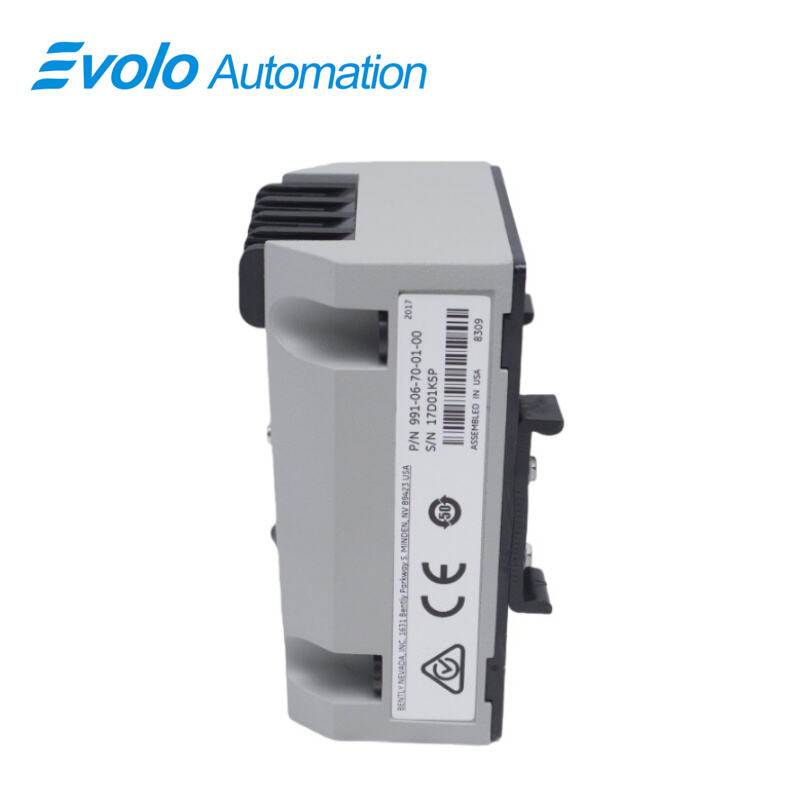

Description

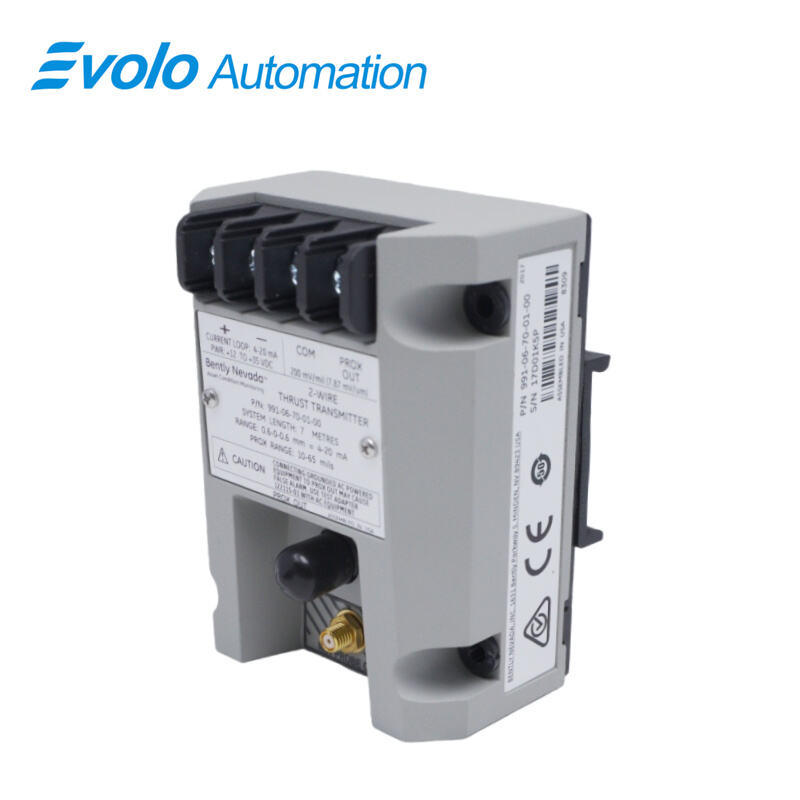

The 991-06-70-01-00 Thrust Transmitter is a 2-wire, loop-powered device designed for OEMs of centrifugal air compressors, small pumps, motors, and fans. It accepts input from a 3300 NSv Proximity Probe and extension cable (5 m or 7 m) and converts axial shaft displacement into a 4–20 mA signal for automated machinery control. The 991-06-70-01-00 features a linear range of 0.25–1.65 mm (10–65 mils), full-scale option of 0.6–0–0.6 mm, and a maximum loop resistance of 1000 Ω at 35 Vdc. The transmitter operates in temperatures from -35°C to +85°C and supports DIN-rail mounting with 35 mm clips.
Applications
Measure Axial Shaft Position in Centrifugal Compressors
The 991-06-70-01-00 reads axial movement from a 3300 NSv Proximity Probe (0.25–1.65 mm range) and converts it into a 4–20 mA signal, providing real-time input for automated compressor control.
Monitor Thrust in Motors and Fans
The 991-06-70-01-00 Thrust Transmitter uses the 3300 NSv Proximity Probe with full-scale 0.6–0–0.6 mm range to provide continuous axial thrust readings for automated motor and fan protection.
Check Shaft Vibration and Gap Signals
The 991-06-70-01-00 outputs dynamic voltage through PROX OUT and COM terminals, allowing automated systems to detect abnormal shaft motion and verify probe alignment.
Specifications
|
Operating Temperature: |
-35°C to +85°C (-31°F to +185°F) |
|
Storage Temperature : |
-51°C to +100°C (-60°F to +212°F) |
|
Input: |
Accepts one non-contacting 3300 NSv Proximity Probe and extension cable |
|
Power: |
Requires +12 to +35 Vdc input at the transmitter terminal |
|
Maximum Loop Resistance: |
1,000 Ω including cable at 35 Vdc |
|
Current Limiting: |
23 mA typical |
|
Output Impedance: |
Prox Out has a 10 kΩ output impedance calibrated for a 10 MΩ load |
|
Linear Range: |
0.25 to 1.65 mm (10 to 65 mils) for Prox Out |
|
Leadwire Length: |
Proximitor Sensor Output (BNC connector), maximum cable distance is 3 meters (10 feet) |
Competitive Advantage
Adjust Signal Output Quickly
Non-interacting zero and span potentiometers on the 991-06-70-01-00 allow technicians to calibrate the transmitter in the field with minimal effort.

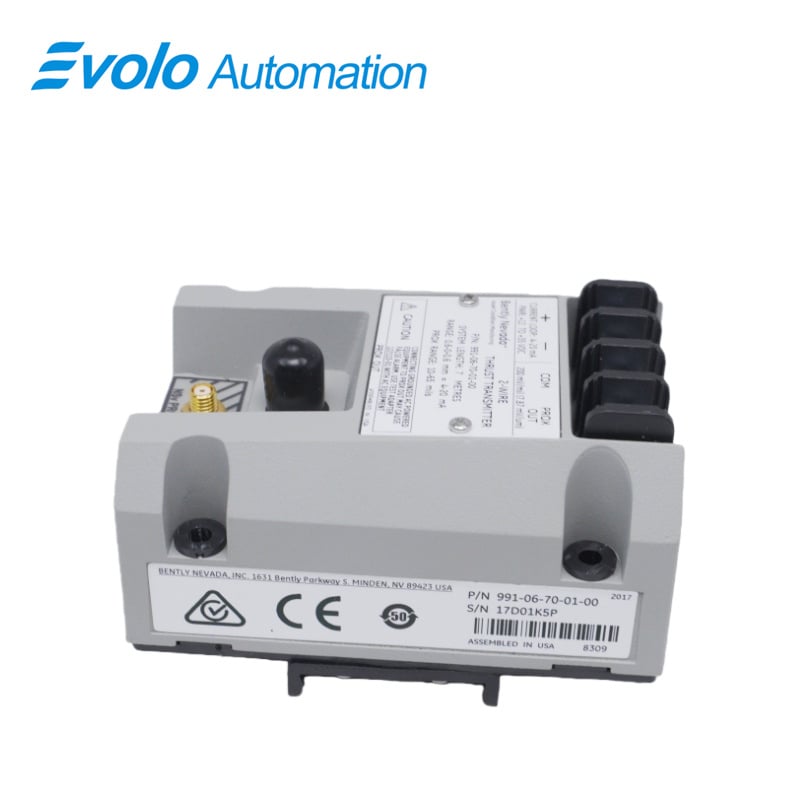

Install in Confined Machine Spaces

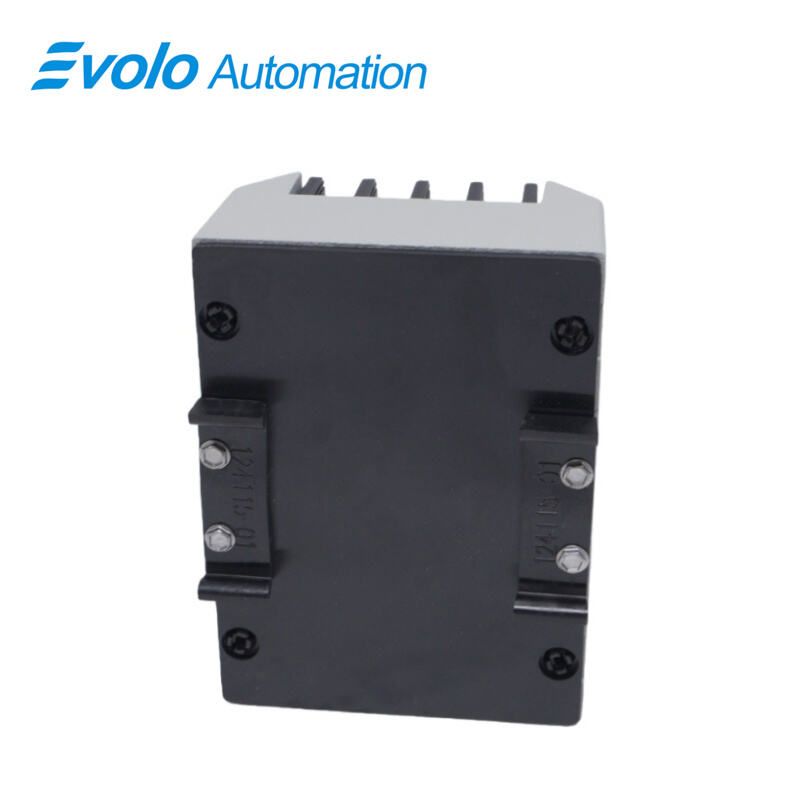

The 991-06-70-01-00 mounts using DIN-rail clips or bulkhead screws, fitting the 3300 NSv Proximity Probe in tight areas without extra modifications.
Prevent False Alarms from Loose Probes
Power-up Inhibit and Not OK/Signal Defeat circuits in the 991-06-70-01-00 stop high outputs if the 3300 NSv Proximity Probe connection is loose, ensuring automated systems only receive valid readings.
Support Long Distance Wiring
The 991-06-70-01-00 handles loop resistances up to 1000 Ω and accepts extension cables up to 7 m, allowing flexible placement of probes and transmitters in automated plants.
