Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
990-05-XX-01-00 mod 165335-01 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Full-scale Option : |
0-5 mils pp (0-125 μm pp) |
|
System Length Option : |
7.0 meters (23.0 feet) |
|
Mounting Option: |
35 mm DIN rail clips |
|
Agency Approval Option : |
Not required |
|
Dimension: |
10x7.3x6cm |
|
Weight: |
0.46kg |
Description

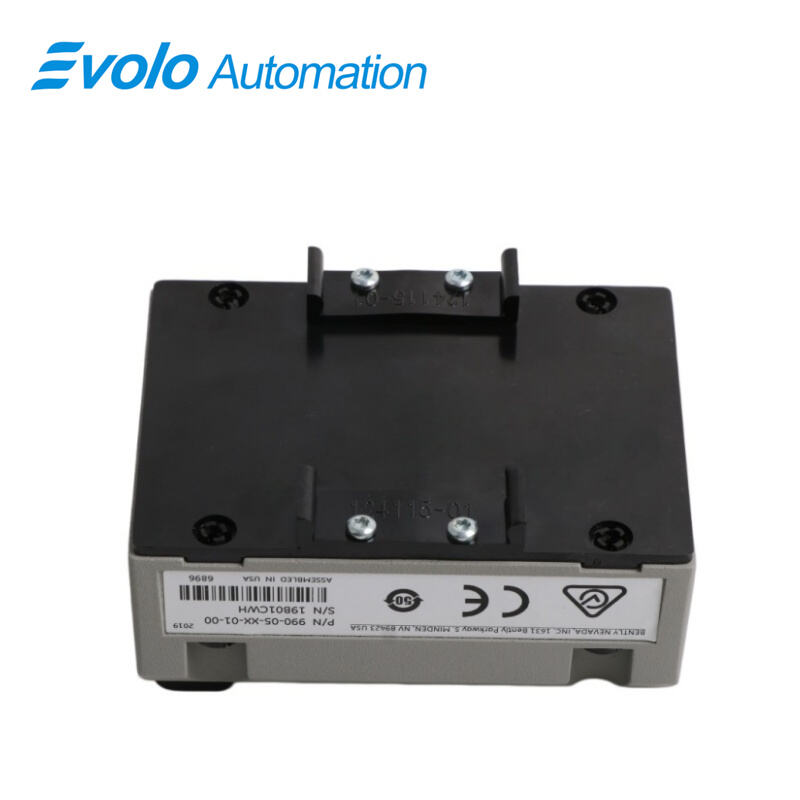

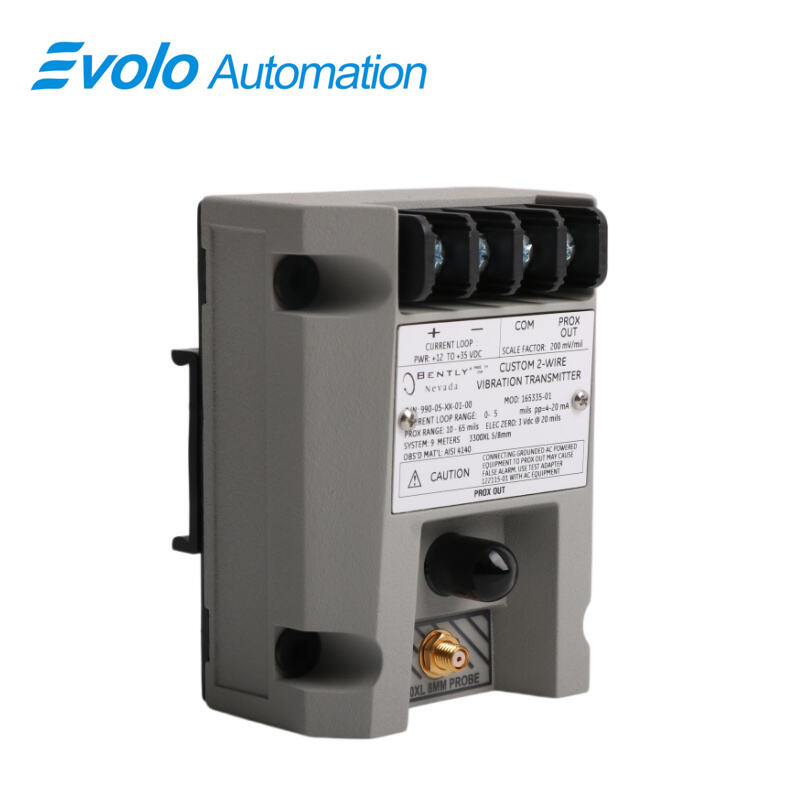

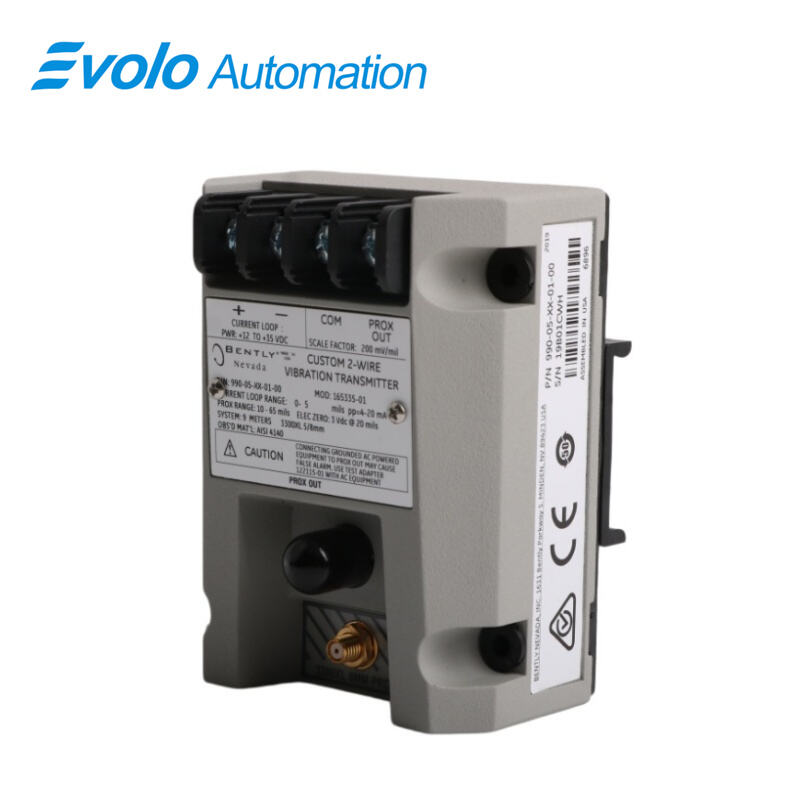

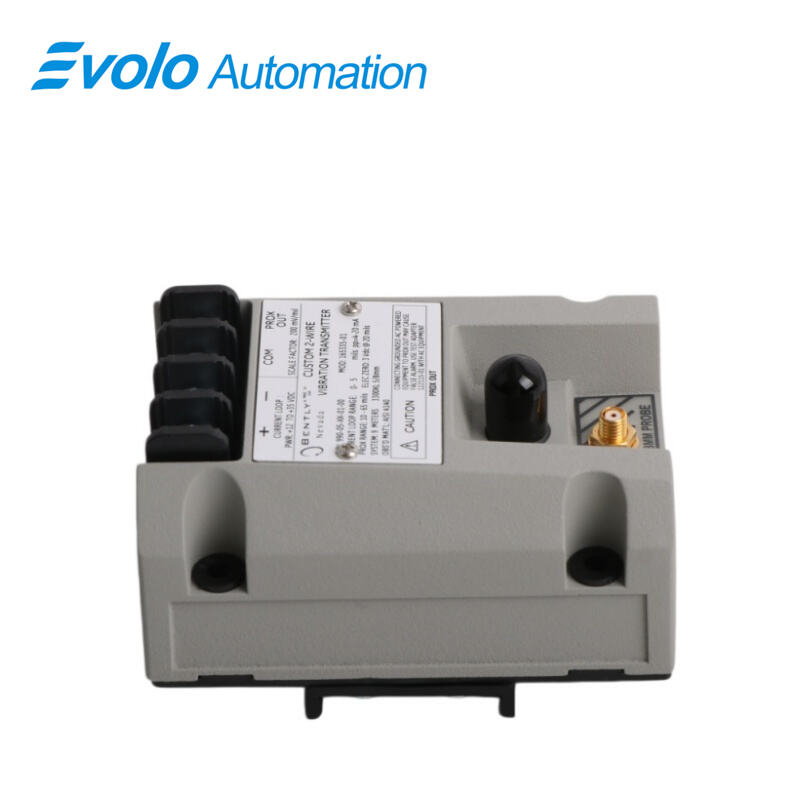

The 990-05-XX-01-00 MOD 165335-01 Vibration Transmitter converts input from a 3300 NSv Proximity Probe into a 4–20 mA signal for automated machinery control. Designed for full-scale 0–5 mils pp (0–125 μm pp) with a linear range of 0.25–1.65 mm (10–65 mils), the 990-05-XX-01-00 MOD 165335-01 supports loop-powered operation at +12 to +35 Vdc and 23 mA typical current with maximum loop resistance of 1,000 Ω. The transmitter features an integrated Proximitor Sensor, BNC output, and DIN-rail mounting for compact installations. Test input and non-interacting zero/span potentiometers simplify field adjustments. The Not OK/Signal Defeat circuit on the 990-05-XX-01-00 MOD 165335-01 prevents false alarms due to loose connections or faulty probes. With 7 m system length support, the transmitter fits in tight spaces such as centrifugal air compressors, small pumps, or motors, delivering accurate, proportional vibration measurements for machinery protection and automated control.
Applications
Automated Machinery Vibration Monitoring
Use the 990-05-XX-01-00 MOD 165335-01 to measure shaft vibration on centrifugal air compressors, converting 0–5 mils pp vibration into a 4–20 mA signal for control logic.
Small Pump and Motor Integration
Install the 990-05-XX-01-00 MOD 165335-01 with a 3300 NSv Proximity Probe on pumps or motors with limited space, using the 7 m system length for flexible wiring.
Fan Vibration Feedback for Automated Control
Deploy the 990-05-XX-01-00 MOD 165335-01 in fan systems to provide real-time vibration data to PLCs or DCS, supporting predictive maintenance.
Peak-to-Peak Vibration Analysis
Utilize the 0.25–1.65 mm linear range of the 990-05-XX-01-00 MOD 165335-01 to quantify peak-to-peak vibration and trigger alarms in automated monitoring systems.
Specifications
|
Operating Temperature: |
-35°C to +85°C (-31°F to +185°F) |
|
Storage Temperature : |
-52°C to +100°C (-62°F to +212°F). |
|
Input: |
Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable |
|
Power: |
Requires +12 to +35 Vdc input at the transmitter terminal |
|
Maximum Loop Resistance: |
1,000 Ω including cable at 35 Vdc |
|
Current Limiting: |
23 mA typical |
|
Output Impedance: |
Prox Out has a 10 kΩ output impedance calibrated for a 10 MΩ load |
|
Linear Range: |
0.25 to 1.65 mm (10 to 65 mils) for Prox Out |
|
Leadwire Length: |
Proximitor Sensor Output (BNC connector), maximum cable distance is 3 meters (10 feet) |
Competitive Advantage
Flexible Mounting with DIN-Rail Clips
Its 35 mm DIN-rail mounting and 7 m system length allow the 990-05-XX-01-00 MOD 165335-01 to be installed in confined areas while maintaining easy wiring access.
Precise Adjustment for Automated Control
Non-interacting zero and span potentiometers on the 990-05-XX-01-00 MOD 165335-01 support accurate calibration, ensuring 4–20 mA output matches machinery vibration levels from 0–5 mils pp.
Diagnostics via PROX OUT and COM Terminals
The BNC output of the 990-05-XX-01-00 MOD 165335-01 provides real-time dynamic vibration and gap voltage signals, allowing verification and troubleshooting in automated systems.
Fault Prevention Circuit
The Not OK/Signal Defeat feature on the 990-05-XX-01-00 MOD 165335-01 prevents high output signals or false alarms from faulty 3300 NSv Proximity Probe connections, protecting automation logic.
