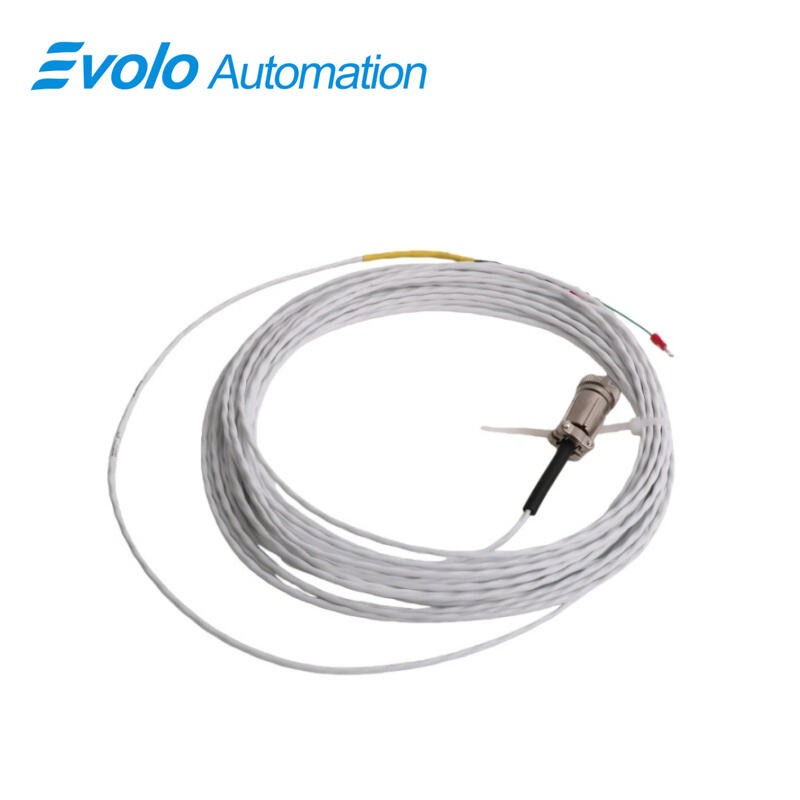

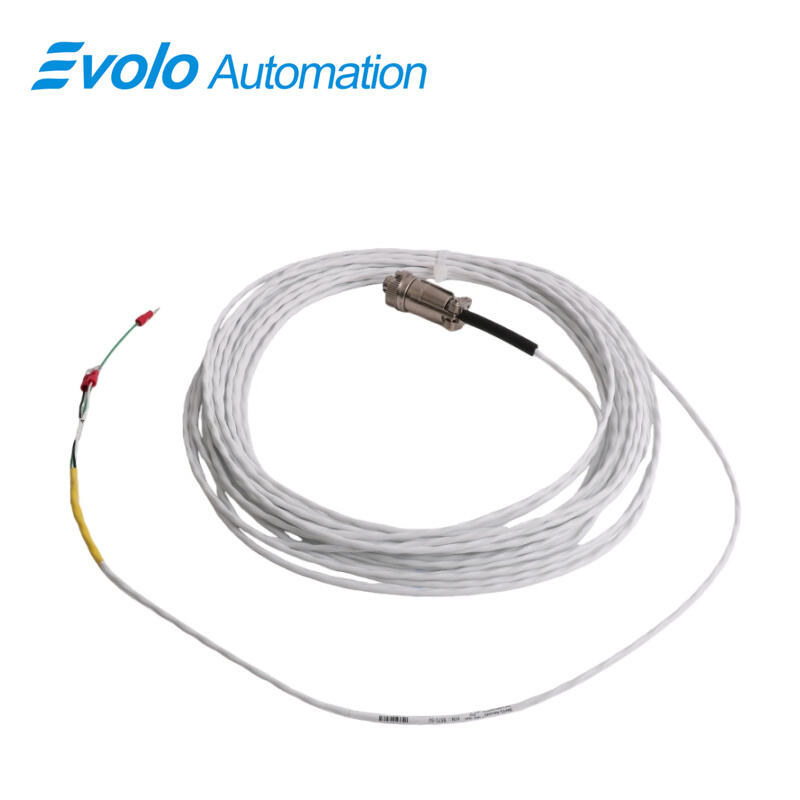

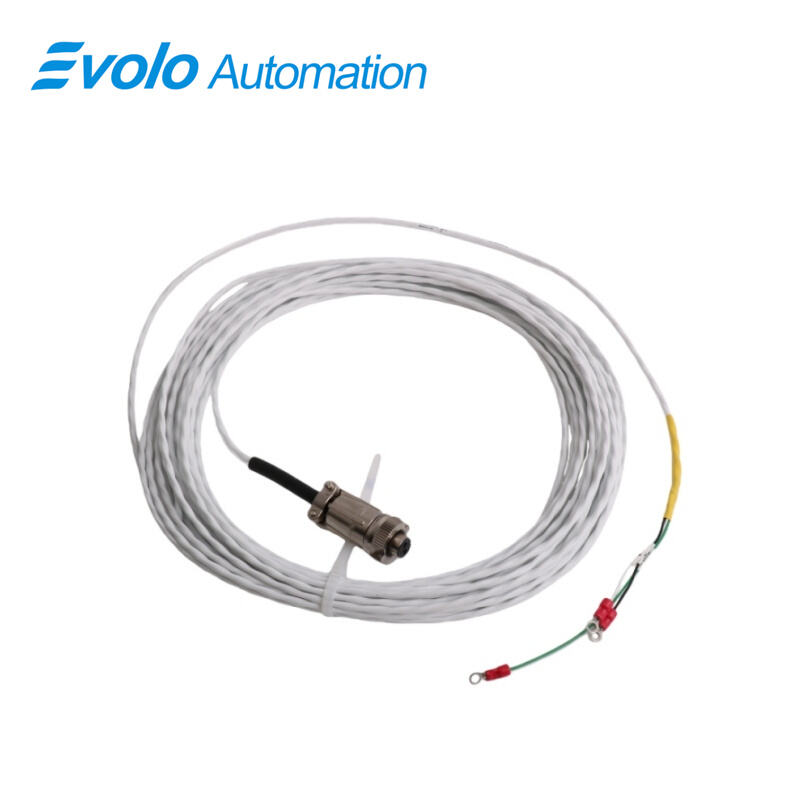

9571-17 Standard Interconnect Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	9571-17
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 9571-17 Standard Interconnect Cable is a high-performance connection solution designed for industrial automation and low-voltage analog or digital signal applications. The 9571-17 Standard Interconnect Cable features a 17 ft length with stranded 24 AWG tinned copper conductors, available in 2–12 conductor options, providing flexibility for a wide range of sensor and control system connections. The cable incorporates PVC insulation with a PVC or FR PVC jacket, maintaining durability in industrial environments with an outer diameter of 4.6 mm ±0.2 mm. The 9571-17 Standard Interconnect Cable supports operating voltages up to 300 V and offers a characteristic impedance of 120 Ω ±10%, along with a capacitance of 42 pF/m, ensuring reliable signal integrity. Its foil shielding, with optional braided coverage ≥85%, minimizes electromagnetic interference, making it ideal for automation systems requiring accurate analog or digital signal transmission. Designed with a minimum bend radius of 10× the outer diameter and an operating temperature range of −20°C to +80°C, the 9571-17 Standard Interconnect Cable is robust, flexible, and suitable for OEM integration, factory automation, and industrial process control applications. The 9571-17 Standard Interconnect Cable ensures consistent, interference-resistant signal delivery across challenging industrial environments.

Applications

Industrial Automation Signal Transmission
The 9571-17 Standard Interconnect Cable is ideal for transmitting low-voltage analog and digital signals between sensors, controllers, and PLCs in industrial automation systems. With 24 AWG stranded tinned copper conductors, the 9571-17 Standard Interconnect Cable ensures minimal voltage drop and reliable signal integrity over its 17 ft length. Its characteristic impedance of 120 Ω ±10% and capacitance of 42 pF/m supports high-fidelity signal transmission, even in complex control environments.

OEM Machinery Integration
The 9571-17 Standard Interconnect Cable is designed for original equipment manufacturers requiring flexible, robust connections. Its multiple conductor options (2–12) and durable PVC/FR PVC jacket allow seamless integration into automated machinery, conveyor systems, and sensor arrays. The cable’s outer diameter of 4.6 mm ±0.2 mm and minimum bend radius of 10× OD enable compact routing in machinery with tight spaces.

Industrial Process Control Systems
The 9571-17 Standard Interconnect Cable operates reliably across an industrial temperature range of −20°C to +80°C, making it suitable for process control, factory automation, and remote monitoring applications. Its foil shielding, with optional braided coverage ≥85%, reduces electromagnetic interference, ensuring accurate data transfer in environments with heavy electrical noise.

Specifications

Competitive Advantage

High Signal Integrity and Noise Immunity
The 9571-17 Standard Interconnect Cable’s foil shielding and optional braided coverage ≥85% protect sensitive analog and digital signals from electromagnetic interference. The cable’s 120 Ω ±10% characteristic impedance and 42 pF/m capacitance maintain signal consistency over long distances, critical for high-speed industrial automation.

Flexible and Durable Design
The 9571-17 Standard Interconnect Cable supports 2–12 conductor options with 24 AWG tinned copper strands, offering mechanical flexibility and electrical reliability. Its PVC or FR PVC jacket resists abrasion and chemicals, and the minimum bend radius of 10× OD ensures safe routing in compact installations.

Wide Operating Range
With an operating temperature from −20°C to +80°C and a maximum voltage rating of 300 V, the 9571-17 Standard Interconnect Cable maintains consistent performance in diverse industrial environments. The 17 ft cable length and standardized outer diameter of 4.6 mm ±0.2 mm provide easy integration into existing automation setups without compromising durability.
