Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
8C-TDODA1 51307149-175 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
8C-TDODA1 51307149-175 |
|
Part Type |
Digital Output Module |
|
Dimensions |
22 x 12 x 6.5 cm |
|
Weight |
0.36 kg |
|
Redundancy |
Non-redundant |
|
Coating |
Yes |
|
Output Channels |
32 |
|
Output Type |
Source |
|
Voltage Rating |
24 V DC |
|
Module Current Rating |
105 mA |
|
Load Voltage |
≤30 V DC |
|
Load Current (per channel) |
100 mA max |
|
Load Current (per module) |
3.2 A max |
|
Galvanic Isolation |
1000 VAC RMS or ±1500 VDC |
|
On-State Voltage |
24 V DC (typical at 0.1 A load) |
|
Off-State Leakage Current |
5 µA (max) |
|
Turn-On/Turn-Off Time |
10 ms max |
|
Switchover Gap (0 current) |
0 ms (redundancy only) |
|
Module Removal/Insertion Under Power |
Supported |
Description

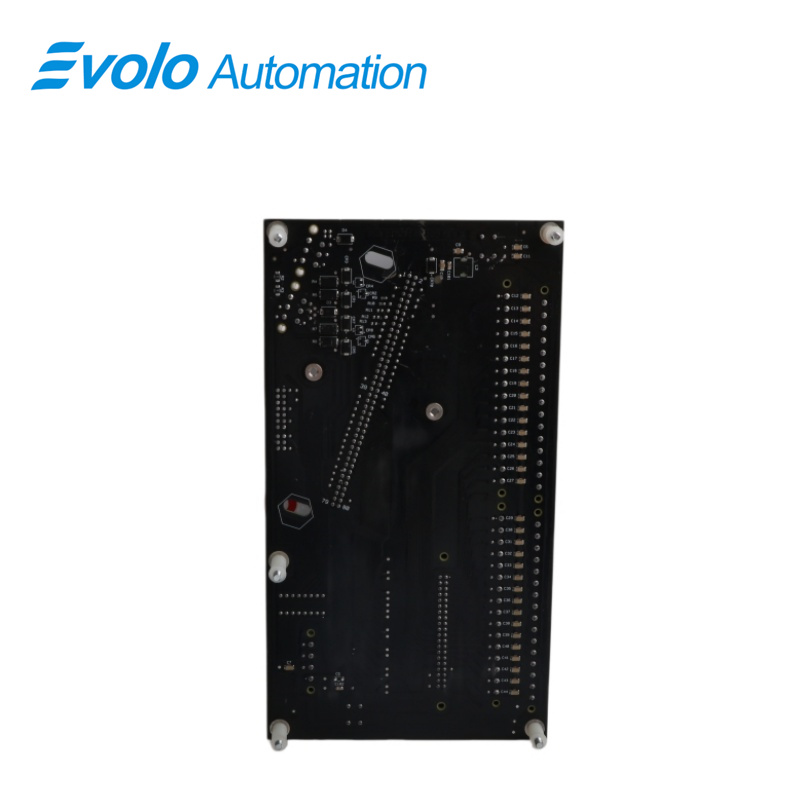

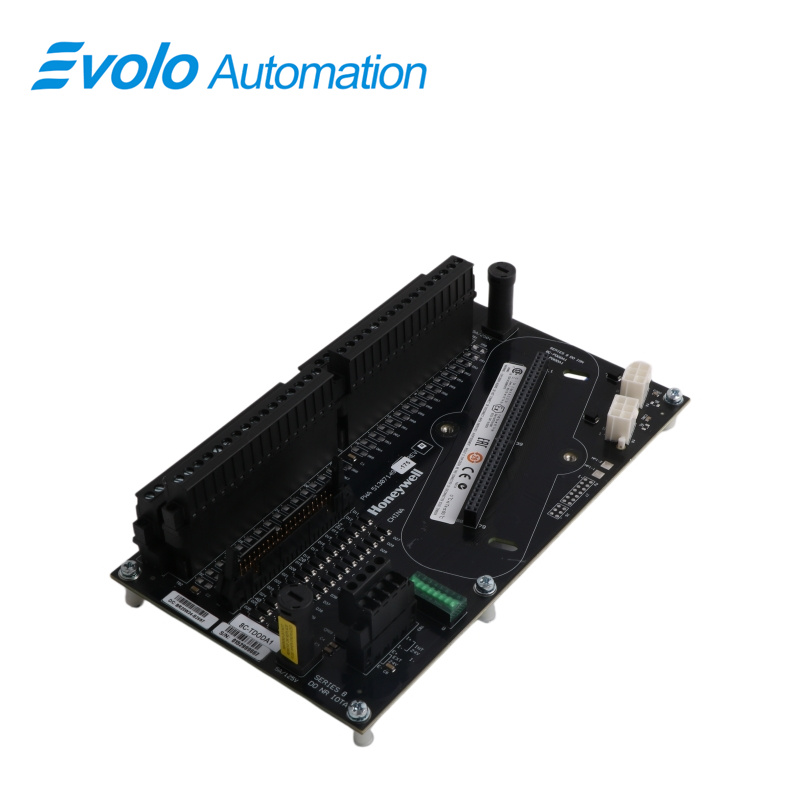

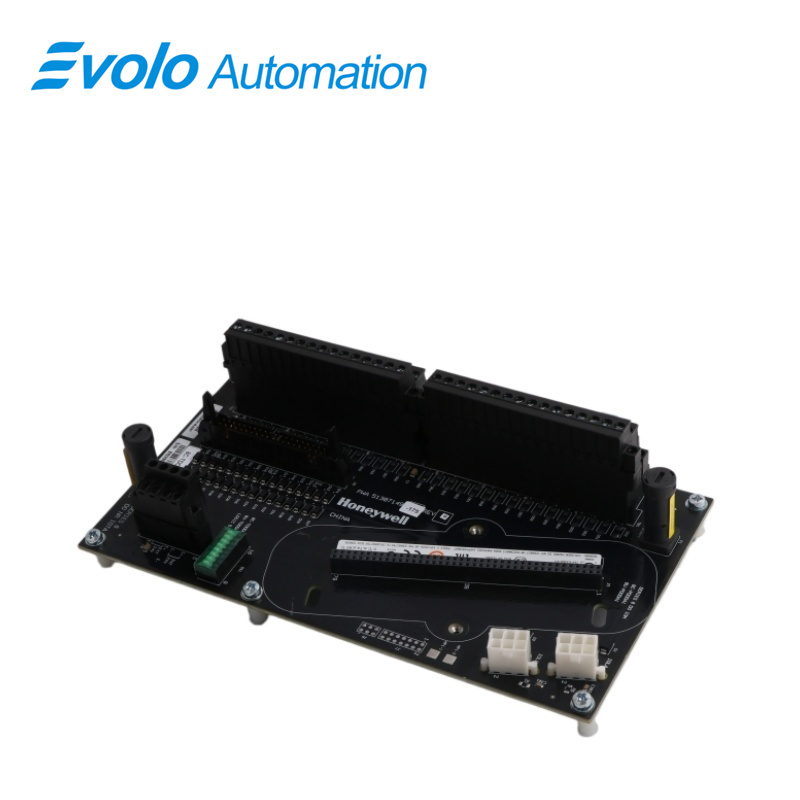

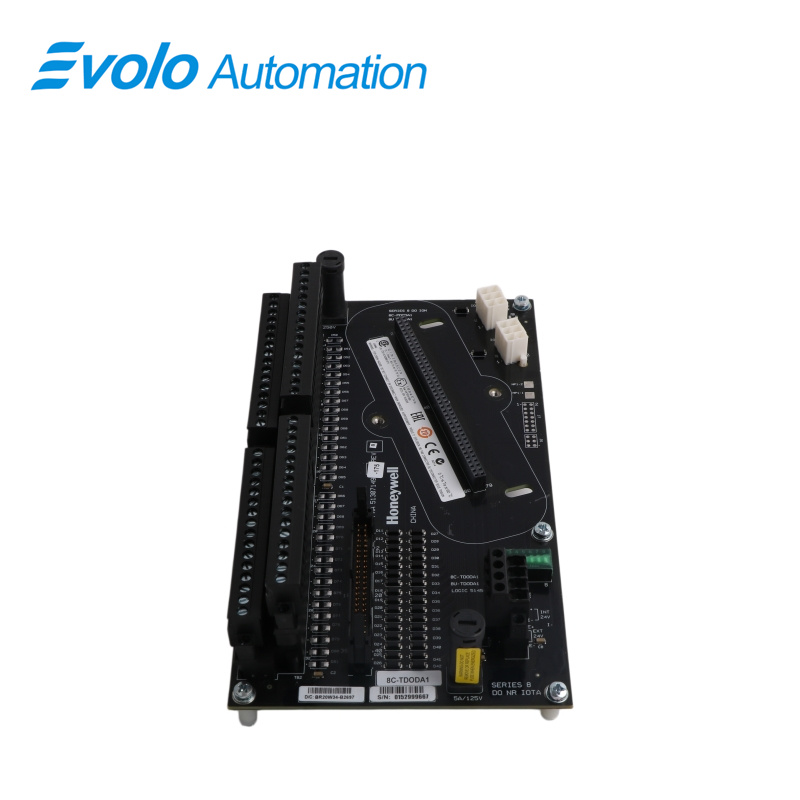

The Honeywell 8C-TDODA1 51307149-175 is a Digital Output Module designed for the Experion Series 8 Distributed Control System (DCS). This non-redundant, coated module provides 32 source-type digital output channels, making it suitable for controlling various field devices in industrial automation systems.
Applications
Chemical Plants: Drives explosion-proof solenoid valves.
Refineries: Controls pipeline shut-off valves.
Pharmaceutical Plants: Switches pneumatic dosing valves.
Paper Mills: Controls slurry regulating valves.
Water Treatment Plants: Operates chemical dosing valves.
Notable Features
Extensive internal diagnostics to ensure data integrity
Optional redundancy
Safe-state (FAILOPT) behaviors
Direct/Reverse output support
Latched, pulsed or pulse-width modulated output (per channel)
Galvanic Isolation
FAQ
Q: Does the 8C-TDODA1 51307149-175 module feature redundancy and conformal coating?
A: It uses a non-redundant design and includes conformal coating.
Q: How many channels and what output type does the 8C-TDODA1 51307149-175 provide?
A: It provides 32 source digital output channels.
Q: What are the single-channel and total load currents of the 8C-TDODA1 51307149-175?
A: Maximum 100 mA per channel and 3.2 A for the entire module.
Q: What electrical isolation capability does the 8C-TDODA1 51307149-175 have?
A: Supports 1000 VAC RMS or ±1500 VDC isolation between system and field.
Q: Does the 8C-TDODA1 51307149-175 support hot swapping in industrial applications?
A: Yes, it supports Removal and Insertion Under Power (RIUP).
