Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
6233BP10820 IC660EBA021 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Part Number |
6233BP10820 IC660EBA021 |
|
Part Type |
Genius I/O Block Electronics Assembly |
|
Operating Voltage |
18–56 V DC |
|
Input Circuits |
6 |
|
Input Signal Format |
Degrees Celsius; Degrees Fahrenheit; Ohms; Counts |
|
Supported RTD Types |
Nickel; Copper; Platinum |
|
Input Resolution |
0.1°C |
|
Input Accuracy |
±1.0°C (Platinum or Nickel); ±10°C (Copper) |
|
Input Update Time |
400–1600 ms |
|
Installation Type |
Terminal assembly |
Description

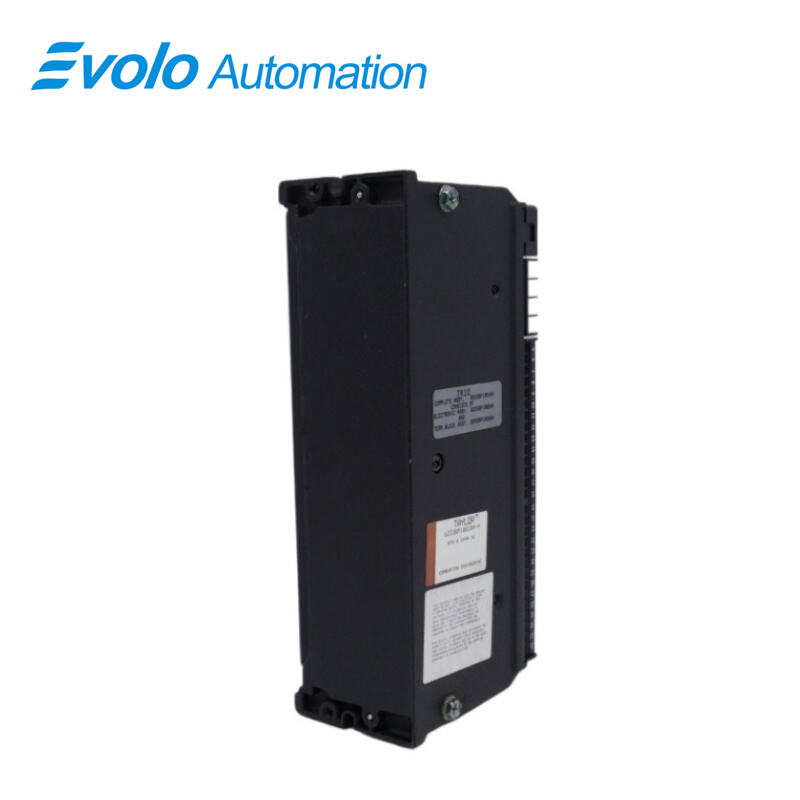

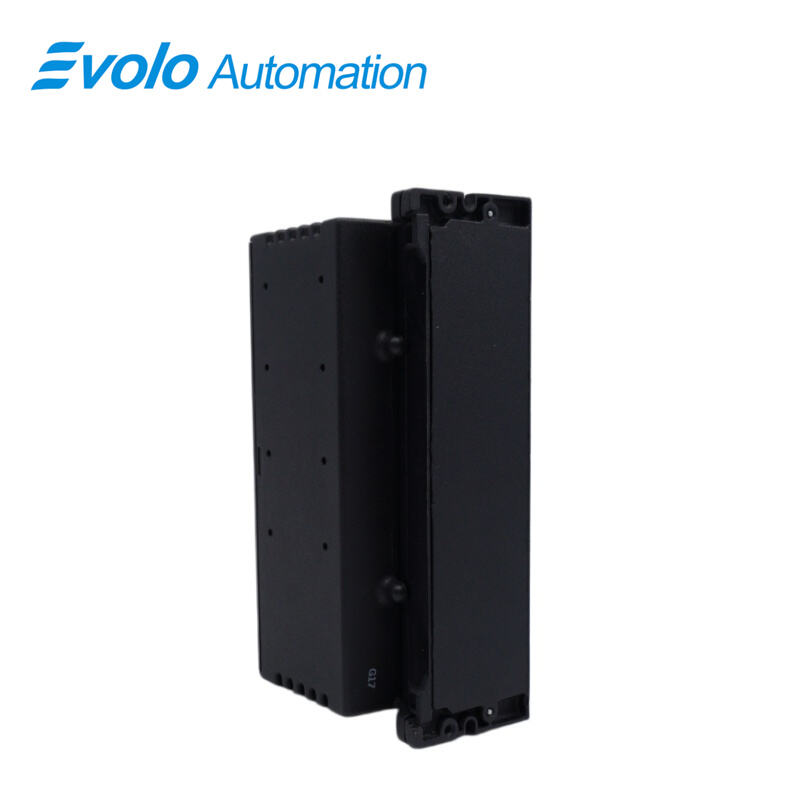

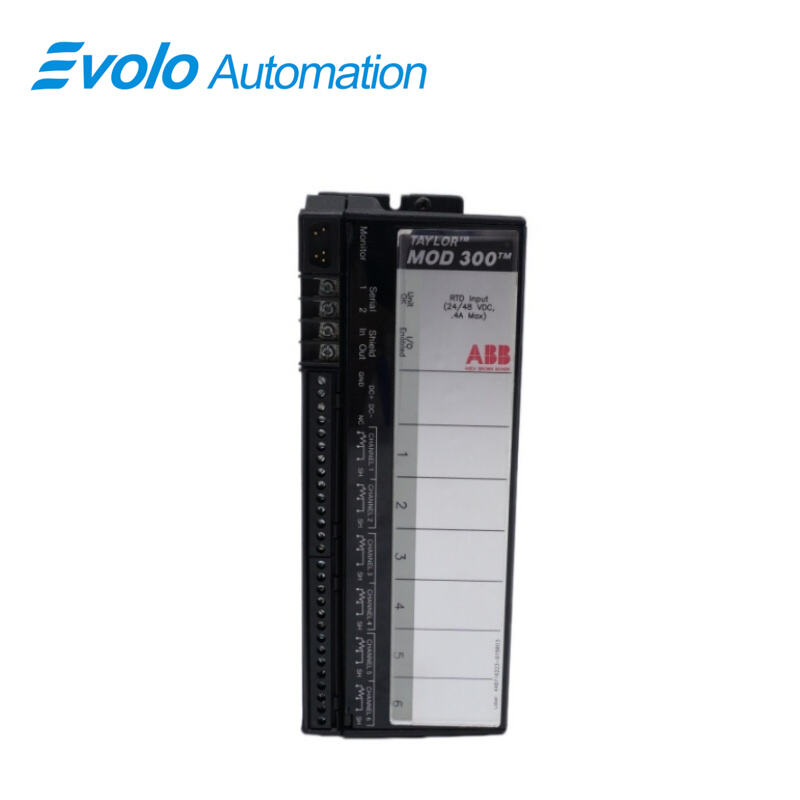

This GE 6233BP10820 IC660EBA021 Genius I/O Block Electronics Assembly is a high-performance core unit designed specifically for resistance temperature detectors (RTD) input modules. It can be ordered as part of a terminal base or replaced as a standalone spare, aiming to provide accurate and stable temperature monitoring solutions for industrial automation systems.
Applications
Combined Cycle Power Plants: Monitor bearing and cooling temperatures for reliable over-temperature protection.
Fine Chemical Plants: Acquire and digitize distributed RTD signals in reactor temperature control loops.
Large Smelting Plants: Monitor furnace and heat-treatment temperatures in high-interference environments.
Pharmaceutical Manufacturing Plants: Record precise temperatures in controlled environments with compliant data output.
Food Processing Plants: Manage multiple critical control points in sterilization and cold chain systems.
Troubleshooting and Maintenance Recommendations
Troubleshooting:
If channel values fluctuate abnormally, verify that the RTD type setting matches the actual sensor. If the module alarms, ensure the terminal assembly mounting screws are tightened to guarantee a secure connection between the electronic components and the assembly contacts.
Maintenance Recommendations:
When maintaining spare parts using its hot-swap feature, it is not necessary to disconnect the field I/O lines. It is recommended to periodically check the diagnostic data of each channel via a host computer to prevent sensor open-circuit or short-circuit faults.
FAQ
Q: How many RTD inputs does the 6233BP10820 IC660EBA021 support?
A: It supports 6 independent RTD input circuits.
Q: Which RTD materials are supported by the 6233BP10820 IC660EBA021?
A: It supports Nickel, Copper, and Platinum RTDs.
Q: What is the measurement accuracy of the 6233BP10820 IC660EBA021?
A: Accuracy is ±1.0°C for Platinum/Nickel RTDs and ±10°C for Copper RTDs, with 0.1°C resolution.
Q: What is the operating voltage range of the 6233BP10820 IC660EBA021?
A: It supports 18.0 to 56.0 VDC operation.
Q: Does the 6233BP10820 IC660EBA021 require a special mounting base?
A: Yes, it must be installed on a matching Terminal Assembly.
