Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
5501-467 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
5501-467 |
|
Product Name |
Power Supply Board |
|
Dimensions |
7.5 × 24.6 × 26.1 cm |
|
Weight |
2.32 kg |
|
Operating Range |
180–264 VAC (47–63 Hz) |
|
Installed Weight |
48 lbs (in chassis) |
|
Sound Level |
< 70 dBA |
|
Maximum Altitude |
4000 m |
|
Output Current (5 VDC) |
22.0 A @ 65°C / 28 A @ 60°C / 32 A @ 55°C |
|
Input Voltage |
220 VAC/VDC (High Voltage DC for Main PS Simplex) |
|
Holdup Time |
7 ms @ 225 VDC |
|
Features |
High Voltage AC & DC Support |
|
Chassis Compatibility |
MicroNet Plus / MicroNet Simplex |
|
LED Indicators |
Power Supply Health Status |
|
Wiring Requirements |
14 AWG / 2.5 mm² (rated for 60°C) |

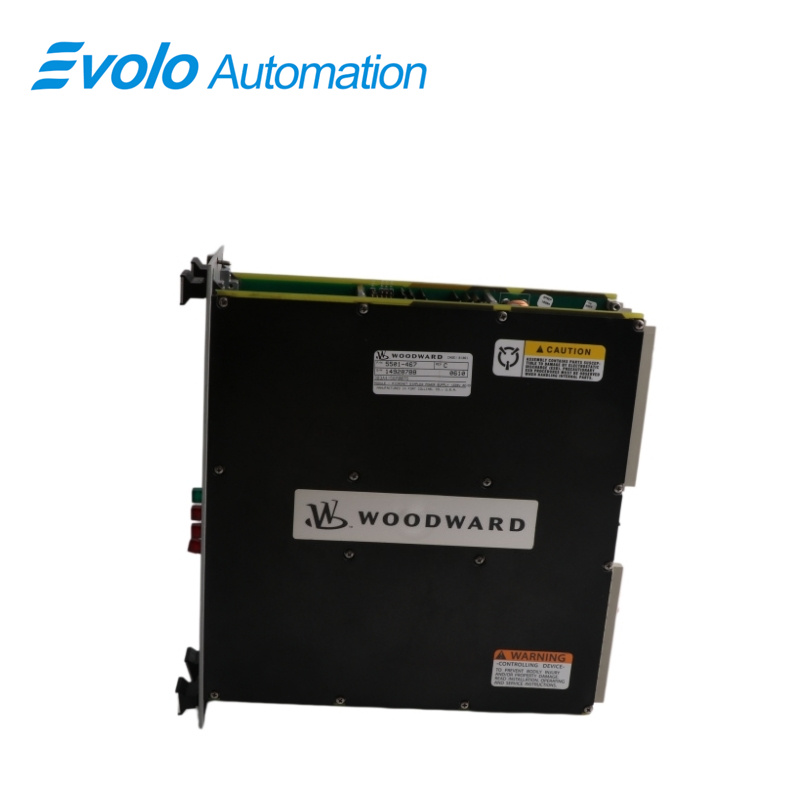

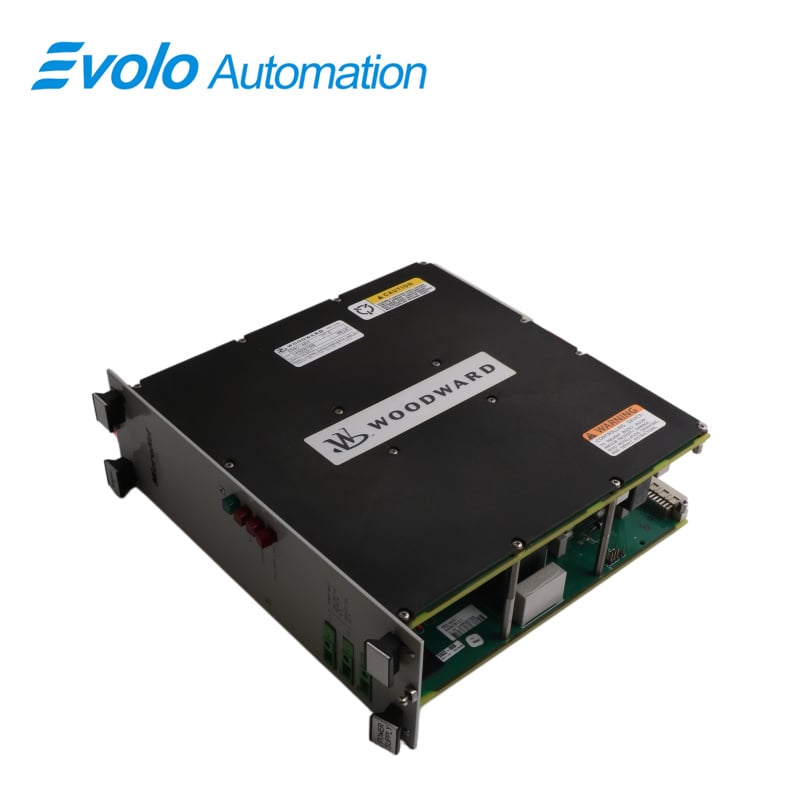

Description
The Woodward 5501-467 Power Supply Board operates on an input voltage of two hundred and twenty volts of alternating current or direct current. The board can be inserted into a MicroNet Simplex or MicroNet Plus chassis but can only operate in a simplex system. One key feature of this board is that when in the MicroNet Simplex chassis it is considered high voltage in both alternating and direct currents.
Applications
High-Altitude Mining Plants: Supports stable control cabinet power in plateau mining environments.
Combined Cycle Power Plants: Provides reliable power for turbine control systems in MicroNet Plus setups.
Heavy Chemical Plants: Compatible with DC UPS systems in explosion-proof applications.
Steel Smelting Facilities: Ensures stable operation in high-temperature rolling and furnace areas.
Rail Transit Power Systems: Delivers robust traction and test bench power under high electrical stress.
Key features
Features: Capable of handling high voltage AC and DCinputs.
Chassis Compatibility: Compatible with MicroNet Plus or MicroNet Simplex chassis, but operates only in a simplex system.

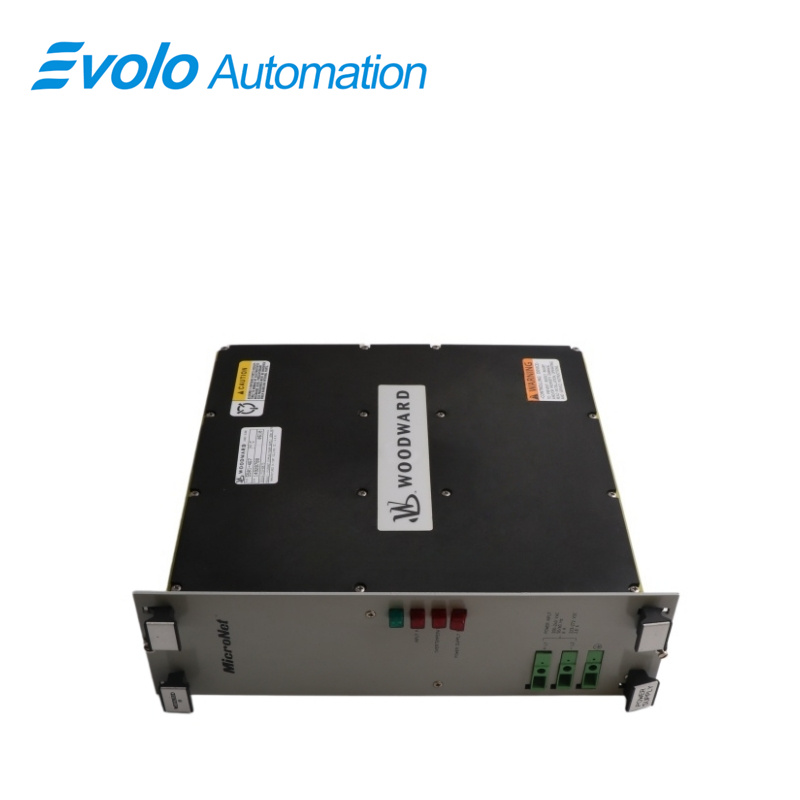

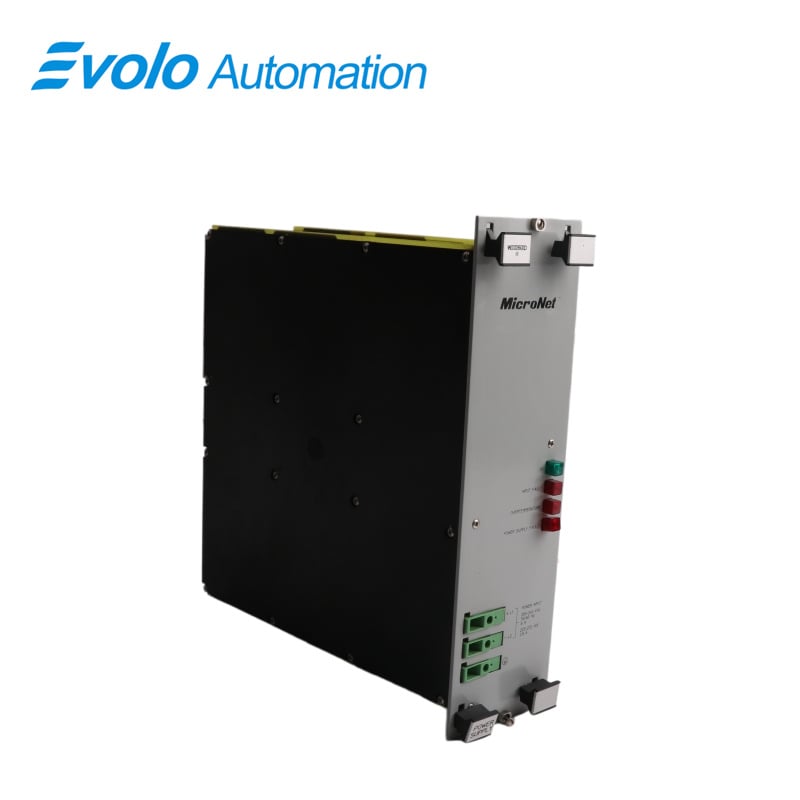

LED Indicators: Features four LED indicators on the front faceplate for power supply health monitoring, including a power supply fault indicator.
Wiring Requirements: Requires wiring of fourteen American wire gauge or two and a half millimeters squared, rated for sixty degrees Celsius.
FAQ
Q: What is the hold-up time of the 5501-467 during power failure?
A: 7 ms at 225 VDC input.
Q: What is the 5 VDC output current of the 5501-467 at 55°C ambient temperature?
A: Output current is 32 A.
Q: What is the maximum operating altitude supported by the 5501-467?
A: Maximum altitude is 4000 m.
Q: What is the noise level generated by the 5501-467 during operation?
A: Noise level is less than 70 dBA.
Q: What wire gauge is recommended for the 5501-467 connections?
A: Recommended wire is 14 AWG / 2.5 mm² (rated 60°C).
