Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
5466-409 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
5466-409 |
|
Product Name |
CPU Module |
|
Dimensions |
2.4 × 24.6 × 26.1 cm |
|
Weight |
0.68 kg |
|
Standards |
LRS, DNV, CE (EMC) |
|
Redundancy Type |
Simplex |
|
Ports |
Ethernet and RS-232 |
|
Operating Temperature |
0°C to 50°C |
|
Mounting Method |
Expansion Rack |
|
Processor Speed |
233 MHz |
|
Memory |
64 MB |
Description

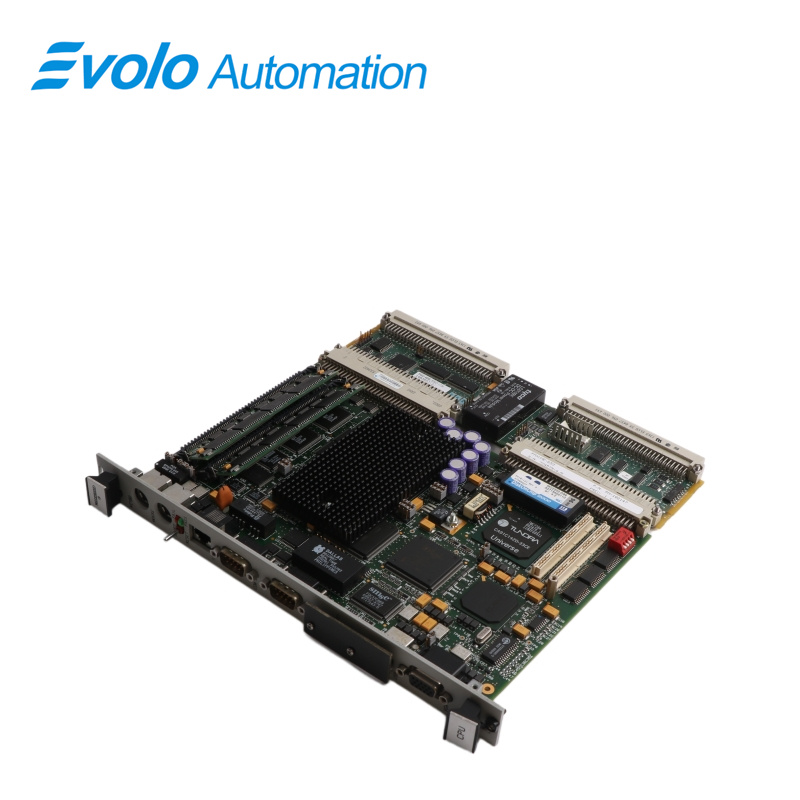

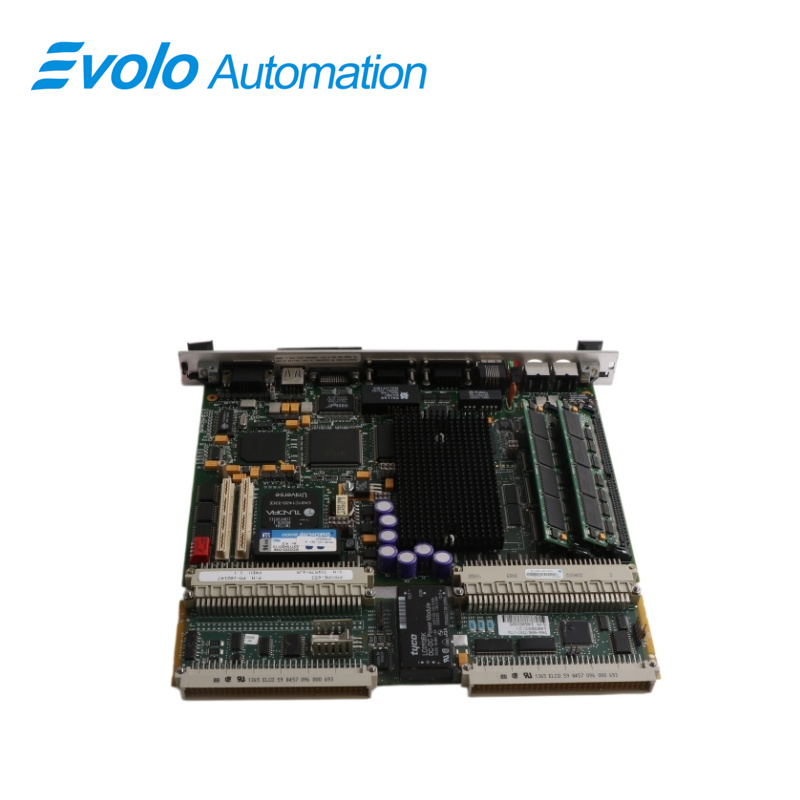

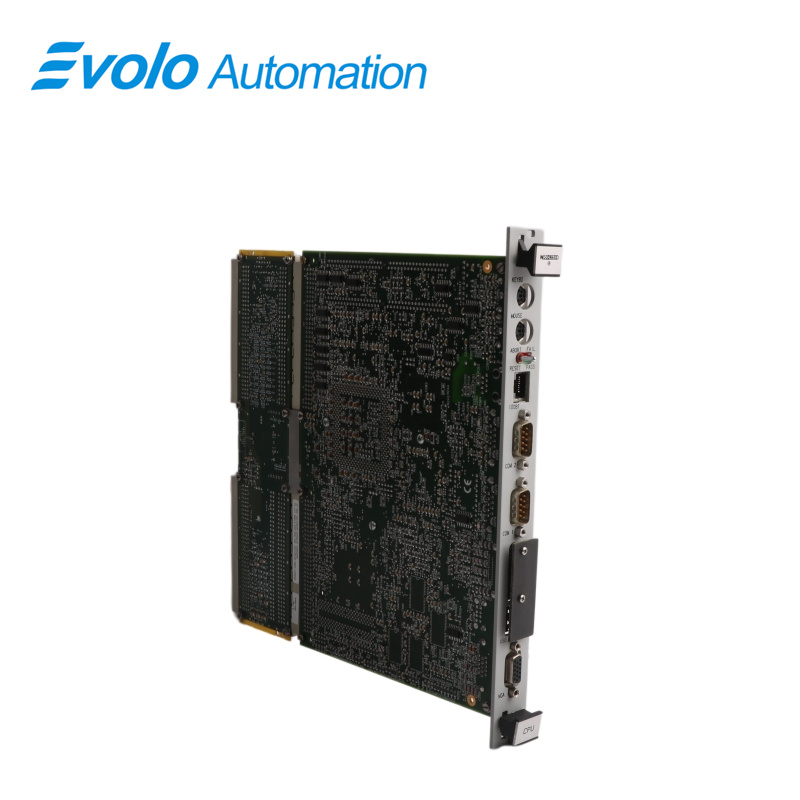

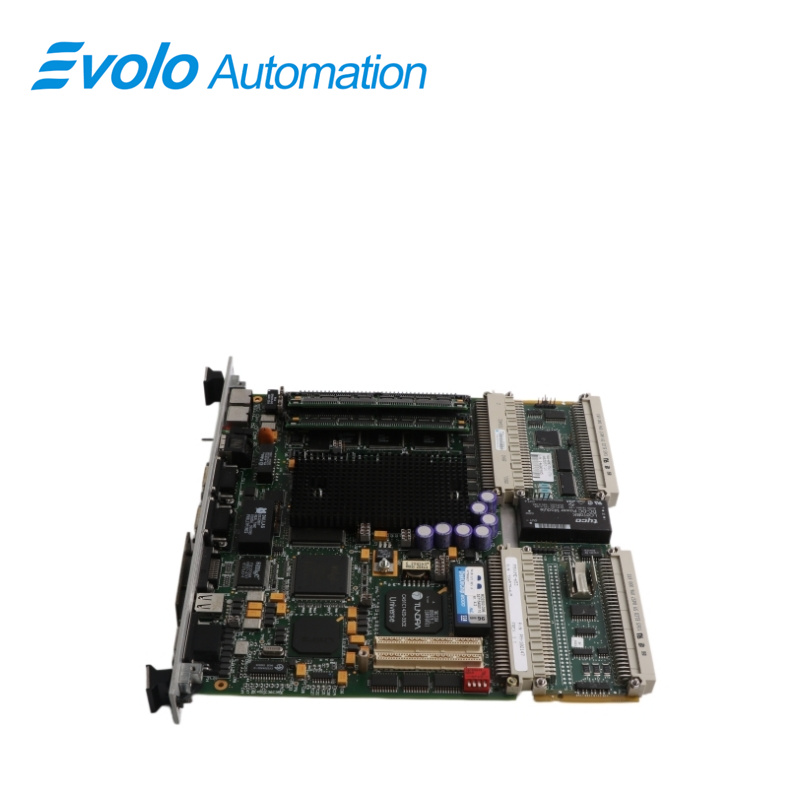

The 5466-409 is a CPU Module within the MicroNet Digital Control Series. It is used for simplex operation only and is installed in the expansion rack of the chassis. A primary feature of the 5466-409 module when being used as a single CPU unit is that it has the capability for high processing through the dual RS-232 serial ports as well as the singular Ethernet port.
Applications
Marine & Offshore Engineering: LRS and DNV certified, 5466-409 ensures stable shipboard control in offshore systems.
New Energy Vehicle Manufacturing: 5466-409 enables precise line control and real-time data transmission.
Semiconductor Manufacturing: 5466-409 meets CE EMC standards, avoiding interference in cleanroom processes.
Rail Transit Equipment Manufacturing: 5466-409 serves as a core CPU for train control and network monitoring.
Water Treatment & Environmental Plants: 5466-409 supports RS-232 and Ethernet for automated process control.
Key Features
Processing Capability: High processing power through dual RS-232 serial ports and a single Ethernet port.
Temperature Limits: Operates within O to 50C to avoid errors and malfunctions.
Service Tool: Typically used with the AppManager Service Tool for application loading and startup via Ethernet.
FAQ
Q: What is the processor clock speed of the 5466-409?
A: Processor clock speed is 233 MHz.
Q: How much memory does the 5466-409 include?
A: Memory capacity is 64 MB.
Q: What compliance certifications has the 5466-409 obtained?
A: Obtained LRS, DNV, and CE (EMC) certifications.
Q: What types of communication interfaces does the 5466-409 have?
A: Has Ethernet and RS-232 interfaces.
Q: What installation method does the 5466-409 use?
A: Installed using an expansion rack.
