Overview
Place of Origin: |
USA |
Brand Name: |
Woodward |
Model Number: |
5462-408 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Model |
5462-408 |
|
Product Type |
LVDT Pos Transducer Module |
|
Dimensions |
2.5 × 24.6 × 26.1 cm |
|
Weight |
0.2 kg |
|
Measurement Range |
0–10,000 RPM |
|
Accuracy |
±0.5% |
|
Resolution |
0.1 RPM |
|
Output Signal |
Frequency / Square Wave |
|
Supply Voltage |
12–24 VDC |
|
Operating Temperature |
-40°C to +85°C |
|
Enclosure Rating |
IP67 |
Description

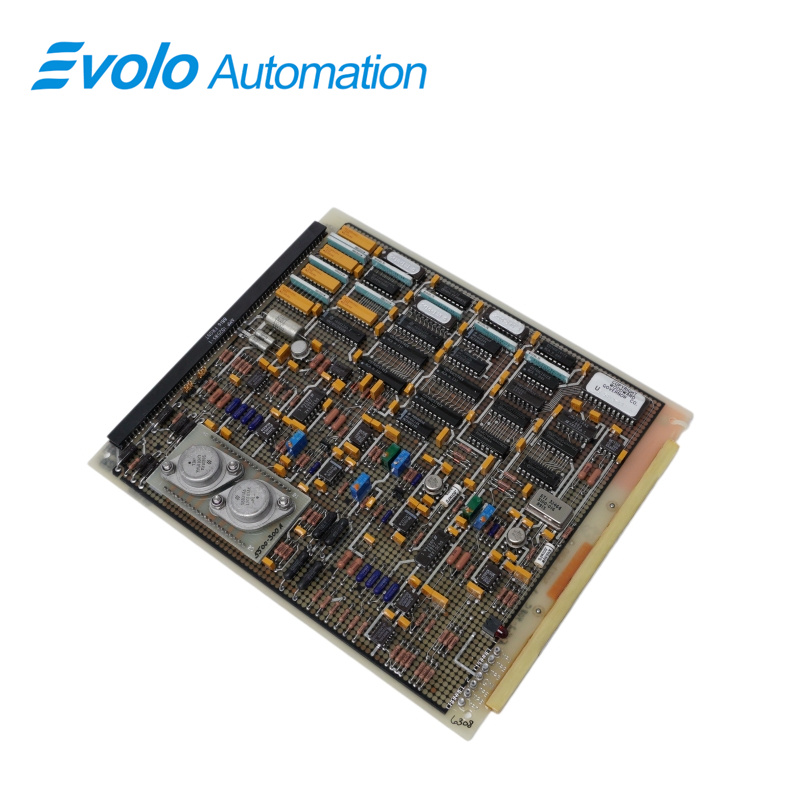

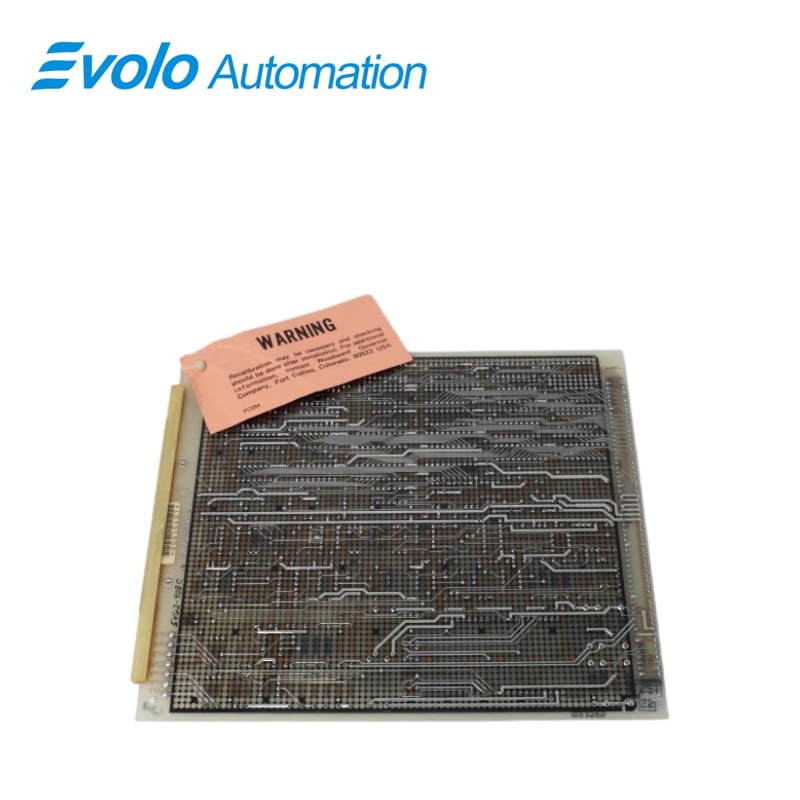

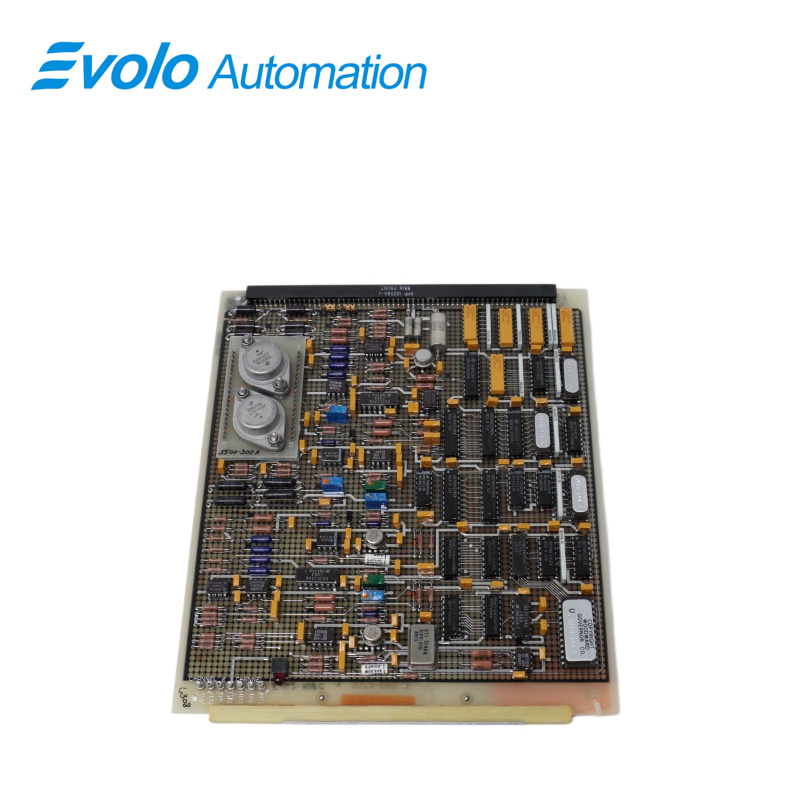

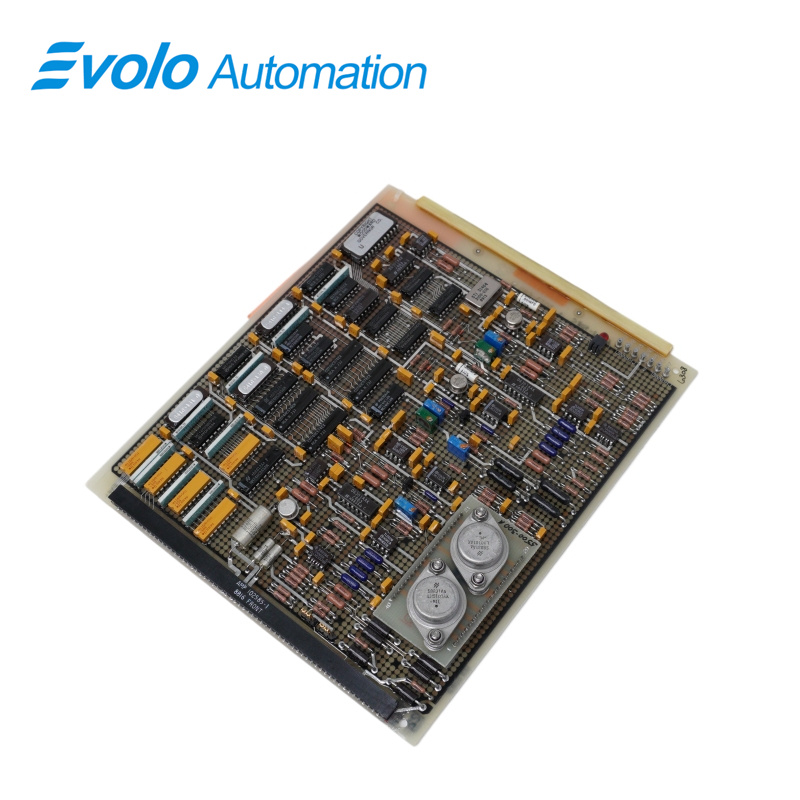

The Woodward 5462-408 is an LVDT PoS Transducer Module. In industrial control systems, it is primarily used to measure and monitor the actual operating positions of various moving parts such as valves and actuators in real time, and to transmit this position information to the main controller in real time.
Applications
Automotive engine plants: Used in powertrain and transmission test benches for high-precision speed monitoring of shafts with fine resolution.
Wind turbine plants: Installed on main shafts and gearbox high-speed stages, designed for harsh high-altitude and cold environments.
High-precision machine tool plants: Used for spindle speed feedback in CNC machines, supporting high-speed machining applications.
Cement and building materials plants: Installed on rotary kilns and conveyor systems, protected against heavy dust environments with high ingress protection.
Oil refining plants: Used for speed and overspeed protection of compressors and pumps with strong long-distance signal transmission capability.
Competitive Advantage
Accurate Monitoring: The sensor offers precise speed measurement, with an impressive resolution of 0.1 RPM.
Rugged Design: The IP67 enclosure rating ensures the sensor performs reliably in harsh industrial conditions.
Versatility: This sensor is compatible with various industrial equipment, such as gas turbines, pumps, fans, and conveyors, making it highly adaptable.
Easy Installation: Designed for quick and easy installation, the sensor integrates seamlessly into existing systems.
FAQ
Q: What is the measurement range of 5462-408 in RPM?
A: The measurement range is 0–10,000 RPM.
Q: What is the measurement resolution of 5462-408?
A: The resolution is 0.1 RPM.
Q: What type of output signal does 5462-408 provide?
A: It provides a frequency/square wave output signal.
Q: What DC supply voltage is required for 5462-408?
A: The supply voltage is 12–24 VDC.
Q: What is the protection rating of 5462-408?
A: The protection rating is IP67.
