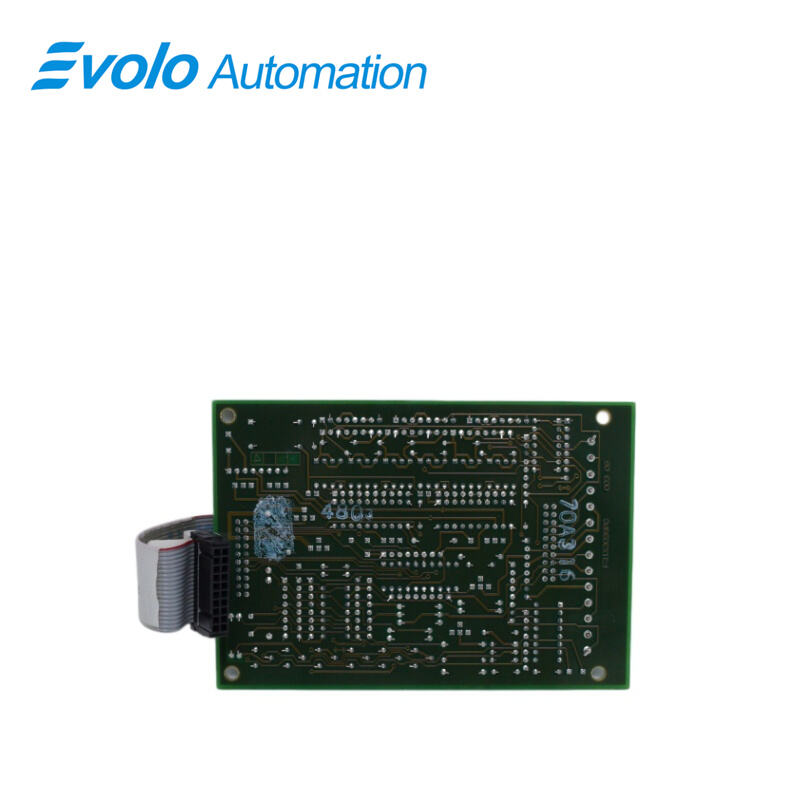

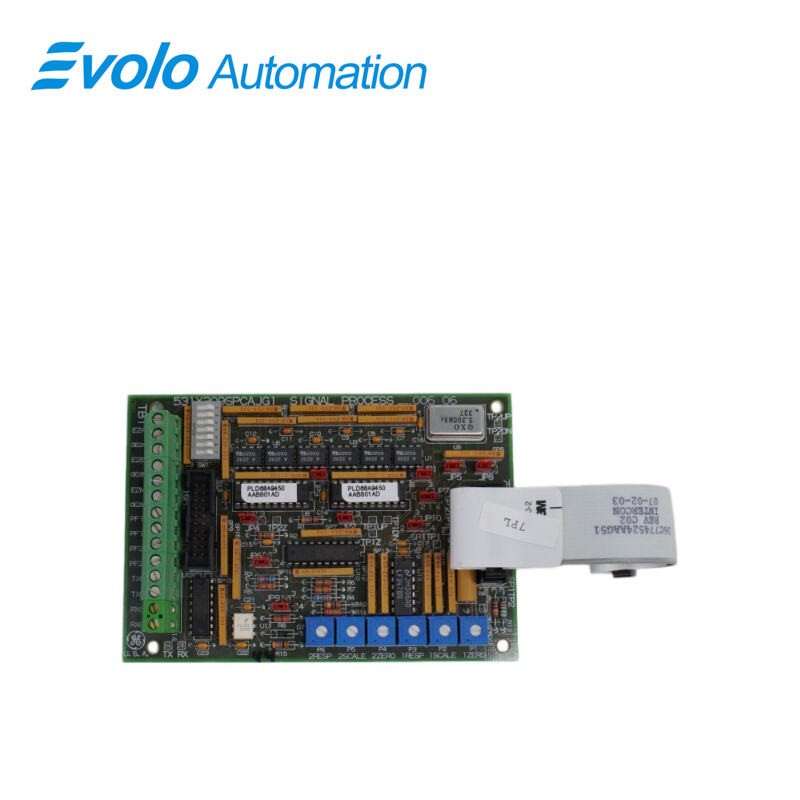

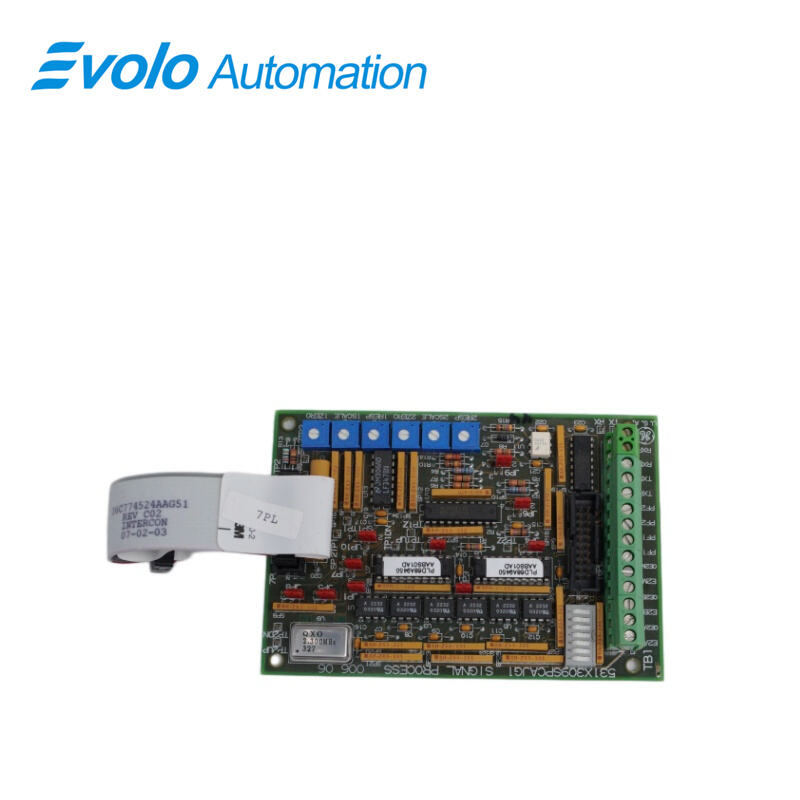

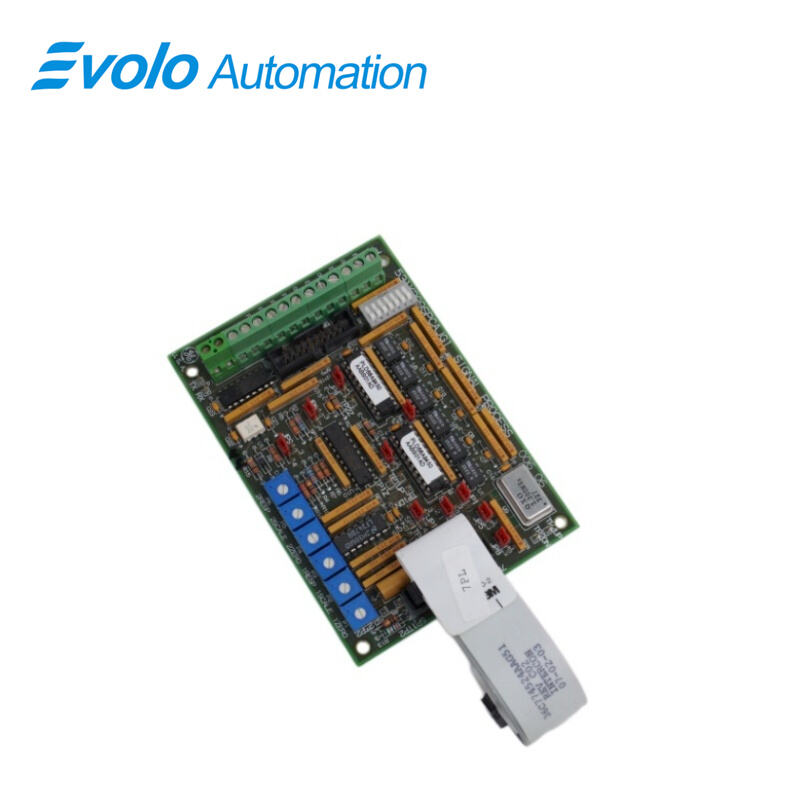

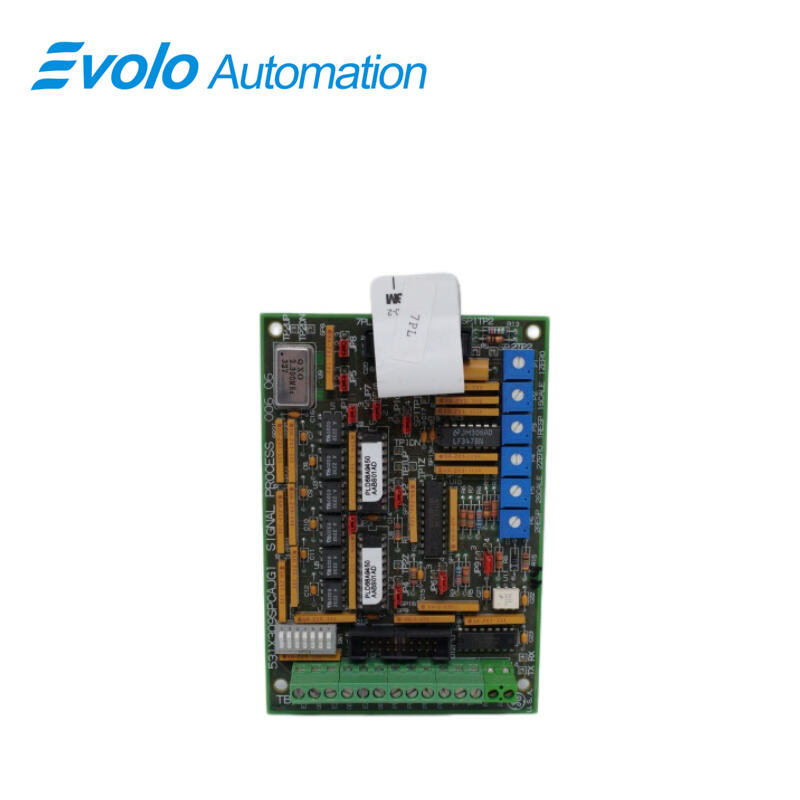

531X309SPCAJG1 Signal Processor Card

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	531X309SPCAJG1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

The GE 531X309SPCAJG1 is a signal processing board primarily used in industrial automation systems. It serves as an interface between drives and control systems, responsible for signal processing and transmission. This module can process signals from sensors and transmitters and convert them into digital signals that the drives can recognize, making it a key component in industrial automation systems.

Applications

Precision machining plants: Used for high-frequency real-time acquisition and processing of sensor signals in multi-axis linkage control systems.

Large thermal power plants: Responsible for the precise isolation and conditioning of voltage and current signals in excitation control systems.

Semiconductor manufacturing plants: Maintaining process control stability in harsh environments with a wide operating temperature range (-40°C to +85°C).

Smart warehousing and logistics plants: Achieving high-speed data interaction between automated handling equipment and host computers through its rich communication interfaces.

Oil refining plants: Serving as a central processing node in complex drive units, processing critical analog feedback signals to ensure safety interlocks.

Features

Signal Processing Functions: Processes analog and digital signals, supporting signal conversion, filtering, amplification, and isolation.

Modular Design: Supports multiple configurations and options, enabling the formation of various fiber optic networks to meet the needs of different application scenarios.

Redundant Design: Features logically independent dual-bus electrical interfaces, supporting redundant backup and improving system reliability.

High Reliability: Employs high-quality components, possesses self-diagnostic capabilities, monitors operating status, and alerts to faults.

Compatibility: Integrates with various GE control modules and supports connection to third-party devices.

Installation and Maintenance

Installation Requirements: Installation must be performed by trained and qualified personnel, following the manufacturer's installation guidelines to ensure safety and proper equipment operation.

Maintenance: Regularly check the equipment status, perform self-diagnosis and troubleshooting to ensure stable system operation.

FAQ

Q: Does the 531X309SPCAJG1 support industrial Ethernet communication?
A: This model comes standard with an RS-422 interface, but supports Ethernet (TCP/IP) and custom protocol communication via expansion modules.

Q: What types of input signals can the 531X309SPCAJG1 handle?
A: This signal processor card is compatible with 4-20mA, 0-10V analog signals and digital signals such as TTL/RS-422.

Q: How does the 531X309SPCAJG1 perform in harsh outdoor factory environments?
A: This card supports a wide operating temperature range of -40°C to +85°C, but due to its IP20 protection rating, it must be installed in a higher-protection cabinet.

Q: How do I configure the output voltage of the 531X309SPCAJG1?
A: Its output voltage can be configured via software or jumpers between 0–5V DC or 10V DC to meet the needs of different actuators.

Q: What mounting methods does the 531X309SPCAJG1 support?
A: It can be mounted on standard DIN rails and is also fully compatible with rack mounting for the GE 531X series.
