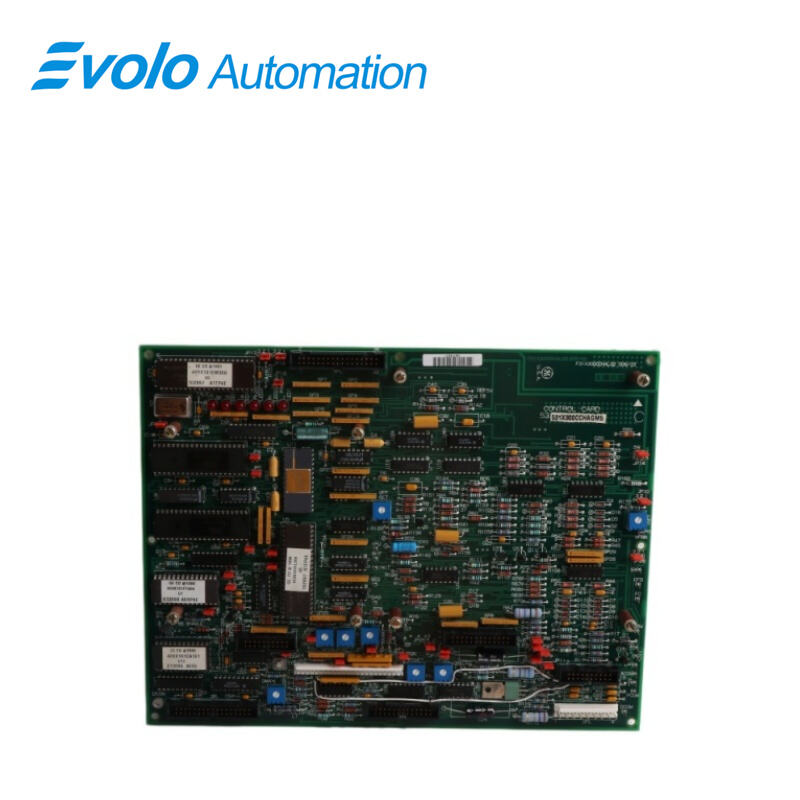

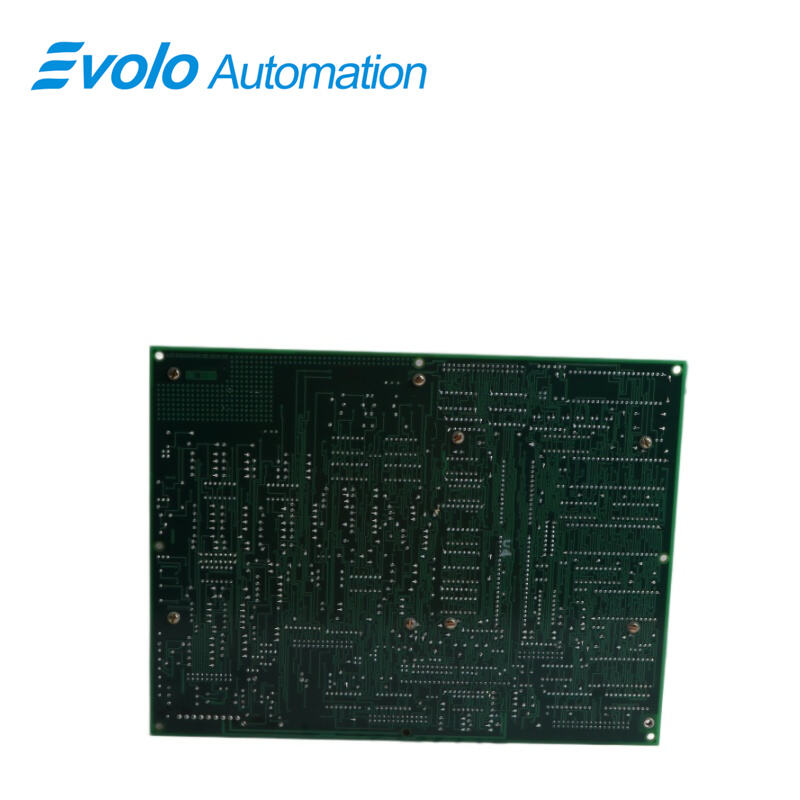

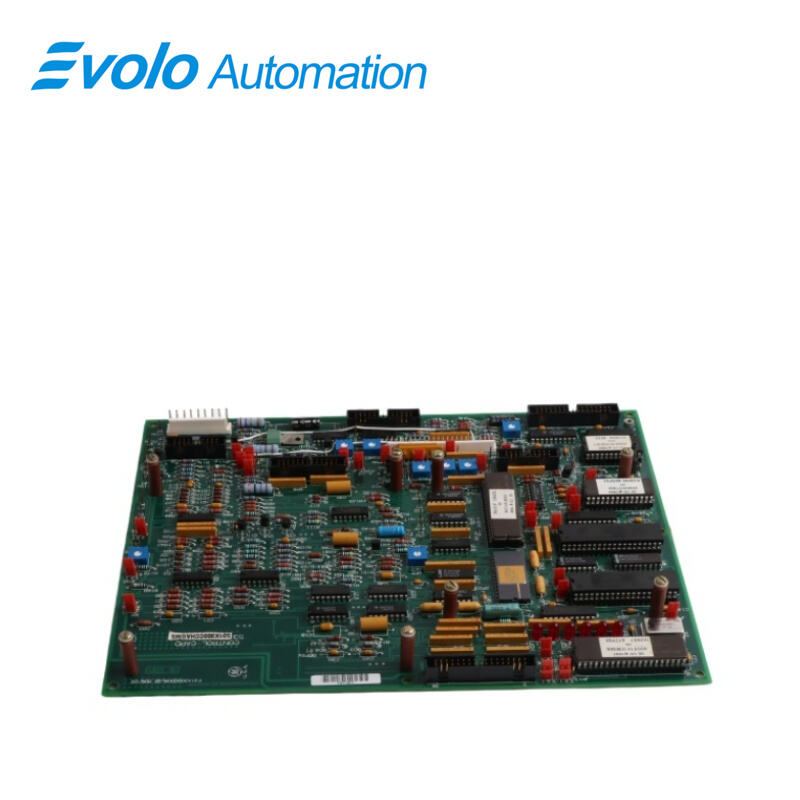

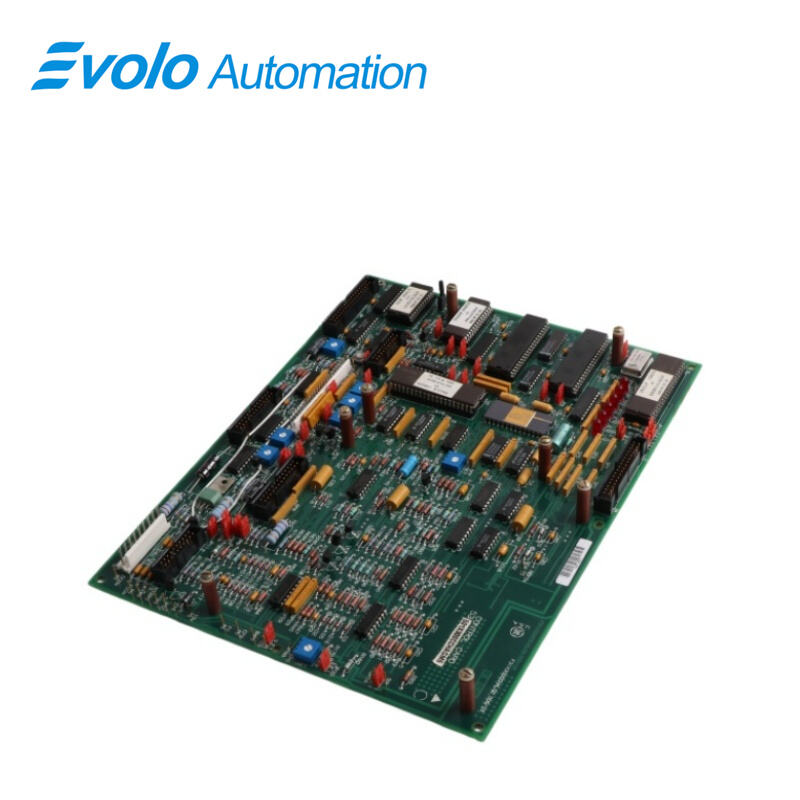

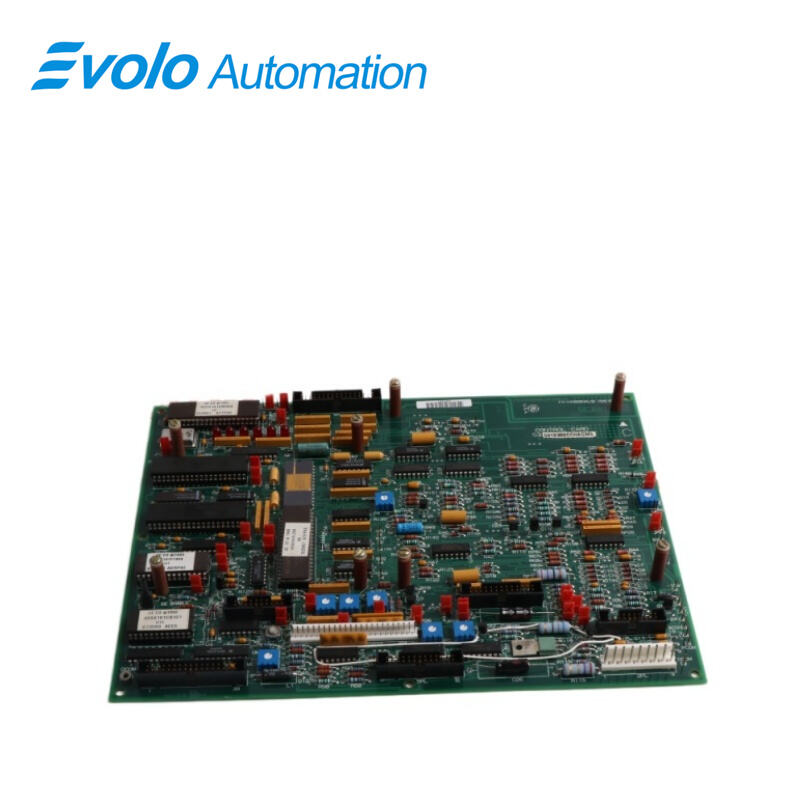

531X300CCHAGM5 Control Board

Overview

Place of Origin:	USA
Brand Name:	GE
Model Number:	531X300CCHAGM5
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Specifications

Description

531X300CCHAGM5 is a control Board developed by GE. This control board is compatible with DC300 Drives and the VA-4 System, offering reliable performance and advanced features tailored for demanding applications. Its robust design and versatile features allow it to integrate seamlessly, ensuring reliable performance and long- term durability.

Applications

Steel rolling mill: In harsh environments with extreme temperatures or fluctuating temperatures, numerous onboard jumper arrays precisely calibrate the mill's synchronization logic.

Heavy machinery processing plant: Serving as the control center for the power systems of large equipment, a drive circuit composed of 11 transistors manages peripheral actuators.

Automated assembly plant: Utilizing dual-plug connectors for rapid modular installation, and six LEDs monitor the production line's communication status in real time.

Paper and printing plant: Leveraging dense physical test points, key waveforms are captured via oscilloscopes without shutting down the machine, ensuring stable tension control.

Mining material processing plant: Deployed within the control cabinet of outdoor hoisting equipment, its cold-resistant characteristics down to -20°C ensure reliable equipment startup during winter.

Features

Status LED Indicators: Built-in LEDs provide clear visual system status and fault diagnostics for quick troubleshooting.

Auxiliary Board Expansion: Eight pre-installed standoffs support up to two add-on boards, connected via six vertical pin connectors for modular expansion.

Connectivity:

Six vertical pin connectors for data and expansion

Two header connectors for additional interfaces

Customization & Control: Includes potentiometers for fine tuning and a manual push-button switch for direct control operations.

Voltage Regulation: Integrated regulator ensures stable power delivery with reduced fluctuation, improving overall system reliability.

FAQ

Q: What is the 531X300CCHAGM5?
A: It is a Control Board developed by GE.

Q: How are auxiliary boards connected on the 531X300CCHAGM5?
A: Via 8 standoffs and 6 vertical pin connectors.

Q: What is the role of the voltage regulator in the 531X300CCHAGM5?
A: It stabilizes power and reduces voltage fluctuation.

Q: Does the 531X300CCHAGM5 have special mounting requirements?
A: No, it is a standard surface-mount PCB.

Q: What environments can the 531X300CCHAGM5 operate in?
A: The 531X300CCHAGM5 can operate under the same conditions as the rest of the DC300 system, so long as it is correctly mounted and installed..
