Overview
Place of Origin: |
USA |
Brand Name: |
GE |
Model Number: |
531X189LTBALG1 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Product Name |
531X189LTBALG1 |
|
Type |
PC Board |
|
Dimensions |
28.5x7x2 cm |
|
Weight |
0.28 kg |
|
Operating Voltage |
DC 24V |
|
Power Consumption |
15 W |
|
Communication Interface |
RS-485 |
|
Number of Inputs/Outputs |
16/16 |
|
Operating Temperature |
-20°C to +70°C |
|
Environmental Protection |
IP20 enclosure protection |
Description

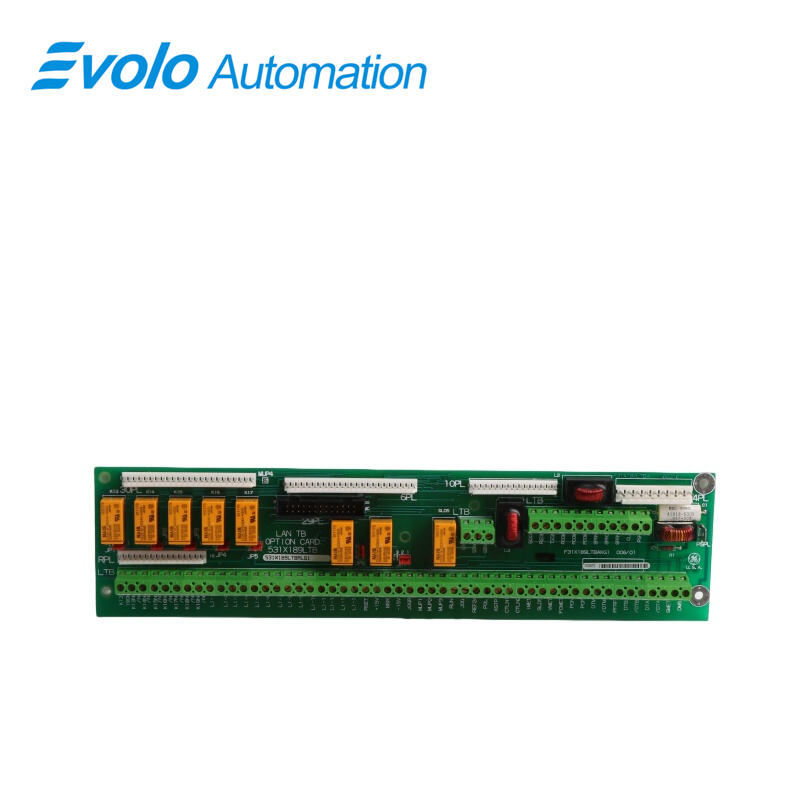

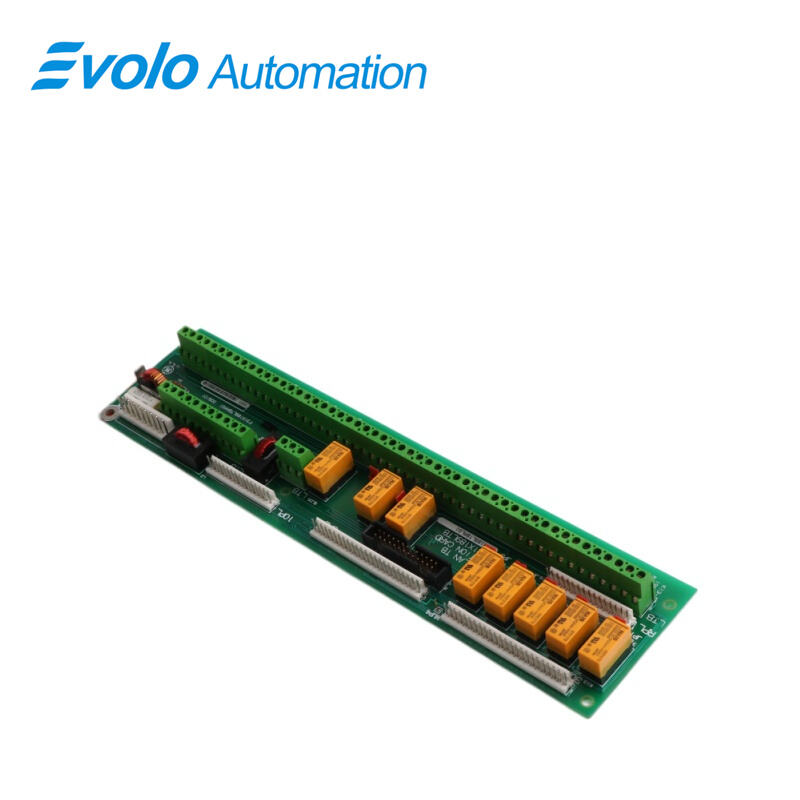

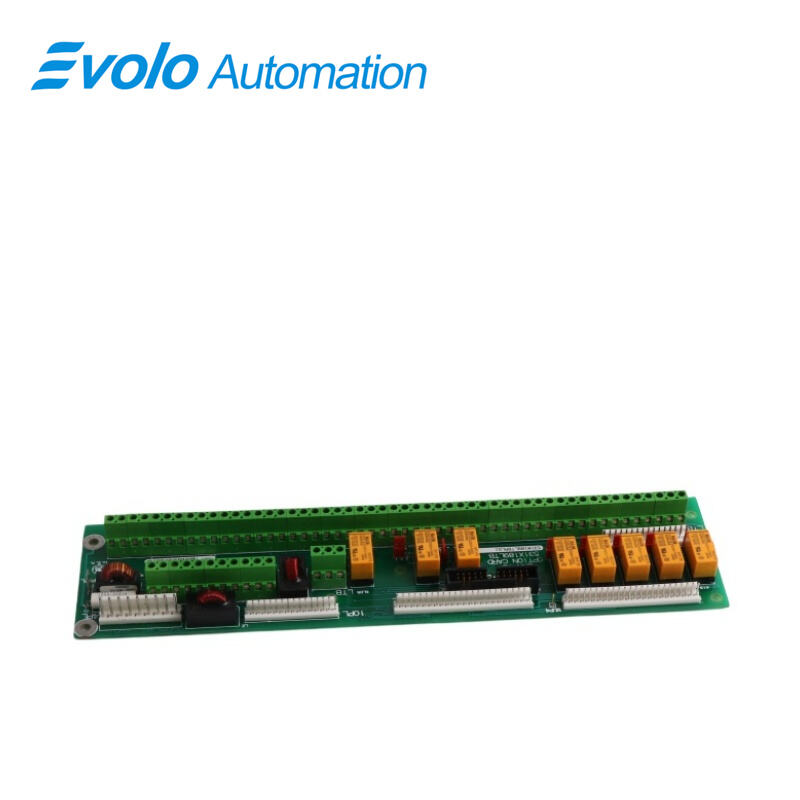

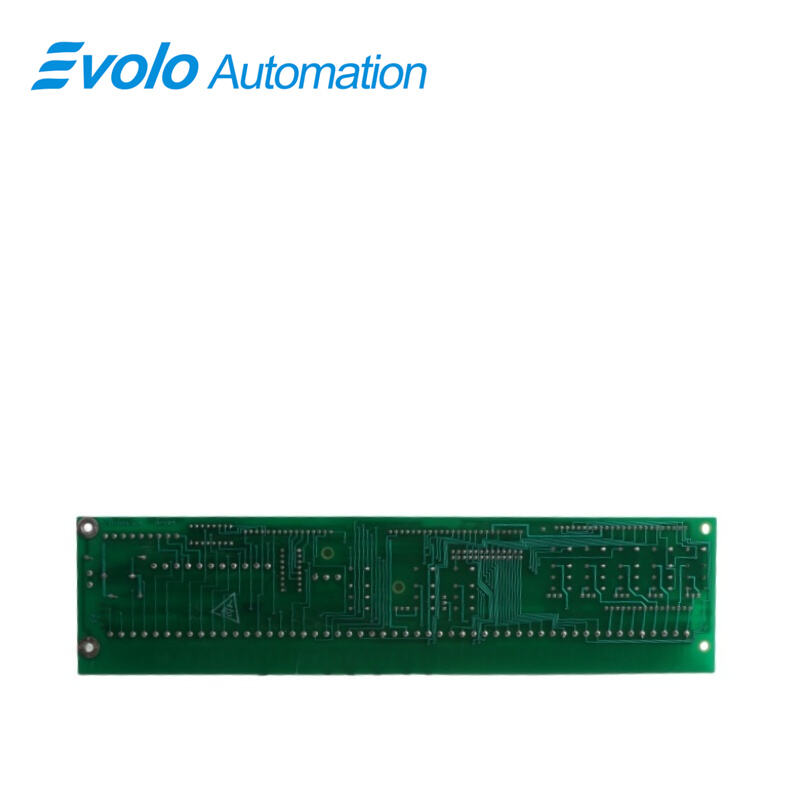

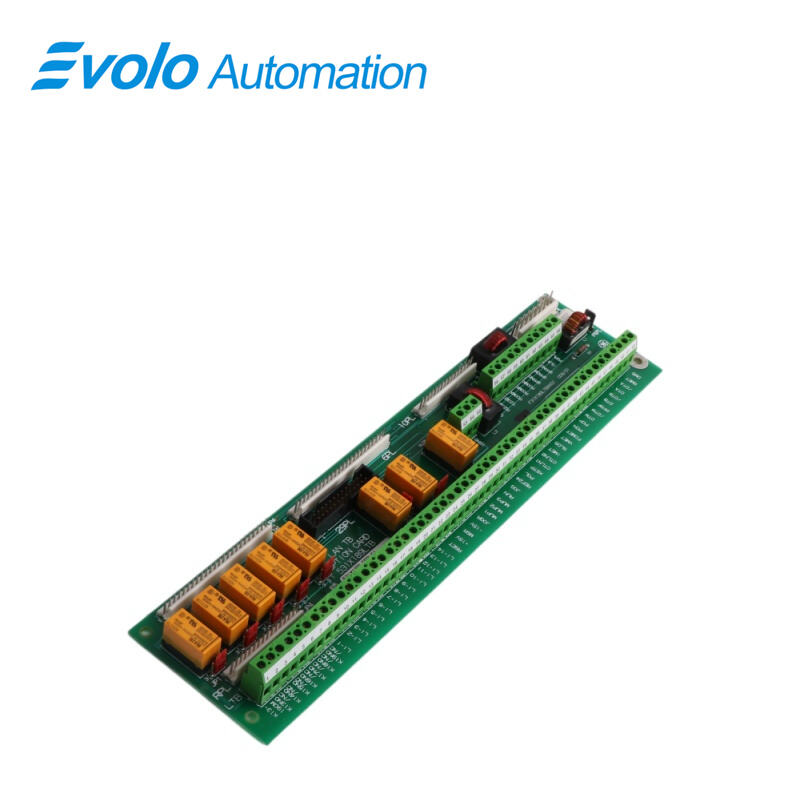

The GE FANUC 531X189LTBALG1 PC Board is a versatile and reliable component designed for advanced industrial control systems. It integrates seamlessly into complex automation environments, ensuring precise control and data processing.
Applications
Precision electronics assembly plant: Utilizes 16/16 I/O interfaces to precisely control the coordinated operation of multiple sensors and actuators on automated assembly lines.
Food and beverage processing plant: Monitors the logical sequence of packaging lines in wide-temperature environments, with IP20 protection ensuring circuitry is protected from drying impurities.
Metal parts factory: Used for auxiliary logic control of CNC machine tools, managing peripheral equipment such as coolant pumps and safety door sensors.
HVAC management plant: Monitors fan status and temperature control switches in large building control rooms, ensuring signal feedback from the energy management system.
Maintenance and Troubleshooting
Troubleshooting: If the communication link is interrupted, focus on checking the grounding of the RS-485 interface shielding cable; if the I/O points are unresponsive, confirm whether the DC 24V input current meets the 15W stable power consumption requirement.
Maintenance Recommendations: Given its IP20 protection, it is recommended to regularly clean dust from the external ventilation holes. When used in environments ranging from -20°C to +70°C, pay attention to humidity control within the cabinet to prevent condensation.
FAQ
Q: Does the 16/16 I/O interface of the 531X189LTBALG1 support hot-swapping?
A: No. Disconnect DC 24V before wiring to avoid surge damage.
Q: How to network the 531X189LTBALG1 via RS-485?
A: Uses standard RS-485 daisy-chain with shielded twisted-pair to connect PLC/HMI networks.
Q: Does 15W power require extra cooling in multi-board setups?
A: Yes. In sealed cabinets, keep ≥2 cm spacing for airflow and heat dissipation.
Q: Does IP20 mean the 531X189LTBALG1 can be used outdoors?
A: No. IP20 is not waterproof; outdoor use requires protective enclosure.
Q: Will startup be delayed at -20°C on the 531X189LTBALG1?
A: No. Wide-temperature components maintain stable performance from -20°C to +70°C.
