Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51401642-150 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51401642-150 |
|
Product Type |
HPM I/O Link Card |
|
Dimensions |
2.9 x 33 x 27.8 cm |
|
Weight |
0.96 kg |
|
Power Supply |
24 VDC |
|
Operating Temperature Range |
0 °C to +55 °C |
|
Storage Temperature Range |
-40 °C to +85 °C |
|
Humidity Range |
5–95% RH non-condensing |
|
Protection Rating |
IP20 |
|
Communication Interface |
High-speed I/O Link dedicated differential serial interface (deterministic real-time control network) |
Description

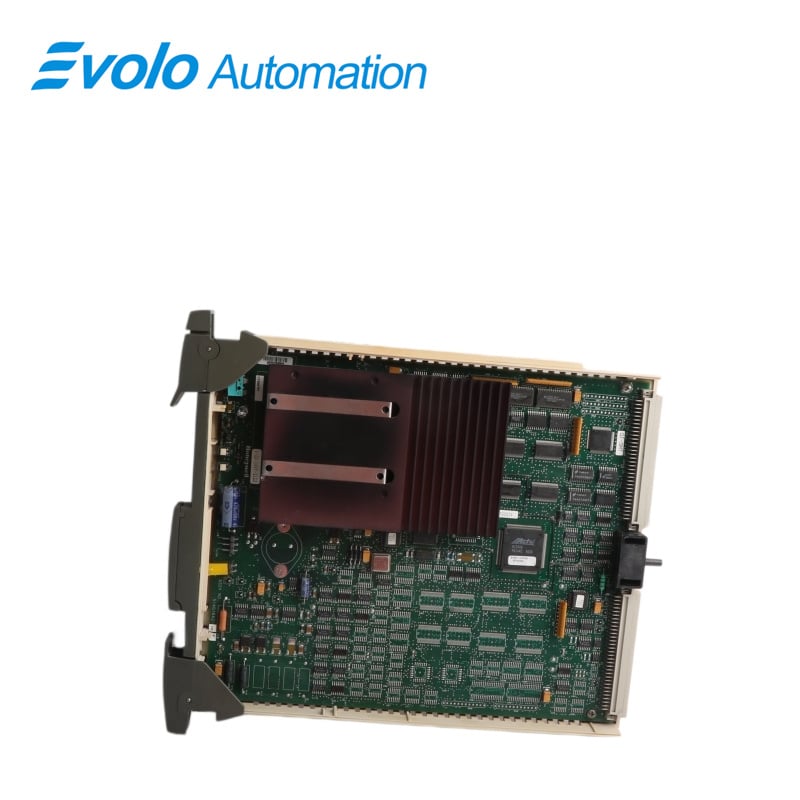

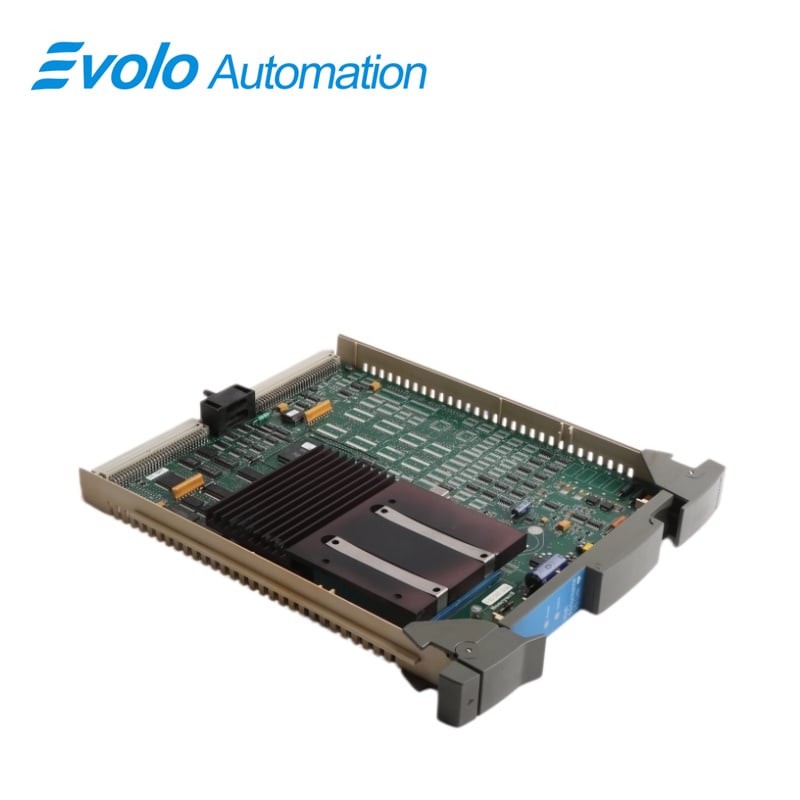

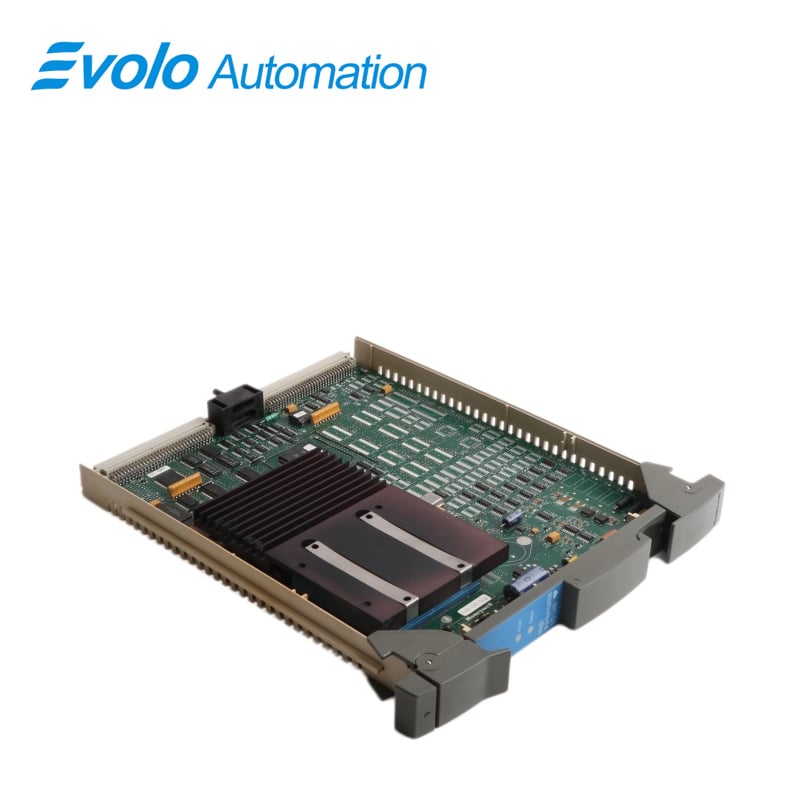

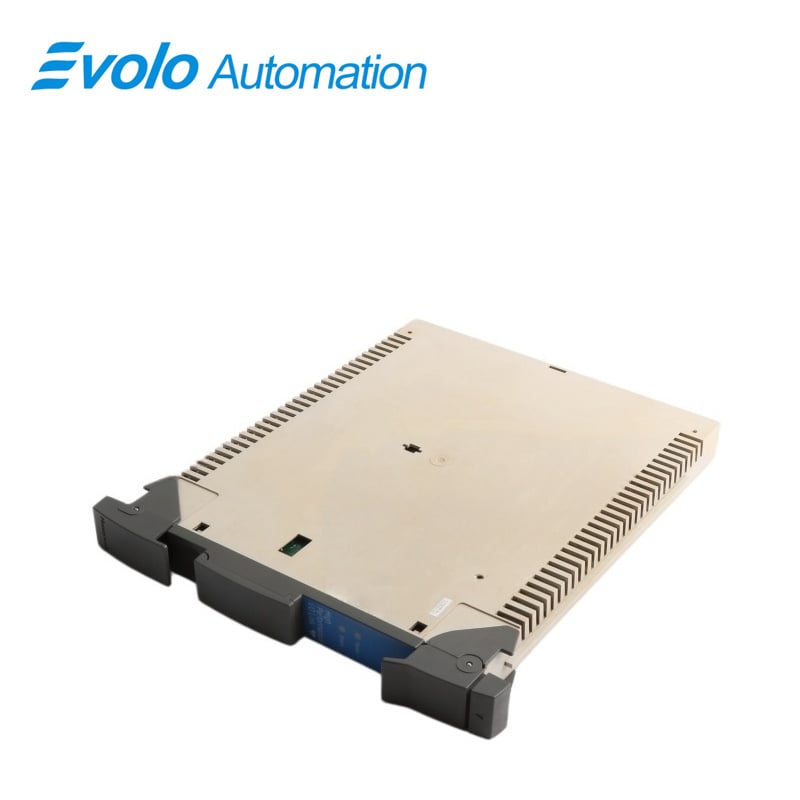

The Honeywell 51401642-150 is an HPM I/O Link Card that connects a communication control card to underlying devices to transmit information and provides power to adjacent modules by reducing the power supply voltage. During operation, this card relays management commands and displays circuit power supply and device operating status via indicator lights, ensuring proper system operation.
Applications
Petrochemical Plants: Collect tower and exchanger process signals.
Chemical Plants: Transfer reactor level, current, and pH data.
Power Plants: Connect pump and fan actuator feedback signals.
Biopharma Plants: Gather fermentation and valve control states.
Coal Gasification Plants: Handle oxygen and slurry flow signals.
Card set
The 7-Slot or 15-Slot card file populated with the following card set comprises the basic HPM:
High-Performance Comm/Control card (51401635-150)
High-Performance I/O Link card (51401642-150)
HPM UCN Interface module ((51402573-150)
Indicator
Power Indicator: Lights on each HPMM card and the HPM UCN Interface module when powered. Remains on whenever 24 Vdc from the cabinet Power System is present.
I/O Link Status Indicator: Off in the Alive state. Lights steadily after personality software is loaded and the HPMM enters the OK state.
Status Indicator: Briefly lights at power-up during internal tests. Stays on if tests pass, indicating no detected failures.
FAQ
Q: What is the power supply of 51401642-150?
A: The power supply is 24 VDC.
Q: What is the operating temperature range of 51401642-150?
A: The operating temperature range is 0°C to +55°C.
Q: What is the enclosure protection rating of 51401642-150?
A: The enclosure rating is IP20.
Q: What communication interface does 51401642-150 use?
A: It uses a high-speed I/O link dedicated differential serial interface (deterministic real-time control network).
Q: What is the storage temperature range of 51401642-150?
A: The storage temperature range is -40°C to +85°C.
