Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51304685-150 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51304685-150 |
|
Product Type |
Advanced Communications Card |
|
Dimensions |
2.9 x 31.9 x 27.9 cm |
|
Weight |
0.92 kg |
|
System Compatibility |
Experion PKS; TDC 3000; Honeywell DCS platforms |
|
Use |
Advanced Process Manager (APM) |
|
Network Function |
UCN communication with high-accuracy time stamping |
|
Interface |
High-speed Ethernet; serial communication ports |
|
Data Rate |
Up to 100 Mbps (Ethernet) |
|
Power Supply |
24 VDC |
|
Operating Temperature Range |
0 °C to +60 °C |
|
Storage Temperature Range |
-40 °C to +85 °C |
|
Humidity |
5% to 95% non-condensing |
|
Coating |
Conformally coated |
Description

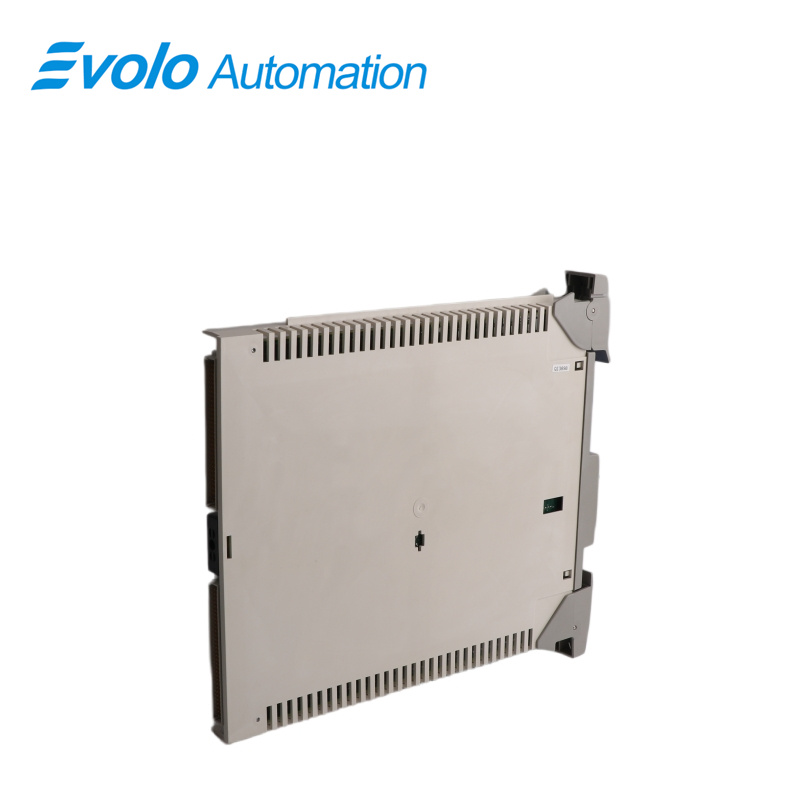

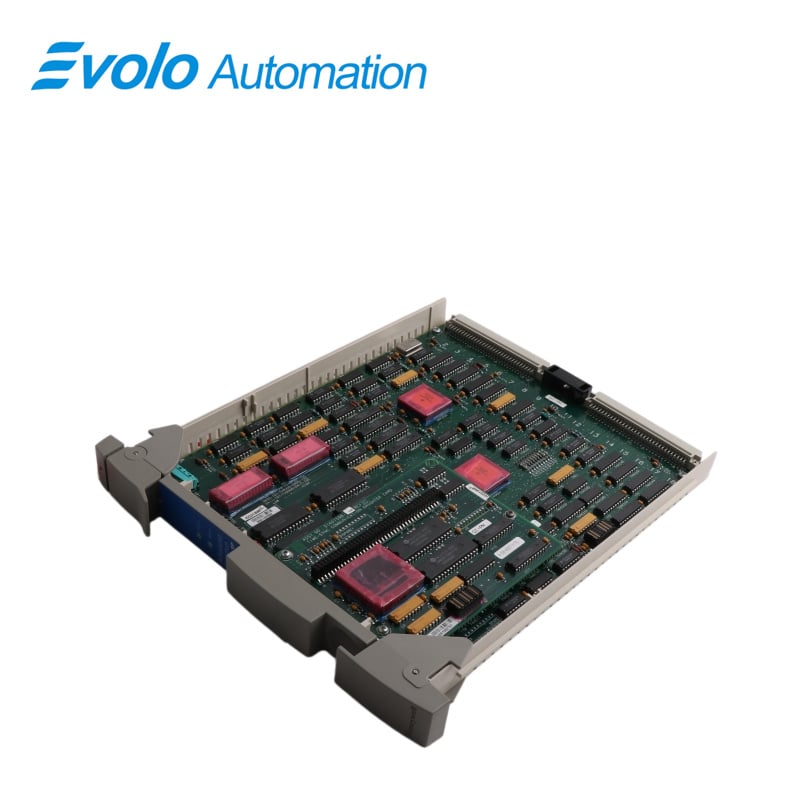

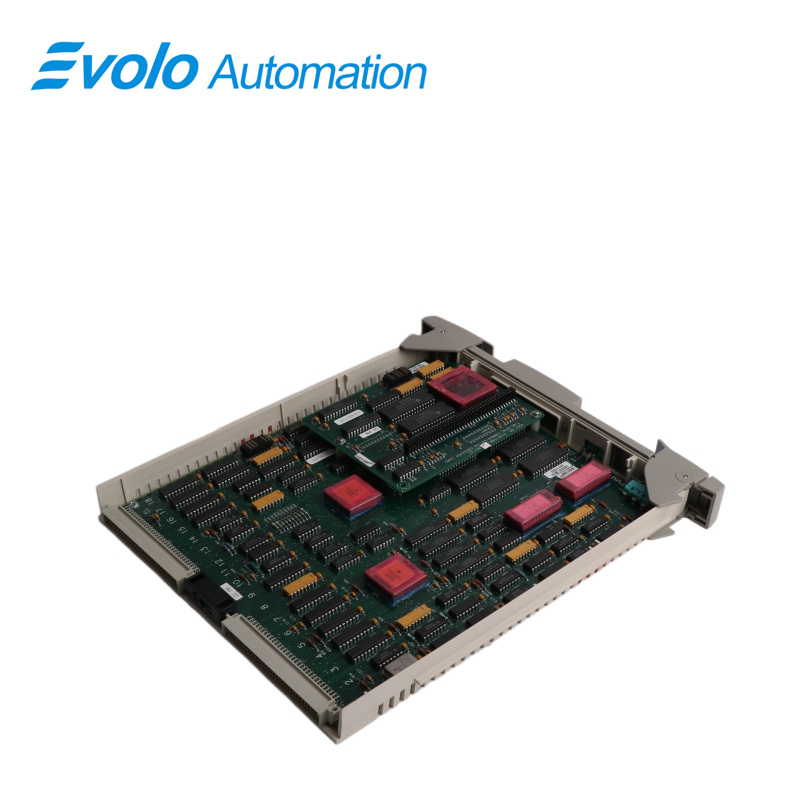

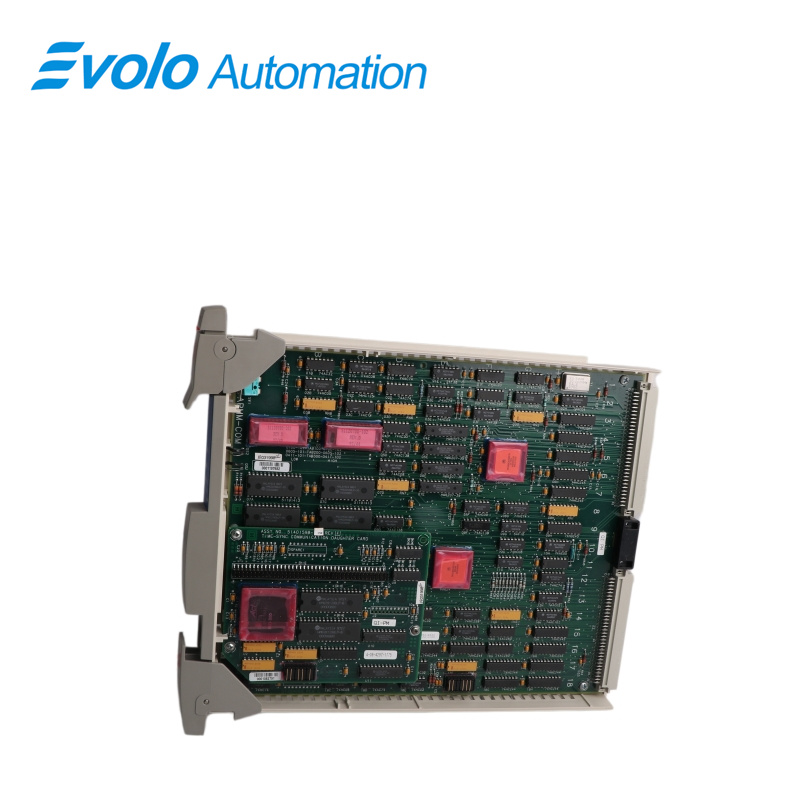

The Honeywell 51304685-150 is an Advanced Communications Card designed for Experion PKS and TDC 3000 systems. It provides high-speed data transfer and secure communication between controllers.operator stations.and field devices.ensurine inteeration in distributed control environments.
Applications
Chemical Plants: Link DCS master with remote I/O for continuous data transfer.
Power Plants: Synchronize control and NCS systems for event logging.
Steel Plants: Connect rolling mill networks for real-time multi-process data exchange.
Automotive Plants: Bridge shop-floor bus with IT network for production reports upload.
Battery Plants: Connect production control with warehouse for real-time process commands.
Key Environmental Protection Advantages of the -150 Suffix
Conformal Coating: The circuit board is coated with a highly insulating, chemical-resistant protective layer. It resists humidity, salt spray, and corrosive gases (such as H₂S and SO₂), preventing copper oxidation and intermittent network interruptions.
Mixed Insertion and Replacement Rules
Redundant Compatibility: In the A/B redundant APM communication configuration, 51304685-150 is fully compatible with and can directly replace 51304685-100. It supports hot swapping, and both versions can temporarily operate together in a redundant configuration.
FAQ
Q: What network function does 51304685-150 have?
A: It has UCN communication with high-precision timestamping.
Q: What is the Ethernet data rate of 51304685-150?
A: Its Ethernet data rate can reach up to 100 Mbps.
Q: What is the power supply of 51304685-150?
A: Its rated power supply is 24 VDC.
Q: What is the operating temperature range of 51304685-150?
A: The operating ambient temperature range is 0°C to +60°C.
Q: Does 51304685-150 have conformal coating?
A: Yes, it is a conformal coated version.
