Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51202330-300 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51202330-300 |
|
Product Type |
Cable |
|
Dimensions |
16 × 16 × 1 cm |
|
Weight |
0.02 kg |
|
Length |
30 in (0.76 m) |
|
Material |
PVC |
|
Connector Type |
Standard |
|
Voltage |
24 VDC |
|
Current |
2.4 A |
|
Operating Temperature Range |
-40°C to +85°C |
|
Relative Humidity |
0–95% non-condensing |
|
Protection Rating |
NEMA 4 / IP66 |
|
Use Case |
Connects to the battery RAM charger module (with P/N 51454475‑100) in Series 8 / C300 controller racks |
Description

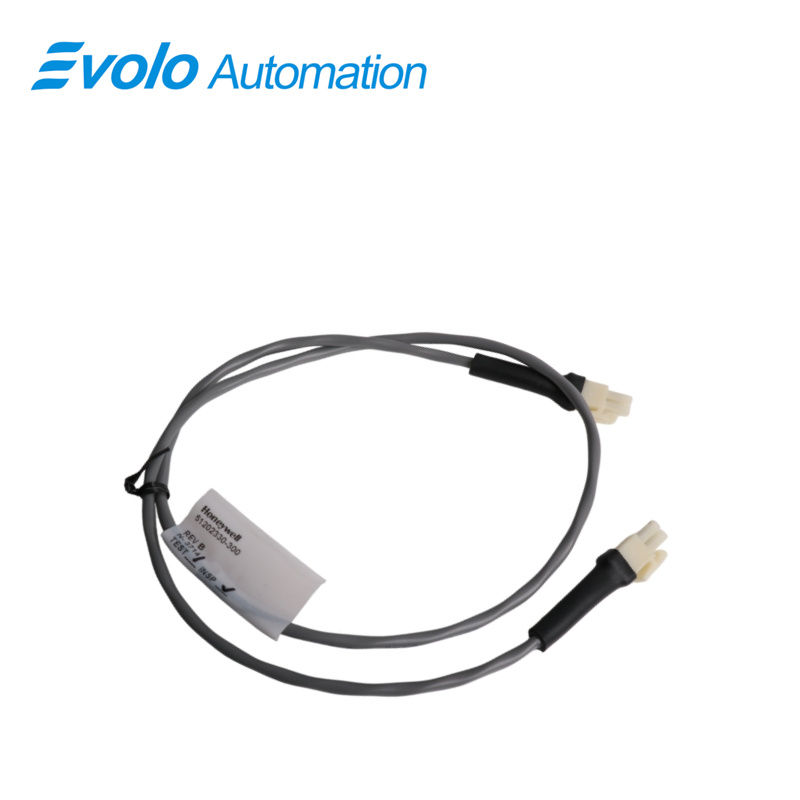

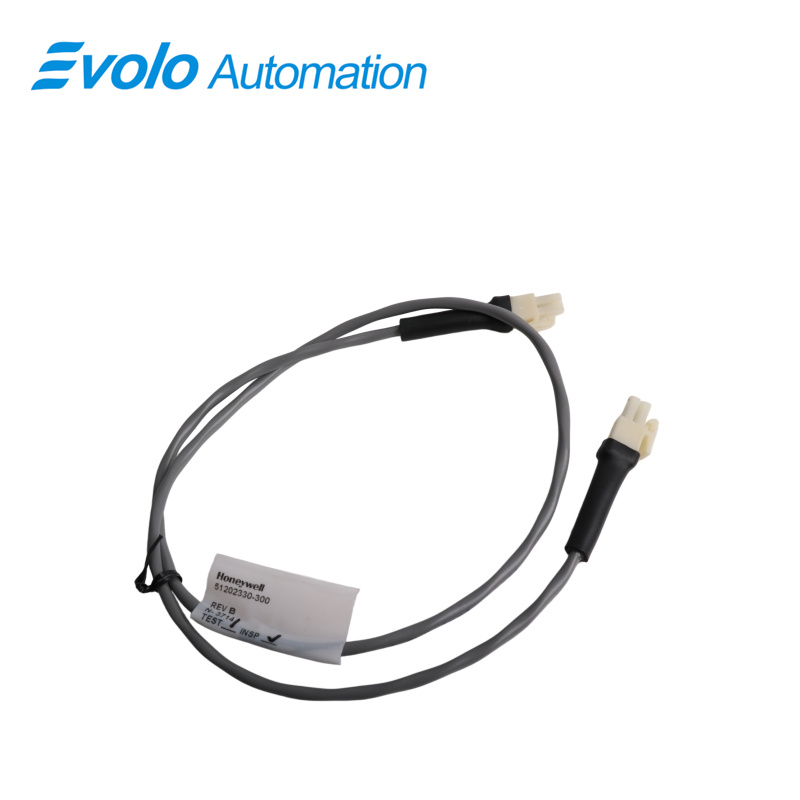

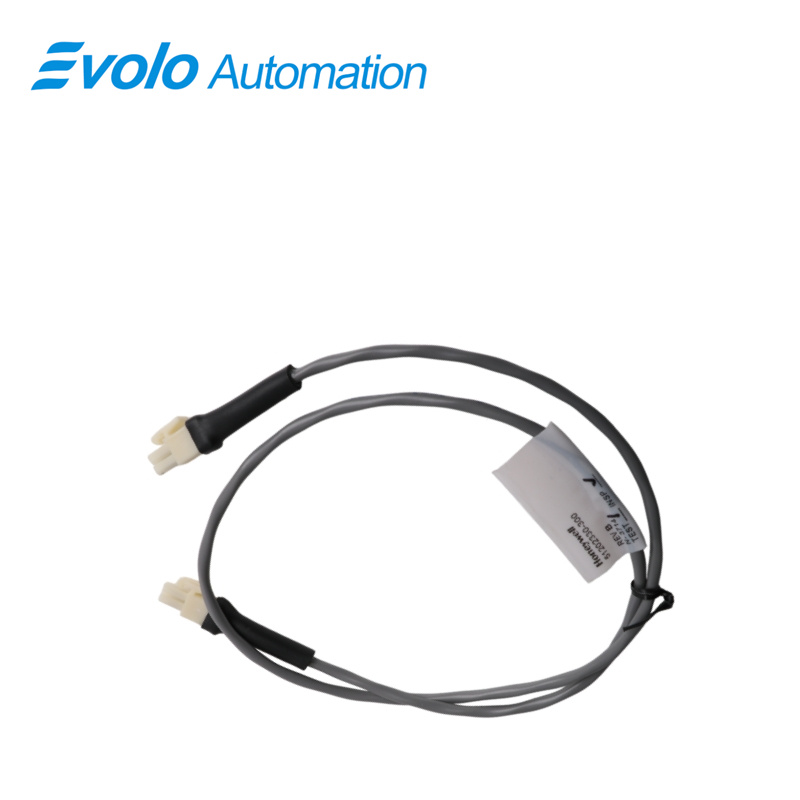

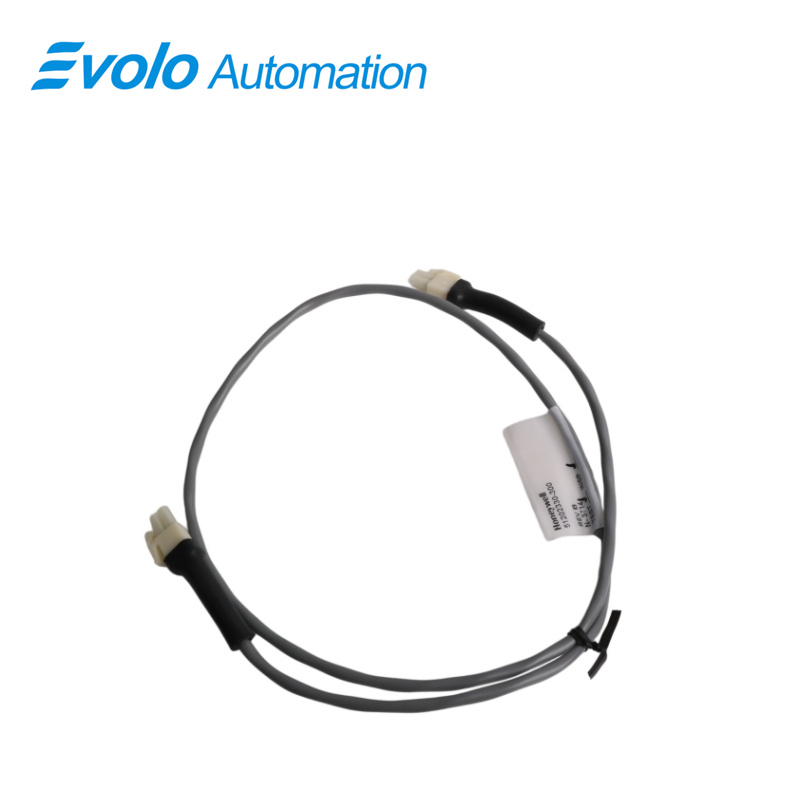

The Honeywell 51202330-300 is a cable (Battery RAM Charger / MBA to C300 Controller Cable) for use in Honeywell Experion PKS and Experion LX systems. It is primarily used to connect the Series 8 C300 MBA / RAM Charger Module (model number 51454475-100) to the C300 controller terminal block (IOTA).
Applications
Food & Beverage Plants: High protection supports washdown sterilization and filling lines.
Cement & Building Material Plants: Dust-resistant design ensures stable operation in harsh environments.
Petrochemical Plants: Wide temperature range supports outdoor valve control systems.
Rail Transit Plants: Compact design fits limited control cabinets.
Paper & Chemical Fiber Plants: Moisture resistance ensures stable operation in high humidity.
Features
Provides backup power for critical control systems
Easy installation and connection
Durable construction for long lifespan
Meets Honeywell's high standards for quality and reliability
Troubleshooting
Terminal overheating under load: Ensure connectors are fully inserted; loose contact may cause resistance heating at up to 2.4A. Clean pins and tighten connections.
Insulation fault in humidity: Verify IP66 sealing at joints. If moisture enters, power off, dry, and reseal before reuse.
Mechanical damage: Inspect PVC sheath for scratches; replace cable immediately if internal insulation is damaged to prevent 24VDC short circuits.
FAQ
Q: What is the physical length of 51202330-300?
A: Its physical length is 30 inches (0.76 m).
Q: What are the operating voltage and current of 51202330-300?
A: Its rated operating voltage is 24 VDC, and its operating current is 2.4 A.
Q: What is the operating temperature range of 51202330-300?
A: The operating ambient temperature range is -40°C to +85°C.
Q: What protection rating does 51202330-300 achieve?
A: Its enclosure protection rating is NEMA 4 and IP66.
Q: What is the specified application of 51202330-300 in a Series 8 / C300 controller rack?
A: It is used to connect to the part number 51454475-100 Battery RAM Charger Module.
