Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51198651-100 SPS5785 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Model |
51198651-100 SPS5785 |
|
Product Type |
Power Supply Module |
|
Dimensions |
21.5 × 30 × 14 cm |
|
Weight |
5.2 kg |
|
Input Voltage |
100–240 VAC or 48 VDC batteries |
|
Output Voltage (AC Line) |
Nominally rated |
|
Output Voltage (Battery) |
24–26 VDC (from 48V battery system) |
|
Additional Output |
6 VAC (line-frequency output, 35 mA load) |
|
Rated Output Current |
24 VDC (20 A rated) |
|
Battery Voltage |
~3.9 V (rechargeable battery reference supply) |
|
Protection Functions |
Overvoltage, overcurrent, short-circuit protection |
|
Charging Circuit |
Integrated 48V battery charging circuit |
|
Operating Temperature Range |
-20°C to +55°C (full load) |
|
Temperature Derating |
0.5 A/°C above 55°C up to +65°C |
|
Mounting Type |
Rack mount |
|
Enclosure Type |
Industrial-grade |
|
Compliance |
CE-compliant |
Description

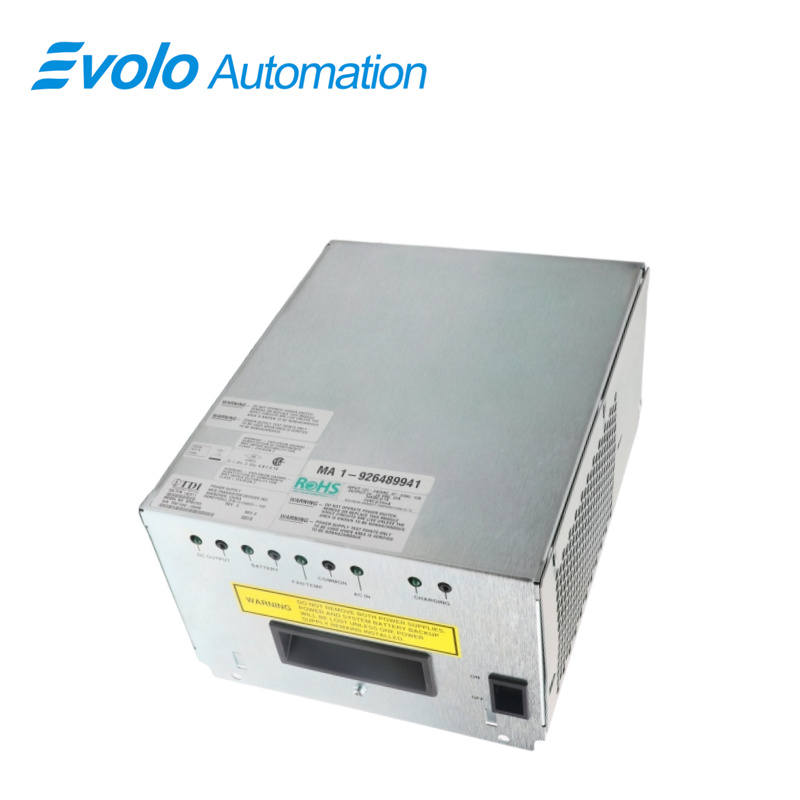

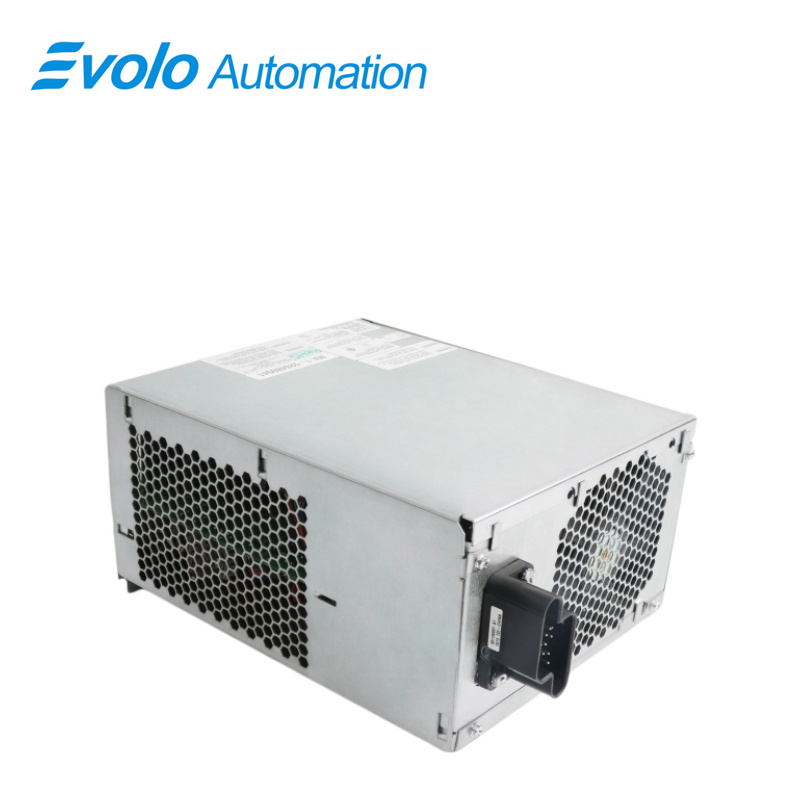

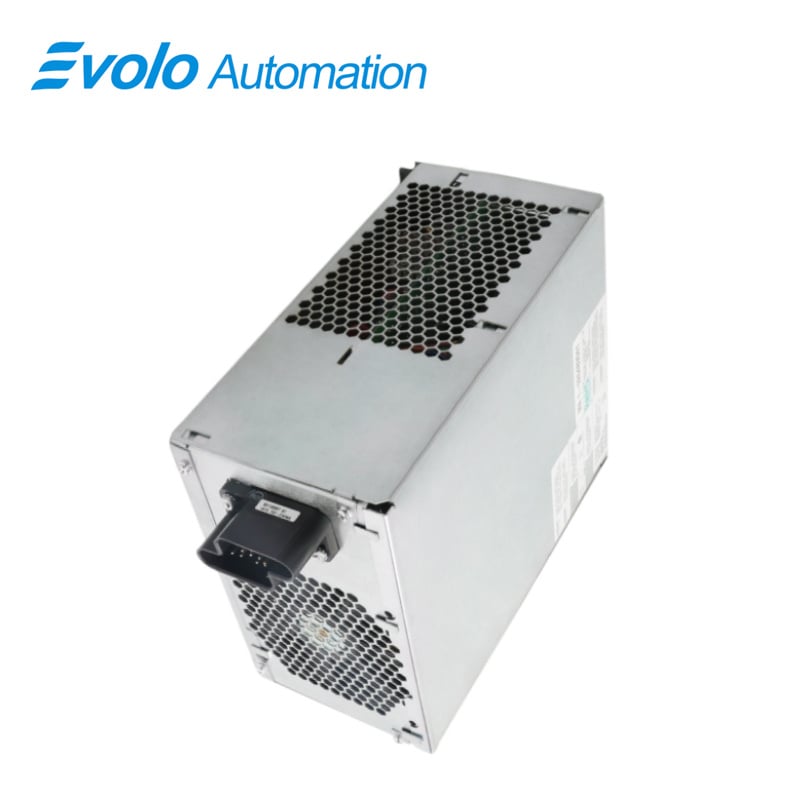

The Honeywell 51198651-100 SPS5785 is a power supply module used in Universal Control Network(UCN) cabinets supporting High Performance Process Manager (HPM), Process Manager (PM), and Advanced Process Manager (APM) systems. The module provides a stable and reliable power supply to other modules within the system, ensuring the normal operation of the entire TDI system.
Applications
Thermal Power Plants: Provides precise synchronization reference for turbine control systems.
Petrochemical Plants: Uses redundant input design to ensure uninterrupted SIS power.
Metallurgy Plants: Maintains stable power in high-temperature industrial control cabinets.
Automotive Plants: Supplies stable DC power for robotic welding and stamping systems.
Water Treatment Plants: Prevents system failure with robust overload and short-circuit protection.
Special note
For optimal reliability, it's recommended to configure redundant power supplies, each connected to its own dedicated power source. Even with redundant supplies in place, care should be taken when replacing a failed unit. This helps minimize disruption and prevents particles from contaminating the area around the power supplies.
Competitive Advantage
High Reliability: The module is an industrial power module designed for stable long-term operation in harsh environments.
Stable Power Output: Provides precise voltage and current output to support TDI system modules.
Protection Functions: Built-in overvoltage, overcurrent, and short-circuit protection ensures system safety.
Easy Integration: Designed for seamless integration within Honeywell TDI systems and compatible modules.
FAQ
Q: What is the input voltage of 51198651-100 SPS5785?
A: The input voltage supports 100–240 VAC or 48 VDC battery supply.
Q: What is the rated output current of 51198651-100 SPS5785?
A: The rated output current at 24 VDC is 20 A.
Q: What is the full-load operating temperature range of 51198651-100 SPS5785?
A: The operating temperature range is -20°C to +55°C.
Q: What is the derating rule above 55°C for 51198651-100 SPS5785?
A: From 55°C to +65°C, output current is derated by 0.5 A/°C.
Q: What mounting method does 51198651-100 SPS5785 use?
A: It uses rack mount installation.
