Overview
Place of Origin: |
USA |
Brand Name: |
HONEYWELL |
Model Number: |
51195066-100 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Parameter |
Value |
|
Part Number |
51195066-100 |
|
Part Type |
5 Slot Chassis Power Supply Module |
|
Dimensions |
36.5 x 39 x 5.5 cm |
|
Weight |
3.84 kg |
|
Number of Slots |
5 |
|
Input Voltage |
120 / 240 VAC |
|
Input Current (120V) |
6.0 A |
|
Input Current (240V) |
3.75 A |
|
Input Frequency |
47–63 Hz |
|
Output Voltage |
24 V |
|
Output +5V |
30 A |
|
Output +12V |
8 A |
|
Output -12V |
1 A |
|
Output +24V |
1 A |
|
Power Capacity |
Up to 300 W |
|
Operating Temperature Range |
-40°C to 70°C |
Description

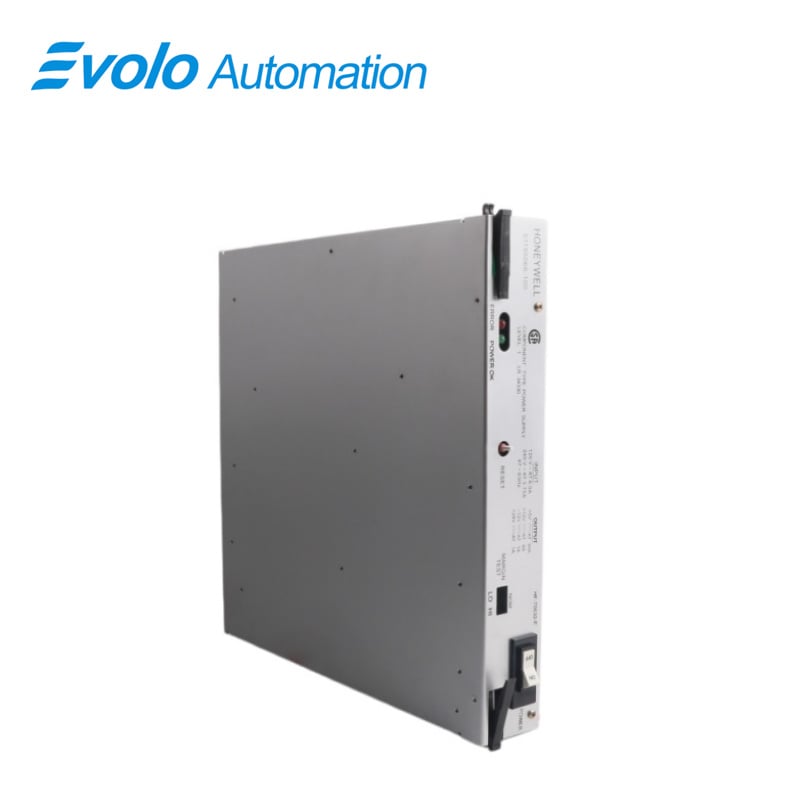

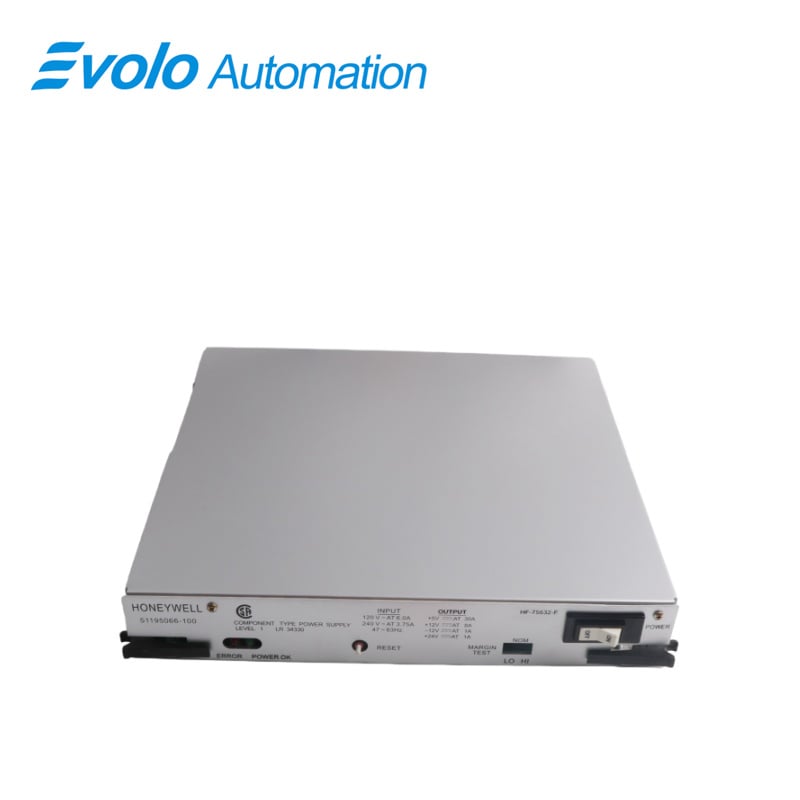

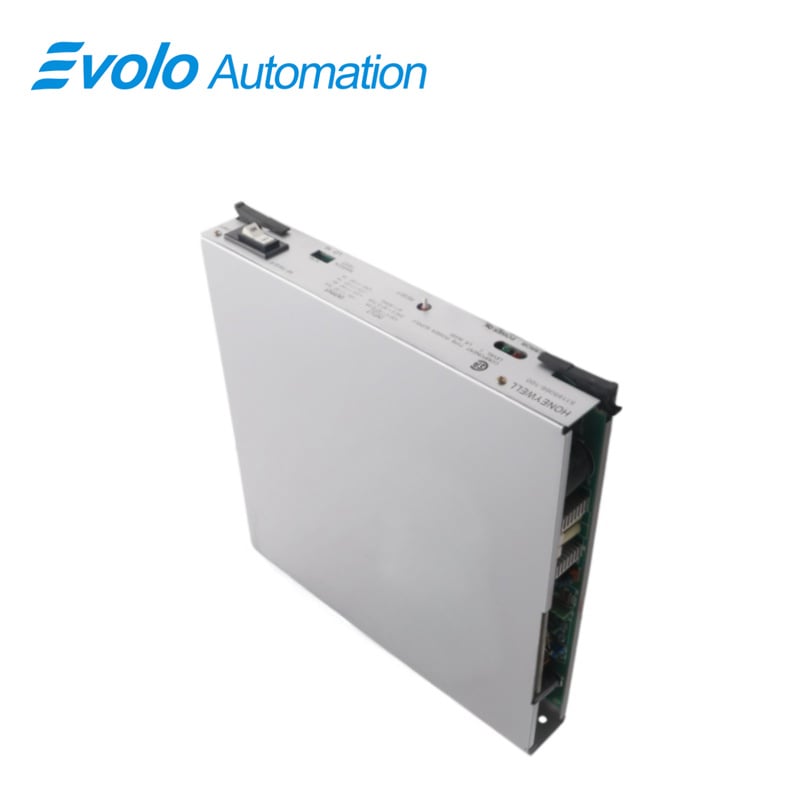

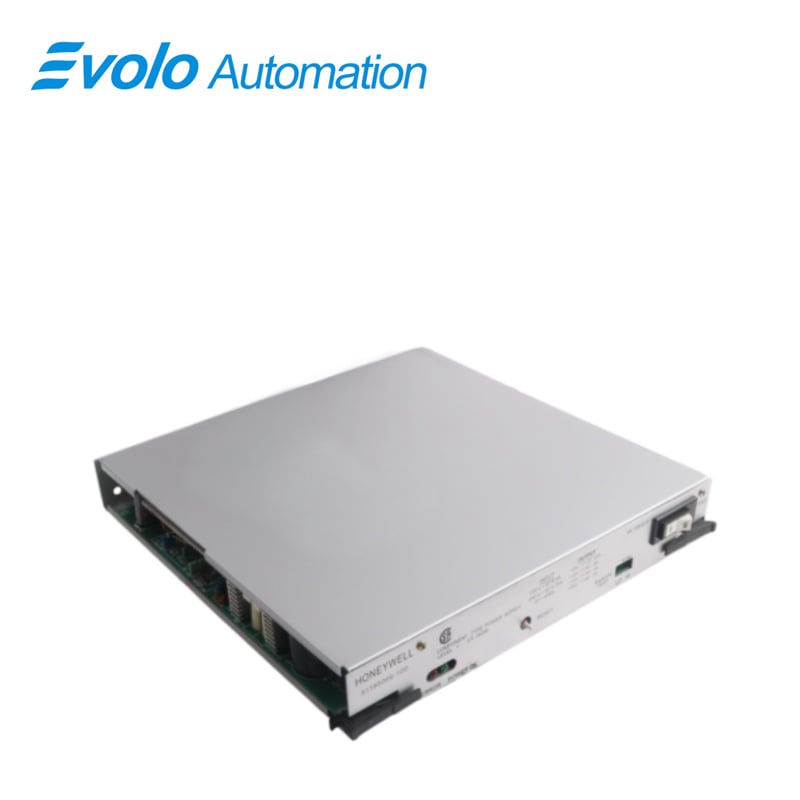

The Honeywell 51195066-100 is a 5-slot chassis power module suitable for distributed control systems such as Experion and TDC 3000. It provides a stable and reliable power supply for automation modules, supporting continuous operation in industrial environments.
Applications
Petrochemical plant: base power for process control systems.
Thermal power plant: power for distributed control systems of generating units.
Fertilizer plant: process control for continuous production lines.
Pulp and paper plant: automation control for paper machines and pulp processes.
Pharmaceutical plant: DCS control for batch and core processes.
Features
Multiple slots: can accommodate up to five modules for flexible power distribution.
Hot swappable function: The module can be easily replaced without interrupting the power supply.
Wide input voltage range: Adapt to different power sources and achieve versatility.
Overload and short circuit protection: Ensure safe operation and protect connected equipment.
LED indicator light: Provides visual status indication for quick and easy monitoring.
Benefits
Reliable power distribution: Ensure stable and consistent power supply for connected devices.
Flexibility and scalability: It can accommodate multiple modules and achieve customized power distribution.
Easy to maintain: The hot swappable feature allows for easy module replacement.
Safe and protected operation: Provide overload and short circuit protection for connected devices.
FAQ
Q: How many slots does 51195066-100 have and what input voltage does it support?
A: 5 slots, supporting 120 / 240 VAC input.
Q: What is the maximum input current of 51195066-100?
A: 6.0 A at 120 V, 3.75 A at 240 V.
Q: What DC outputs are provided by 51195066-100?
A: +5V (30 A) and +12V (8 A).
Q: What is the maximum total power capacity of 51195066-100?
A: Up to 300 W.
Q: What is the operating temperature range of 51195066-100?
A: Wide range from -40°C to 70°C.
