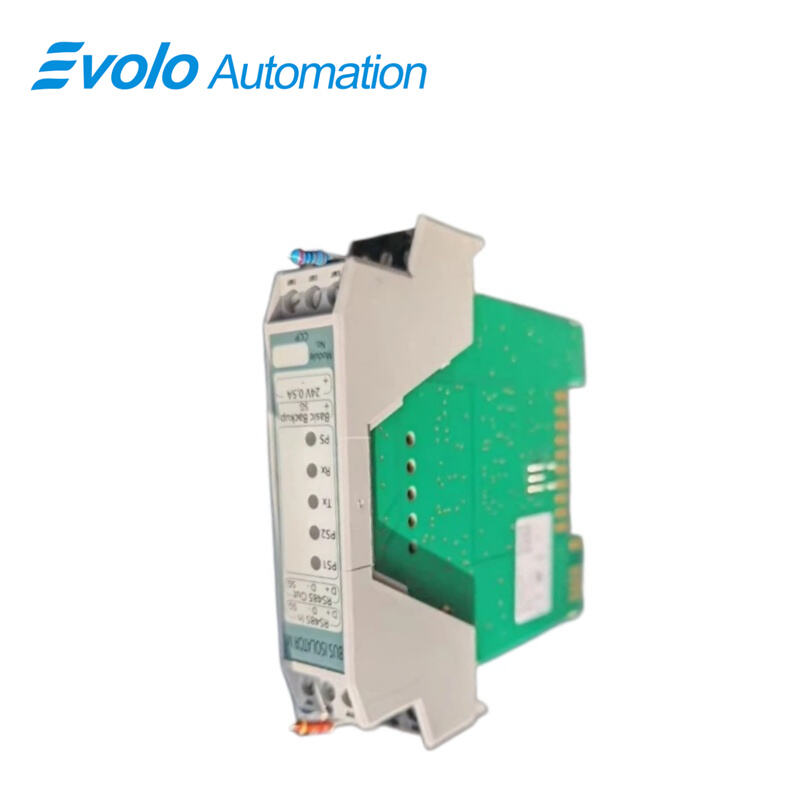

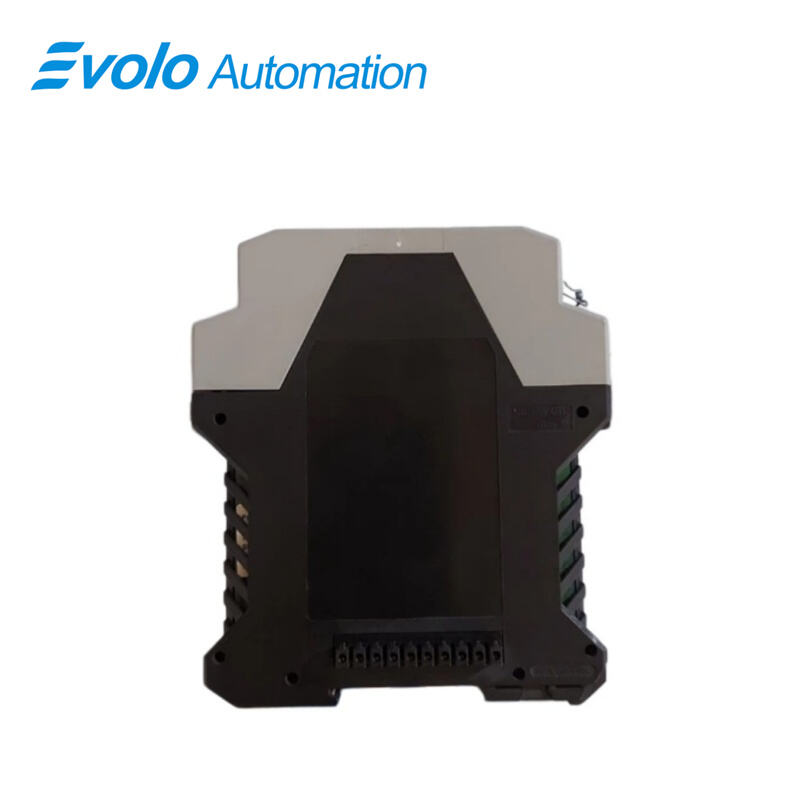

5100070-02A Bus Isolator

Overview

Place of Origin:	Sweden
Brand Name:	Consilium
Model Number:	5100070-02A
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

Bus Isolator M divides the backbone bus into segments. Its dual functionality isolates communications and basic backup signals between the stretched system parts and provides power to the control panel (e.g. Control Panel M 4.3). For details on assembling a system and definitions of common system terms, refer to the Installation Manual.

Applications

Divide backbone bus into independent segments for industrial control
The BUS ISOLATOR M 5100070-02A divides long bus networks into segments up to 100 m per channel, allowing clear separation of control signals and minimizing cross-talk.

Provide isolated power supply to control panels
The BUS ISOLATOR M 5100070-02A delivers consistent voltage within 19–30 VDC to panels like the Control Panel M 4.3, supporting currents up to 30 mA per isolator for multiple segments without overloading.

Enable fault isolation and maintenance in extended bus systems
Using two BUS ISOLATOR M 5100070-02A units per segment, faults in one backbone channel can be isolated to prevent downtime, maintaining operational continuity.

Support RS485 industrial communication for automation networks
The BUS ISOLATOR M 5100070-02A ensures reliable transmission of digital control signals at standard RS485 speeds, supporting up to 32 nodes per segment for automation devices.

Facilitate modular industrial bus setup
By combining two BUS ISOLATOR M 5100070-02A units with channel selector DIP switches, system engineers can expand or modify segments easily, ensuring precise control and power allocation.

Competitive Advantage

Integrated dual-function isolation and power distribution
The BUS ISOLATOR M 5100070-02A isolates communication signals while supplying 19–30 VDC and 30 mA, reducing the need for separate isolation devices and power modules.

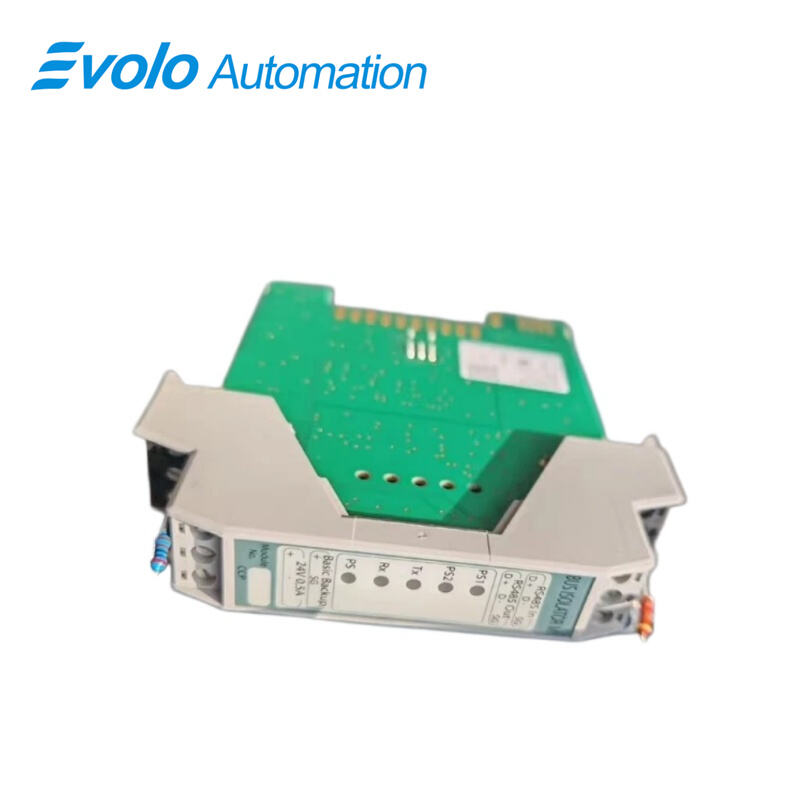

Visual LED indicators for rapid diagnostics
The BUS ISOLATOR M 5100070-02A provides real-time feedback on input/output status, enabling technicians to verify connection integrity quickly and reduce troubleshooting time.

Operational performance in wide temperature range
The BUS ISOLATOR M 5100070-02A functions reliably from -40°C to +70°C, allowing deployment in extreme indoor and outdoor industrial environments without additional thermal management.

Quantified modular setup for precise channel control

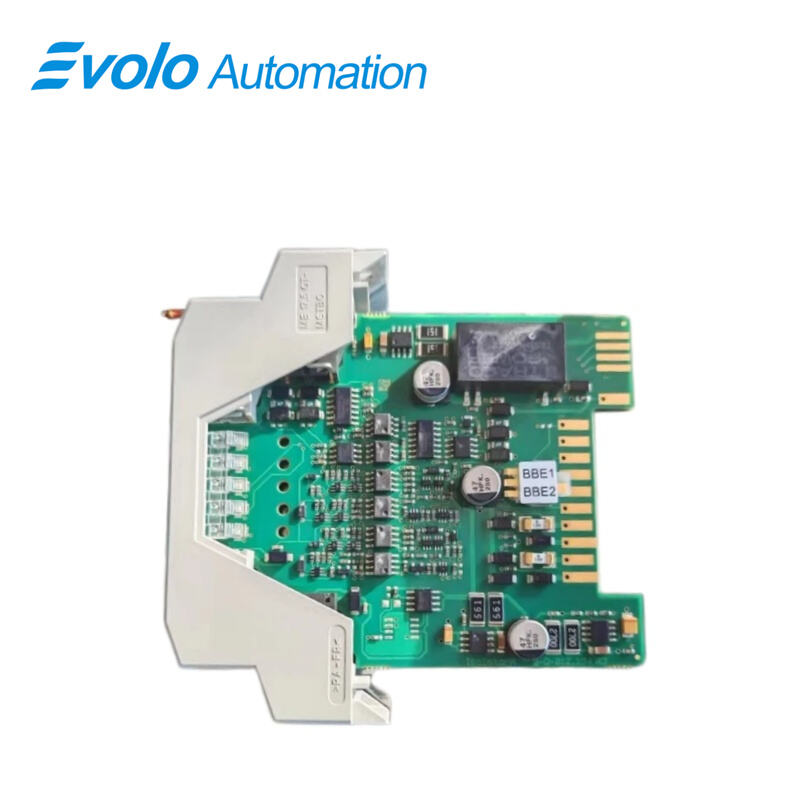

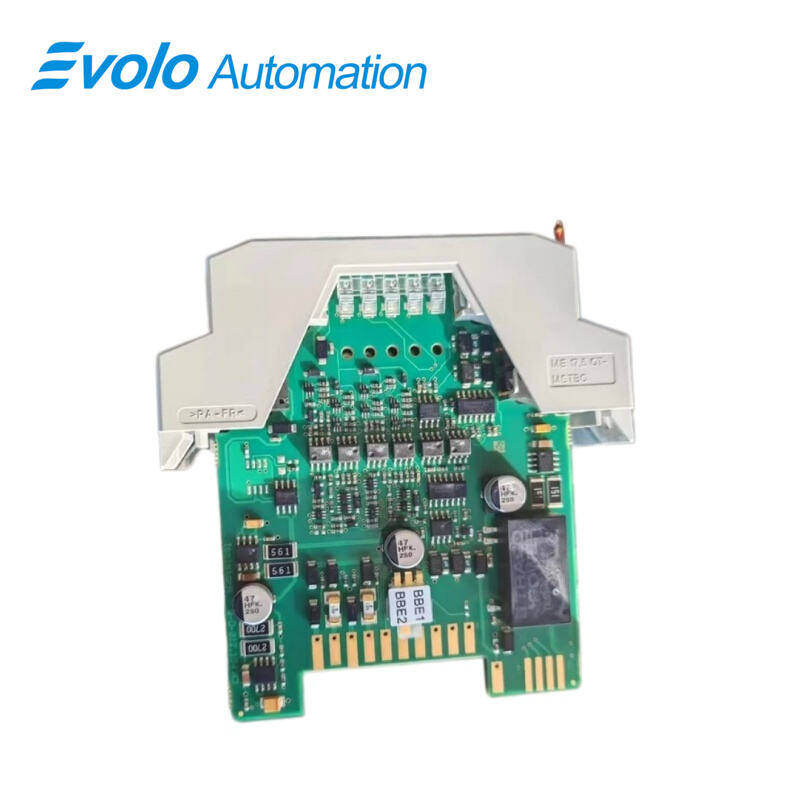

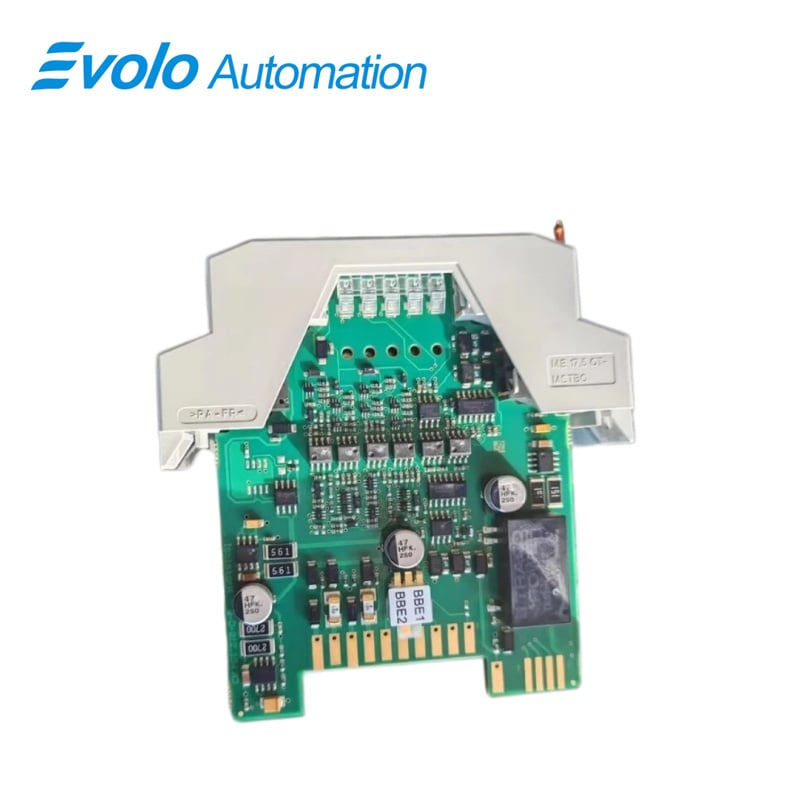

Two BUS ISOLATOR M 5100070-02A units per segment, with BBE1 and BBE2 DIP settings, allow exact isolation of each backbone channel, minimizing signal interference and supporting system segments up to 100 m.

Low power consumption with secure connection terminals
The BUS ISOLATOR M 5100070-02A uses only 30 mA at 24 V with 2.5 mm² terminals, ensuring energy-efficient operation while maintaining secure electrical connections across backbone segments.

FAQ

Q1: What is the primary function of the BUS ISOLATOR M 5100070-02A?
A1: The BUS ISOLATOR M 5100070-02A divides the backbone bus into segments, isolates communication and backup signals, and provides power to control panels like the Control Panel M 4.3.

Q2: What operating voltage range does the BUS ISOLATOR M 5100070-02A support?
A2: It operates within 19–30 VDC. At 24 V, the current consumption is 30 mA.

Q3: How should I install the BUS ISOLATOR M 5100070-02A?
A3: Two units are required per segment for two backbone channels. Use the DIP switches to set one unit to BBE1 and the other to BBE2. Connections are made via RS485 with 2.5 mm² cable terminals.
