Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
40180-02 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Signal Conditioning: |
Converts high-impedance probe signal to low-impedance voltage output |
|
Output Voltage Range: |
0 to -20 Vdc |
|
Frequency Response: |
DC to 10 kHz |
|
Operating Temperature: |
-55°C to +75°C (-67°F to +167°F) |
|
Storage Temperature: |
-55°C to +85°C (-67°F to +185°F) |
|
Agency Approvals: |
CSA, ATEX, IECEx |
|
Mounting Options: |
Panel mount, DIN rail mount |
|
Dimension: |
8.5x1x1cm |
|
Weight: |
0.01kg |
Description

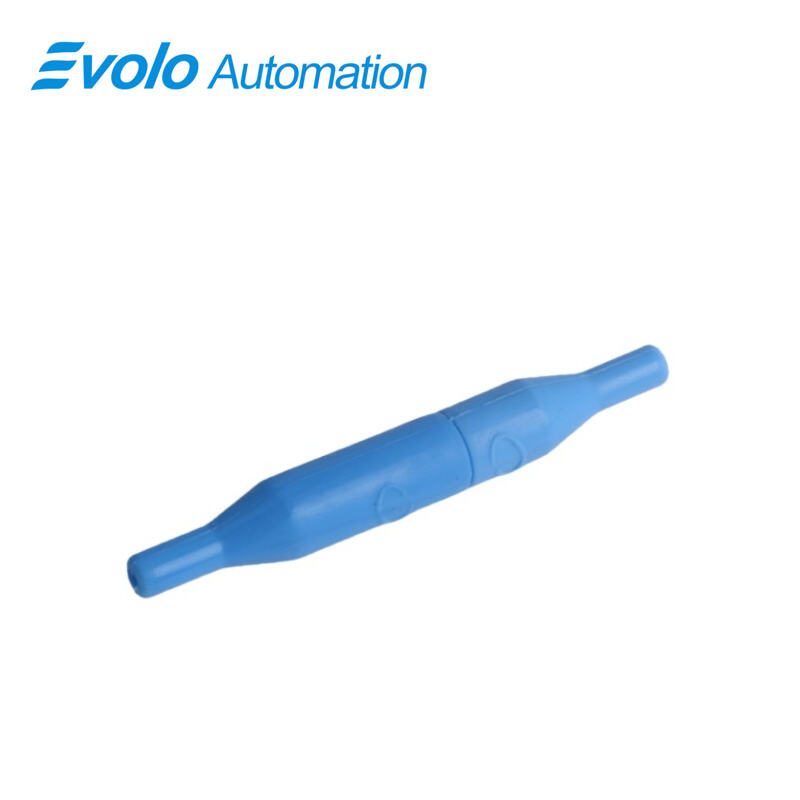

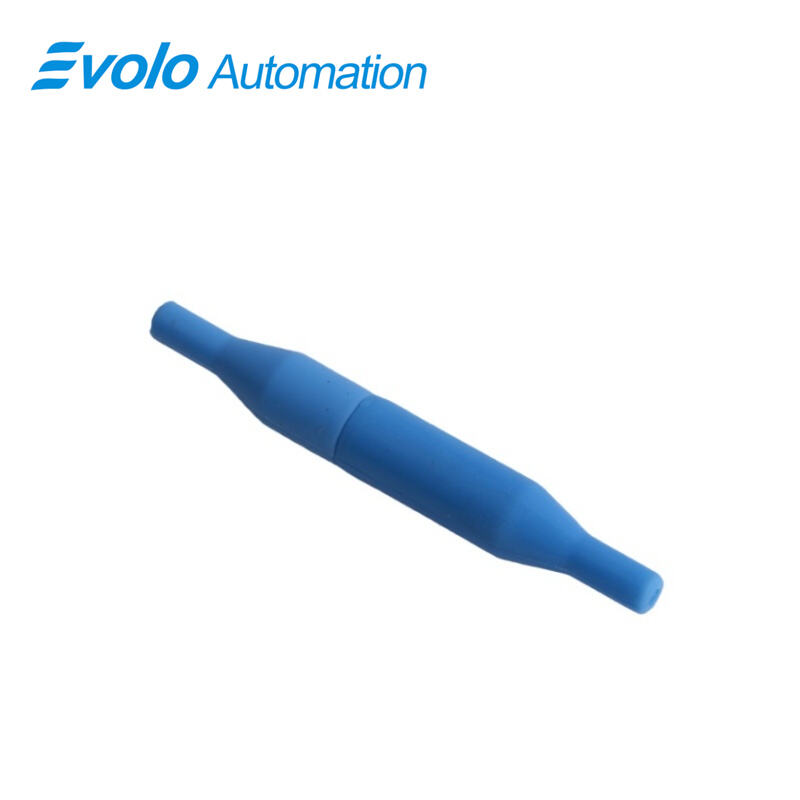

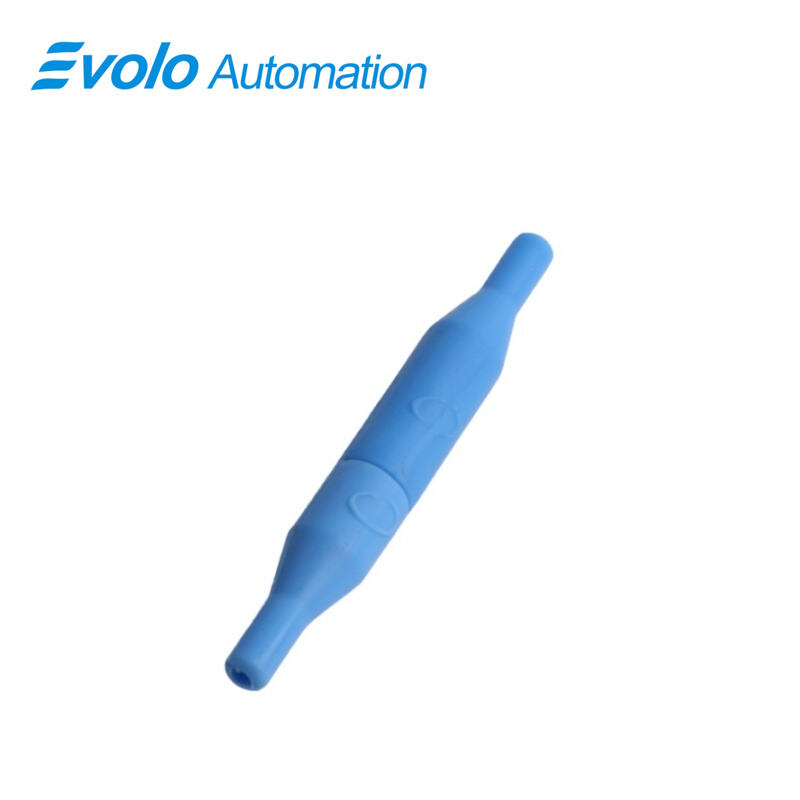

The 40180-02 is a Connector Protectors, part of the 3300 XL Proximity Transducer System by Baker Hughes(formerly Bently Nevada). This sensor converts the high-impedance signal from the proximity probe into a low-impedance voltage signal suitable for long-distance transmission and further processing. It is designed for use in industrial applications requiring precise measurement of vibration and position in rotating machinery.
Applications
Industrial Machinery: Ideal for monitoring vibration and position in rotating machinery, such as turbines, compressors, and pumps.
Condition Monitoring: Essential for predictive maintenance programs, helping to detect early signs of mechanical issues before they lead to failures.
Control Systems: Integrates seamlessly with industrial control systems for real-time monitoring and data acquisition.
Harsh Environments: Suitable for use in harsh industrial environments, with approvals for hazardous areas.
Specifications
|
Compact Design: |
Suitable for installation in control panels or other confined spaces |
|
Reliability: |
Ensures stable and accurate performance in harsh industrial environments |
|
Input Impedance: |
>10 MΩ at 1 kHz |
|
Power Supply: |
24 Vdc ± 10% |
|
Current Consumption: |
10 mA typical |
|
Output Impedance: |
<50 Ω |
|
Insulation Resistance: |
>500 MΩ at 500 Vdc |
Competitive Advantage
Competitive Advantage – Wide Frequency Support
With a DC to 10 kHz frequency response, the 40180-02 Connector Protectors capture full vibration profiles of machinery across low- and high-speed components.
Competitive Advantage – Reliable Operation in Harsh Conditions
Rated for -55°C to +75°C operation and >500 MΩ insulation resistance at 500 Vdc, the 40180-02 Connector Protectors function in industrial environments with extreme temperatures and electrical noise.
Competitive Advantage – Compact and Flexible Mounting
Panel or DIN rail mount options for the 40180-02 Connector Protectors simplify integration in crowded control cabinets, saving space and reducing wiring complexity.
Competitive Advantage – Low-Power Industrial Automation
With 24 Vdc ±10% supply and typical 10 mA current consumption, the 40180-02 Connector Protectors support energy-efficient monitoring networks for automation systems.
