Overview
Place of Origin: |
Sweden |
Brand Name: |
ABB |
Model Number: |
3BHE014105R0001 AC10272001R0101 5SXE08-0167 5SGY55L4500 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Specifications
|
Part Number: |
3BHE014105R0001 AC10272001R0101 5SXE08-0167 5SGY55L4500 |
|
Product Type: |
IGCT Module |
|
Blocking Voltage: |
4500 V |
|
Turn-off Current: |
3500 A |
|
Average On-State Current (ITAV): |
Up to 3500 A |
|
Surge Current (ITSM): |
Approx. 55 kA (10 ms) |
|
Operating Junction Temperature: |
Up to 125°C (up to 140°C with HPT+) |
|
Switching Frequency: |
Up to 1.2 kHz |
|
Isolation Voltage: |
12 kV AC RMS |
|
Package Type: |
Press-pack with double-sided cooling |
|
Gate Drive Model: |
5SXE08-0167 (matched to 5SGY55L4500) |
Description

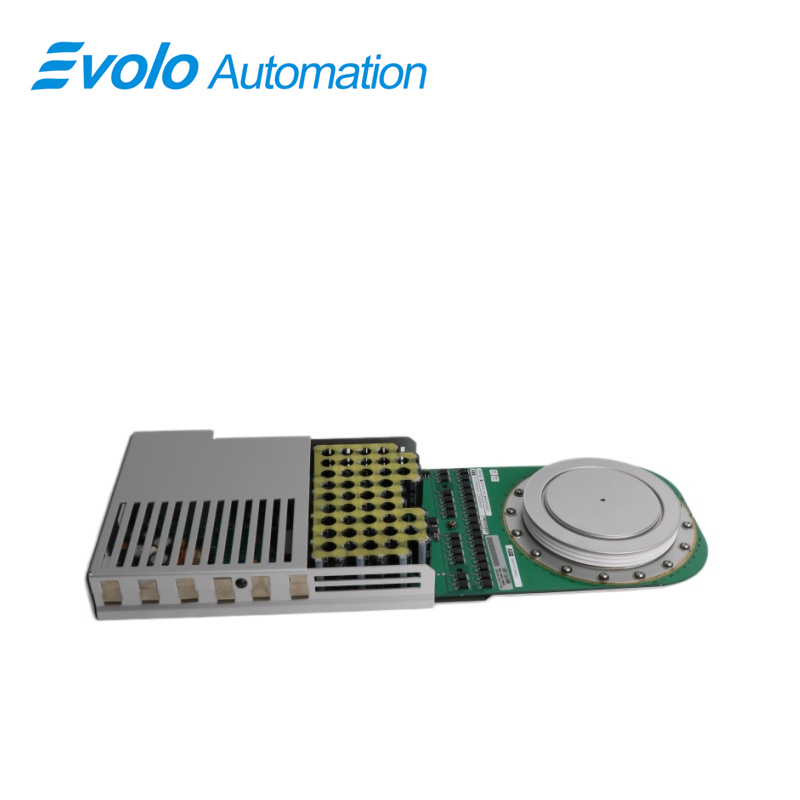

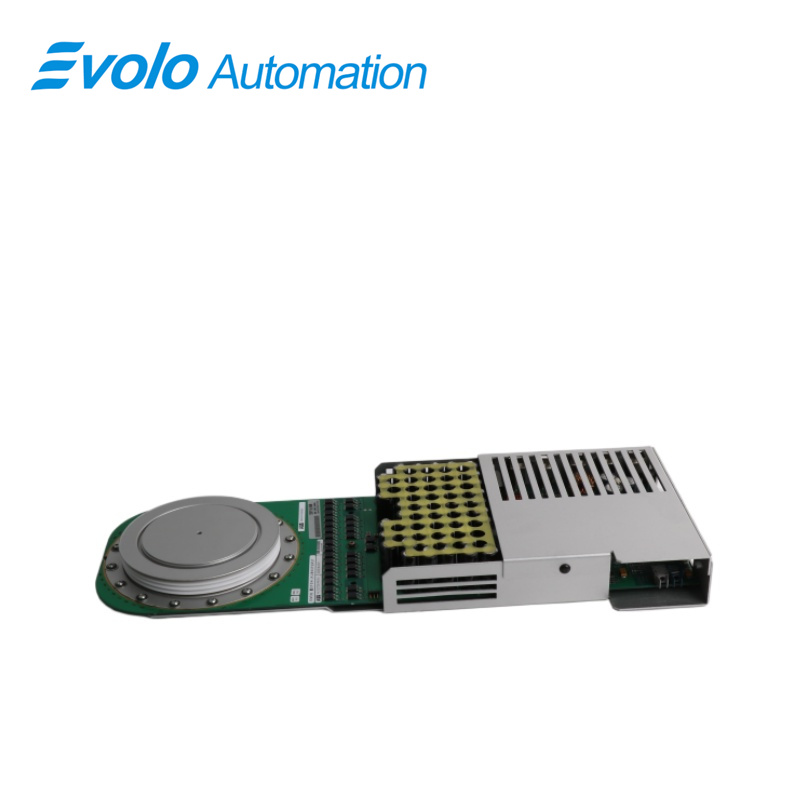

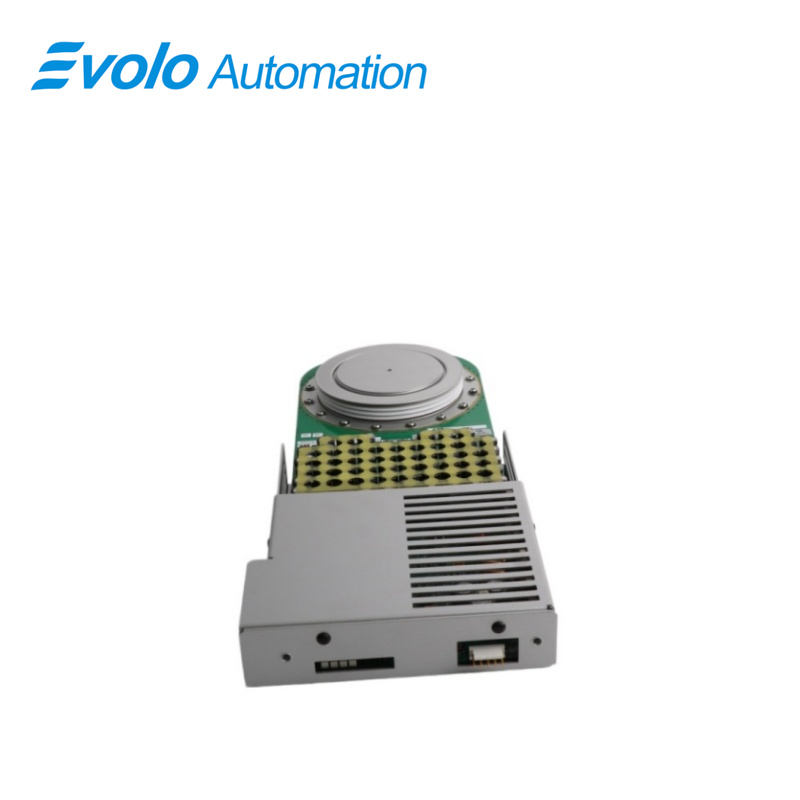

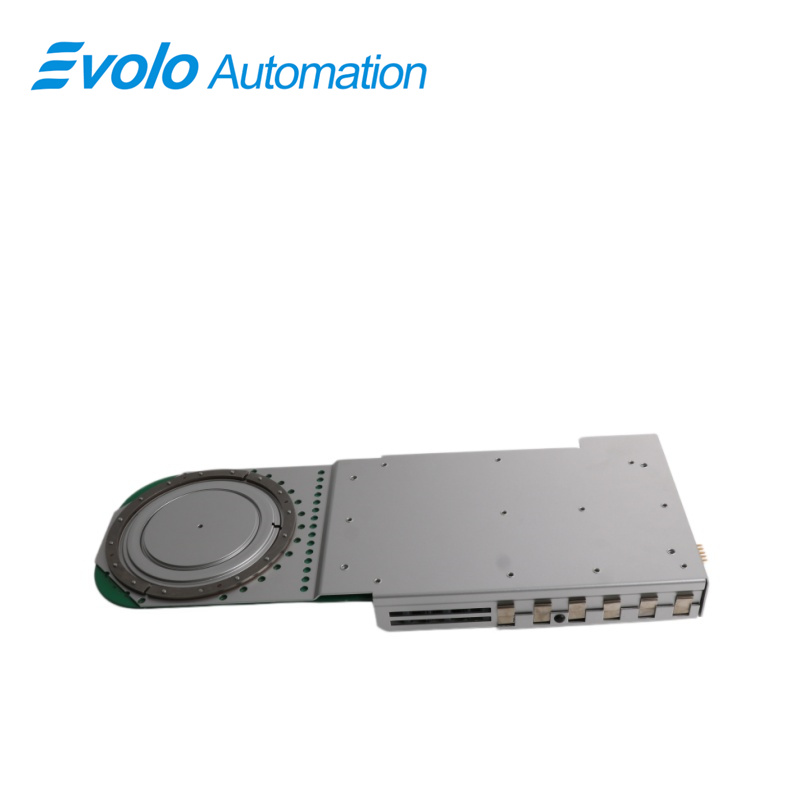

The ABB 3BHE014105R0001 AC10272001R0101, incorporating the 5SGY55L4500 IGCT switch and 5SXE08-0167 gate drive unit, is a high-power Integrated Gate-Commutated Thyristor (IGCT) module designed for medium-voltage industrial drives and renewable energy converters.
Applications
Large motor drives: such as high-power speed regulation for mining mills and pump station compressors.
Renewable energy: wind power converters and grid-connected solar power plant systems.
Power systems: high-voltage direct current transmission (HVDC) and flexible alternating current transmission systems (FACTS/SVC).
Industrial power supplies: high-performance power supplies for steel, metallurgical, and large-scale chemical facilities.
Features
Press-pack IGCT technology with integrated gate unit
Optimized for 3-level inverter topologies
High reliability under severe thermal and electrical stress
Compatible with ABB PCS6000 converter platforms
FAQ
Q: What is the 3BHE014105R0001 AC10272001R0101 5SXE08-0167 5SGY55L4500?
A: It is an IGCT Module.
Q: Is this product brand new?
A: Yes, 3BHE014105R0001 AC10272001R0101 5SXE08-0167 5SGY55L4500 is brand new, original, unused, and factory sealed.
Q: Do you have it in stock?
A: Yes, right now we have 3BHE014105R0001 AC10272001R0101 5SXE08-0167 5SGY55L4500 in stock ready for shipment, and we can support video inspection.
Q: Do you provide warranty as standard?
A: We provide a full 12-month warranty for 3BHE014105R0001 AC10272001R0101 5SXE08-0167 5SGY55L4500. If any problems occur within 12 months from the delivery date, you can contact our team for guidance and support.
