Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	3500/64M 176449-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Signal Input	Accepts 1 to 4 pressure transducer signals
Input Impedance – 3 Wire	10 kΩ
Input Impedance – 2 Wire	1.5 MΩ to 3.5 MΩ typical
Dynamic Pressure Sensitivity	100 mV/psi (1.45 mV/mBar)
Front Panel OK LED	Indicates monitor operating properly
Front Panel TX/RX LED	Indicates communication with other 3500 rack modules
Front Panel Bypass LED	Indicates Bypass Mode active
Front Panel Output Connector	One coaxial connector per channel, short-circuit protected
Cascade Mode	Buffered transducer outputs not cascaded
Output Impedance	550 Ω
Transducer Supply – 3 Wire	-24 Vdc
Transducer Supply – 2 Wire	3.3 mA current source @ 22 Vdc nominal
Alert Time Delay	1 to 60 seconds in 1-second intervals
Dimension:	2.6x25.8x24cm
Weight:	0.8 kg

Description

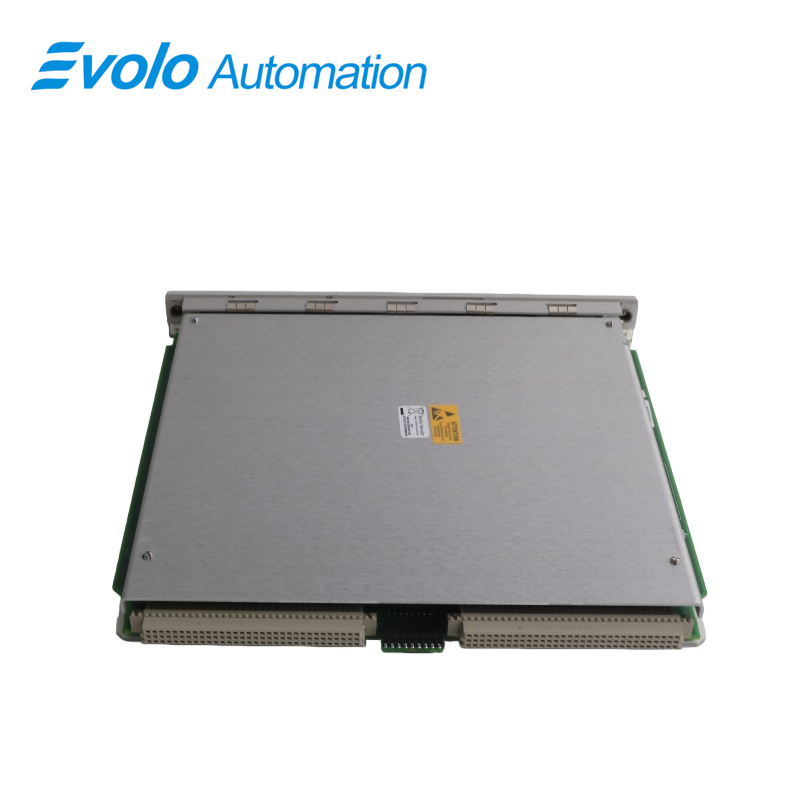

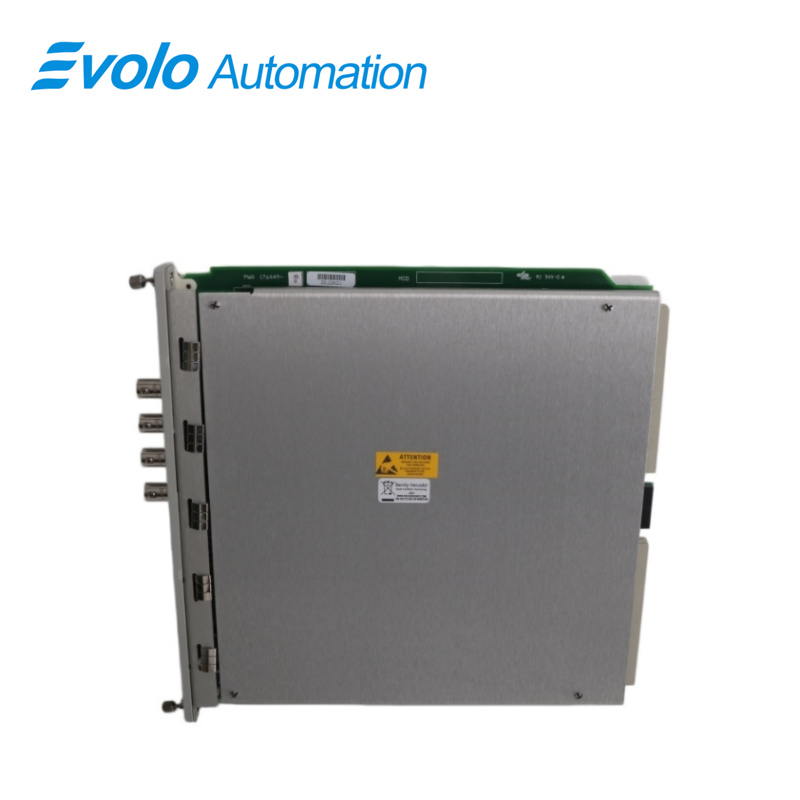

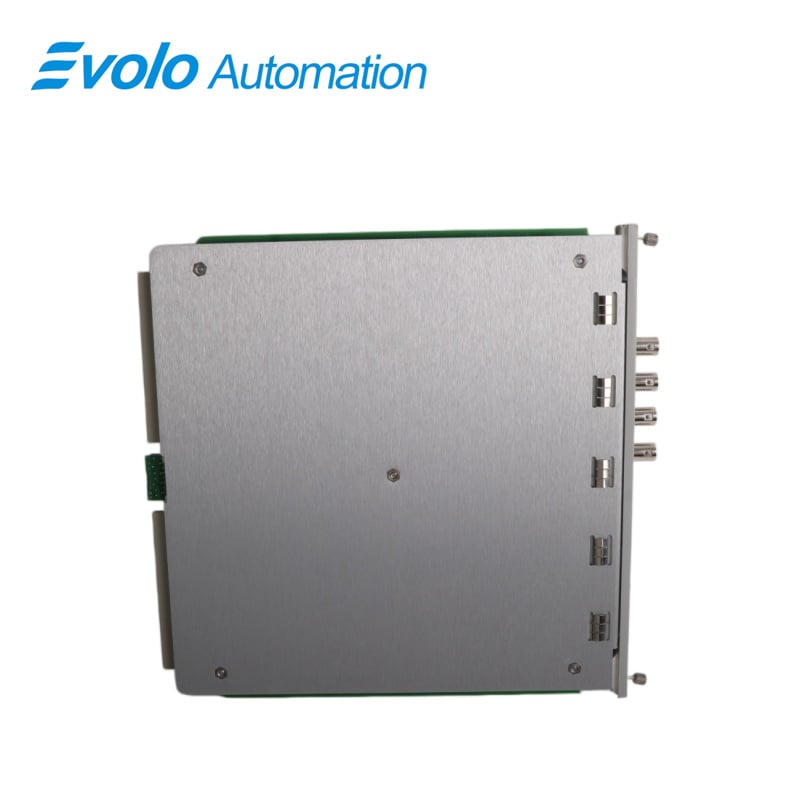

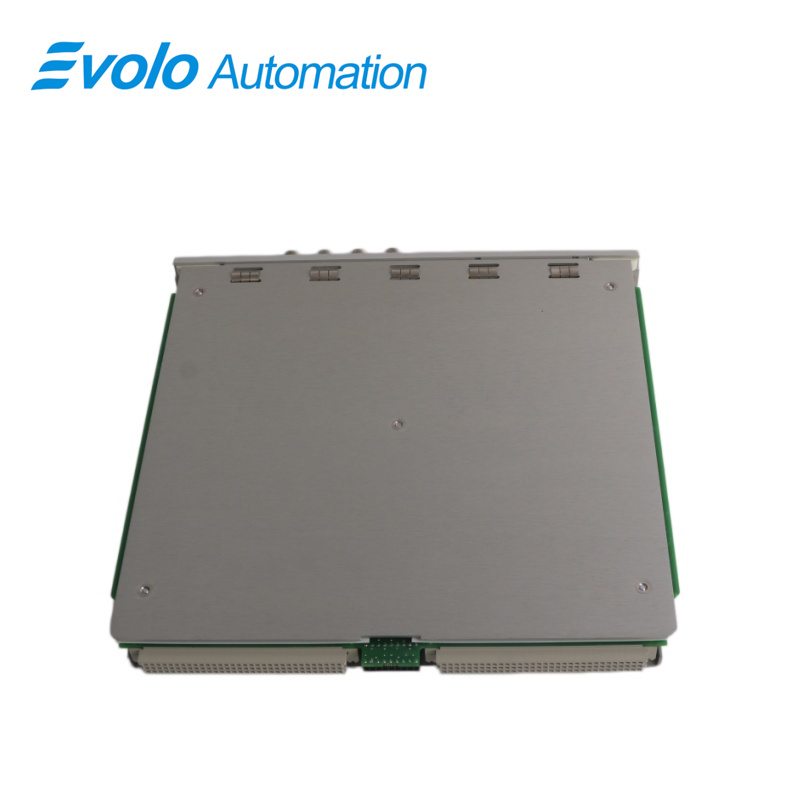

The 3500/64M 176449-05 is a four-channel, single-slot monitor for monitoring dynamic pressure in industrial systems. Each channel accepts high-temperature pressure transducer inputs and measures bandpass dynamic pressure, configurable through 3500 Rack Configuration Software. The 3500/64M 176449-05 provides independent +4 to +20 mA recorder outputs per channel, which remain accurate even during short circuits.

It supports 2-wire transducers with 3.3 mA at 22 Vdc and 3-wire transducers with -24 Vdc supply. Input impedance is 10 kΩ for 3-wire and 1.5–3.5 MΩ for 2-wire setups. Dynamic pressure sensitivity is 100 mV/psi (1.45 mV/mBar) with resolution of 0.3662 µA per bit, ±0.25% at room temperature, and -0.66% to +0.70% across operating temperatures. Alert and danger delays are adjustable from 0.1–60 seconds. Voltage compliance ranges 0–12 Vdc across 0–600 Ω load, with update rates near 100 ms.

The 3500/64M 176449-05 ensures machinery protection by triggering alarms based on precise dynamic pressure readings and provides critical real-time data to operators for maintenance and control decisions.

Applications

Monitor Dynamic Pressure in Turbines and Compressors
The 3500/64M 176449-05 tracks high-frequency pressure fluctuations from 10 Hz to 14.75 kHz, providing operators with precise real-time data to prevent mechanical damage in turbines, compressors, and pumps.

Integrate Pressure Data into Control Systems
By supplying +4 to +20 mA recorder outputs per channel, the 3500/64M 176449-05 feeds pressure measurements into automation and control systems, enabling process adjustments to optimize flow and efficiency.

Plan Preventive Maintenance
With 0.3662 µA per bit resolution and 100 mV/psi sensitivity, the 3500/64M 176449-05 generates high-resolution pressure trends, allowing engineers to schedule maintenance based on actual dynamic pressure behavior.

Analyze Transient Pressure Events
Configurable bandpass corner frequencies and optional notch filters in the 3500/64M 176449-05 enable detailed monitoring of transient spikes, helping identify abnormal operating conditions and optimize equipment performance.

Specifications

Danger Time Delay	0.1 second or 1 to 60 seconds in 0.1-second intervals
Dynamic Pressure Direct Filter – Low Mode	5 Hz to 4 kHz (extends to approx. 5.285 kHz without LP filter)
Dynamic Pressure Direct Filter – High Mode	10 Hz to 14.75 kHz (fixed low pass)
Recorder Output	4–20 mA proportional to monitor full-scale; individual output per channel; unaffected by short circuit
Voltage Compliance (Current Output)	0 to +12 Vdc across load
Load Resistance	0 to 600 Ω
Resolution	0.3662 µA per bit; ±0.25% error at room temperature; -0.66% to +0.70% over temperature range
Update Rate	Approximately 100 ms or less

Competitive Advantage

High-Precision Multi-Channel Monitoring
Each channel of the 3500/64M 176449-05 delivers +4 to +20 mA outputs with 0.3662 µA per bit resolution, providing accurate, simultaneous monitoring of four dynamic pressure points.

Flexible Input Support
The 3500/64M 176449-05 accepts both 2-wire and 3-wire transducers with input impedance from 1.5 MΩ to 10 kΩ, and supports high-temperature inputs, ensuring compatibility with various industrial pressure sensors.

Adjustable Alarm Response
With alert and danger delays configurable from 0.1–60 seconds, the 3500/64M 176449-05 triggers alarms precisely based on pressure fluctuations, protecting machinery from fast or gradual pressure changes.

Rapid Real-Time Data
With an update rate of approximately 100 ms, the 3500/64M 176449-05 provides near-instantaneous feedback for control systems, enabling immediate detection of transient pressure spikes.

Voltage Compliance for Automation Systems
The 3500/64M 176449-05 supports 0–12 Vdc across 0–600 Ω load, allowing safe integration with process control and data acquisition systems without signal loss or distortion.
