3500/60 Temperature Monitors , China 3500/60 Temperature Monitors Manufacturers, Suppliers, Factory

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	3500/60
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Inputs Signal	Accepts from 1 to 6 RTD or TC transducer signals
Input Impedance	Greater than 10 MW for each lead input.
Tranducers	Isolated TC I/O modules have 250 Vdc of isolation between channels
Voltage Compliance (current output)	0 to +12 Vdc range across load. Load resistance is 0 to 600 W.
Resolution	0.3662 µA per bit ±0.15% error at room temperature ±0.4% error over temperature range.
Signal Conditioning	Full-scale range for each channel is set in the field via 3500 Configuration Software. No calibration is required
Operating Temperature	-30 °C to +65 °C (-22 °F to +150 °F) when used with Internal/External/Termination I/O Modules 0 °C to +65 °C (32 °F to +150 °F) when used with Internal Barrier I/O Modules (Internal Termination)
Dimension:	2.5x25.2x24cm
Weight:	0.8kg

Description

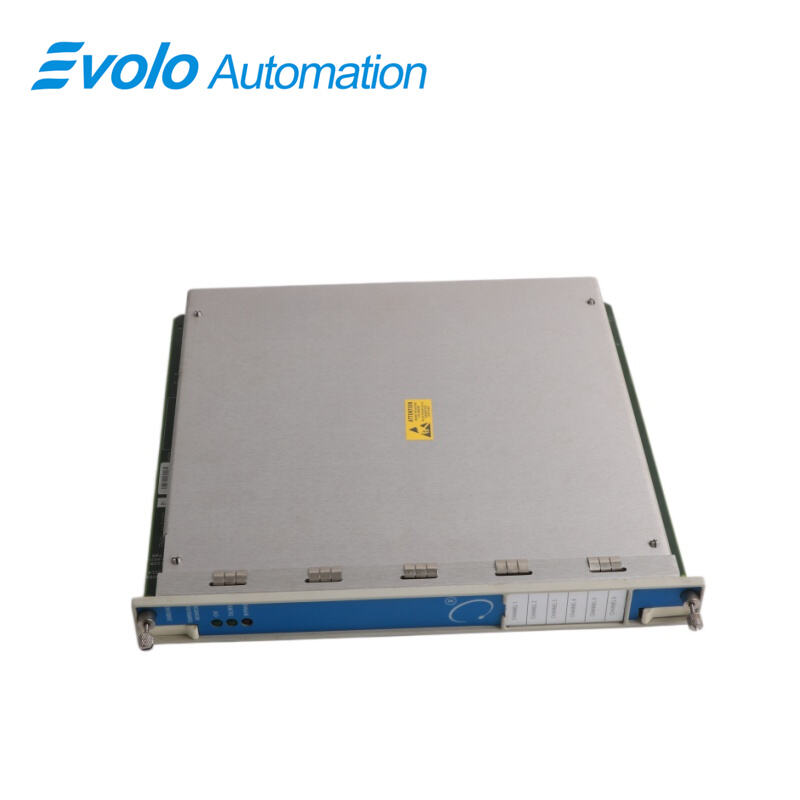

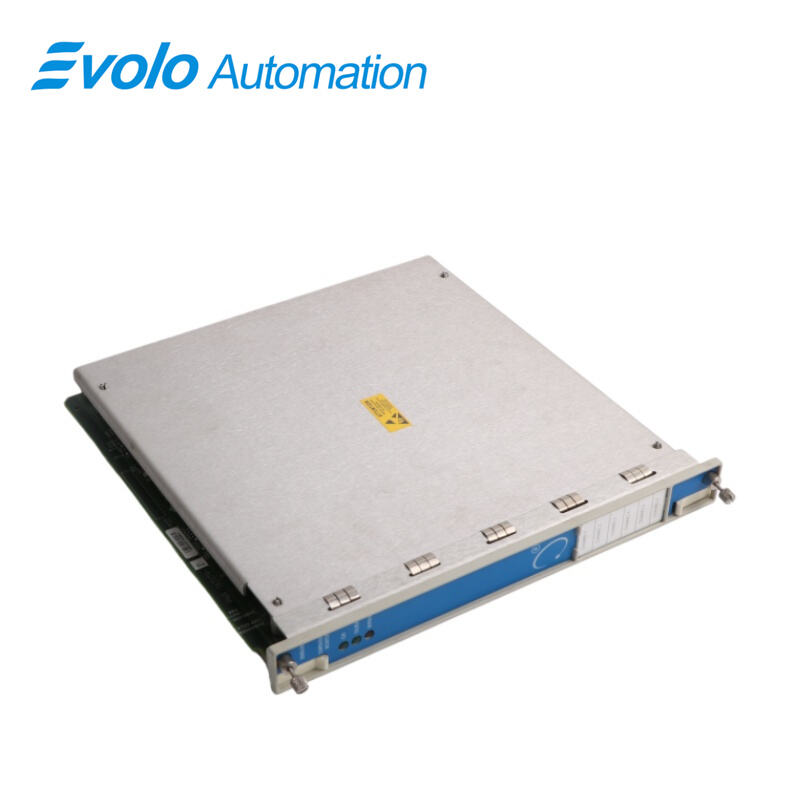

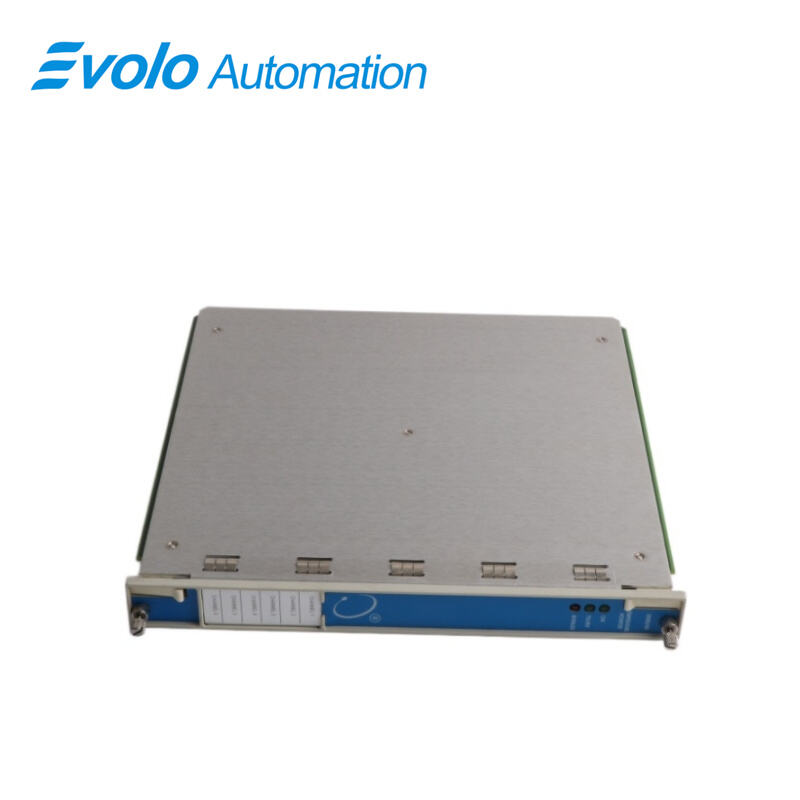

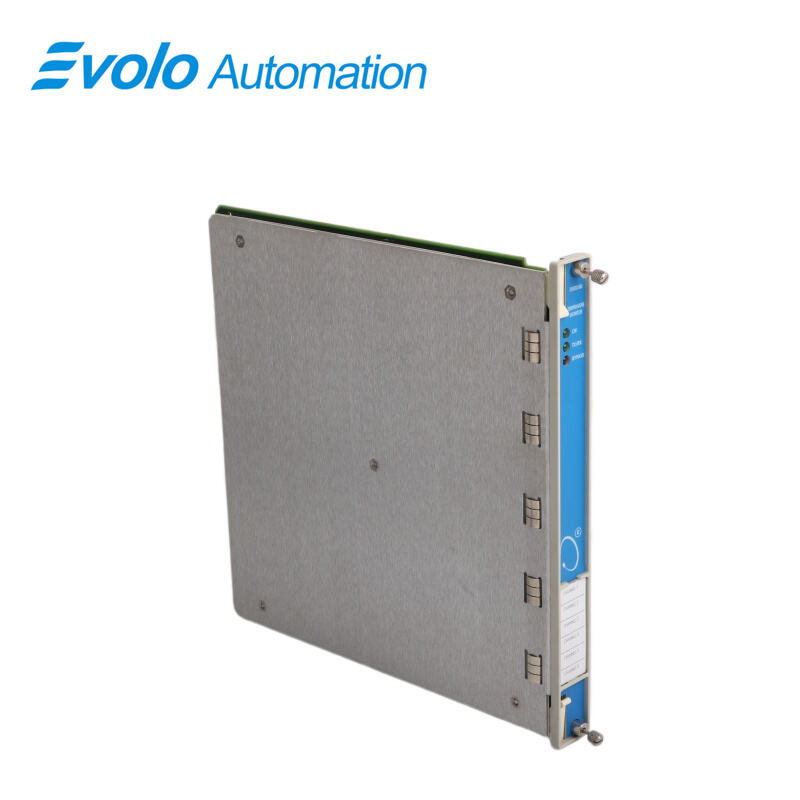

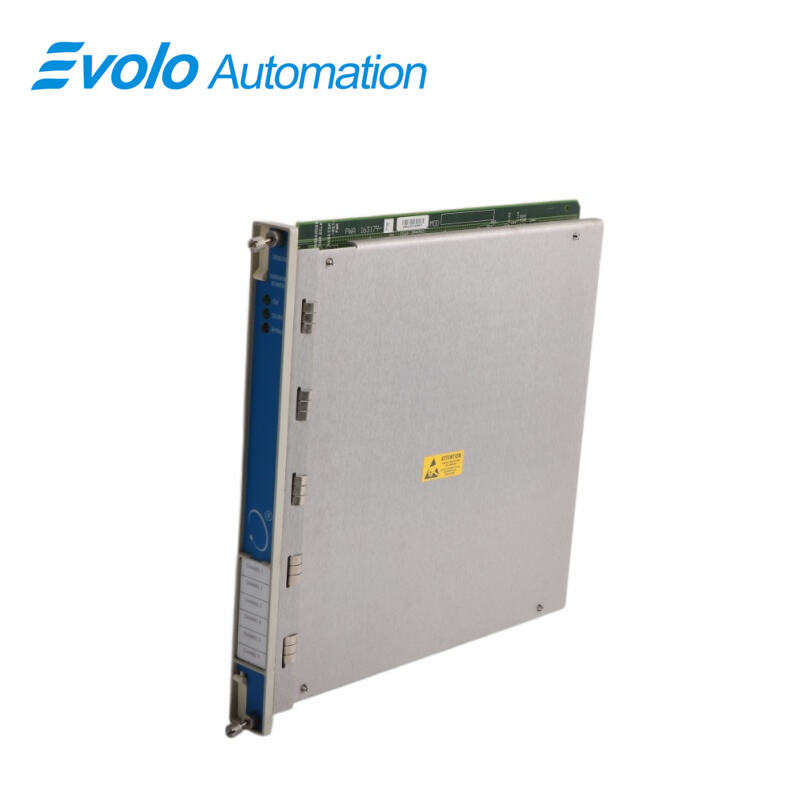

The 3500/60 Temperature Monitors provide six channels for automated temperature monitoring using RTD or Thermocouple inputs. The 3500/60 conditions signals from 1 to 6 transducers, with input impedance over 10 MΩ per lead, and compares them to user-programmed alarm setpoints. Each channel delivers 4–20 mA recorder output proportional to full-scale temperature, with 0.3662 µA per bit resolution and ±0.4% error over temperature range. Isolated TC modules offer 250 Vdc channel-to-channel isolation, protecting against external interference. The 3500/60 supports RTD current sources at 925 ±15 µA and can be configured via 3500 Rack Configuration Software for RTD, TC, or mixed inputs. Operating temperature ranges from -30°C to +65°C. When installed in Triple Modular Redundant (TMR) arrangements, multiple 3500/60 monitors can provide automated voting logic for precise temperature control and alarm activation in industrial systems.

Applications

Monitor Industrial Machinery Temperature
The 3500/60 accepts 1 to 6 RTD or Thermocouple signals, conditioning and comparing them to programmed alarm setpoints. With 4–20 mA outputs and 0.3662 µA per bit resolution, the 3500/60 allows automated detection of high-temperature conditions in turbines, pumps, or compressors.

Integrate with Automated Control Systems
The 3500/60 outputs proportional current signals for each channel, enabling integration into SCADA or DCS systems. Operators can use real-time temperature data to trigger automated cooling, shutdown, or alarm routines.

Configure Mixed RTD and TC Inputs
Using 3500 Rack Configuration Software, the 3500/60 can measure RTD, TC, or mixed input types. Isolated TC modules provide 250 Vdc channel-to-channel separation, ensuring accurate measurements in electrically noisy industrial environments.

Implement Triple Modular Redundant Voting
When three 3500/60 modules are installed adjacently, TMR voting logic can automatically determine temperature alarms, preventing single-point failures in high-risk automated processes.

Specifications

Rack Space Requirements	1 full-height rear slot.
Internal Barrier I/O Module	Consult the 3500Internal Barrier specification sheet(part number 141495-01) if thelnternal Barrier Option is selected.
RTD Current Source Value	925 ±15 mA @ 25° C per transducer (single supply for the 4-wire RTD and two supplies for the 3-wire).
Recorder	+4 to +20 mA. Values are proportional to monitor full-scale. Individual recorder values are provided for each channel. Monitor operation is unaffected by short circuits on recorder outputs
Voltage Compliance (current output)	0 to +12 Vdc range across load. Load resistance is 0 to 600 W.
Resolution	0.3662 µA per bit ±0.15% error at room temperature ±0.4% error over temperature range.
RTDs and TCs (except for 10W Copper RTDs) Resolution	1°C or 1°F
Accuracy(Internal Termination Non-Isolated）	Bulkhead Rack ±3 °C at 25 °C (±5.4 °F at 77 °F)；Standard Rack: ±3 °C at 25 °C (±5.4 °F at 77 °F).

Competitive Advantage

Fast Alarm Activation
With programmable alarm setpoints and ±0.4% measurement error, the 3500/60 enables immediate automated alerts when temperature thresholds are exceeded.

High-Resolution Data Output
Each channel provides 4–20 mA proportional output updated continuously, allowing precise automated monitoring and control actions.

Flexible Transducer Support
The 3500/60 accepts RTD, TC, or mixed inputs and supports isolated modules for noisy environments, simplifying automated system integration.

Easy Configuration via Software
Operators can program the 3500/60 channels through 3500 Rack Configuration Software to set measurement type, range, and alarm points without physical recalibration.

Supports Automated Redundant Systems
Multiple 3500/60 modules can be arranged in TMR configurations, providing automated voting logic for critical temperature monitoring and alarm functions in industrial automation.
