Overview
Place of Origin: |
Germany |
Brand Name: |
INDUSTRONIC |
Model Number: |
341-702-100 1DXC 03 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Height x Depth: |
233 mm x 160 mm (9 1/4“ x 6 1/4“) |
|
Front Plate Dimensions: |
6 RU, 12 HP |
|
Weight: |
ca. 1 kg (approx. 2 1/4 lb) |
|
Interfaces: |
2x Ethernet 10/100 Mbit/s, 2x USB 2.0, 1x RS232, 1x RS485, 1x Extension port RJ45, 4x Analogue control line input |
|
Operating System: |
LINUX |
|
Processor: |
1.6 GHz embedded processor |
|
Main Memory: |
1 GB RAM |
|
Flash Memory: |
4 GB compact flash card |
|
Current Consumption: |
max. 2 A at 5 V |
|
Ambient Temperature During Operation: |
0 °C to +50 °C (32 °F to 122 °F) |
|
Relative Humidity: |
Max. 95% (non-condensing) |
|
EMC Standards: |
IEC/EN 61000-6-2, IEC/EN 61000-6-4 |
Description

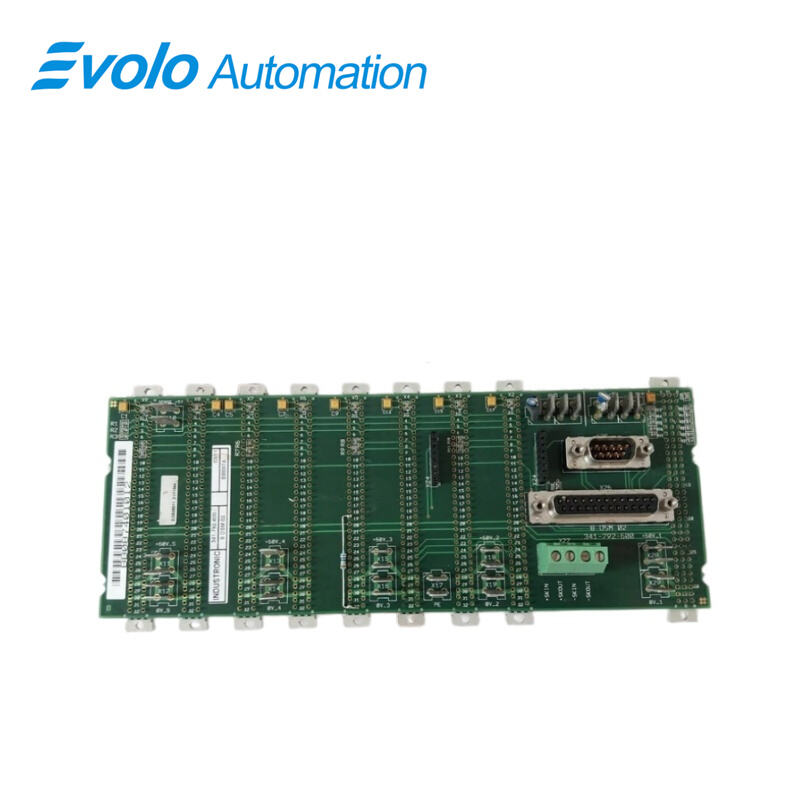

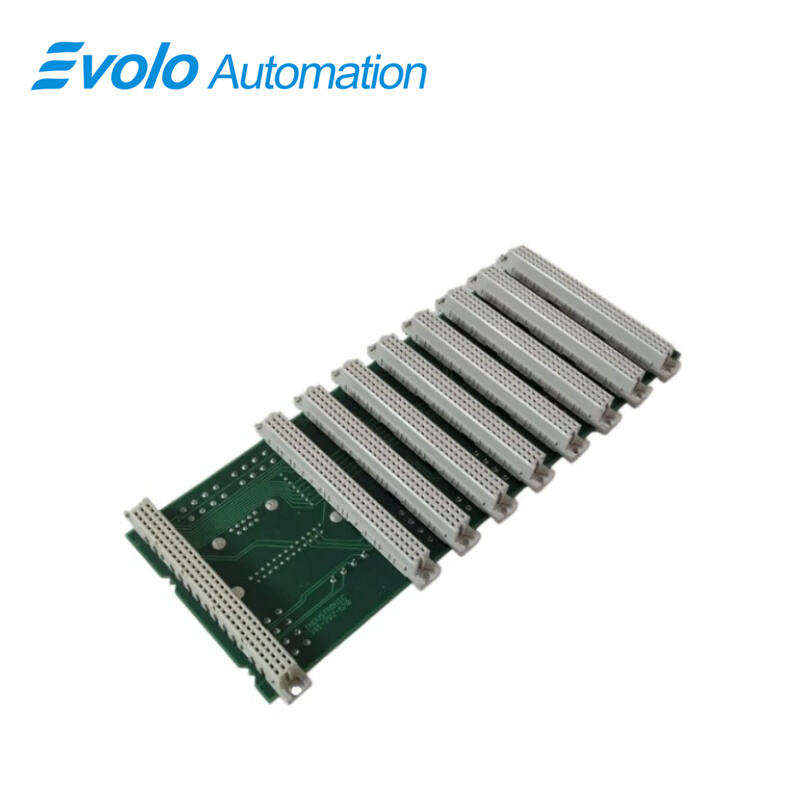

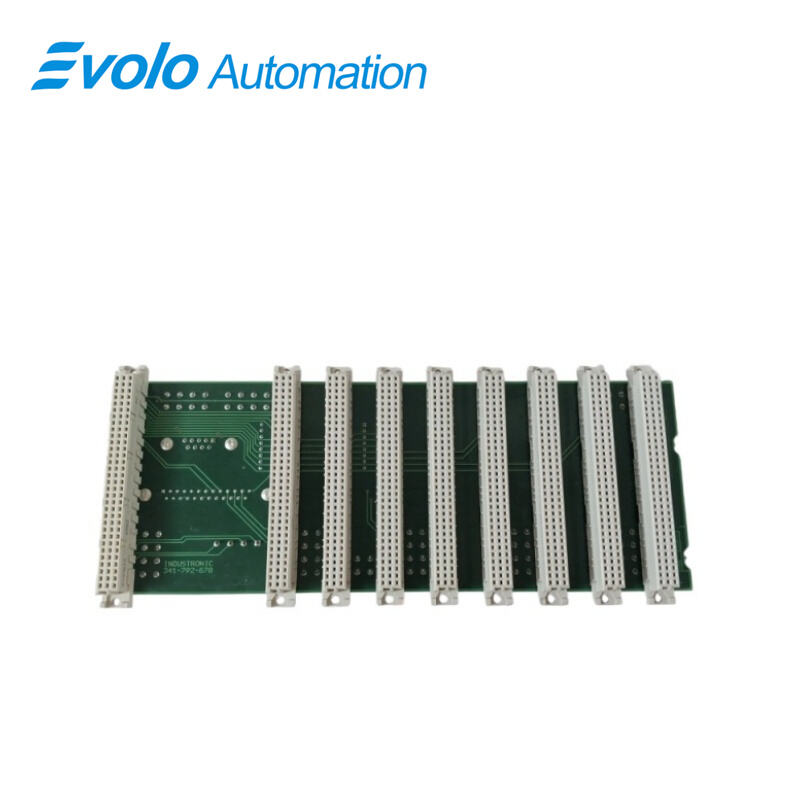

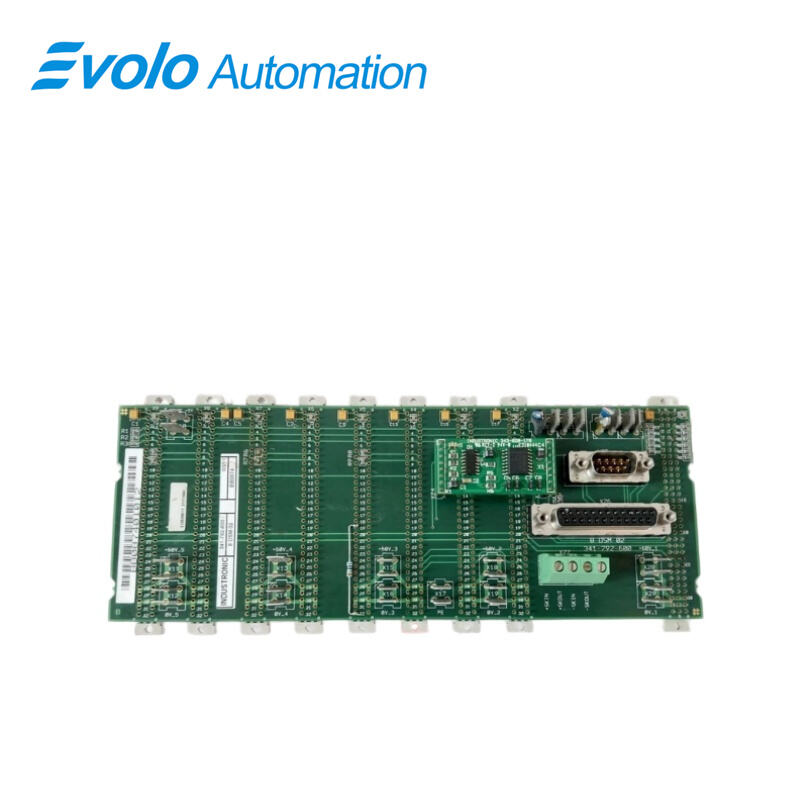

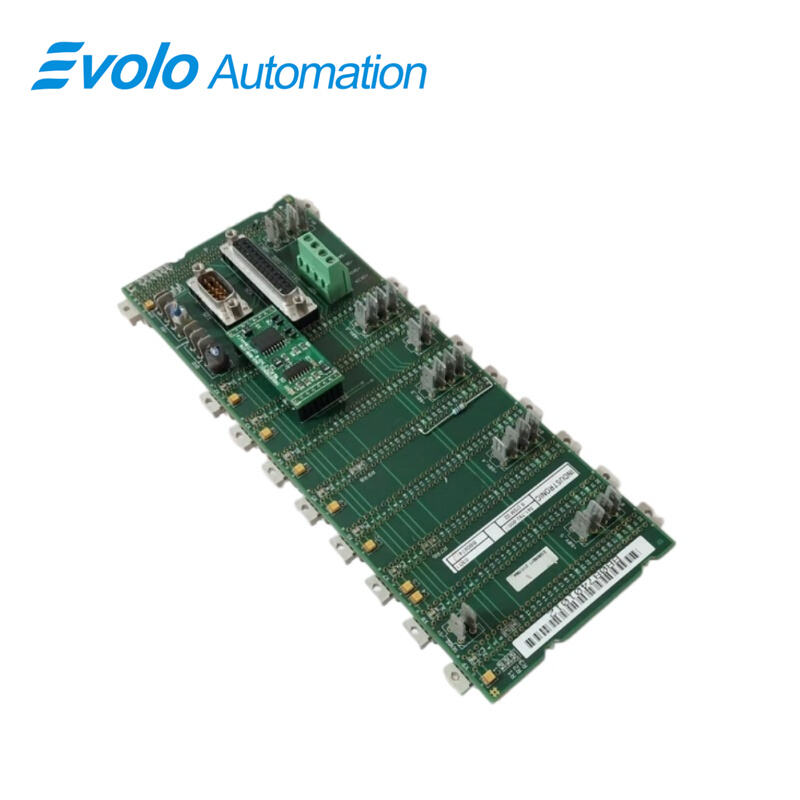

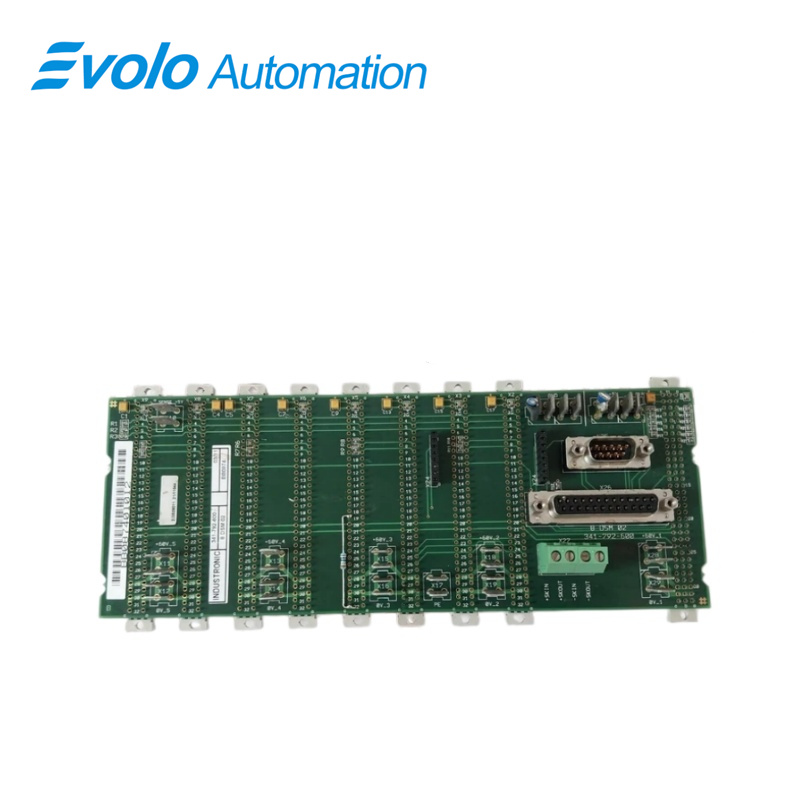

The exchange control board 341-702-100 1 DXC 03 is the central unit of the INDUSTRONIC communication and public address system with digital interfaces. It is used for carrying out the exchange functions according to the stored connection program as well as for the data exchange with the connected digital/analogue line cards and intercom stations. The high-capacity processor unit enables the interconnection of up to 250 INDUSTRONIC systems. Systems and IP based intercom stations can be coupled via the integrated Ethernet interfaces.
Main features
Connection of up to 192 digital or analog intercom stations
Addressing of up to 65,000 stations,loud speakers,etc.
Connection of IP-based intercom stations
IP-based system coupling via integrated
Ethernet interfaces
Switching of up to 120 simultaneous communication links
LEDs to indicate operation,data transmission and errors
Environmental requirements and standards
|
Temperature Range During Operation: |
0 °C to +50 °C (32 °F to 122 °F) |
|
Relative Humidity (non-condensing): |
Max. 95% |
|
EMC Standards: |
IEC/EN 61000-6-2, IEC/EN 61000-6-4 |
Additional features
Improved redundancy mechanism
Storing of configuration data on compact flash card
Loading and reading out of configuration data via Ethernet
Extensive diagnostic functions
Monitoring and evaluation of up to five discrete indication signals
Watchdog monitoring and reset key
Output with break contact to indicate failures
Transmission of digitized AF signals to and from the exchange control board with 2 MBit/s
Effective HDLC interfaces for the communication with the line cards
Maintenance and service via web interface
Redundancy operation with 2 control boards possible
