Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330930-060-00-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Cable Length Option: |
6.0 meters (19.7 feet) |
|
Connector and Cable Option: |
Without stainless steel armor |
|
Agency Approval Option: |
Not Required |
|
Dimension: |
23x23x2cm |
|
Weight: |
0.12kg |
Description

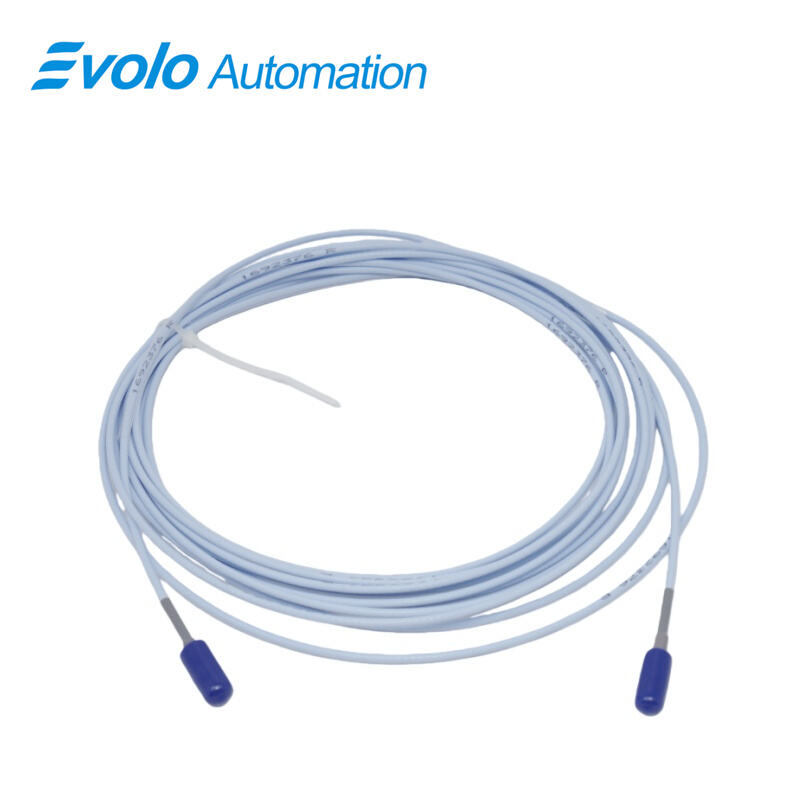

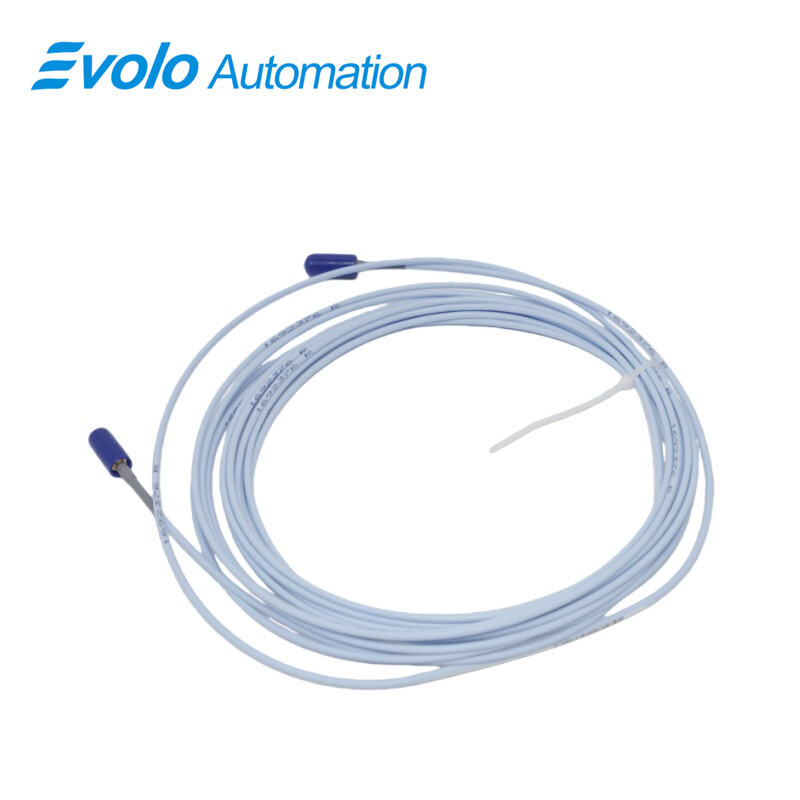

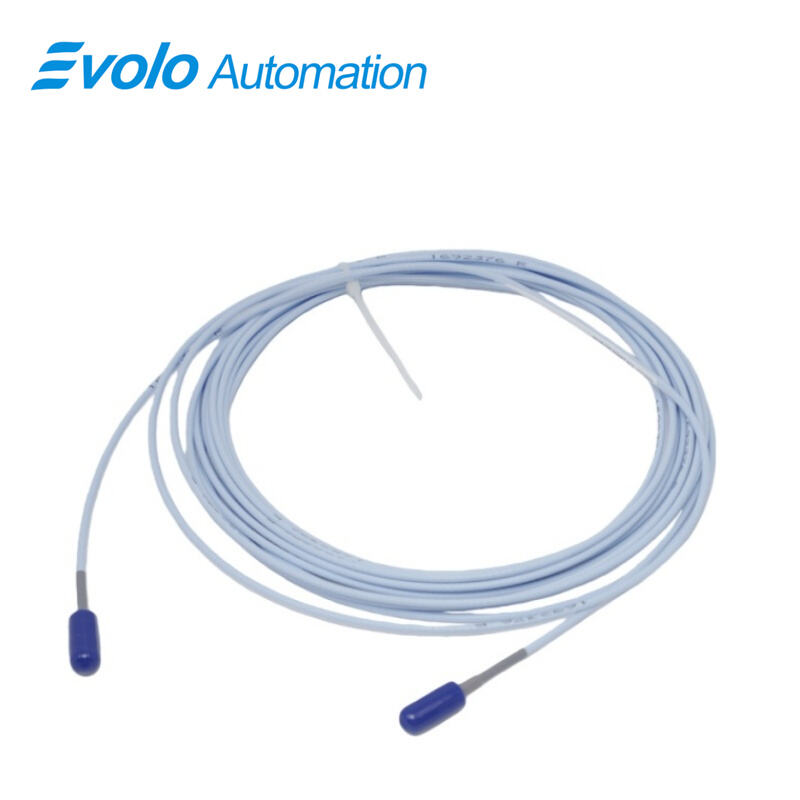

The 330930-060-00-00 3300 NSv Extension Cable is a 6.0 m (19.7 ft) cable designed for automated signal transmission from 3300 NSv Proximity Probes in centrifugal air compressors, refrigeration compressors, and process gas compressors. This 330930-060-00-00 3300 NSv Extension Cable supports a linear range of 1.5 mm (60 mils) with 50 Ω output resistance, maintaining accurate radial vibration and axial position signals in tight installation areas. The cable operates from -52°C to +177°C (-62°F to +351°F) without stainless steel armor, providing reliable performance where side-view or rear-view restrictions exist. Recommended 1.0 mm (40 mils) probe gap ensures precise signal delivery. The 330930-060-00-00 3300 NSv Extension Cable integrates gold-plated ClickLoc connectors and TipLoc molded probe attachment for secure automated monitoring in fluid-filmed bearing machines.
Applications
Measure Radial Shaft Vibration
Use the 330930-060-00-00 3300 NSv Extension Cable to connect 3300 NSv Proximity Probes and record radial vibration on shafts smaller than 51 mm, enabling automated monitoring in tight machine spaces.
Track Axial (Thrust) Position
Route axial signals from 3300 NSv Proximity Probes through the 330930-060-00-00 3300 NSv Extension Cable to monitor flat targets smaller than 15 mm.
Send Phase Reference Signals
Connect the 330930-060-00-00 3300 NSv Extension Cable from 3300 NSv Proximity Probes to Proximitor Sensors to provide phase reference (Keyphasor) signals to monitoring systems.
Upgrade Existing 3300 RAM or 190 Systems
Replace old extension cables with the 330930-060-00-00 3300 NSv Extension Cable while reusing existing NSv probes and Proximitor Sensors, without changing monitor wiring.
Specifications
|
Probe Temperature Range: |
-52°C to +177°C (-62°F to +351°F) |
|
Storage Temperature: |
-52°C to +177°C (-62°F to +351°F) |
|
Probe Tip Material: |
Polyphenylene sulfide (PPS) |
|
Probe Case Material: |
AISI 304 stainless steel (SST) |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG)[0.25 to 0.75 mm2 (18 to 23 AWG) with ferrules] |
|
Linear Range: |
1.5 mm (60 mils) |
|
Recommended Gap Setting: |
1.0 mm (40 mils) |
|
Output resistance: |
50 Ω |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
Competitive Advantage
Operate in High-Temperature Environments
The 330930-060-00-00 3300 NSv Extension Cable supports continuous use from -52°C to +177°C, allowing direct installation in high-temperature machinery.
Secure Probe Connections
Gold-plated ClickLoc connectors on the 330930-060-00-00 3300 NSv Extension Cable lock firmly to 3300 NSv Proximity Probes, preventing signal loss.
Attach Probe Cable to Tip with High Pull Strength
The 330930-060-00-00 3300 NSv Extension Cable provides 220 N pull strength using TipLoc molding, holding the probe cable in place under mechanical stress.
Maintain Accurate Linear Range
Supports the 1.5 mm linear range of 3300 NSv Proximity Probes, ensuring precise signal transmission for small target measurement.
