330930-040-01-05 3300 NSv Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330930-040-01-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

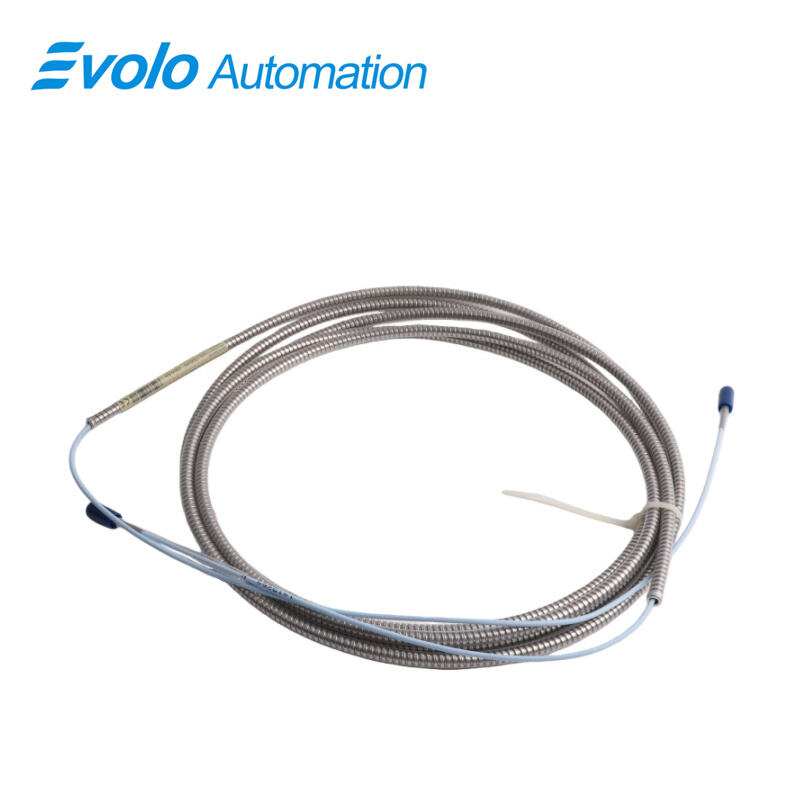

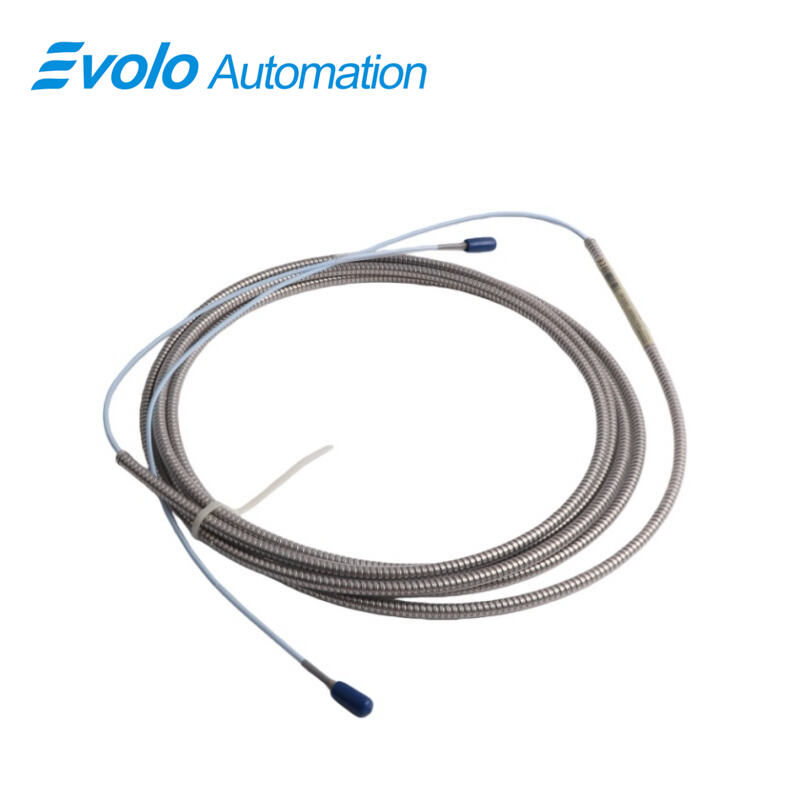

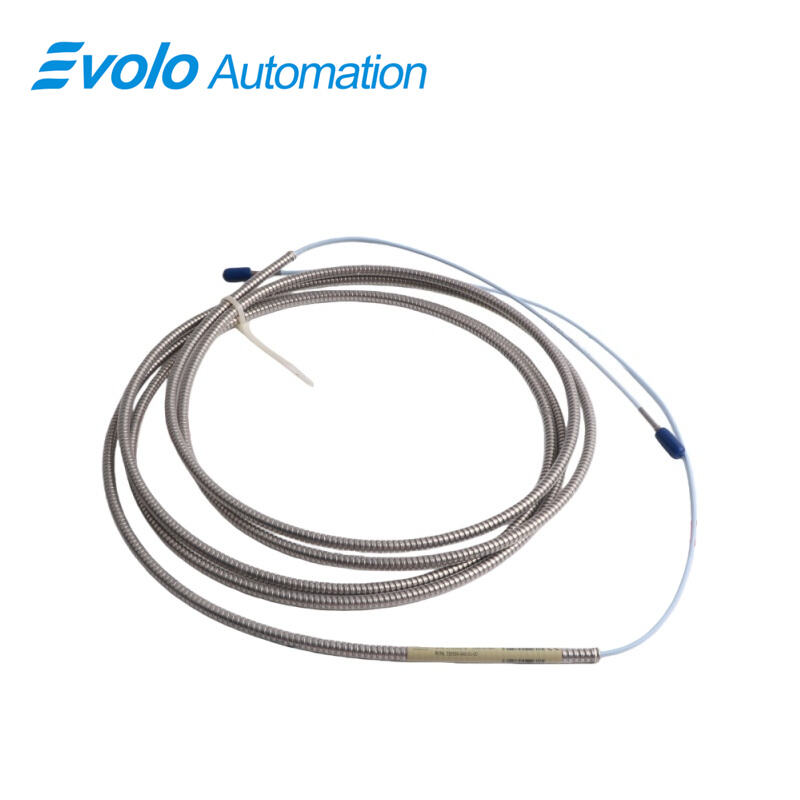

The 330930-040-01-05 3300 NSv Extension Cable provides a 4.0-meter (13.1-foot) connection for 3300 NSv Proximity Probes, supporting automated monitoring on centrifugal air compressors, refrigeration compressors, and process gas compressors. Designed with stainless steel armor and a FEP jacket, the 330930-040-01-05 3300 NSv Extension Cable operates from -52°C to +177°C (-62°F to +351°F) and maintains signal integrity with a 50 Ω output resistance and less than 2 mV supply sensitivity. Compatible with 0.2 to 1.5 mm² (16–24 AWG) field wiring, the 330930-040-01-05 3300 NSv Extension Cable ensures precise transmission for radial vibration, axial position, and Keyphasor measurements. The robust ClickLoc connector locks into the 330930-040-01-05 3300 NSv Extension Cable and prevents loosening, while the CableLoc design provides 220 N pull strength, securing the cable to the probe. With gold-plated connectors and chemical-resistant construction, the 330930-040-01-05 3300 NSv Extension Cable is suitable for tight installations, counter bore, and side-view applications in automated systems, allowing efficient data capture for small shafts or targets with linear range up to 1.5 mm (60 mils).

Applications

Radial Vibration Monitoring with 330930-040-01-05 3300 NSv Extension Cable
The 330930-040-01-05 3300 NSv Extension Cable transmits precise radial vibration signals from 3300 NSv Proximity Probes, allowing measurement on shafts as small as 51 mm (2 in) with a linear range of 1.5 mm (60 mils) and 50 Ω output resistance, enabling accurate automated monitoring in tight installation areas.

Axial (Thrust) Position Measurement with 330930-040-01-05 3300 NSv Extension Cable
The 330930-040-01-05 3300 NSv Extension Cable supports axial position readings from 3300 NSv Proximity Probes, maintaining less than 2 mV voltage change per volt supply, for precise thrust measurement on flat targets smaller than 15 mm (0.6 in).

Keyphasor and Zero-Speed Signal Transmission with 330930-040-01-05 3300 NSv Extension Cable
Use the 330930-040-01-05 3300 NSv Extension Cable to relay phase reference (Keyphasor) and zero-speed data from 3300 NSv Proximity Probes, ensuring accurate speed and phase detection in compressors and turbines.

Installation in Restricted Spaces with 330930-040-01-05 3300 NSv Extension Cable
The 330930-040-01-05 3300 NSv Extension Cable enables 3300 NSv Proximity Probes to function in counter-bore, side-view, and rear-view restricted areas, using its 4.0-meter (13.1-foot) length, stainless steel armor, and FEP jacket to handle harsh process environments.

Specifications

Competitive Advantage

Secure Mechanical Connection with 330930-040-01-05 3300 NSv Extension Cable
The 330930-040-01-05 3300 NSv Extension Cable uses CableLoc technology providing 220 N pull strength, ensuring the 3300 NSv Proximity Probe connection remains firmly attached under vibration and mechanical stress.

Chemical and Temperature Resistance with 330930-040-01-05 3300 NSv Extension Cable
Constructed with stainless steel armor, FEP jacket, and PPS probe tip, the 330930-040-01-05 3300 NSv Extension Cable allows 3300 NSv Proximity Probes to operate continuously from -52°C to +177°C (-62°F to +351°F) even in chemical process environments.

Accurate Signal Transmission with 330930-040-01-05 3300 NSv Extension Cable
The 330930-040-01-05 3300 NSv Extension Cable maintains 50 Ω output resistance and a linear range of 1.5 mm (60 mils) while keeping supply sensitivity under 2 mV per volt, providing reliable automation data from 3300 NSv Proximity Probes.

Connector Protection and Field Wiring Efficiency with 330930-040-01-05 3300 NSv Extension Cable
Gold-plated ClickLoc connectors and recommended connector protectors in the 330930-040-01-05 3300 NSv Extension Cable prevent liquids from affecting signals and facilitate fast field wiring from 0.2–1.5 mm² (16–24 AWG).
