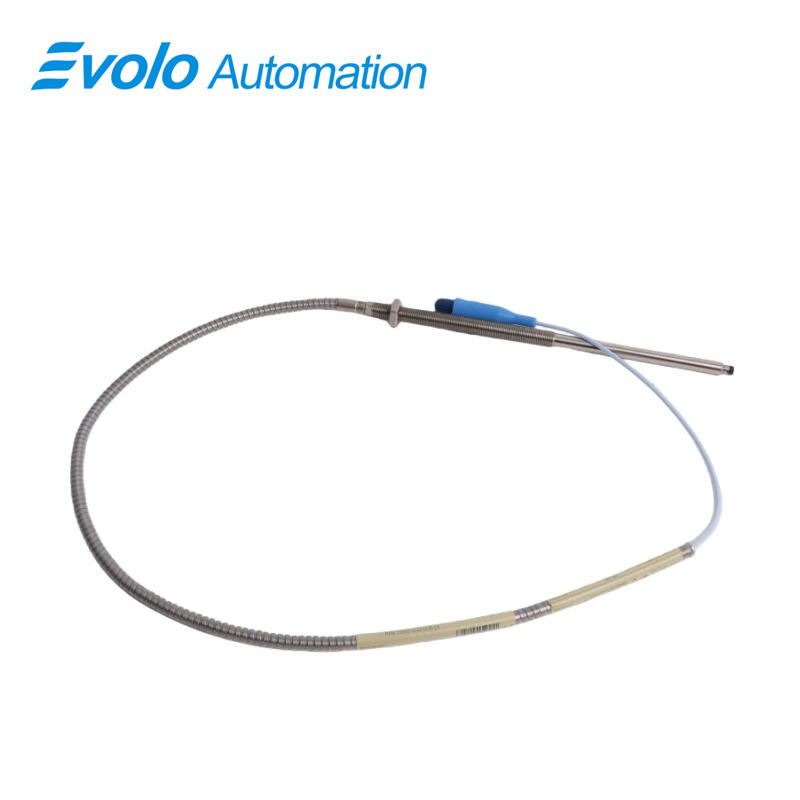

330910-16-23-10-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330910-16-23-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330910-16-23-10-02-00 3300 NSv Proximity Probe provides precise measurement of radial and axial vibration and static position on fluid-film bearing machines. The 330910-16-23-10-02-00 3300 NSv Proximity Probe features an M10X1 stainless steel case, 160 mm unthreaded length, 230 mm overall length, and 1.0-meter miniature coaxial ClickLoc cable. Its PPS tip delivers a 1.5 mm linear range and operates from -52°C to +177°C with 50 Ω output resistance and supply sensitivity below 2 mV per volt. The patented TipLoc and CableLoc designs of the 330910-16-23-10-02-00 3300 NSv Proximity Probe secure the probe tip and cable with 220 N pull strength. Ideal for shafts smaller than 51 mm and flat targets under 15 mm, the 330910-16-23-10-02-00 3300 NSv Proximity Probe supports automated radial vibration, axial position, tachometer, zero-speed, and Keyphasor signal measurement. Its side-view design and robust construction enable reliable installation in tight spaces and process compressor applications.

Applications

Measure Radial Shaft Vibration
The 330910-16-23-10-02-00 3300 NSv Proximity Probe measures radial vibration on shafts smaller than 51 mm using the 1.5 mm linear range. This provides precise automated feedback for real-time monitoring, enabling immediate corrective action in compressors and turbines.

Monitor Axial Shaft Movement
The 330910-16-23-10-02-00 3300 NSv Proximity Probe detects axial displacement on flat targets under 15 mm. Its 160 mm unthreaded tip and 230 mm overall case length allow installation in tight spaces where side-view or rear-view access is limited, providing accurate axial measurement for automated control.

Provide Tachometer Speed Signals
The 330910-16-23-10-02-00 3300 NSv Proximity Probe outputs 50 Ω signals for speed detection and zero-speed monitoring. Using its low supply sensitivity of less than 2 mV per volt, it ensures consistent signal output for automated speed control systems.

Generate Keyphasor Phase Signals
The 330910-16-23-10-02-00 3300 NSv Proximity Probe generates Keyphasor signals for rotor phase tracking. Its secure ClickLoc connector and side-view design support automated synchronization and monitoring in fluid-film bearing machines.

Specifications

Competitive Advantage

Direct Replacement for 3300 RAM Probes
The 330910-16-23-10-02-00 3300 NSv Proximity Probe works with existing extension cables and Proximitor sensors, reducing downtime and installation effort during upgrades from older 3300 RAM systems.

Secure Probe Tip Attachment for Consistent Signals
Patented TipLoc molding ensures the PPS tip of the 330910-16-23-10-02-00 3300 NSv Proximity Probe is fixed to the stainless steel body, maintaining consistent measurement output during automated vibration and position monitoring.

High Pull Strength on Cable Connection
The CableLoc design on the 330910-16-23-10-02-00 3300 NSv Proximity Probe provides 220 N pull strength, keeping the cable securely attached for continuous automated monitoring in compressors and turbines.

Installation in Tight Spaces for Small Targets
The side-view design of the 330910-16-23-10-02-00 3300 NSv Proximity Probe allows placement in restricted areas, making it suitable for small shaft and reduced side-view applications. Its length and tip configuration ensure accurate gap settings of 1.0 mm for automated radial and axial measurements.

Chemical and Temperature Resilience
The PPS probe tip and AISI 304 stainless steel case of the 330910-16-23-10-02-00 3300 NSv Proximity Probe enable operation across -52°C to +177°C, making it suitable for process compressor applications where fluids and heat could affect signals.
