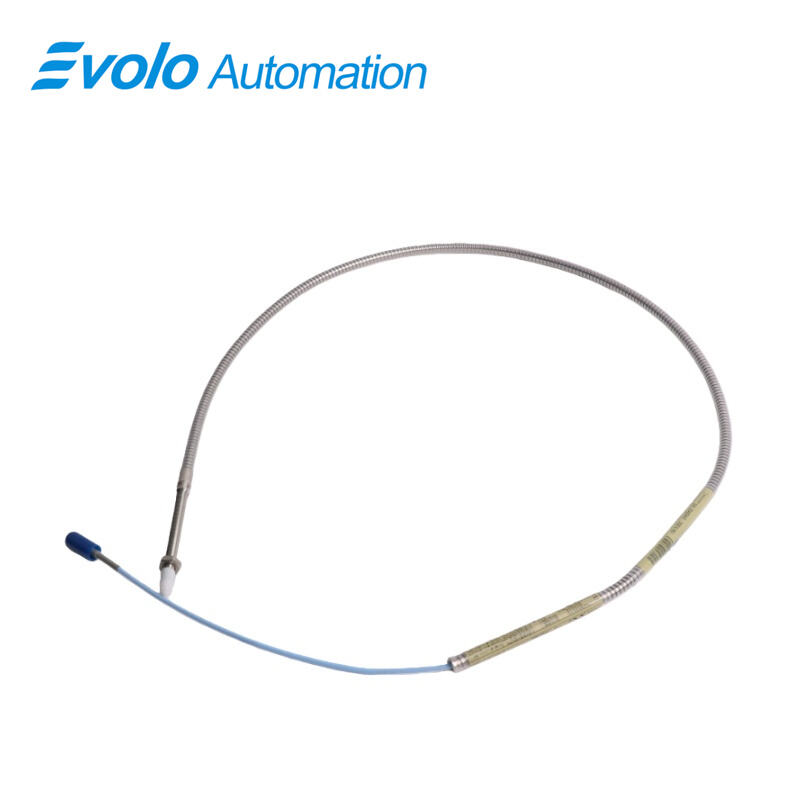

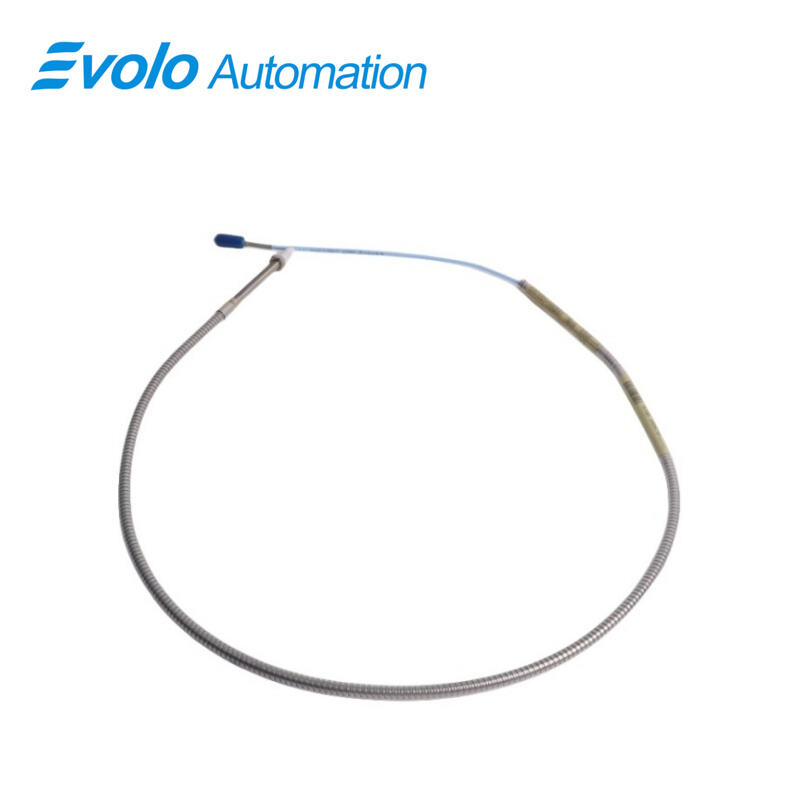

330902-00-40-10-02-00 3300 NSv Proximity Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330902-00-40-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330902-00-40-10-02-00 3300 NSv Proximity Probe is a precision eddy-current probe designed for compact industrial machinery and automated monitoring systems. With a 4-inch case, 1-meter cable, and 1/4-28 UNF thread, the 330902-00-40-10-02-00 3300 NSv Proximity Probe supports radial vibration measurement on shafts under 51 mm (2 in) and axial position measurement on flat targets under 15 mm (0.6 in). Operating from -52°C to +177°C and equipped with a 50 Ω output resistance and supply sensitivity below 2 mV per volt, the 330902-00-40-10-02-00 3300 NSv Proximity Probe provides precise, repeatable signals to PLC, DCS, and SCADA systems. Its Polyphenylene sulfide (PPS) tip and AISI 304 stainless steel case allow chemical resistance for process compressors. With a linear range of 1.5 mm (60 mils) and recommended gap of 1.0 mm, this probe integrates seamlessly with 3300 NSv Extension Cables and 3300 XL NSv Proximitor Sensors, enabling automated Keyphasor, tachometer, and zero-speed measurements in fluid-film bearing machines.

Applications

Measure Radial Vibration on Small Shafts
The 330902-00-40-10-02-00 3300 NSv Proximity Probe monitors radial vibration on shafts smaller than 51 mm (2 in). Its 1.5 mm linear range and 50 Ω output resistance provide precise signals to PLCs or DCS systems for automated vibration analysis.

Monitor Axial Position on Flat Targets
Using the 1.0 mm recommended gap, the 330902-00-40-10-02-00 3300 NSv Proximity Probe measures axial positions on flat targets smaller than 15 mm (0.6 in), supporting automated shaft alignment and real-time position tracking.

Detect Shaft Speed and Zero-Speed Conditions
Integrated with 3300 NSv Extension Cables and 3300 XL NSv Proximitor Sensors, the 330902-00-40-10-02-00 3300 NSv Proximity Probe enables accurate shaft speed detection, including zero-speed, for automated control and maintenance scheduling.

Provide Phase Reference for Rotating Machinery
The 330902-00-40-10-02-00 3300 NSv Proximity Probe delivers phase reference signals for rotating equipment, allowing synchronization with SCADA and process control systems.

Specifications

Competitive Advantage

Operate in Harsh Process Environments
The 330902-00-40-10-02-00 3300 NSv Proximity Probe has a PPS probe tip and AISI 304 stainless steel case, allowing use in refrigerant or gas compressors without chemical degradation.

Install in Tight Spaces
The 330902-00-40-10-02-00 3300 NSv Proximity Probe performs well in side-view or restricted areas, measuring small targets where standard 3300 probes cannot fit.

Upgrade Existing Systems Without Rewiring
The 330902-00-40-10-02-00 3300 NSv Proximity Probe is mechanically and electrically compatible with 3300 RAM probes, supporting upgrades without replacing cables or monitoring systems.

Secure Electrical Connections
ClickLoc connectors and CableLoc design provide 220 N pull strength, ensuring the 330902-00-40-10-02-00 3300 NSv Proximity Probe maintains reliable signals in automated measurement setups.

Deliver Accurate Signals for Automation
Supply sensitivity below 2 mV per volt and linear output enable the 330902-00-40-10-02-00 3300 NSv Proximity Probe to provide consistent, repeatable data for PLC, DCS, and SCADA systems.
