330854-080-24-05 3300 XL 25 mm Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330854-080-24-05
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

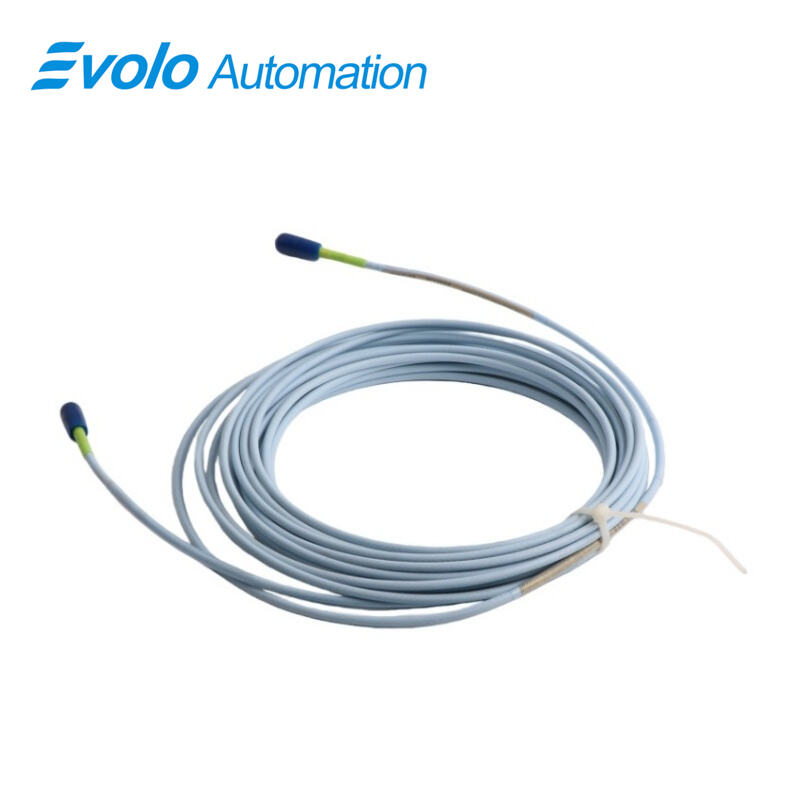

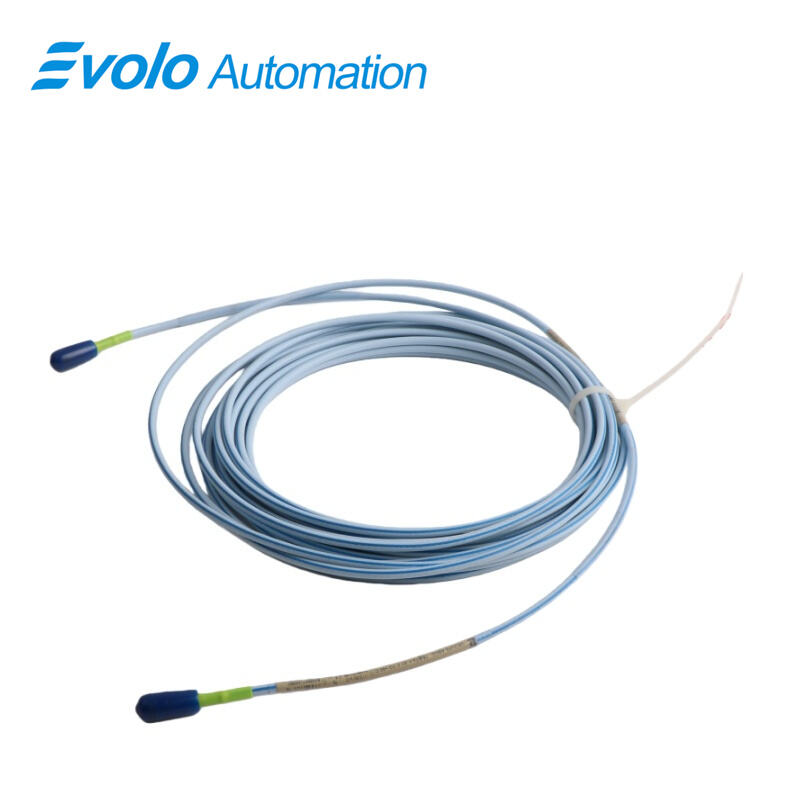

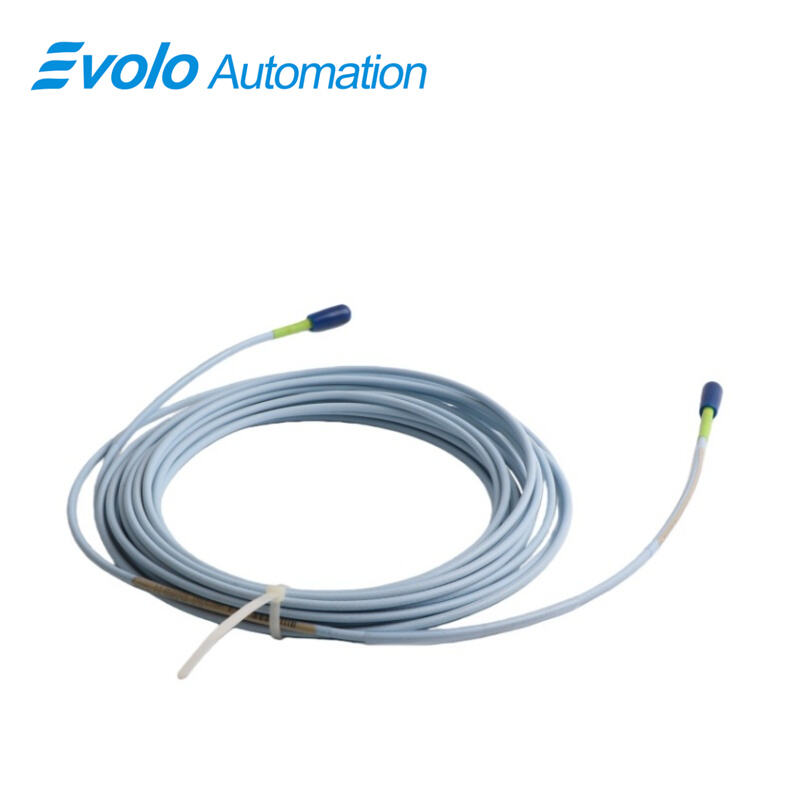

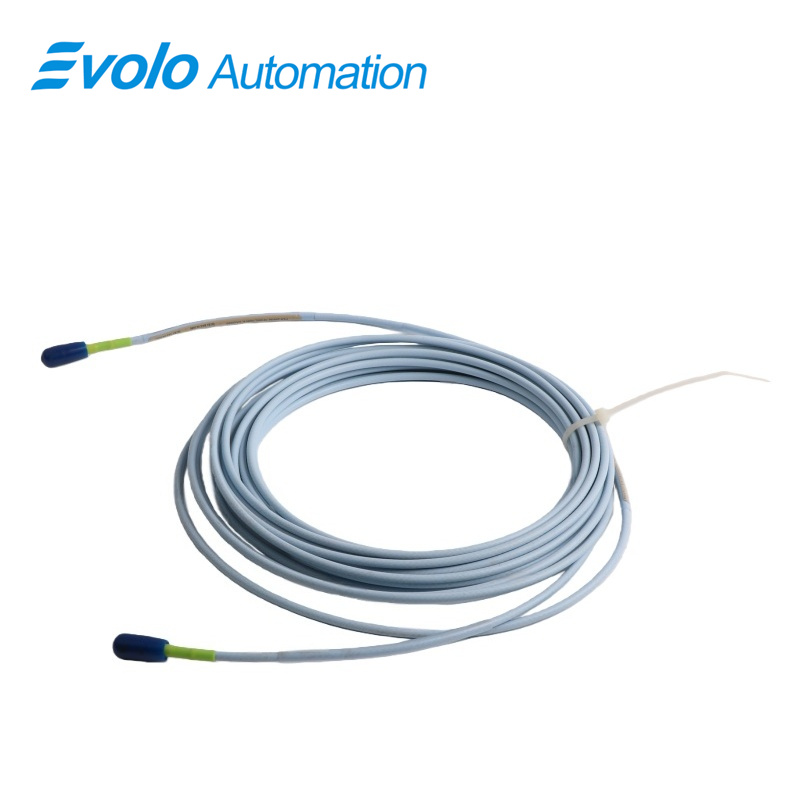

The 330854-080-24-05 3300 XL 25 mm Extension Cable is a high-performance extension cable designed specifically for use with 3300 XL 25 mm Transducer Systems in industrial automation and steam turbine differential expansion (DE) monitoring. The 330854-080-24-05 features an 8.0-meter (26.2 feet) high-temperature FluidLoc cable, with a robust 75 Ω triaxial PFA insulation, providing exceptional durability in extreme operating environments up to 200°C (392°F). Its flexible AISI 302 stainless steel armor with PFA outer jacket ensures mechanical protection while maintaining signal integrity. Designed to handle 0.2 to 1.5 mm² field wiring and an extension cable capacitance of 69.9 pF/m (21.3 pF/ft), the 330854-080-24-05 delivers high-fidelity signal transmission across the full 12.7 mm (500 mils) linear range of 3300 XL 25 mm Proximity Transducers. Compatible with a wide variety of probe configurations—including English threads 1¼-12 or 1½-12, metric threads M30x2 or M39x1.5, and side/rear exit probes—the 330854-080-24-05 enables seamless integration with existing transducer systems. Its specialized ClickLoc connectors, coupled with connector protectors, prevent contamination and ensure secure electrical connections even in the most challenging industrial environments. The 330854-080-24-05 extension cable is essential for precise measurement of differential expansion in midsize to large steam turbine generators and other rotating machinery requiring high-accuracy, long-range transducer connections.

Applications

1. Extreme Vibration and Shock Conditions
Protected by a flexible AISI 302 SST armor, the 330854-080-24-05 withstands mechanical stresses while ensuring accurate DE measurements during turbine start-up, shutdown, and load variations.

2. High-Temperature Industrial Environments
With operational limits up to 200°C (392°F) and armor protection, the 330854-080-24-05 performs reliably in steam turbines, power plants, and petrochemical installations.

3. Long-Range Signal Transmission
The 8.0-meter length allows remote installation of 3300 XL 25 mm probes, maintaining linearity across 12.7 mm (500 mils) range, critical for large machinery monitoring.

4. Retrofit of Existing Transducer Systems
The 330854-080-24-05 is compatible with legacy 7200-series and 25 mm DE Integral systems, enabling upgrades without changes to the Proximitor Sensor or monitoring hardware.

Specifications

Competitive Advantage

1. High-Temperature and Chemical Resistance
The 330854-080-24-05 supports continuous operation up to 200°C (392°F) and intermittent exposure to 250°C (482°F), making it suitable for extreme industrial environments.

2. Superior Signal Integrity
With 75 Ω triaxial PFA-insulated FluidLoc cable and low capacitance 69.9 pF/m, the 330854-080-24-05 ensures high-fidelity transmission over long distances without signal loss.

3. Mechanical Protection
The optional stainless steel armor with PFA jacket protects against abrasion, vibration, and mechanical shocks, enhancing the longevity of the 330854-080-24-05 in demanding installations.
