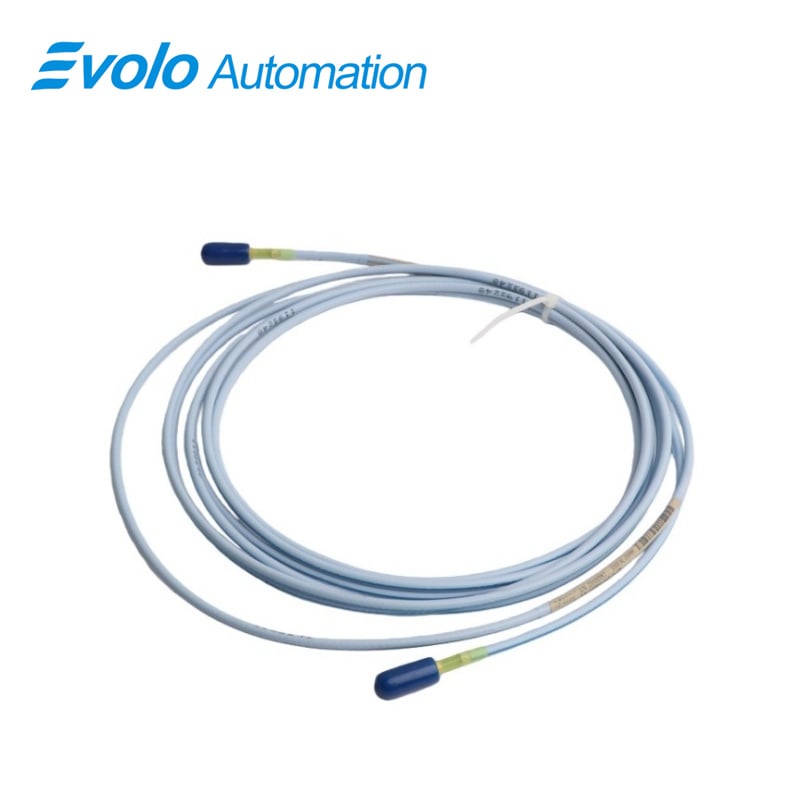

330854-040-25-00 3300 XL 25 mm Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330854-040-25-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330854-040-25-00 3300 XL 25 mm Extension Cable is a 4.0 metre (13.1 ft) high-temperature FluidLoc cable designed for use with 3300 XL 25 mm Proximity Probes and Proximitor Sensors in automated turbine monitoring systems. The cable supports 0.2–1.5 mm² (16–24 AWG) field wiring, with typical capacitance of 69.9 pF/m, maintaining signal integrity over long runs. Its 75 Ω triaxial PFA-insulated design and optional AISI 302 SST armor allow continuous operation from −35 °C to +200 °C, with short-term exposure to +250 °C, ensuring accurate differential expansion (DE) measurements on midsize to large steam turbine rotors. The 330854-040-25-00 3300 XL 25 mm Extension Cable integrates seamlessly with 3300 XL 25 mm Proximity Probes, enabling precise linear output of 0.787 V/mm across 12.7 mm travel for automated DE analysis. ClickLoc connectors with removable collars simplify routing through tight spaces while protecting against moisture and contamination. This extension cable is optimized for connecting 3300 XL 25 mm Proximity Probes in harsh plant environments, supporting reliable automated data collection for turbine rotor and stator monitoring, and allowing flexible placement of probes without loss of measurement accuracy.

Applications

Connect 3300 XL 25 mm Proximity Probes to Proximitor Sensors
The 330854-040-25-00 3300 XL 25 mm Extension Cable provides a 4.0 metre (13.1 ft) connection between 3300 XL 25 mm Proximity Probes and Proximitor Sensors, enabling accurate differential expansion (DE) measurements on turbine rotors. Its 75 Ω triaxial PFA insulation ensures consistent 0.787 V/mm output over a 12.7 mm linear range, allowing automated monitoring of axial rotor movements.

Route Probes in Tight Spaces
With ClickLoc connectors and removable collars, the 330854-040-25-00 3300 XL 25 mm Extension Cable allows flexible probe placement through confined turbine housing areas, maintaining proper signal integrity during installation in automated systems.

Support Harsh Temperature DE Monitoring
Designed for continuous operation from −35 °C to +200 °C and short-term exposure up to +250 °C, the 330854-040-25-00 3300 XL 25 mm Extension Cable is ideal for automated DE measurement in high-temperature turbine environments.

Integrate into Upgraded 3300 XL Systems
The 330854-040-25-00 3300 XL 25 mm Extension Cable works with all 3300 XL 25 mm Proximity Probe configurations, including armored and unarmored options, allowing seamless automation upgrades without altering sensor output settings.

Specifications

Competitive Advantage

Maintain Accurate Signal over Long Runs
The 69.9 pF/m capacitance of the 330854-040-25-00 3300 XL 25 mm Extension Cable ensures minimal signal loss over extended cable lengths, supporting precise automated DE measurements.

Protect Probes and Sensors in Harsh Conditions
Optional AISI 302 SST armor and high-temperature PFA insulation protect the 330854-040-25-00 3300 XL 25 mm Extension Cable from abrasion, moisture, and extreme heat, enabling reliable operation in turbine housings.

Simplify Installation in Automated Systems
ClickLoc connectors and removable collars reduce installation time for 3300 XL 25 mm Proximity Probes, ensuring automated systems are operational quickly with minimal handling errors.
