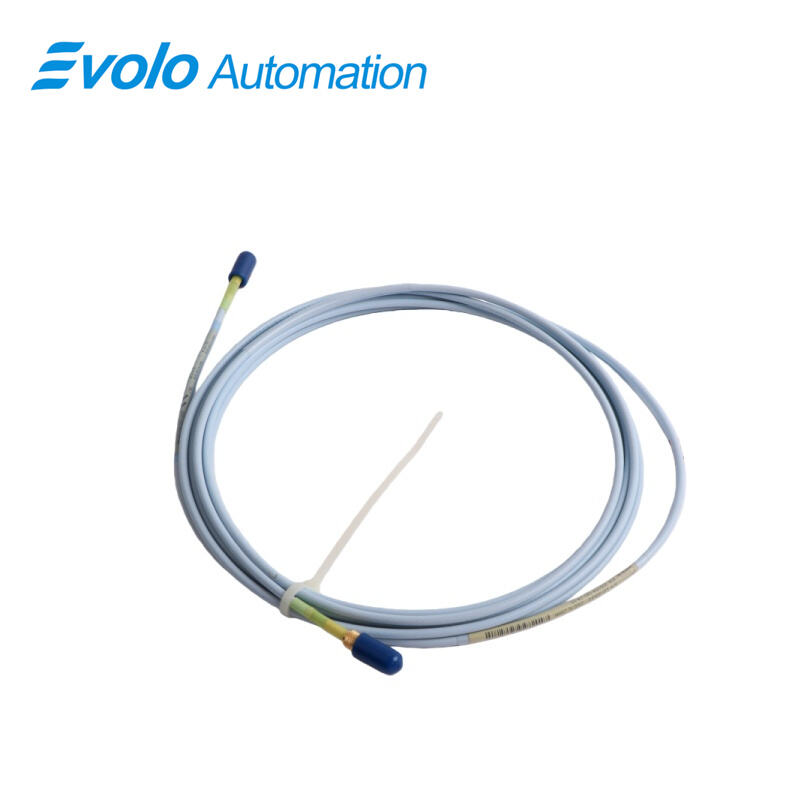

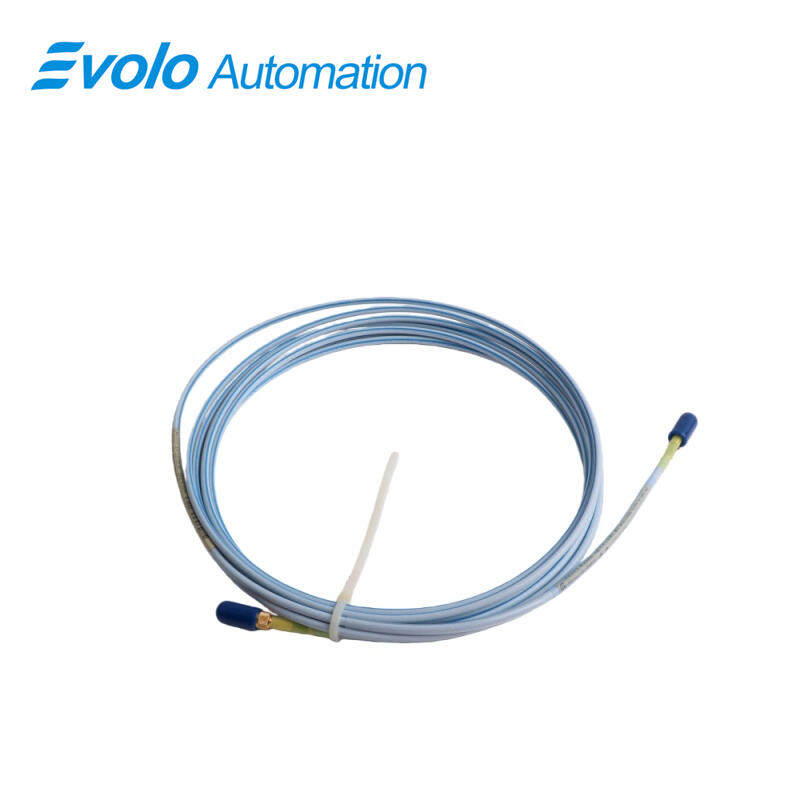

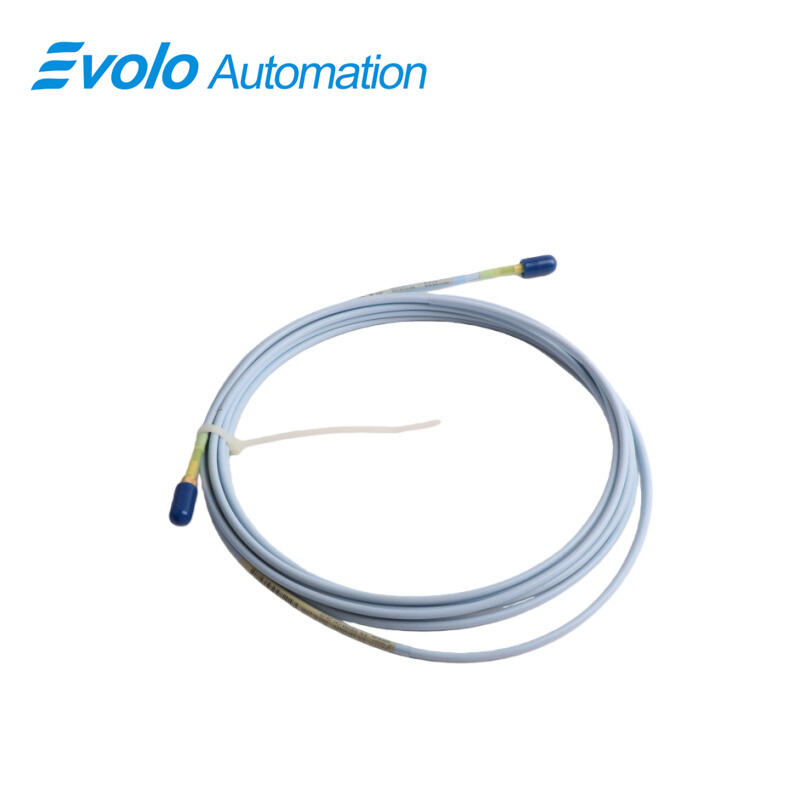

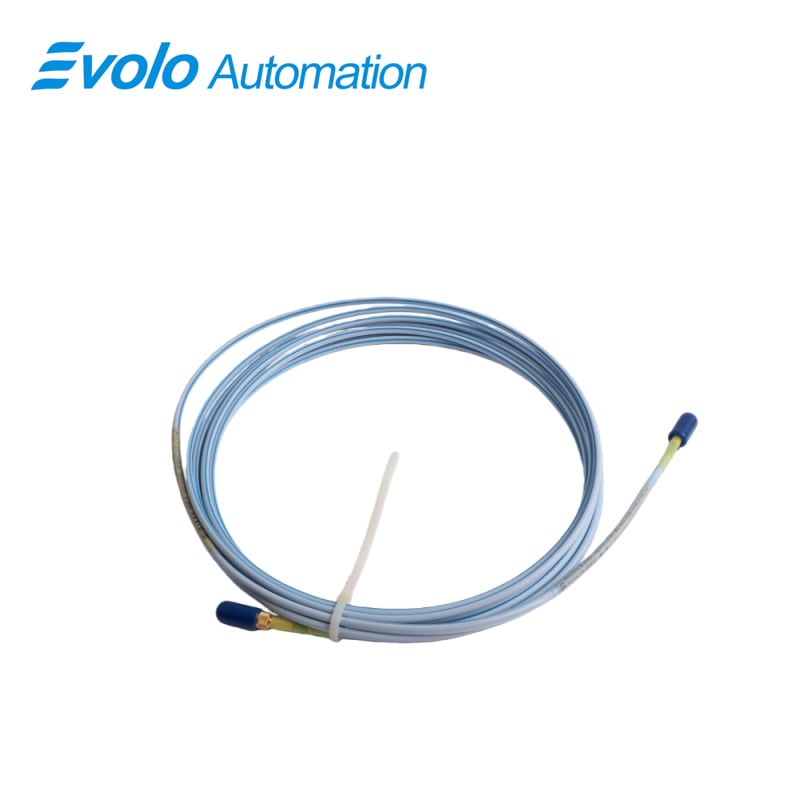

330854-040-24-CN 3300 XL 25 mm Extension Cable

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330854-040-24-CN
Minimum Order Quantity:	1
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330854-040-24-CN 3300 XL 25 mm Extension Cable is a high-performance, durable solution engineered for extending the reach of 3300 XL series proximity probes in industrial condition monitoring systems. Designed for use in demanding environments, this extension cable ensures reliable signal transmission and mechanical robustness over a wide range of applications. With a total cable length of 4.0 meters (13.1 feet) and a compact 25 mm overall connector length, it provides exceptional flexibility for retrofitting, relocation, or integration into existing machinery setups.

Constructed with high-temperature FluidLoc armor and a 75 Ω triaxial core, the cable delivers excellent electrical performance while resisting mechanical stress, chemical exposure, and thermal extremes. The miniature coaxial ClickLoc connector ensures secure connections with minimal installation effort, while the flexible AISI 302 stainless steel armor with PFA outer jacket protects against abrasion and bending. This robust design enables the extension cable to perform reliably in harsh industrial environments, including petrochemical plants, power generation units, and offshore platforms, where precise vibration and position monitoring are critical.

Engineered for compatibility with 3300 XL proximity probes, the 25 mm extension cable maintains signal integrity with low output resistance (<1 Ω) and a typical extension cable capacitance of 69.9 pF/m (21.3 pF/ft). It operates over a wide temperature range of -50°C to +150°C, ensuring consistent performance even in extreme cold or heat conditions. Whether deployed for routine monitoring, temporary installations, or complex retrofits, this extension cable offers a practical, durable, and reliable solution that supports accurate vibration and position measurements.

Applications

1.Industrial Machinery Monitoring

The 330854-040-24-CN extension cable is ideal for extending the reach of 3300 XL proximity probes in industrial machines such as pumps, compressors, turbines, and fans. Its robust construction and long cable length allow precise vibration and position monitoring even in congested or difficult-to-access installations.

2.Retrofit and Maintenance Operations

This 25 mm extension cable provides a practical solution for retrofitting existing 3300 XL probes. The compact connector and flexible armored design simplify installation in tight spaces, making it easier to upgrade monitoring systems without major mechanical modifications or process interruptions.

3.Hazardous and Extreme Environment Deployment

With high-temperature FluidLoc armor and PFA outer jacket, the cable performs reliably in chemically aggressive or high-temperature environments. Certified for industrial use, it is suitable for hazardous zones, ensuring safe and accurate monitoring in petrochemical plants, offshore platforms, and other challenging operational areas.

Specifications

Competitive Advantage

1.High-Temperature and Chemical Resistance

The 330854-040-24-CN cable combines high-temperature FluidLoc armor with a flexible AISI 302 stainless steel jacket and PFA outer layer, providing exceptional resistance to heat, chemicals, and mechanical wear. This ensures long-term durability and reliability in harsh industrial conditions.

2.Precision Signal Integrity

Designed with a 75 Ω triaxial core and low output resistance (<1 Ω), the cable maintains high-fidelity signal transmission for 3300 XL proximity probes. Its typical capacitance of 69.9 pF/m (21.3 pF/ft) ensures consistent performance, critical for accurate vibration and position measurements.

3.Flexible and Easy Installation

With a 4.0-meter length, miniature ClickLoc connector, and lightweight construction (0.16 kg), the extension cable is easy to route and install in tight or complex machinery layouts. Its compact 25 mm connector facilitates quick connection while maintaining mechanical and electrical reliability, reducing installation time and potential downtime.
