Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330850-50-CN |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Total Length and Mounting Option : |
5.0 metres (16.4 feet) system length, panel mount |
|
Agency Approval Option: |
Multiple Approvals |
|
Dimension: |
7.8x6.2x6.5cm |
|
Weight: |
0.22kg |
Description

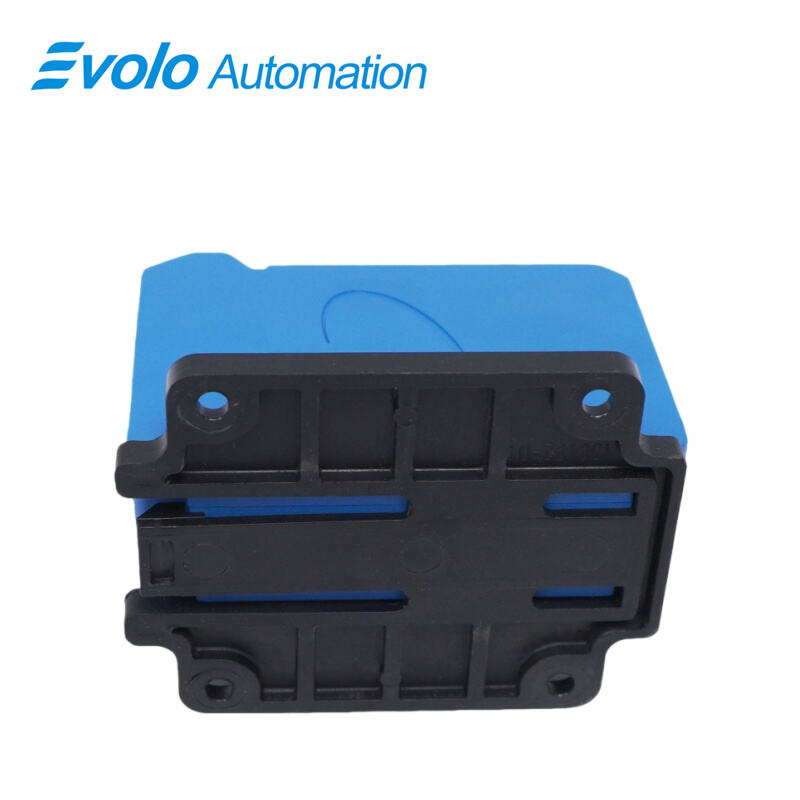

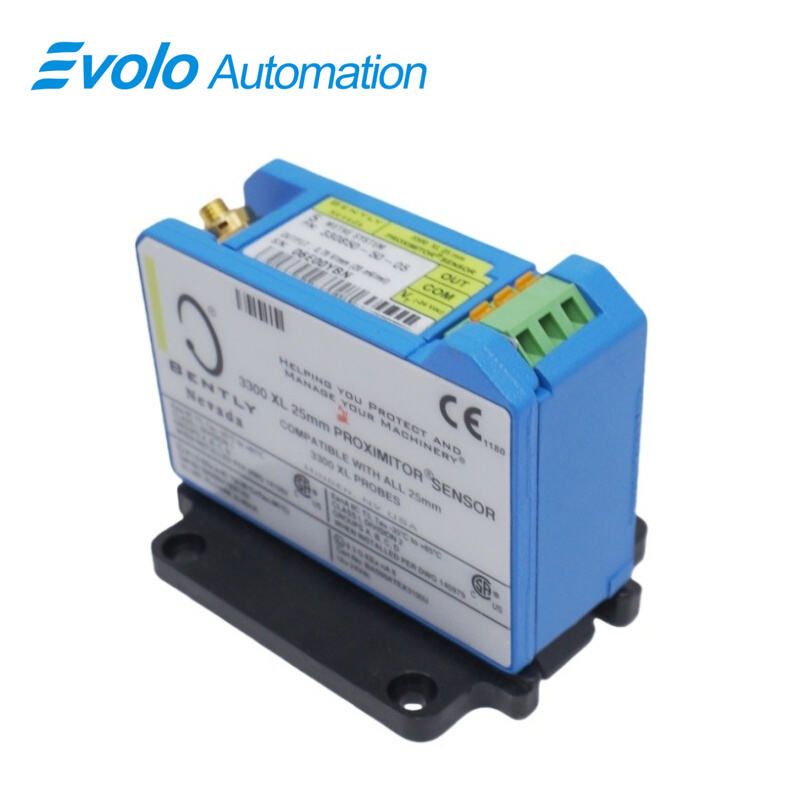

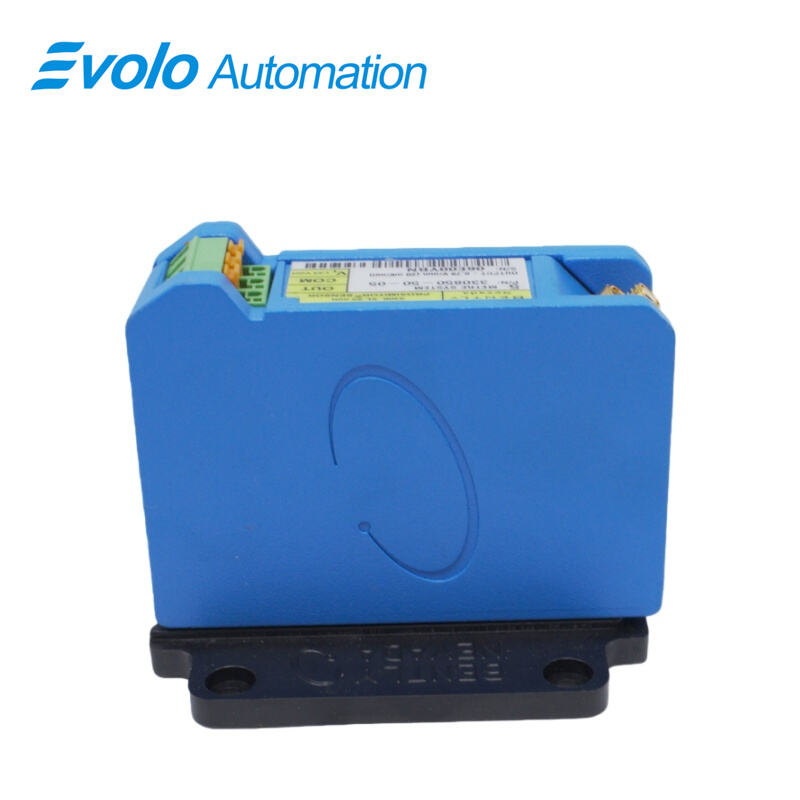

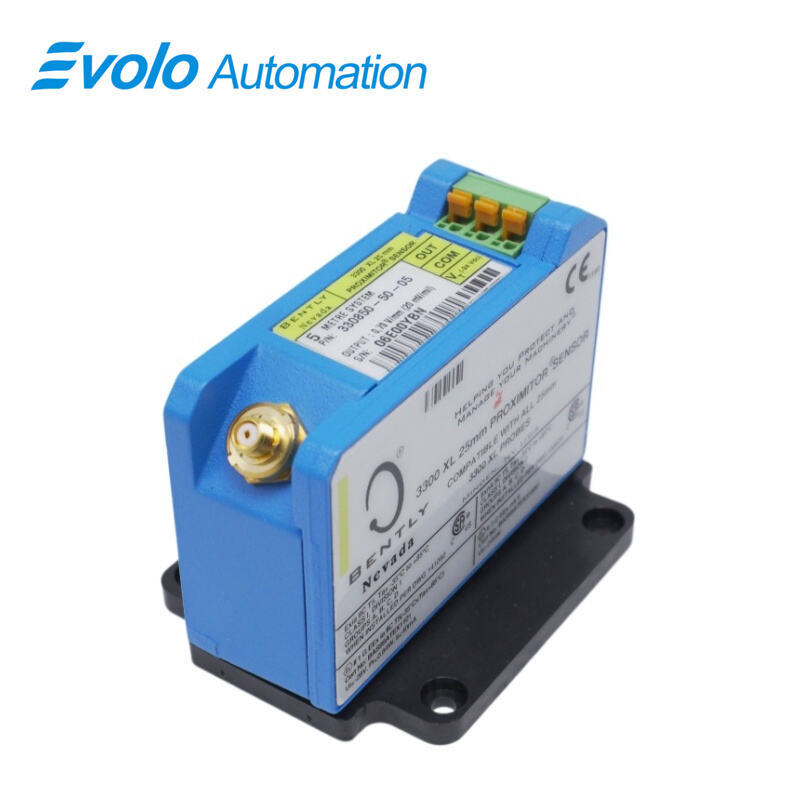

The 330850-50-CN 3300 XL 25 mm Proximitor Sensor is a panel-mounted transducer system designed for automated monitoring of steam turbines, compressors, and generators. The 330850-50-CN 3300 XL 25 mm Proximitor Sensor accepts one 25 mm non-contact probe with extension cable and converts axial rotor displacement into a 0.787 V/mm output across a 12.7 mm linear range. Operating on −17.5 to −26 Vdc at 12 mA with 50 Ω output, the 330850-50-CN 3300 XL 25 mm Proximitor Sensor delivers precise shaft position signals to DCS or PLC systems. Its A380 aluminum housing supports temperatures from −51°C to +100°C and 100% condensing humidity when connectors are protected. With less than 2 mV/V supply sensitivity, the 330850-50-CN 3300 XL 25 mm Proximitor Sensor maintains accurate output during DC voltage fluctuations. Multiple agency approvals allow integration into global automated control loops, while high-temperature ClickLoc connectors and sealed probe tips ensure reliable operation near rotor collars and thrust bearings.
Applications
Measure differential expansion on turbines
The 330850-50-CN 3300 XL 25 mm Proximitor Sensor measures rotor-to-casing axial displacement using its 12.7 mm linear range and 0.787 V/mm output. Its A380 aluminum housing and panel mount allow installation close to turbine rotors, providing precise differential expansion readings during startup, load changes, or shutdown sequences.
Track generator rotor axial position
The 330850-50-CN 3300 XL 25 mm Proximitor Sensor transmits real-time shaft movement to DCS or PLC systems. With less than 2 mV/V supply sensitivity and 50 Ω output resistance, it ensures consistent axial position tracking under varying DC supply voltages.
Monitor compressor rotor collars or ramps
The 330850-50-CN 3300 XL 25 mm Proximitor Sensor operates reliably from −51°C to +100°C in 100% condensing humidity environments, making it suitable for continuous monitoring of high-speed compressors.
Specifications
|
Proximitor Sensor Input: |
Accepts one noncontacting 3300 XL 25 mm Proximity Probe and Extension Cable. |
|
Power: |
Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range. |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Output resistance: |
50 W |
|
Proximitor Sensor Material: |
A380 aluminum |
|
Operating Temperature: |
-51°C to +100°C (-60°F to +212°F) |
|
Storage Temperature : |
-51°C to +105°C (-60°F to +221°F) |
|
Relative Humidity: |
100% condensing, non-submersible when connectors are protected. Tested to IEC 68-2-3 damp heat |
|
Proximitor Sensor Input: |
Accepts one noncontacting 3300 XL 25 mm Proximity Probe and Extension Cable. |
|
Power: |
Requires -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, -23 Vdc to -26 Vdc with barriers. Operation at a more positive voltage than -23.5 Vdc can result in reduced linear range. |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage. |
|
Output resistance: |
50 W |
Competitive Advantage
Accurate long-distance signal transmission
The 330850-50-CN 3300 XL 25 mm Proximitor Sensor delivers 0.787 V/mm output across 50 Ω, enabling precise transmission from turbine decks to control panels without additional amplification.
High-temperature installation capability
With operating temperatures from −51°C to +100°C, the 330850-50-CN 3300 XL 25 mm Proximitor Sensor can be mounted near thrust bearings and rotor collars for direct measurement.
Voltage variation tolerance
The 330850-50-CN 3300 XL 25 mm Proximitor Sensor maintains linear output with less than 2 mV/V supply sensitivity, preserving measurement accuracy even under fluctuating DC power conditions.
Environmental resistance for critical areas
The 330850-50-CN 3300 XL 25 mm Proximitor Sensor withstands 100% condensing humidity with protected connectors, allowing installation in turbine and generator halls with high moisture levels.
