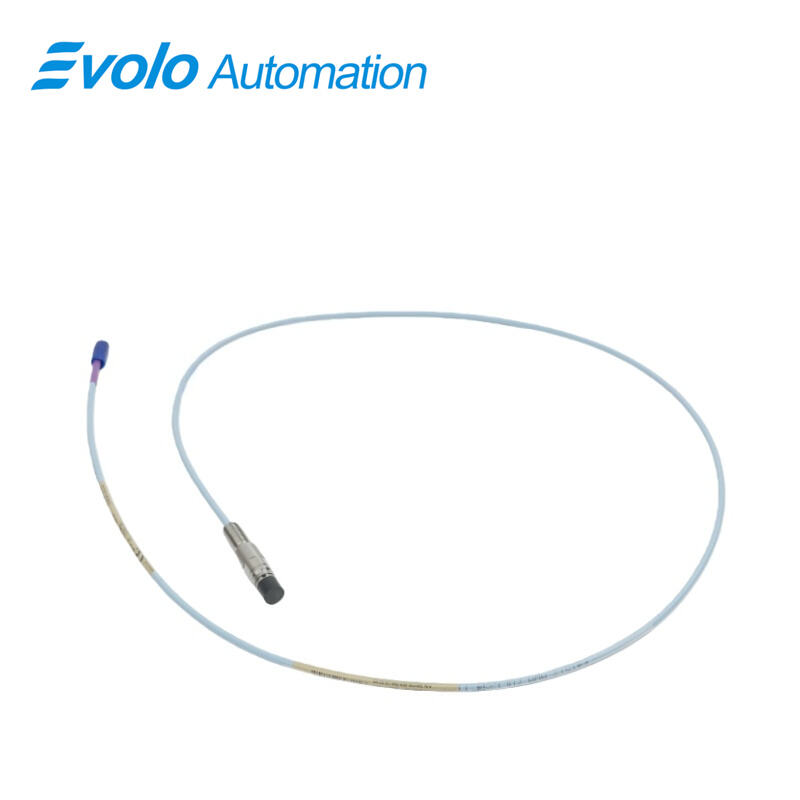

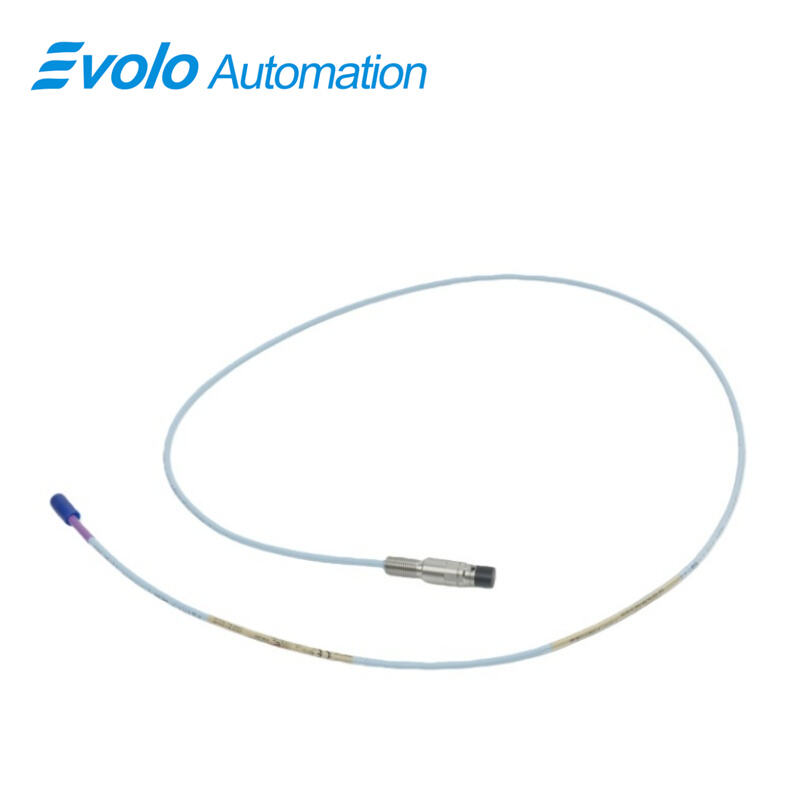

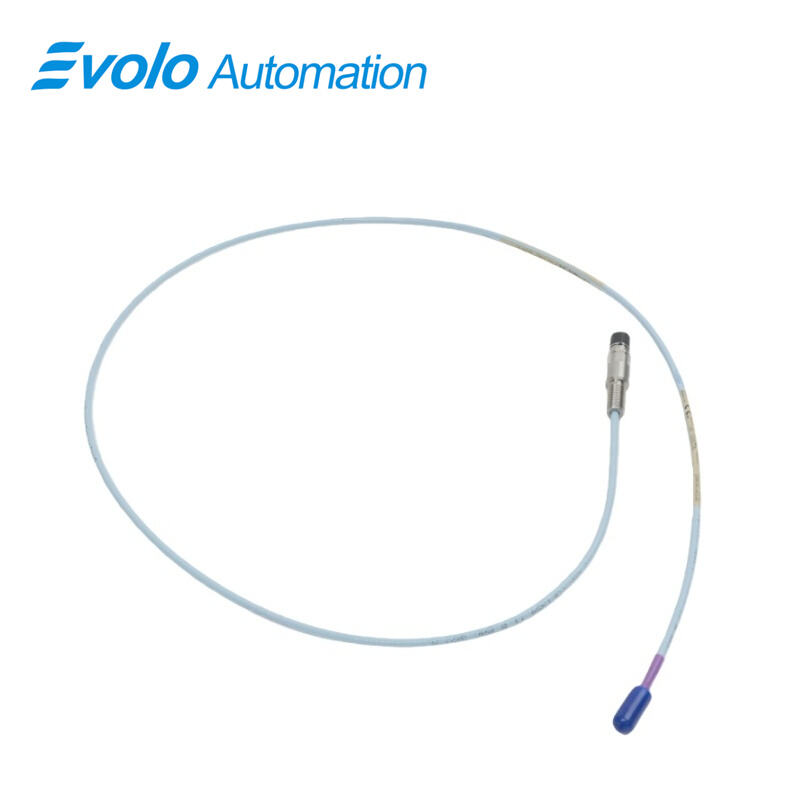

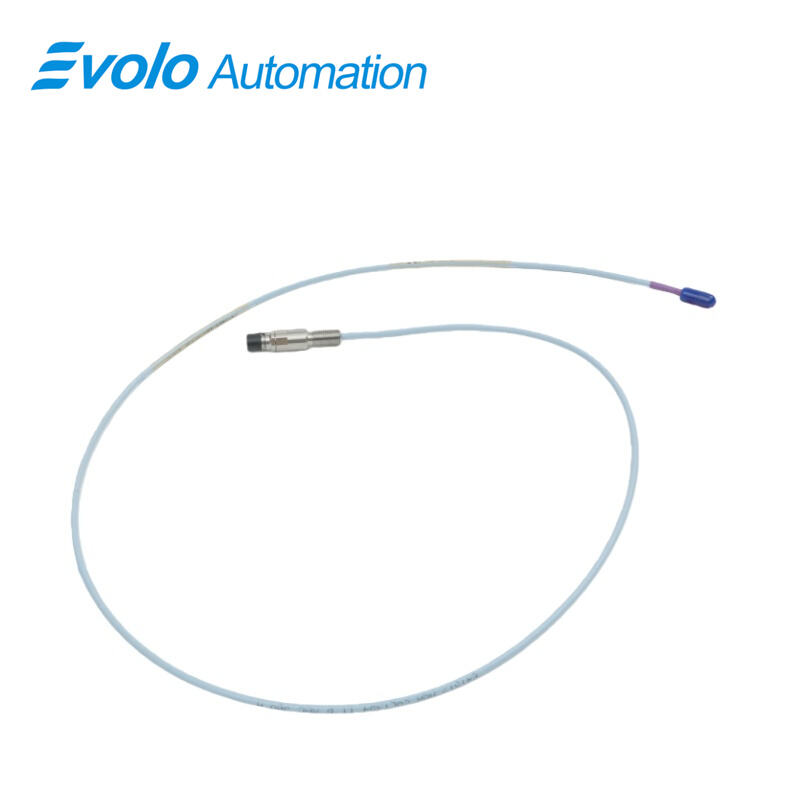

330706-005-046-10-02-00 3300 XL 11 mm Reverse Mount Probe

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330706-005-046-10-02-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330706-005-046-10-02-00 3300 XL 11 mm Reverse Mount Probe provides a 3.94 V/mm (100 mV/mil) output for precise non-contact vibration and displacement measurements on fluid-film bearing machines. With its 11 mm tip and 1.0-meter (3.3 ft) triaxial FEP-insulated cable, the 330706-005-046-10-02-00 3300 XL 11 mm Reverse Mount Probe offers an extended linear range for axial (thrust) position monitoring, ramp differential expansion measurements on steam turbines, rod position measurements on reciprocating compressors, tachometer and zero-speed sensing, and Keyphasor phase reference signals. The probe features an M10 x 1 threaded case, 50 Ω output resistance, and supply sensitivity under 2 mV per volt input change, suitable for automated machinery control. Optional flexible AISI 302 SST cable armor and FluidLoc cable prevent liquid ingress, while ClickLoc connectors and patented CableLoc and TipLoc designs ensure secure probe-to-cable connections. The 330706-005-046-10-02-00 3300 XL 11 mm Reverse Mount Probe is compatible with system upgrades from 7200-series transducers and integrates with 3500 Monitoring Systems with updated configuration software. Connector protectors and a locknut with pre-drilled safety wire holes enhance installation reliability in industrial automation environments.

Applications

Measure Axial Thrust on Shafts: The 330706-005-046-10-02-00 3300 XL 11 mm Reverse Mount Probe, with its 11 mm tip and 1.0-meter (3.3 ft) cable, provides precise non-contact measurement of axial displacement up to 1.65 mm, ideal for monitoring fluid-film bearing axial thrust.

Monitor Steam Turbine Expansion: Using the extended linear range of the 330706-005-046-10-02-00 3300 XL 11 mm Reverse Mount Probe, operators can accurately capture ramp differential expansion on turbines, ensuring controlled shaft movement.

Track Reciprocating Compressor Rod Movement: The 330706-005-046-10-02-00 3300 XL 11 mm Reverse Mount Probe measures rod drop and rod position with high sensitivity (<2 mV per volt input change), supporting automated compressor monitoring.

Tachometer & Zero-Speed Detection: The 330706-005-046-10-02-00 3300 XL 11 mm Reverse Mount Probe outputs precise shaft speed and zero-speed signals via its 50 Ω output resistance, integrating seamlessly with control systems.

Specifications

Competitive Advantage

Extended Linear Range with 11 mm Tip: The 11 mm tip of the 330706-005-046-10-02-00 3300 XL 11 mm Reverse Mount Probe allows measurement of larger displacements (up to 1.65 mm), exceeding standard 8 mm probes for automated shaft monitoring.

High Pull Strength and Bonding: Patented TipLoc and CableLoc designs secure the 330706-005-046-10-02-00 3300 XL 11 mm Reverse Mount Probe cable to the probe tip with 330 N pull strength, reducing mechanical wear in high-vibration environments.

Protection from Liquids: Optional FluidLoc cables and connector protectors on the 330706-005-046-10-02-00 3300 XL 11 mm Reverse Mount Probe prevent oil or other liquids from entering, maintaining signal integrity for automation systems.

Flexible Mounting Options: With M10 x 1 threads and a locknut with pre-drilled safety wire holes, the 330706-005-046-10-02-00 3300 XL 11 mm Reverse Mount Probe can be securely installed in tight automated system layouts.

Seamless System Upgrade: The 330706-005-046-10-02-00 3300 XL 11 mm Reverse Mount Probe fully replaces 7200-series 11 mm and 14 mm probes while supporting updated 3500 Monitoring System configurations, enabling smooth automation upgrades.
