330703-000-060-50-12-00 3300 XL 11 mm Proximity Probes

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330703-000-060-50-12-00
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

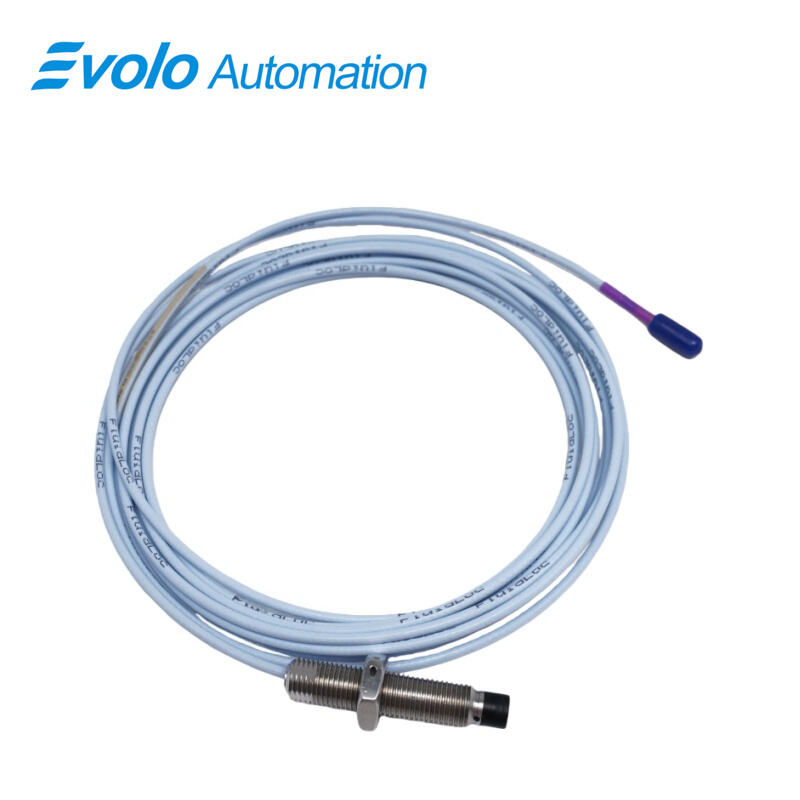

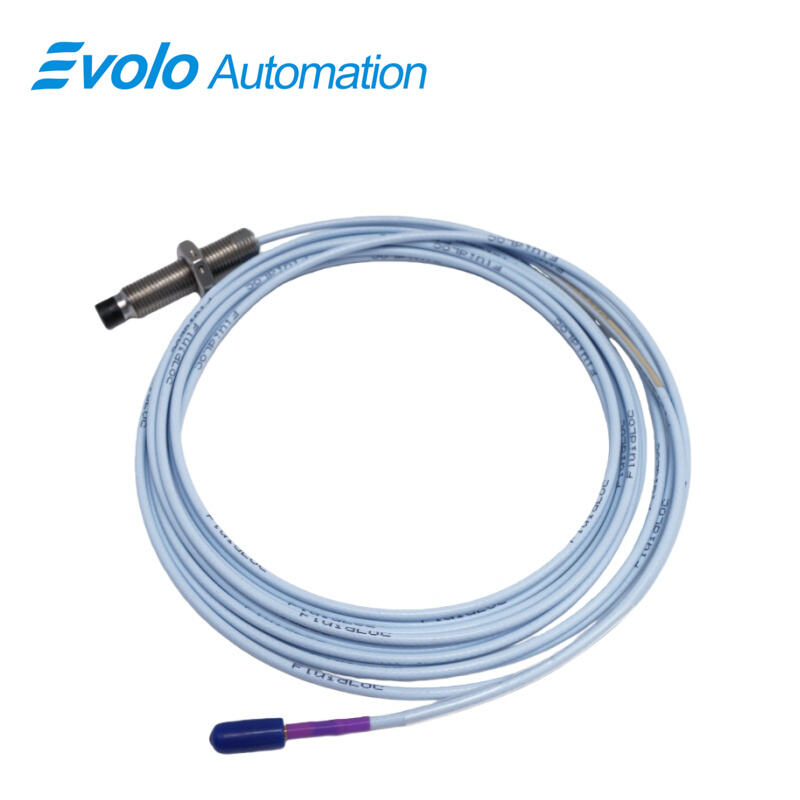

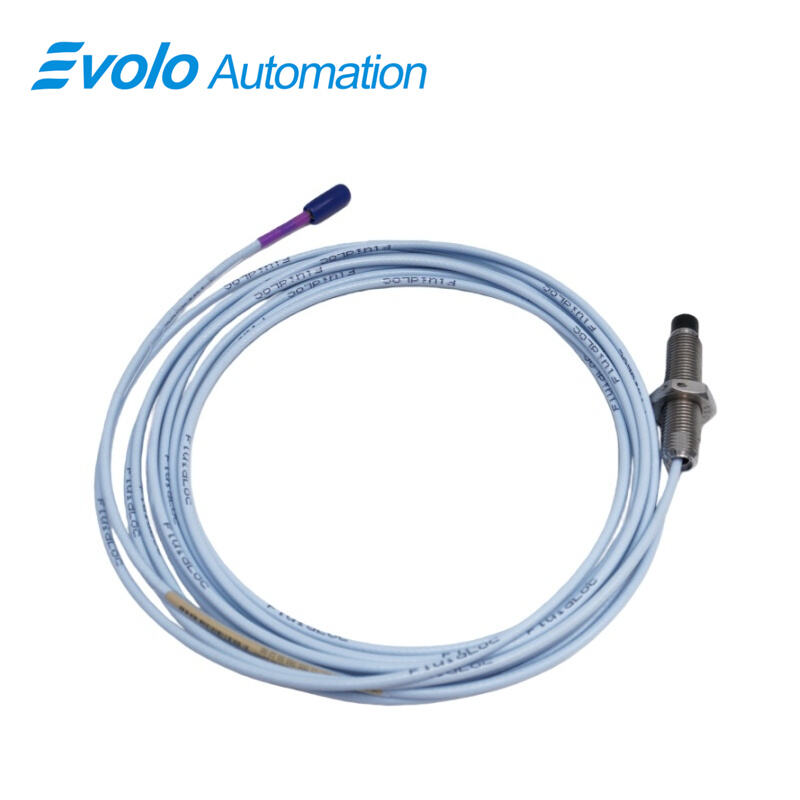

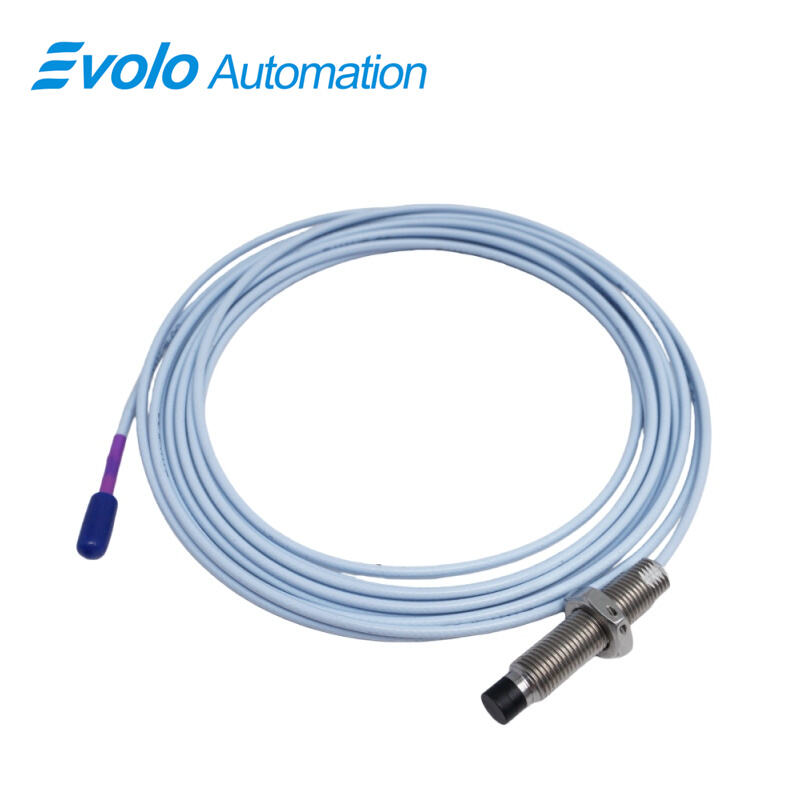

The 330703-000-060-50-12-00 3300 XL 11 mm Proximity Probe is designed for precise non-contact vibration and displacement measurement in automated industrial systems. Featuring an overall case length of 60 mm and a total cable length of 5.0 meters, the 330703-000-060-50-12-00 probe uses an M14 x 1.5 threaded case with 21 mm maximum thread engagement for secure mounting. Its 11 mm probe tip allows extended linear range, ideal for axial position, ramp differential, rod position, tachometer, and Keyphasor signal measurements. The miniature coaxial ClickLoc connector and FluidLoc cable ensure reliable connection and 330 N pull strength. With 99.9% braided copper shielding, IP67 dust and water resistance, and an operating temperature range of -40°C to +85°C, the 330703-000-060-50-12-00 performs in harsh automated environments. Compatible with the 3300 XL Proximitor Sensor and extension cable, this probe replaces legacy 7200-series 11 mm and 14 mm transducers, supporting system upgrades with the 3500 Monitoring System. Connector protectors and TipLoc molding secure the probe tip and cable, ensuring continuous operation in industrial automation applications.

Applications

Application Axial Position Measurement on Bearings

The 330703-000-060-50-12-00 probe, with its 11 mm tip and 60 mm case length, measures axial positions of fluid film bearings in automated turbines and compressors. Its 5.0-meter cable and M14 x 1.5 threaded case allow secure installation and precise non-contact vibration readings.

Application Rod Position Monitoring in Reciprocating Compressors

Using the 330703-000-060-50-12-00 probe, operators can track rod positions or rod drop in reciprocating compressors. The probe’s 21 mm maximum thread engagement and 99.9% braided copper shielding ensure accurate measurements in harsh environments.

Application Ramp Differential Expansion Tracking

The 330703-000-060-50-12-00 probe enables monitoring of ramp differential expansion in steam turbines. Its miniature coaxial ClickLoc connector and FluidLoc cable provide reliable data transmission over 5.0 meters without signal loss.

Application Tachometer and Zero Speed Detection

The 330703-000-060-50-12-00 probe provides precise tachometer signals and zero-speed detection for rotating machinery. The probe’s IP67 rating and -40°C to +85°C operating range allow measurements under extreme environmental conditions.

Application Phase Reference Keyphasor Signal Generation

With 330703-000-060-50-12-00, Keyphasor signals are generated accurately for automated control systems. The TipLoc molded probe tip and CableLoc design secure the connection for long-term signal integrity.

Specifications

Competitive Advantage

Competitive Advantage Easy Installation and Mounting

The 330703-000-060-50-12-00 probe features an M14 x 1.5 threaded case and 21 mm maximum thread engagement, allowing fast and secure mounting without additional adapters.

Competitive Advantage Extended Linear Measurement Range

Its large 11 mm tip extends the linear range compared to standard 8 mm probes, enabling precise displacement and vibration readings in demanding automation applications.

Competitive Advantage Durable Signal Transmission

The 330703-000-060-50-12-00 uses 99.9% braided copper shielding, ClickLoc connectors, and FluidLoc cables, maintaining continuous signal integrity over 5.0 meters even in wet or dusty environments.

Competitive Advantage Replacement for Legacy Systems

Designed to replace 7200-series 11 mm and 14 mm transducers, the 330703-000-060-50-12-00 supports complete upgrades to 3300 XL systems, ensuring measurement consistency and reducing downtime during installation.

Competitive Advantage Connector and Cable Security

TipLoc molded probe tip and CableLoc design of 330703-000-060-50-12-00 provide 330 N pull strength, preventing loose connections and ensuring continuous automated monitoring.
