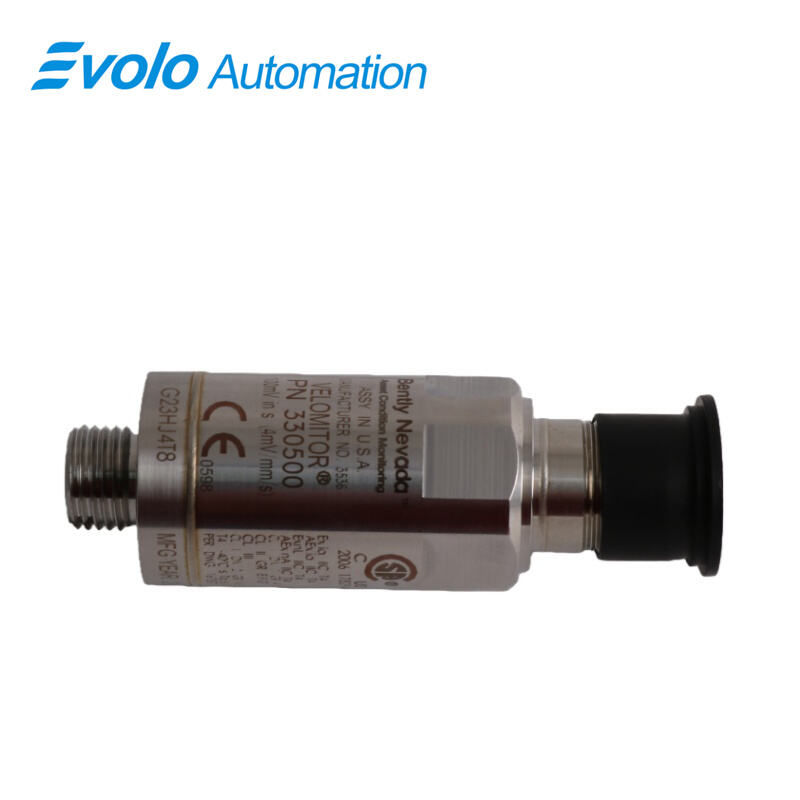

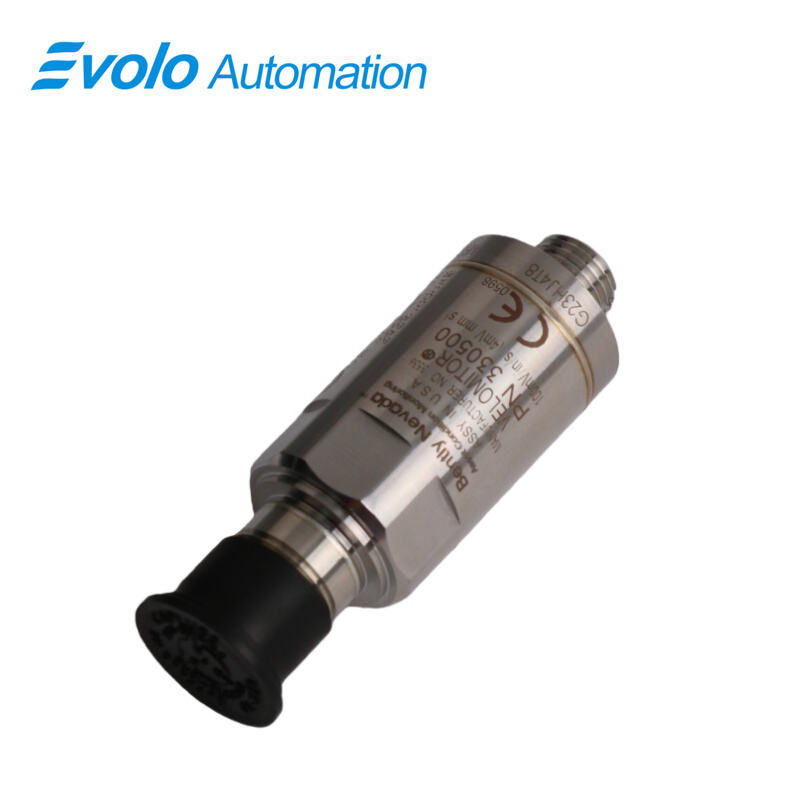

330500-01-01 Velomitor Piezo-velocity Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330500-01-01
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330500-01-01 Velomitor Piezo-velocity Sensor is a high-precision industrial sensor designed for automated vibration monitoring and condition assessment of rotating machinery. The 330500-01-01 measures absolute velocity relative to free space, providing reliable data for bearing housings, casings, and structural vibration analysis. Constructed with a 316L stainless steel case, this sensor ensures durability in harsh industrial environments and is hermetically sealed to withstand 100% non-submerged humidity. With a mounting thread adaptor of 1/2-20 UNF, the 330500-01-01 supports versatile mounting orientations, including vertical and horizontal applications. The sensor’s piezoelectric design integrates solid-state electronics, eliminating moving parts and mechanical wear, thus delivering long-term stability. Its operating temperature range of -55°C to +121°C (-67°F to 250°F) and shock survivability of 5,000 g peak make the 330500-01-01 ideal for extreme industrial conditions. With amplitude linearity within ±2% up to 152 mm/s (6 in/s) peak and dynamic output impedance below 2,400 Ω, the 330500-01-01 Velomitor ensures high-fidelity velocity signals compatible with advanced automated monitoring systems.

Applications

1. High-Shock Rotating Machinery Applications
With a shock survivability rating of 5,000 g peak, the 330500-01-01 can withstand high-impact events, making it suitable for turbines, gas compressors, and other high-speed rotating equipment.

2. Harsh Environmental Monitoring
The 330500-01-01 operates in extreme temperatures ranging from -55°C to +121°C and up to 100% humidity, allowing deployment in petrochemical, power generation, and offshore facilities.

3. Multi-orientation Industrial Installations
The 330500-01-01 supports vertical, horizontal, or angled mounting with its 1/2-20 UNF adaptor, making it flexible for retrofitting on existing automated monitoring systems.

Specifications

Competitive Advantage

1. High Shock Resistance
With a 5,000 g peak shock survivability, the 330500-01-01 Velomitor ensures reliable measurements in extreme industrial environments prone to sudden mechanical impacts.

2. Wide Operating Temperature Range
The 330500-01-01 supports temperatures from -55°C to +121°C, ensuring stable operation in environments ranging from cryogenic processes to high-temperature industrial machinery.

3. Precise Vibration Measurement
The 330500-01-01 provides ±2% amplitude linearity up to 152 mm/s (6 in/s) peak, delivering accurate vibration signals for high-precision condition monitoring and automated diagnostics.
