Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330193-00-05-10-00 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Unthreaded Length Option |
00 mm |
|
Overall Case Length Option |
50 mm |
|
Total Length Option: |
1.0 meter (3.3 feet) |
|
Agency Approval Option: |
Not required |
|
Probe Case Thread: |
M10 x 1 thread |
|
Maximum Length of Thread Engagement: |
15 mm |
|
Extended Temperature Range cable : |
75Ω triaxial, perfluoroalkoxy (PFA) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 5, or 9 meters. |
|
Extension Cable Material : |
75Ω triaxial, perfluoroalkoxy (PFA) insulated. |
|
Dimension: |
1.8x1.5x122cm |
|
Weight: |
0.06kg |
Description

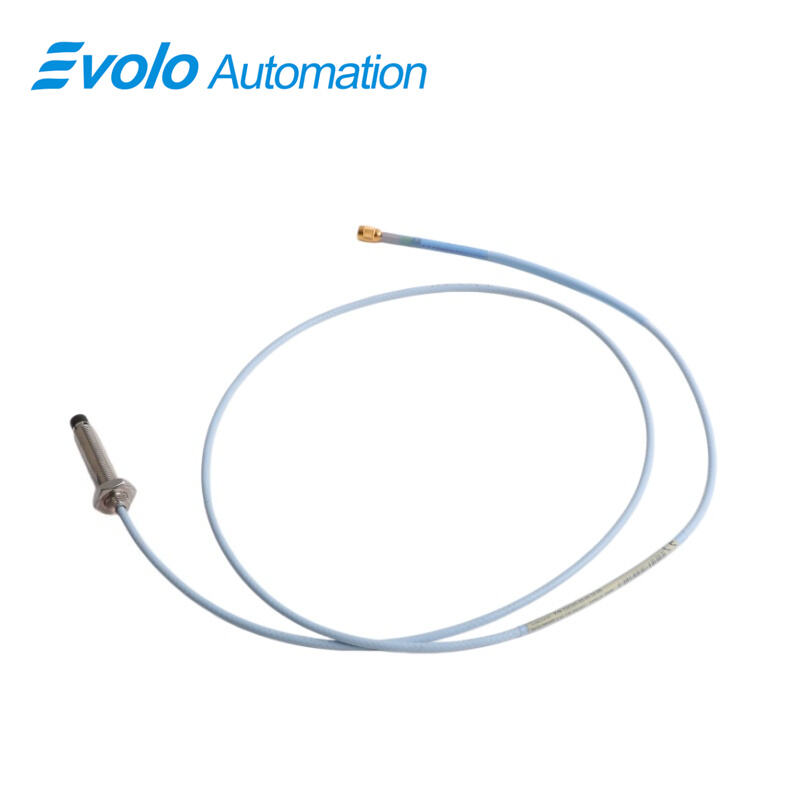

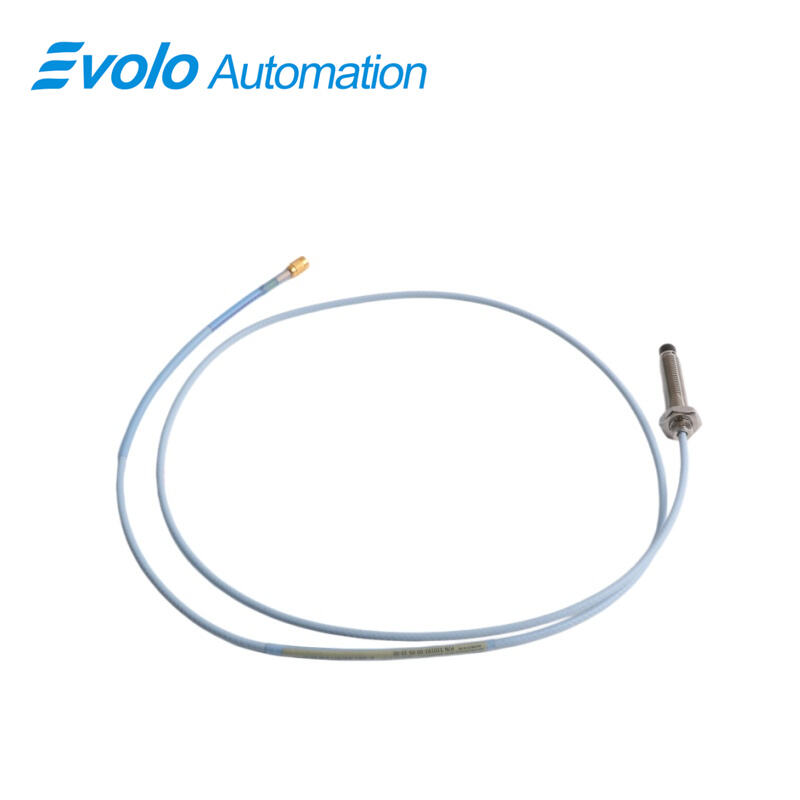

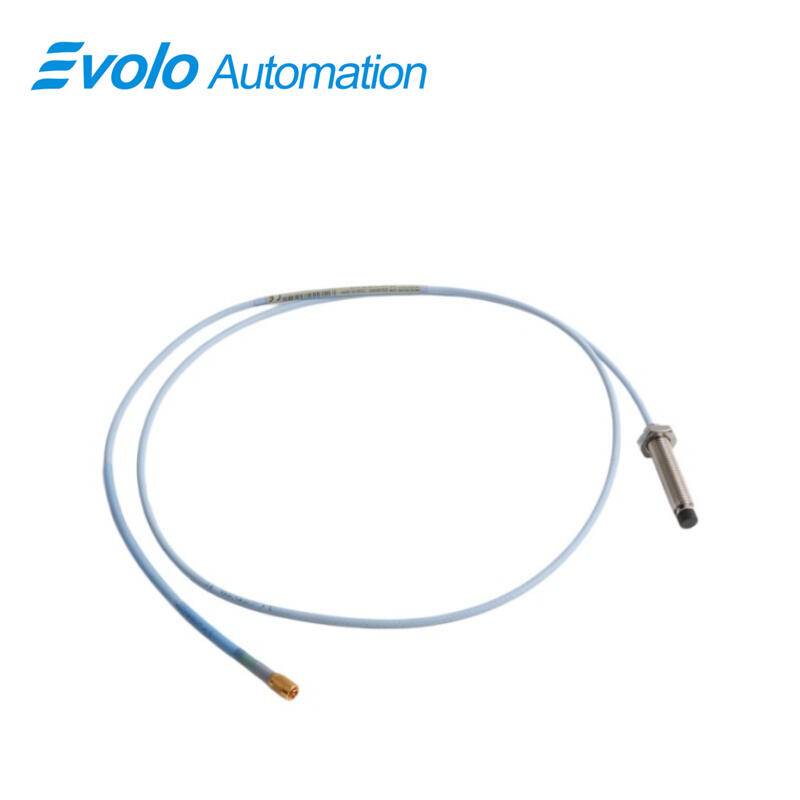

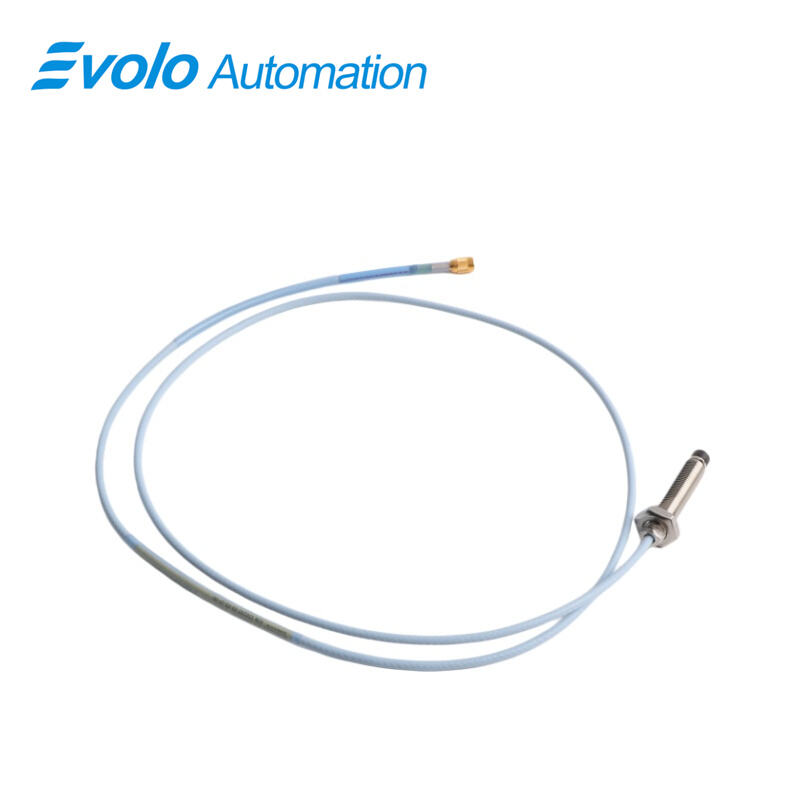

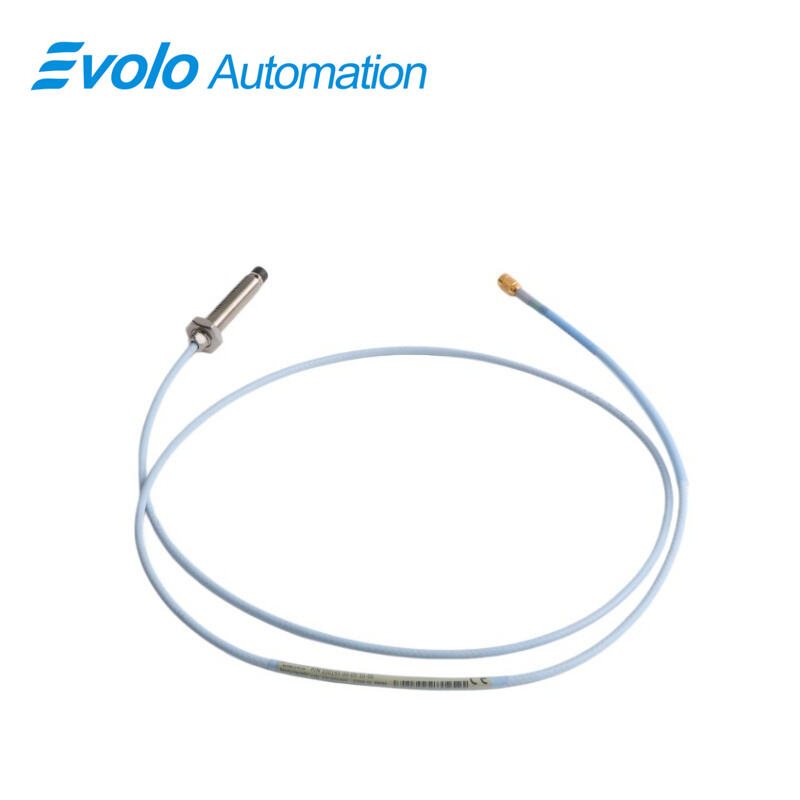

The 330193-00-05-10-00 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes provide precise measurement of shaft vibration and position for automated machinery. The probe features a 2 mm linear range, output resistance of 50 Ω, and incremental scale factor of 7.87 V/mm ±6.5% over 0.25 mm steps. With overall case length 50 mm, M10 x 1 thread, and maximum 15 mm thread engagement, the 330193-00-05-10-00 3300 XL 8 mm ETR Proximity Probes operate from –52°C to +218°C at the probe tip and up to +260°C in the 75 Ω triaxial PFA-insulated cable. Field wiring from 0.2 to 1.5 mm² and extension lengths from 0.5 m to 9 m allow remote integration with Proximitor sensors. TipLoc and CableLoc designs secure the probe and cable with 330 N pull strength. The 330193-00-05-10-00 3300 XL 8 mm ETR Proximity Probes support vibration, position, Keyphasor, and speed measurements in automated monitoring systems.
Applications
Application Measure Shaft Vibration on Fluid-Film Bearings
The 330193-00-05-10-00 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes detect dynamic shaft movement with a 2 mm linear range and output resistance of 50 Ω. The probe tip operates from –52°C to +218°C, while the 75 Ω PFA-insulated cable supports temperatures up to +260°C, allowing precise vibration monitoring in automated fluid-film bearing systems.
Application Monitor Shaft Position in Rotating Machinery
The 330193-00-05-10-00 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes measure static shaft displacement with minimum target size of 15.2 mm and incremental scale factor of 7.87 V/mm ±6.5%, supporting automated position detection and alignment verification.
Application Provide Keyphasor and Speed Signals
The 330193-00-05-10-00 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes generate Keyphasor signals and speed data for automated rotational monitoring. Extension cable lengths from 0.5 m to 9 m allow connection to remote Proximitor sensors up to 305 m away.
Specifications
|
Operating and Storage Temperature: |
-52°C to +218°C (-62°F to +425°F) for the probe tip; - 51°C to +260°C (-60°F to +500°F) for the probe cable and connector. |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Output Resistance: |
50 Ω |
|
Extension Cable Capacitance: |
69.9 pF/m (21.3 pF/ft) typical |
|
Field Wiring: |
0.2 to 1.5 mm2 (16 to 24 AWG) |
|
Linear Range: |
2 mm (80 mils) |
|
Incremental Scale Factor (Extended Temperature Range (ETR) for 5 and 9 Meter Systems): |
7.87 V/mm (200 mV/mil) ± 6.5% including interchangeability error when measured in increments of 0.25 mm (10 mils) over the 80 mil linear range from 0°C to +45°C (+32°F to +113°F). |
|
Deviation from best fit straight line (Extended Temperature Range 5 and 9 meter Systems ) |
Less than ±0.038 mm (±1.5 mil) with components at 0°C to +45°C (+32°F to +113°F). |
|
Performance over Extended Temperatures(Extended Temperature Range 5 and 9 meter Systems) |
Over a probe and extension cable temperature range of – 35°C to +260°C (-31°F to +500°F) with the Proximitor sensor between 0°C to +45°C (+32°F to +113°F), the ISF remains within ±18% of 7.87 V/mm (200 mV/mil) and the DSL remains within ±0.152 mm (±6 mils). |
Competitive Advantage
Competitive Advantage Quick Probe and Cable Replacement
TipLoc and CableLoc designs in the 330193-00-05-10-00 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes enable fast probe and cable replacement without bench calibration. The cable maintains 330 N pull strength to secure the probe tip and prevent oil or liquid leakage.
Competitive Advantage High Temperature Operation
The 330193-00-05-10-00 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes operate up to +218°C at the tip and +260°C in the cable, enabling installation in high-temperature environments where standard probes cannot function.
Competitive Advantage Long Distance Field Wiring
The 330193-00-05-10-00 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes support field wiring up to 305 m with output variation within ±3 dB, allowing remote monitoring of large-scale machinery in automated systems.
Competitive Advantage Accurate Automated Data Collection
With 50 Ω output resistance, less than 2 mV voltage change per volt input, and linear range of 2 mm, the 330193-00-05-10-00 3300 XL 8 mm Extended Temperature Range (ETR) Proximity Probes provide precise automated vibration and position measurements.
