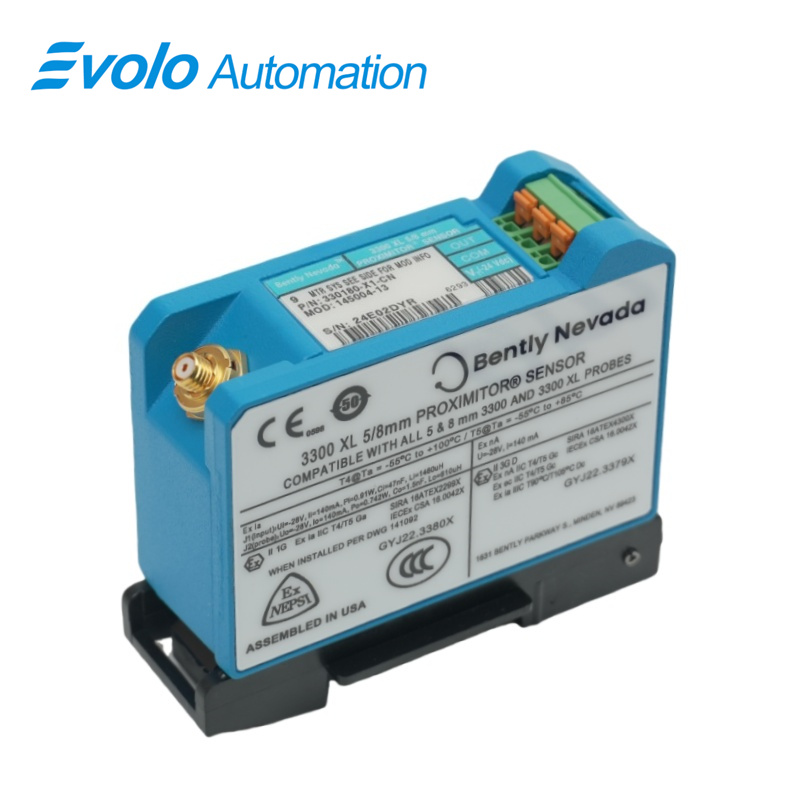

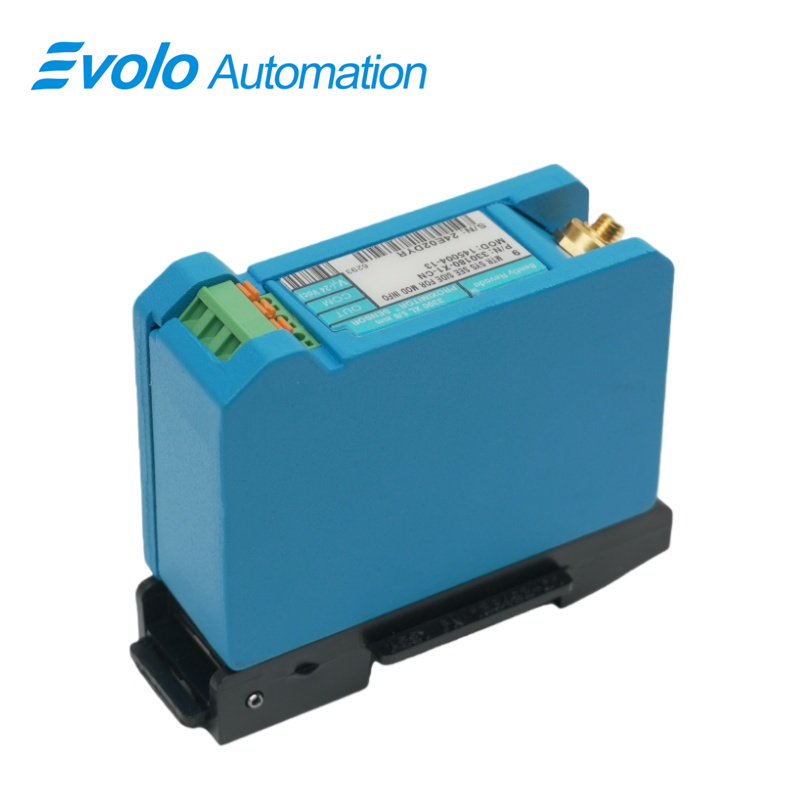

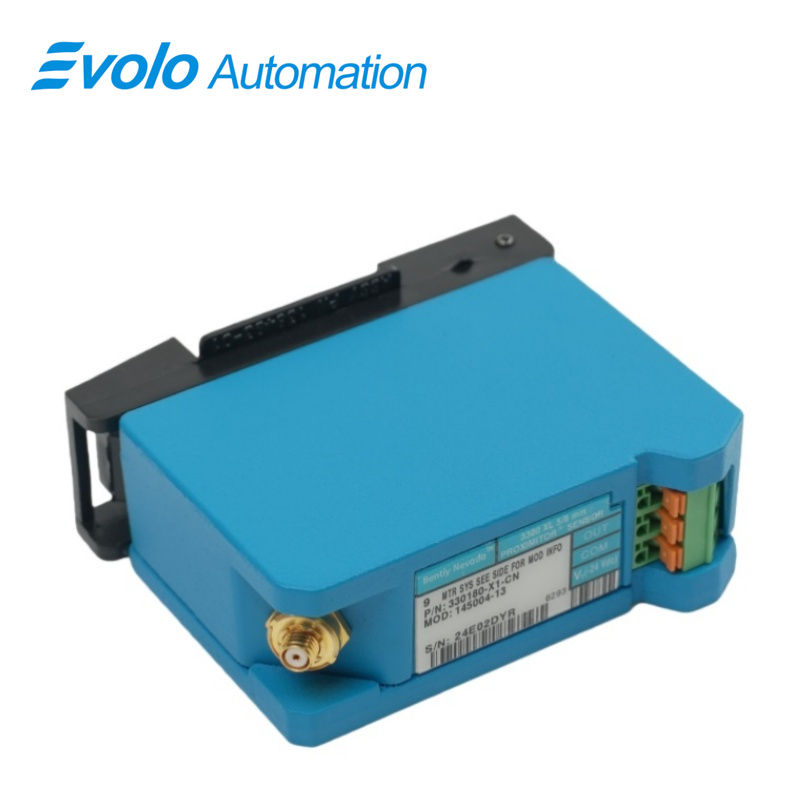

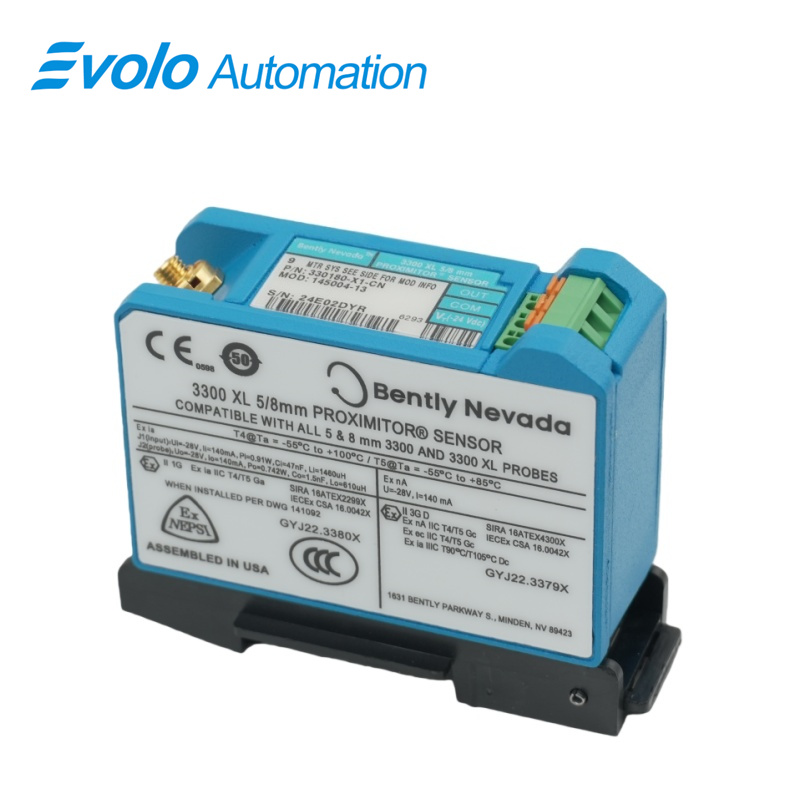

330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor

Overview

Place of Origin:	USA
Brand Name:	Bently Nevada
Model Number:	330180-X1-CN MOD 145004-82
Packaging Details:	Original new Factory Sealed
Delivery Time:	5-7 days
Payment Terms:	T/T
Supply Ability:	In stock

Quick Detail

Description

The 330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor supports one non-contacting 3300-series 5 mm or 3300 XL 8 mm Proximity Probe with extension cable input. With a 1.0-meter system length and no mounting hardware, the 330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor can be integrated into DIN-rail or panel-mounted automation setups. Operating from –17.5 Vdc to –26 Vdc, the sensor maintains output voltage changes under 2 mV per volt of input, and its 50 Ω output resistance supports precise analog signal delivery. The 330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor operates from –52°C to +100°C, handles storage up to +105°C, and provides a frequency response of 0–10 kHz across field wiring up to 305 meters. It detects targets as small as 15.2 mm diameter, with output voltages of 0.0247–0.0348 mV pp/Gauss across 10–90 mil gaps, enabling accurate position and vibration monitoring. SpringLoc terminals simplify 16–24 AWG field wiring connections, reducing installation time. Approved by CSA, ATEX, and IECEx, the 330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor delivers automated monitoring of shaft vibration, position, and Keyphasor speed signals in high-density industrial control systems.

Applications

Vibration Measurement on Fluid-Film Bearings
The 330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor measures shaft vibration using a 3300 XL 8 mm Proximity Probe, converting displacement into precise voltage output for real-time monitoring. Frequency response of 0–10 kHz ensures accurate capture of high-speed rotor vibrations.

Position Tracking in Rotating Machinery
Use the 330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor to monitor shaft position within a ±2 mm linear range. Field wiring up to 305 meters allows flexible installation in large industrial automation setups.

Keyphasor Reference Signal for Speed Control
The 330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor provides repeatable Keyphasor pulses from rotating shafts, enabling accurate speed measurement and synchronizing control loops. Output voltages of 0.0247–0.0348 mV pp/Gauss ensure precise signal generation.

Remote Data Transmission
With support for long-distance wiring, the 330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor delivers stable signals over distances up to 305 meters, enabling integration with remote automation and monitoring systems.

Specifications

Competitive Advantage

Precise Voltage Output
The 330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor converts 10–90 mil gap measurements into 0.0247–0.0348 mV pp/Gauss output, providing high-resolution feedback for control systems.

Quick and Secure Field Wiring
SpringLoc terminals of the 330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor accept 16–24 AWG wires without tools, enabling fast installation and reducing wiring errors.

Wide Operating Range
The 330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor functions from –52°C to +100°C, supporting industrial automation in extreme temperature conditions.

Flexible Mounting
DIN-rail or panel-mount options allow the 330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor to integrate seamlessly into existing automation systems without additional hardware.

Long-Distance Signal Integrity
The 330180-X1-CN MOD 145004-82 3300 XL Proximitor Sensor maintains frequency response from 0–10 kHz across 305 meters of wiring, ensuring accurate remote monitoring for industrial control applications.
