Overview
Place of Origin: |
USA |
Brand Name: |
Bently Nevada |
Model Number: |
330180-X0-05 MOD 145004-63 |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
5-7 days |
Payment Terms: |
T/T |
Supply Ability: |
In stock |
Quick Detail
|
Total Length and Mounting Option: |
1.0 meter (3.3 feet) system length, no mounting hardware |
|
Agency Approval Option: |
CSA, ATEX, IECEx Approvals |
|
Proximitor Sensor Input: |
Accepts one non-contacting 3300-series 5 mm, 3300 XL 8 mm Proximity Probe and Extension Cable |
|
Power: |
-17.5 Vdc to -26 Vdc |
|
Proximitor Sensor Material: |
A308 aluminum |
|
Supply Sensitivity: |
Less than 2 mV change in output voltage per volt change in input voltage |
|
Dimension: |
8x6x6.2cm |
|
Weight: |
0.22kg |
Description

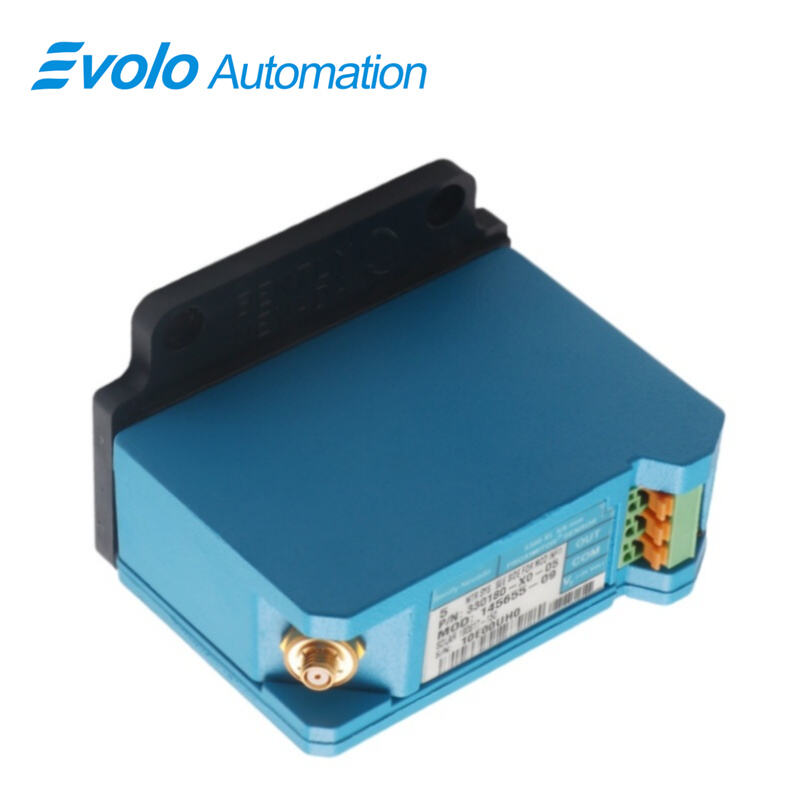

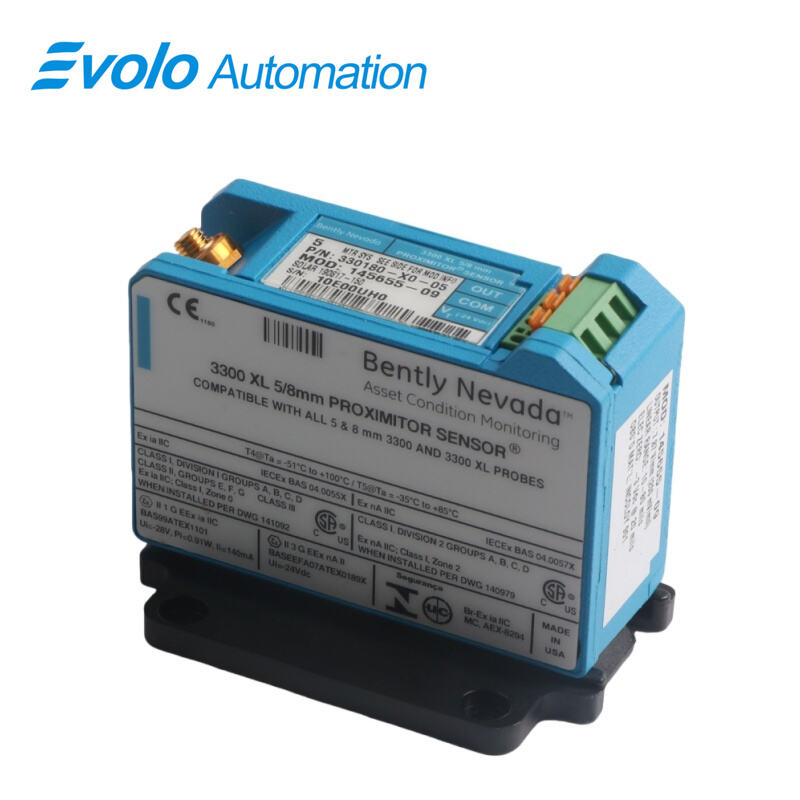

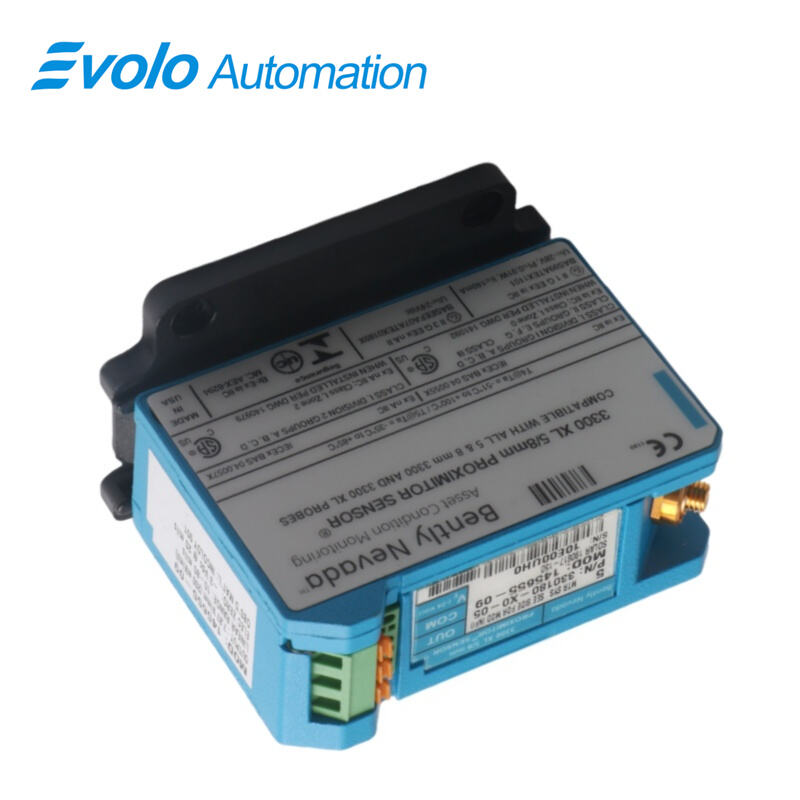

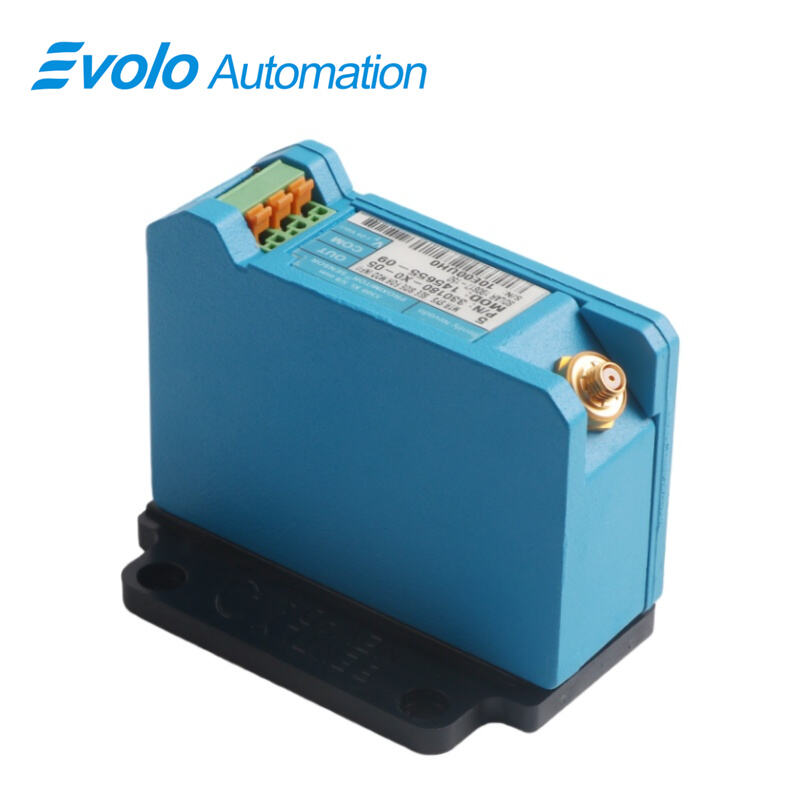

The 330180-X0-05 MOD 145004-63 3300 XL Proximitor Sensor converts signals from 3300-series 5 mm or 3300 XL 8 mm Proximity Probes into accurate voltage outputs for automated monitoring systems. The 330180-X0-05 MOD 145004-63 supports system lengths of 1.0 meter (3.3 feet) and maintains frequency response from 0 to 10 kHz across field wiring up to 305 meters (1000 feet).
The 330180-X0-05 MOD 145004-63 features an A308 aluminum housing with no mounting hardware, allowing installation in tight control panels or DIN racks. It operates from –52°C to +100°C and can be stored up to +105°C, ensuring reliable measurement in industrial automation. SpringLoc terminal strips allow rapid wiring of 16–24 AWG conductors without tools.
Output voltages scale with probe-to-target distance: 0.0247 mV pp/Gauss at 10 mil, 0.0323 at 50 mil, and 0.0348 at 90 mil, enabling precise Keyphasor reference, shaft speed monitoring, and vibration measurement. CSA, ATEX, and IECEx approvals allow the 330180-X0-05 MOD 145004-63 to be deployed in hazardous-area automation applications while maintaining reliable signal conversion and minimal setup complexity.
Applications
Vibration Monitoring on Fluid-Film Bearings
The 330180-X0-05 MOD 145004-63 receives signals from 3300 XL 8 mm Proximity Probes to measure shaft vibration. With a frequency response up to 10 kHz and field wiring up to 305 meters (1000 feet), the 330180-X0-05 MOD 145004-63 ensures accurate real-time vibration data for automated monitoring.
Shaft Position Measurement
Using its 0.0247–0.0348 mV pp/Gauss output across 10–90 mil gaps, the 330180-X0-05 MOD 145004-63 provides precise position readings. Its 1.0-meter system length and SpringLoc terminals allow quick integration into automation panels.
Keyphasor Reference and Speed Measurement
The 330180-X0-05 MOD 145004-63 supports Keyphasor output for rotating equipment, delivering accurate speed and phase data to control systems, with input power between –17.5 Vdc and –26 Vdc.
Specifications
|
Output Resistance: |
50 Ω |
|
Operating Temperature: |
-52°C to +100°C (-62°F to +212°F) |
|
Storage Temperature: |
-52°C to +105°C (-62°F to +221°F) |
|
Frequency Response: |
(0 to 10 kHz), +0, -3 dB, with up to 305 meters (1000 feet) of field wiring |
|
Minimum Target Size: |
15.2 mm (0.6 in) diameter (flat target) |
|
Output Voltage in Mil pp/Gauss(9 meter Proximitor Sensor): |
0.0247 (Gap: 10) |
|
Output Voltage in Mil pp/Gauss(9 meter Proximitor Sensor): |
0.0323 (Gap: 50) |
|
Output Voltage in Mil pp/Gauss(9 meter Proximitor Sensor): |
0.0348 (Gap: 90) |
Competitive Advantage
High-Density Installation
The 330180-X0-05 MOD 145004-63 features a compact 1.0-meter system length and no mounting hardware, enabling deployment in tight DIN rail or panel configurations while maintaining electrical isolation.
Long Field Wiring Capability
Field wiring up to 305 meters (1000 feet) retains less than 2 mV change per volt of input, allowing the 330180-X0-05 MOD 145004-63 to maintain accurate voltage outputs across long-distance automation setups.
Rapid Field Wiring
SpringLoc terminal strips of the 330180-X0-05 MOD 145004-63 accept 16–24 AWG wiring without special tools, speeding installation and reducing labor in automated control systems.
Wide Operating Temperature Range
The 330180-X0-05 MOD 145004-63 operates between –52°C and +100°C and stores safely up to +105°C, making it suitable for high-temperature industrial machinery monitoring.
